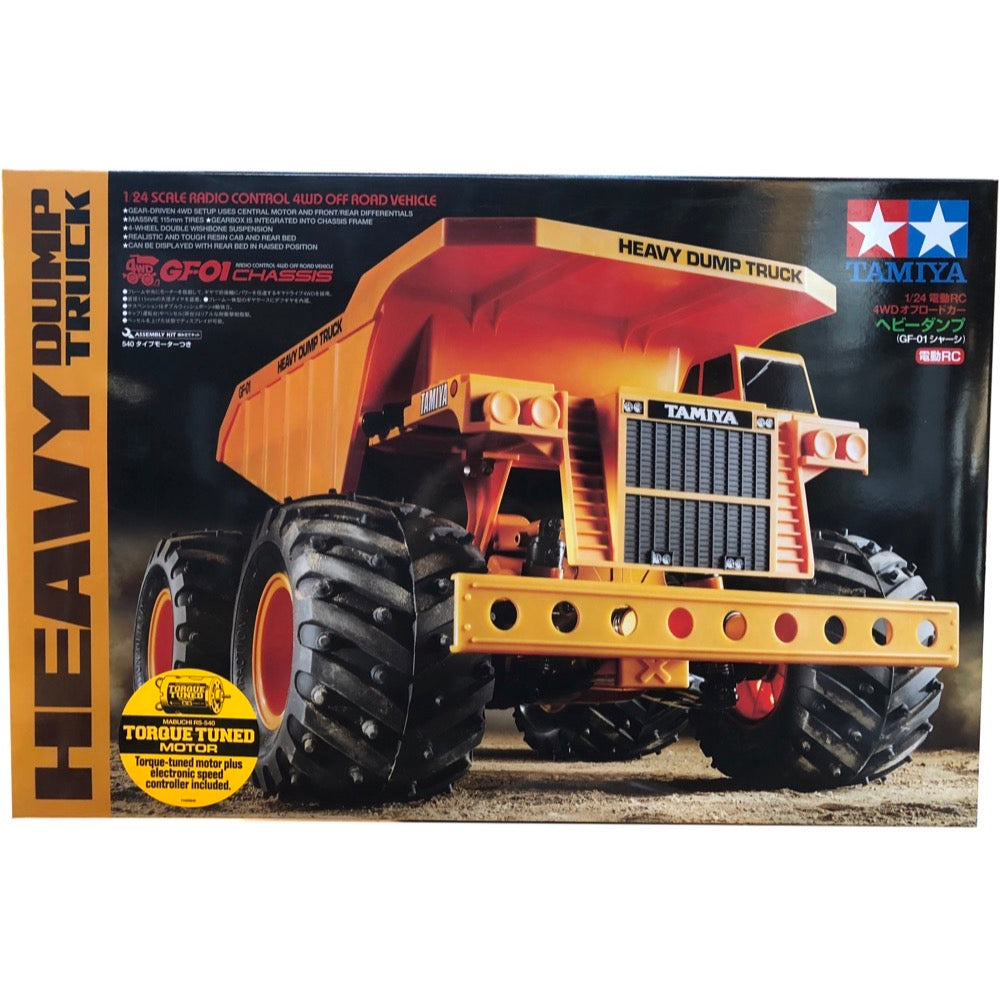

Tamiya 58622 Heavy Dump Truck GF01 1/24 RC Off Road Kit

Product Code: T58622
$249.99 $199.99 20%

In-stock items and stock levels are subject to continuous change. Click & collect orders can be used to reserve items prior to in store collection. Store transfers and holds available on request.

GF-01: Square Set-up, Excellent Performance

This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. It utilizes a 'square' setup with similar tread and wheelbase lengths. Sealed gearbox is integrated into the frame and protects from dust and debris, while the built-in front and rear differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension and friction dampers plus a 2-piece tie rod steering setup with the servo on the left for excellent response. Furthermore, it has wheels molded in yellow to match the chassis, fitted with big 115mm diameter tires, in addition to a rear support bar with roller to prevent the model from flipping.

This R/C assembly kit depicts a dump truck modeled upon those which do the heavy work in locations like quarries and large-scale construction sites. The model is based on the popular gear-driven GF-01 chassis.

The GF-01 chassis plays off the successful and fun line-up of RC kits such as the Wild Willy 2, Volkswagen Type 2 and the Farm King Wheelie. Whereas those kits featured a 2WD and easy to wheelie platform, the new GF-01 is a 4WD incarnation with the motor directly placed in the center in order to drive the gears in the front and rear gearboxes.


Requires

  • 2 Channel Transmitter
  • NiMH battery
  • Suitable Charger
  • Poly-carbonate Spray for body shell
  • Steering Servo
    • Length: 350mm
    • Width: 270mm
    • Height:210mm
    • Wheelbase: 174mm
    • Tread (Front & Rear): 200mm
    • Tire Width/Diameter: 68mm/115mm
    • Monocoque Frame
    • Gear-Driven 4WD 3-Bevel Type
    • Differentials 2-Piece Steering
    • Tie-Rod Front/Rear Double Wishbone Suspension
    • Gear Ratio = 18.03:1
    • Type 540 Motor
