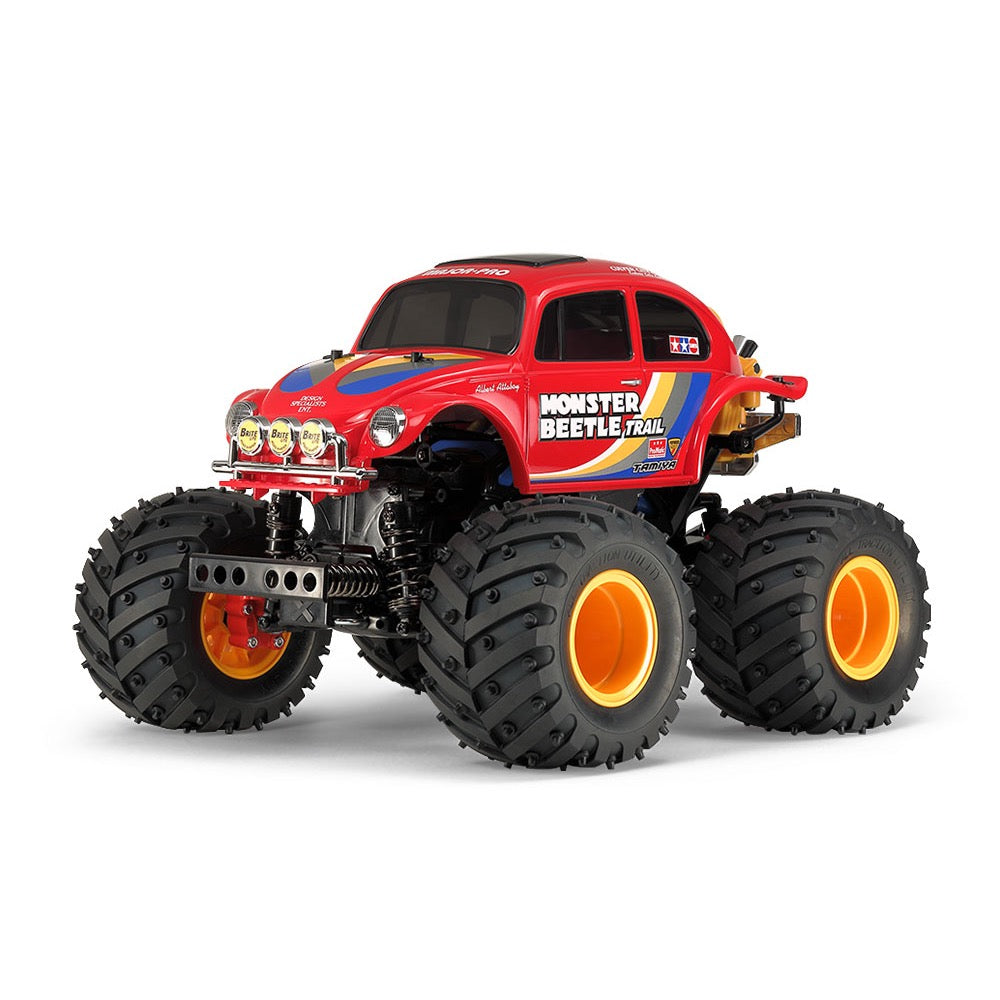

Tamiya 58672 Monster Beetle Trail 4WD RC Assembly Kit 1/14 GF-01TR Chassis with ESC

Product Code: T58672
Barcode: 4950344586721

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing

The Classic Tamiya Monster Beetle. The Iconic RC kit.

This version takes the classic body, shrinks it to a smaller scale, and mounts it on a variant GF-01 chassis called the GF-01TR!

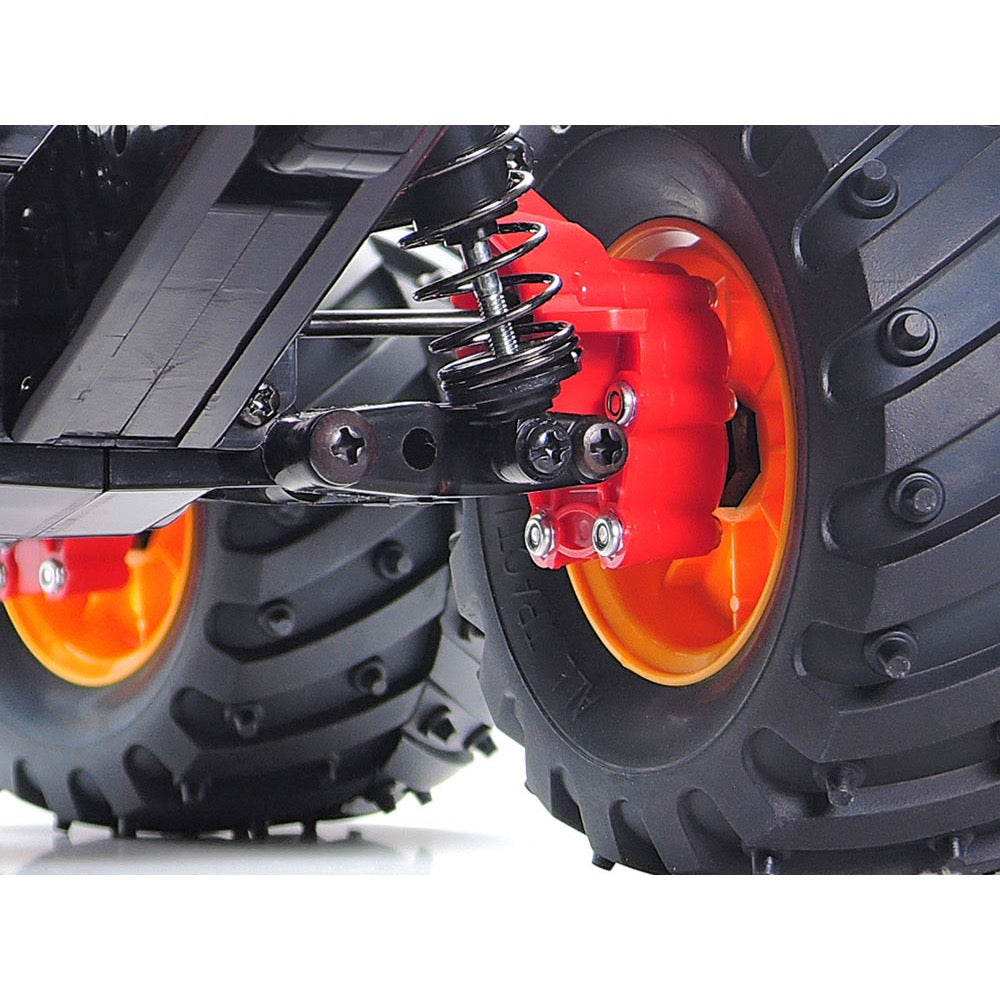

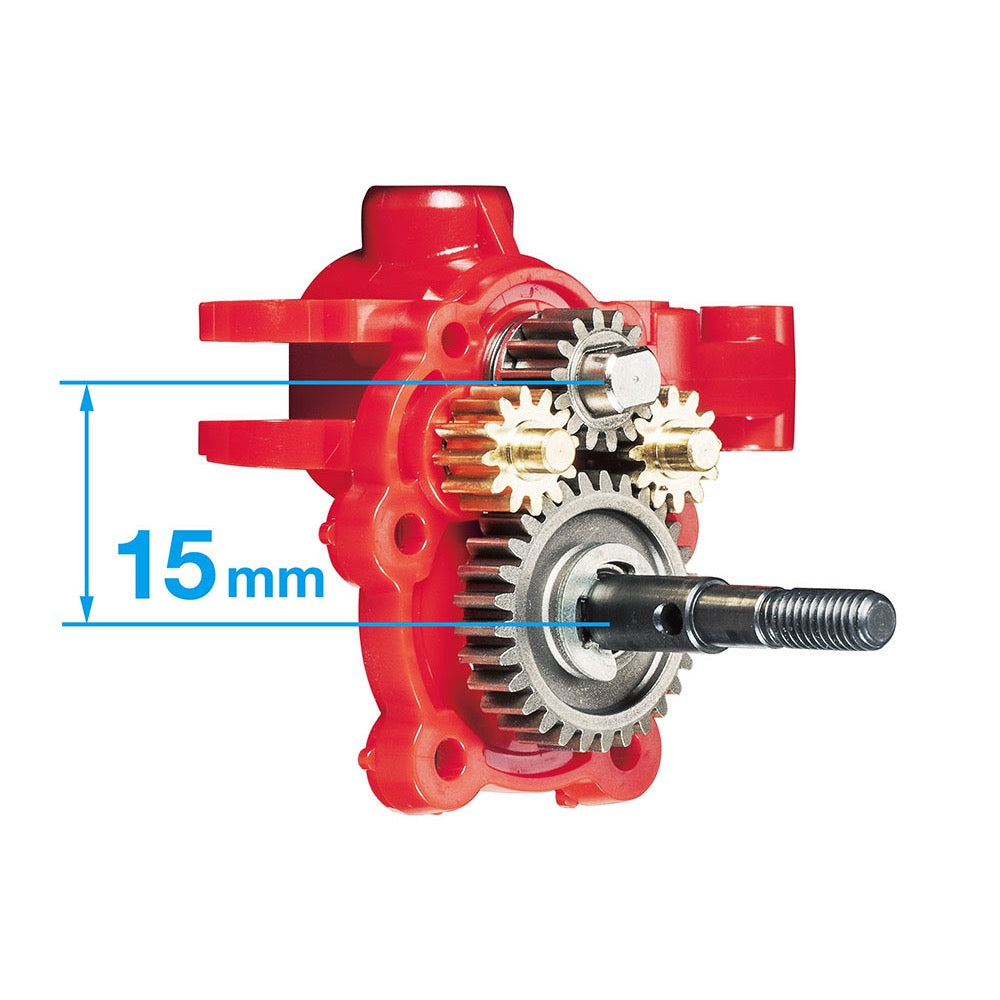

The GF-01TR fits the gear-driven GF-01 chassis with reduction gears (also known as portal axles). This modification allows the hobbyist to better transverse trail terrain as it lifts the bottom of the chassis to better clear obstacles that could high center the vehicle and render it stuck.

GF-01TR Chassis

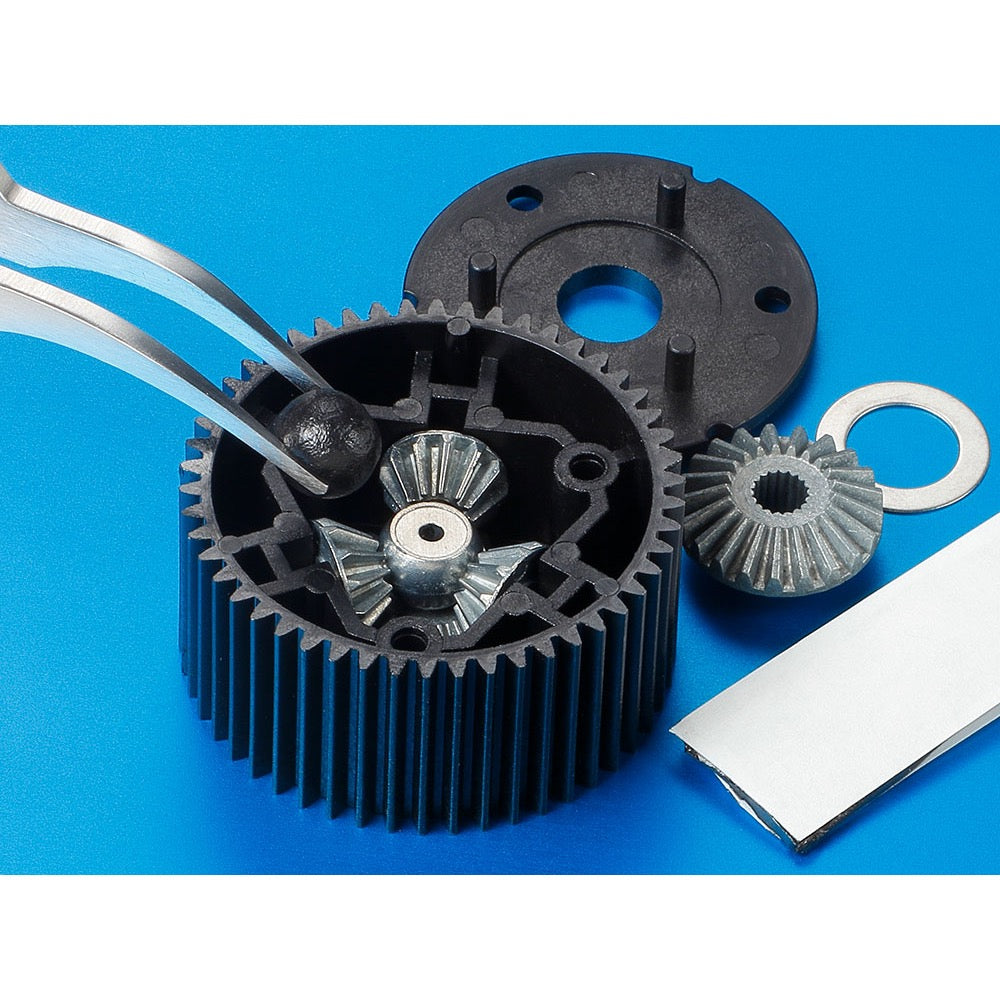

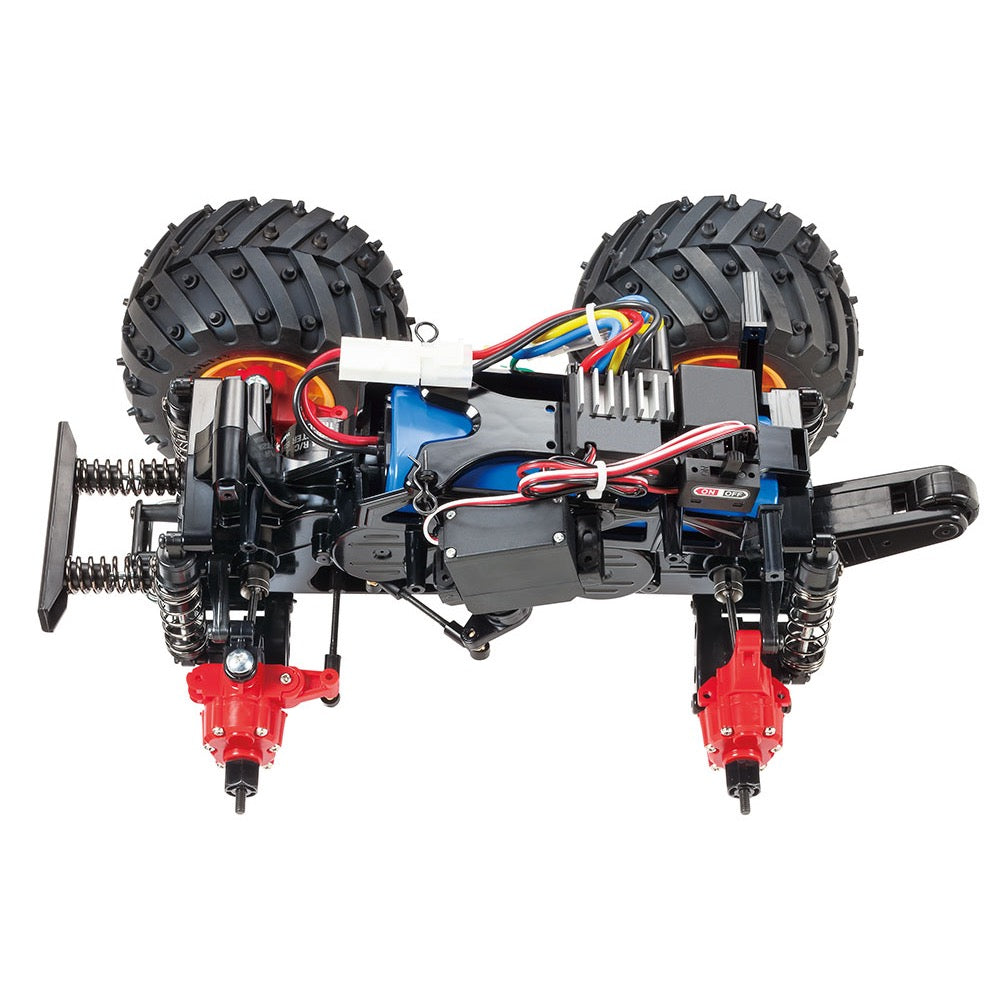

This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance, and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris, and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. 4-wheel double wishbone suspension utilizes friction dampers, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow wheels are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip. The chassis utilizes a ‘square’ setup with similar tread and wheelbase lengths.


  • 1/14 scale RC model assembly kit. Length: 333mm, width: 270mm. Wheelbase: 274mm.

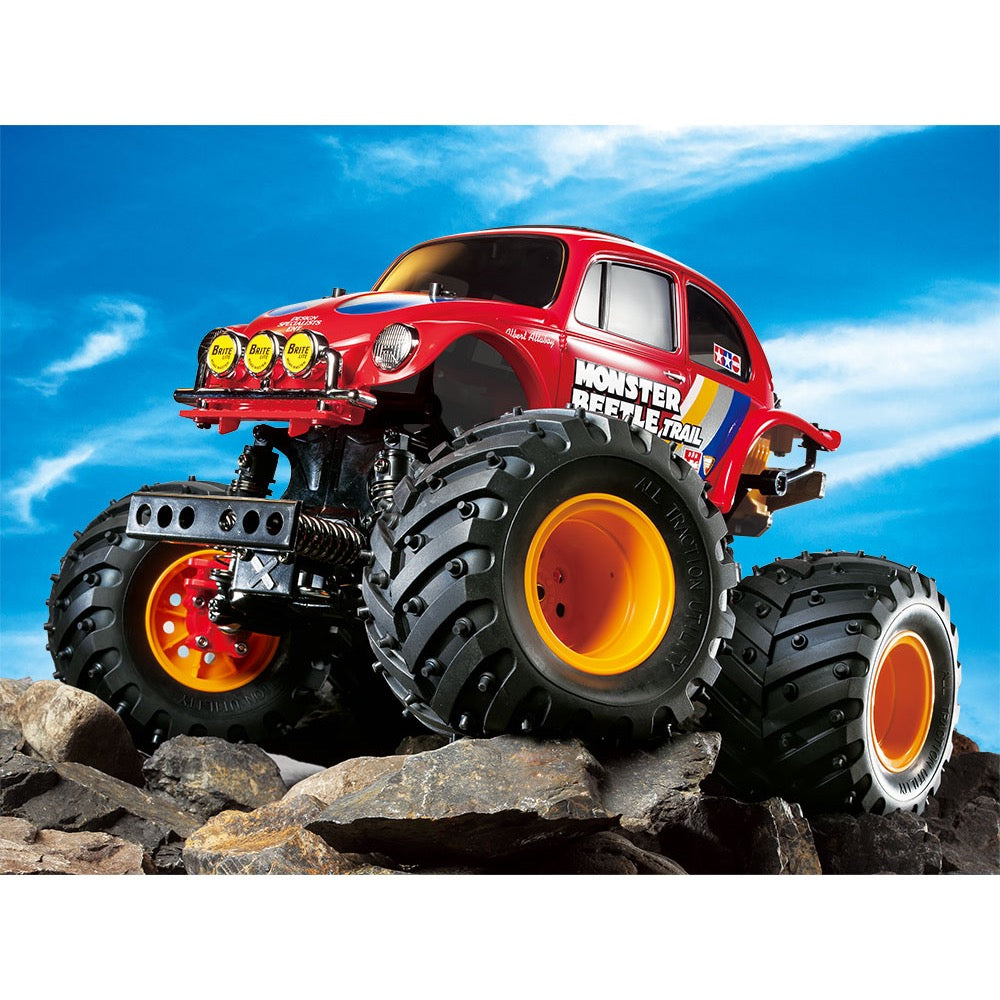

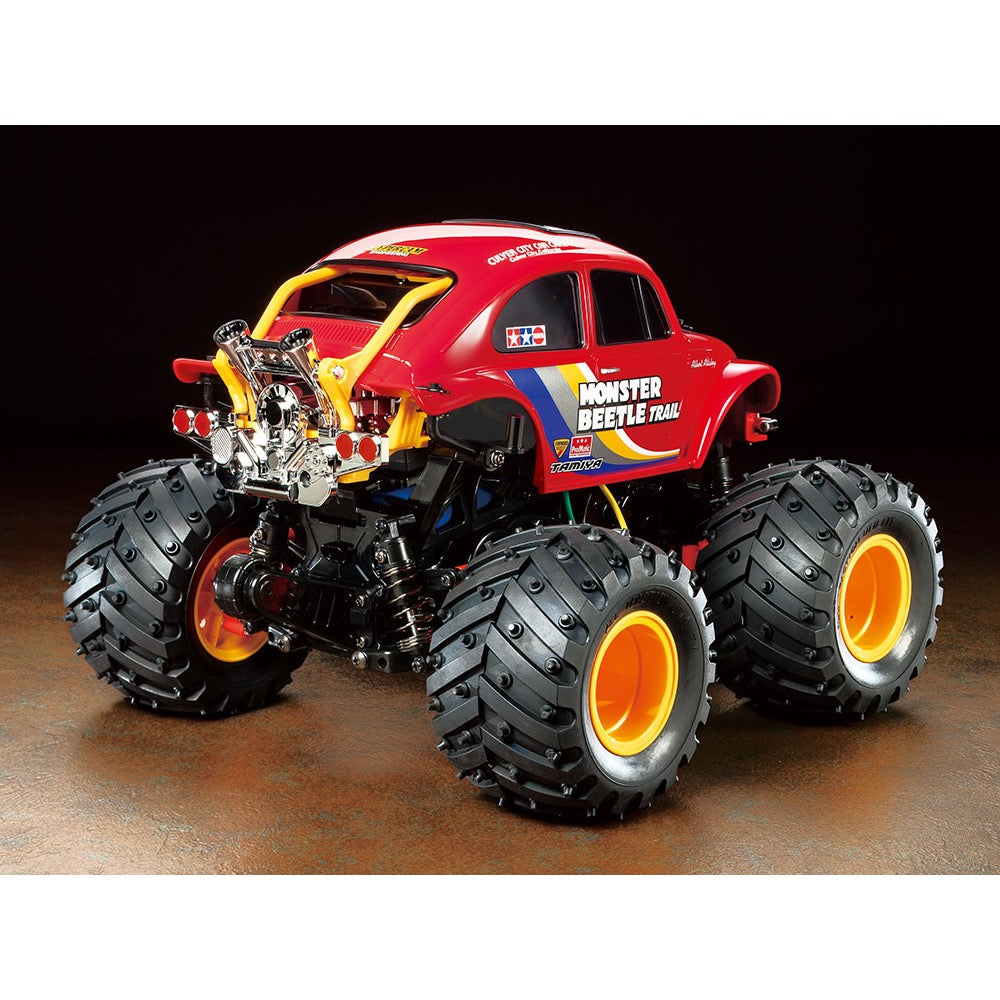

  • Body is molded in red ABS Plastic. It depicts a customized Beetle with gaping fenders, triple auxiliary lights and a shortened rear end.

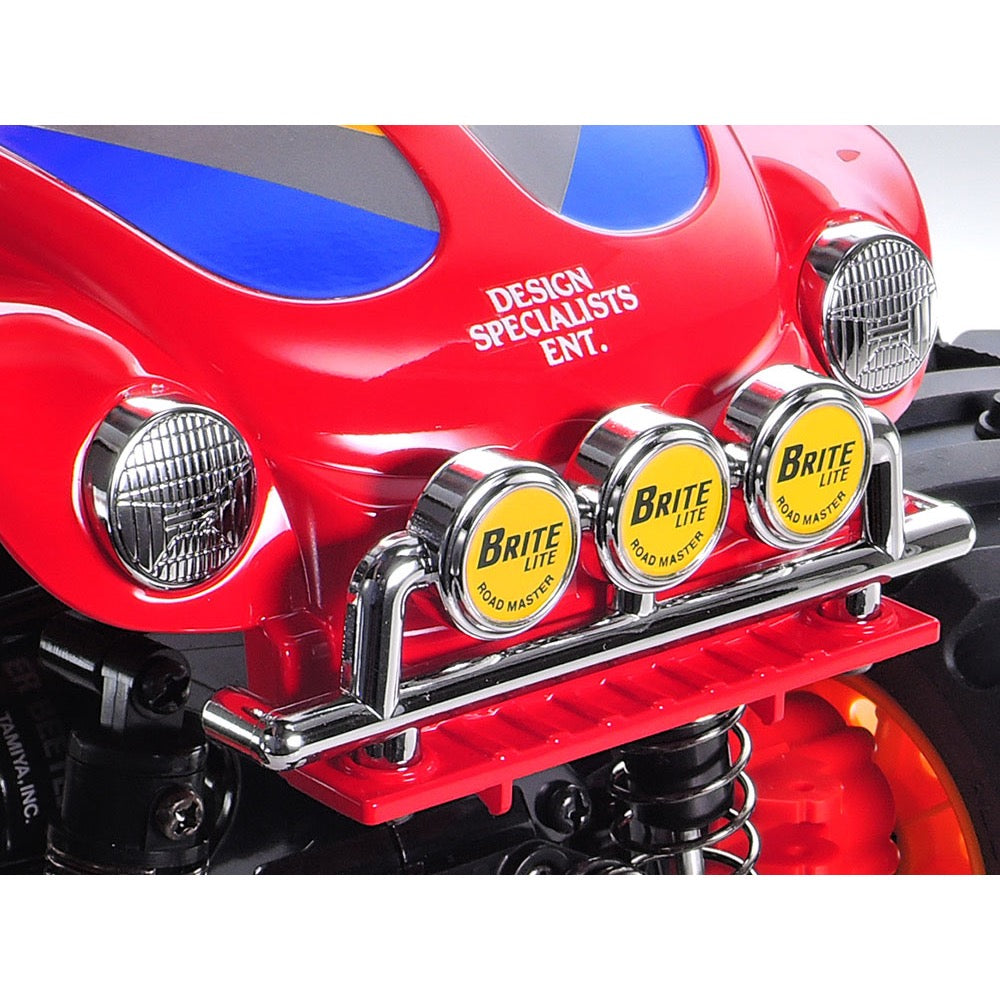

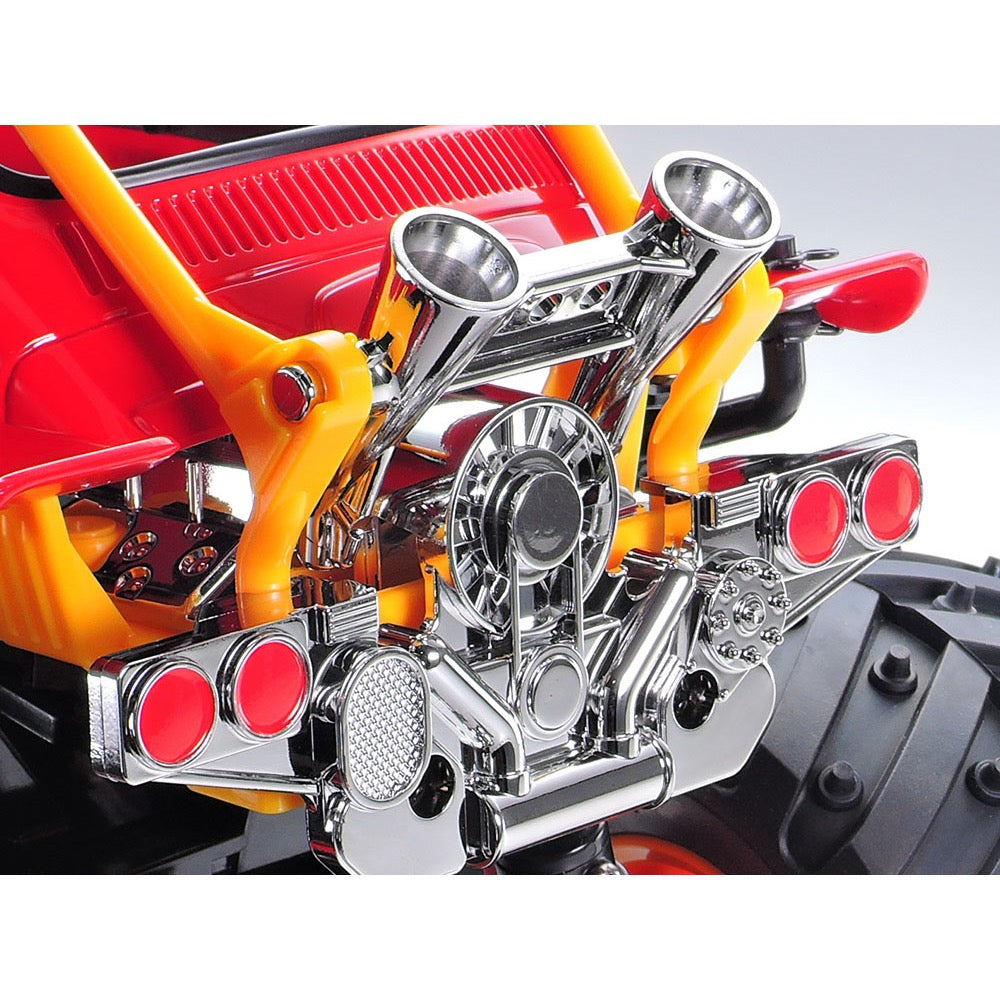

  • Metal-plated parts for headlights, auxiliary lights and engine.
  • The model is based upon the tough, reduction gear-fitted GF-01TR variant chassis.
  • 37.35:1 gear ratio (with the kit-standard 18T pinion gear) gives great drive. The model is also compatible with 20T pinion gears (for a 33.61:1 gear ratio).
  • Yellow wheels are complimented by 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip.
  • Includes 540-type motor.
  • Includes ESC.


  • 2-Channel Radio Control Unit with receiver
  • NiMH Battery and appropriate charger
  • Batteries for RC Transmitter

  • Adjustable Gear Ratio : Yes
  • Bearings : Plastic bushing
  • Body : Material ABS Plastic
  • Body Stickers : Included
  • Chassis Material : ABS Plastic
  • Chassis Type : GF-01 TR
  • Construction Type : Assembly Kit
  • Differential : Type Gear
  • Drive Type : 4WD
  • Electronic Speed Control Required:  TBLE-02 S ESC (May be used for brushed and brushless motor applications)
  • Motor : Brushed 540 Type
  • Requires: 2-Channel Radio, servo, 7.2-7.4volt round shape battery pack & compatible charger, and Tamiya TS paints.
  • Scale : 1/14
  • Shock Damper : Friction damper
  • Suspension : Fully Independent Double Wishbone
  • Terrain Use : Multi-Purpose
