Tamiya 1/10 Plasma Edge II RC Off Road Kit 58630A

Product Code: T58630A
$169.99

In-stock items and stock levels are subject to continuous change. Click & collect orders can be used to reserve items prior to in store collection. Store transfers and holds available on request.

Get an Edge on the Competition

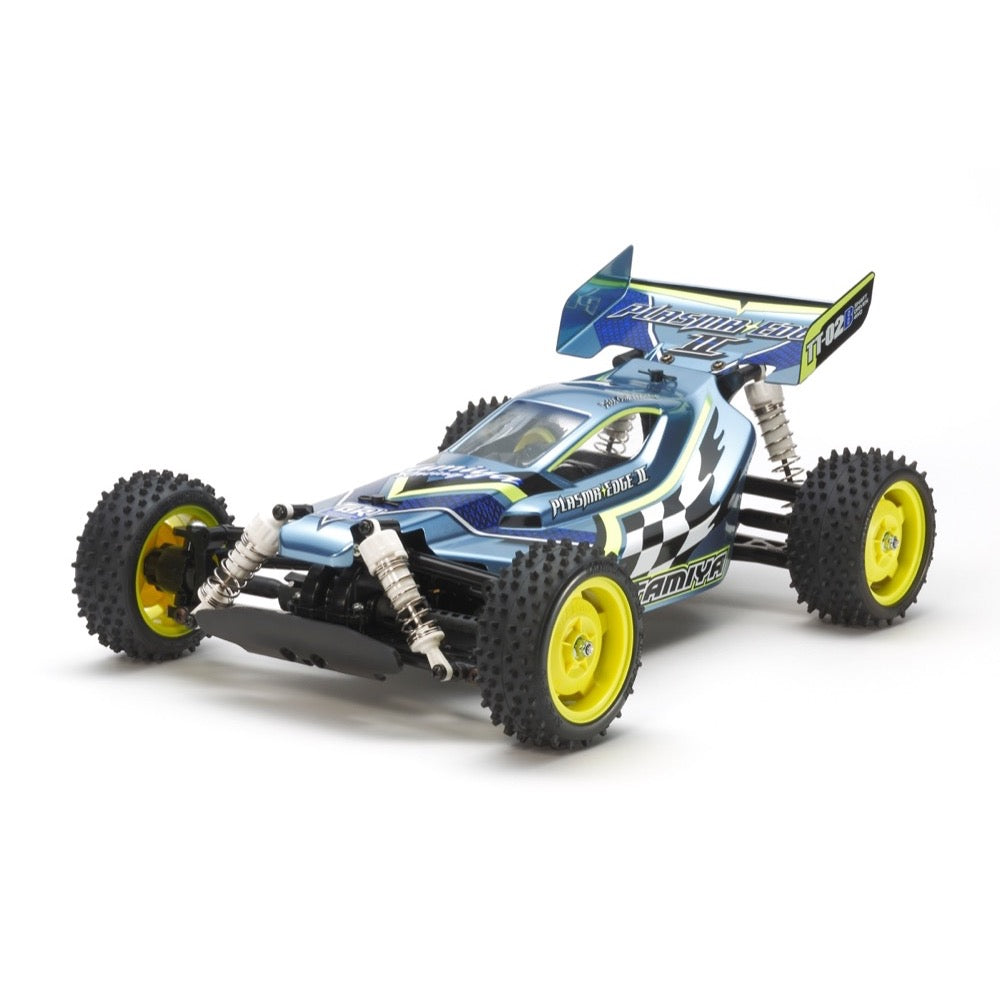

This exciting shaft-driven 4WD R/C buggy assembly kit creates the Plasma Edge II, and includes stylish polycarbonate body and rear wing parts. Marking stickers add to the racy mood of the model, as do fluorescent yellow star dish wheels and white CVA oil shocks. The TT-02B is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability.

Shaft-Driven 4WD and Superior Handling from the TT-02B

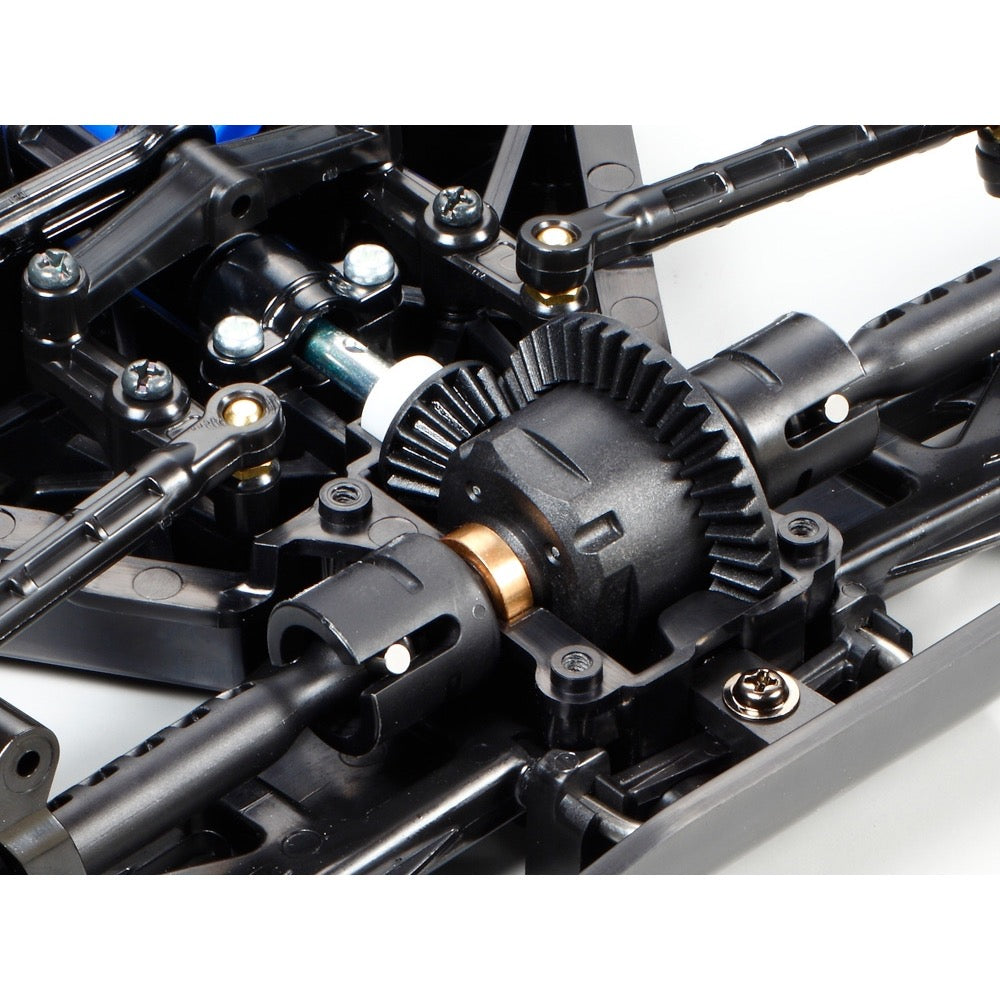

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening a few screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

Features

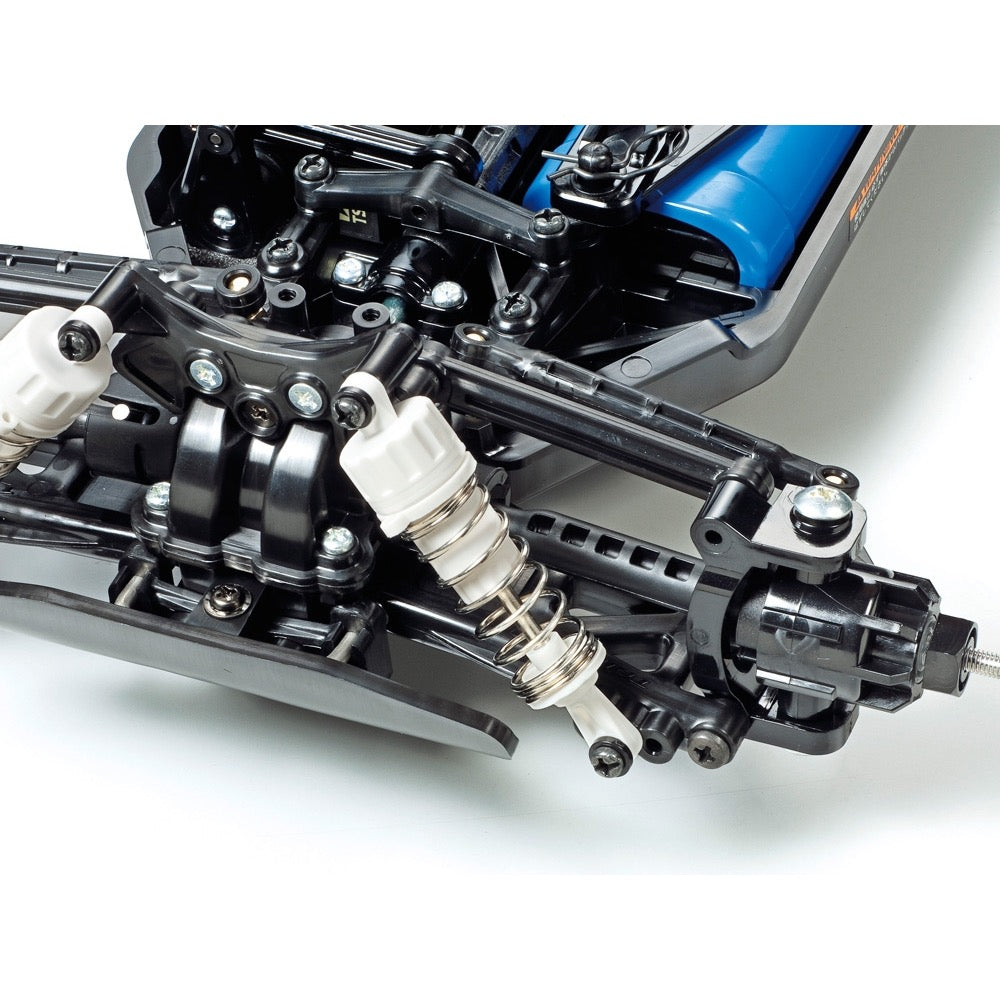

  • 4-wheel independent double wishbone suspension is fitted with long arms and CVA oil shock units.
  • Reliable shaft-driven 4WD system employs front and rear sealed gearboxes offering easy maintenance.

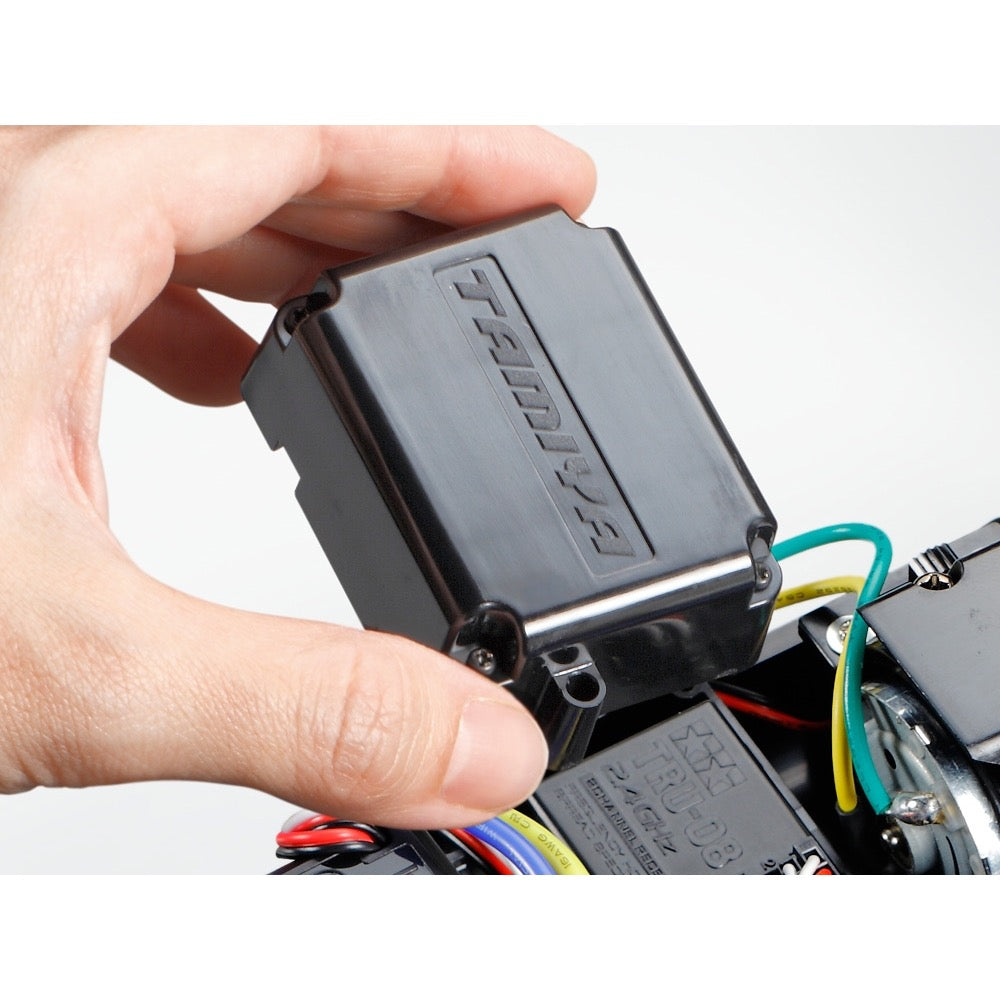

  • Chassis includes a durable and tough receiver case to protect the unit from dirt and debris.

Requires

  • 2-Channel R/C Unit
  • Battery Pack & Charger
  • R6/AA/UM3 batteries for transmitter
  • ESC Electronic Speed Controller
  • Length: 370mm, Width: 250mm, Height: 160mm
  • Wheelbase: 266mm
  • Tread: 217mm (Front), 208mm (Rear)
  • Bathtub-type Chassis Frame
  • Shaft-Driven 4WD
  • Front/Rear 4-Bevel Differentials
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear) (Square Spike Tires)
  • CVA Oil Shock Units
  • Gear Ratio=10.71:1 (with kit-included pinion gear)
  • Type 540 Motor
  • Requires an Electronic Speed Controller (sold separately)
