Tamiya 58579 1/10 Land Freeder CC-01 RC Off Road Kit

Product Code: T58579
$229.99

In-stock items and stock levels are subject to continuous change. Click & collect orders can be used to reserve items prior to in store collection. Store transfers and holds available on request.

Just asking to be taken off-road

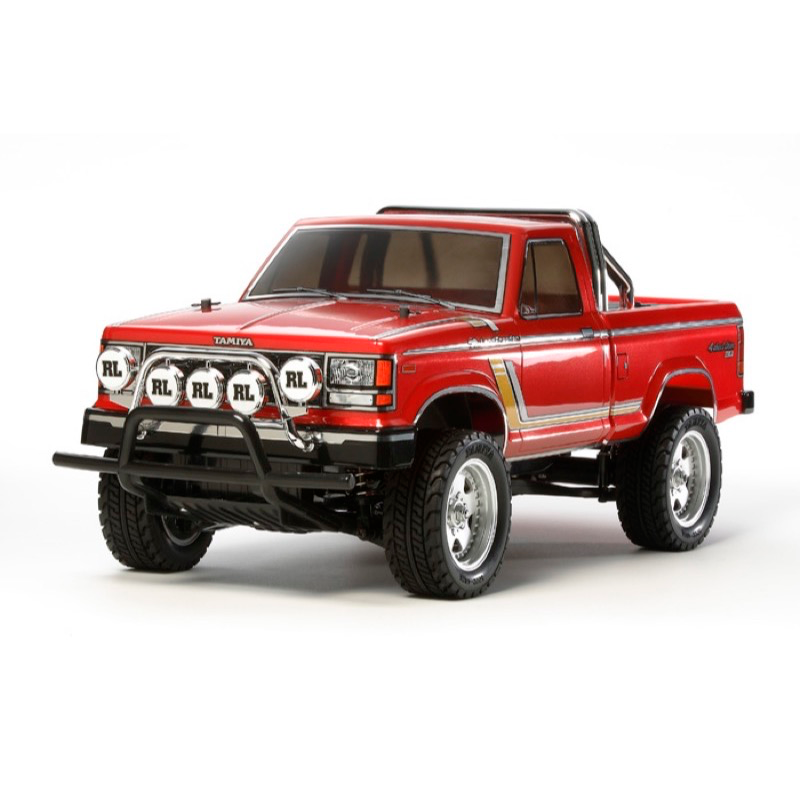

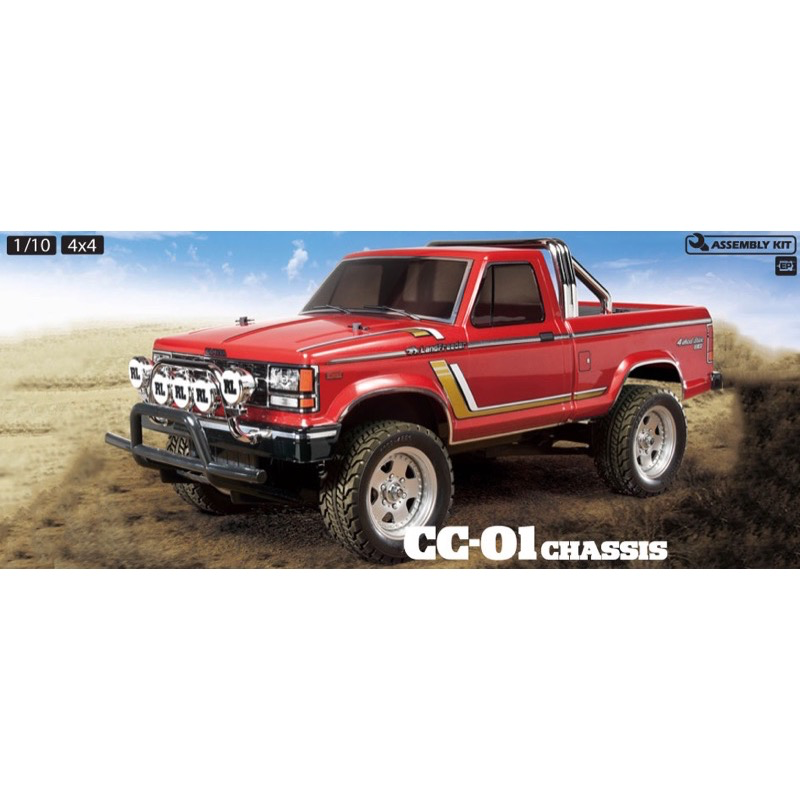

This R/C model assembly kit recreates the charismatic and powerful form of a 1980s 4WD pick-up truck, with great attention to detail. It features a realistic polycarbonate body with added metal-plated parts for fog lamps, grille guard and roll bar to give a grizzled and tough-looking finish. The shaft-driven 4WD CC-01 chassis is perfect for off-road driving, particularly when combined with the tread-pattern tires which are mounted on the model's flat-finish wheels.

The All-Terrain CC-01 Chassis

The highly reliable and efficient full-time 4WD system features a midship motor, which transmits power to the front wheels via the gearbox and to the rear wheels via propeller shaft. Front and rear differentials enable smooth cornering, and for even greater off-road performance on rough terrain, the rear differential may be locked during assembly. The chassis suspension employs double-wishbone front upper I-arms and lower H-arms plus rear rigid suspension. With four CVA dampers in total fitted to the front and rear, there's enough cushion to take on even the roughest surfaces!

Requires

  • 2-Channel R/C System w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery Pack & Charger
  • Length: 455mm
  • Width: 193mm
  • Height: 181mm
  • Weight 1,330g (without R/C equipment and battery)
  • Wheelbase: 242mm
  • Tread (F/R): 163mm
  • Tire Width/Diameter (Front & Rear): 29/78mm
  • Ladder Frame Bathtub Type Chassis
  • Longitudinally-Placed Motor & Shaft-Driven Full-Time 4WD
  • Front and Rear 3-Bevel Differential Gears
  • Front Suspension: Double Wishbone
  • Rear Suspension: 4-Link Rigid
  • Front and Rear CVA Oil Dampers
  • Gear Ratio = 1:14.67
  • Requires an Electronic Speed Controller (sold separately)
  • 540 Type Motor included
