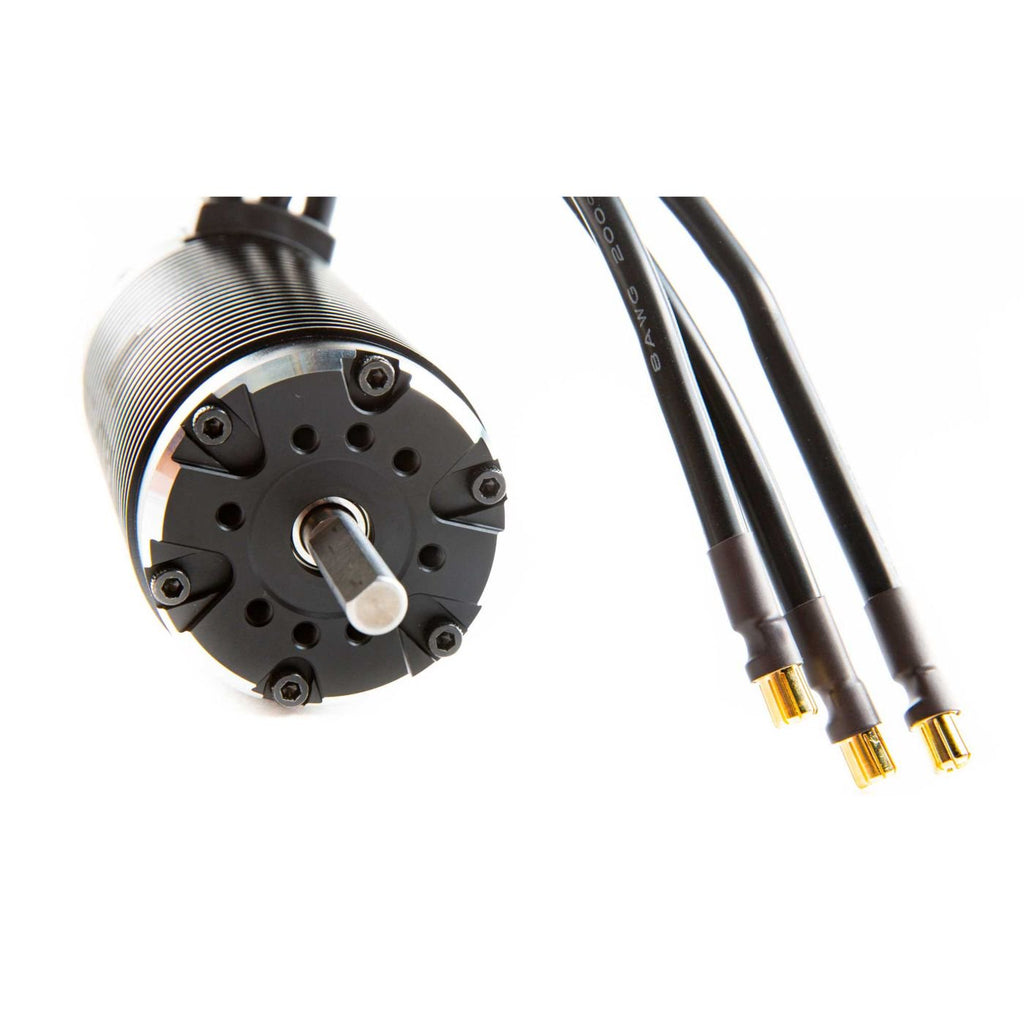

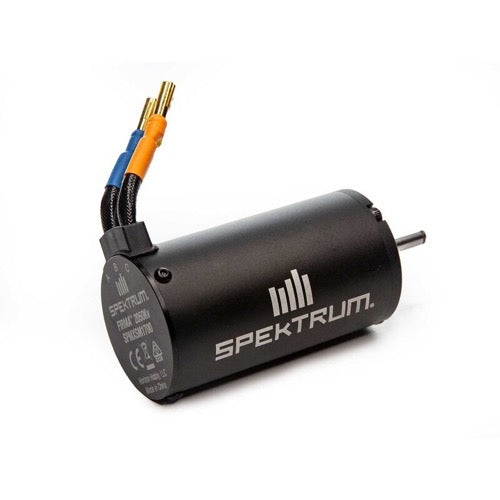

Spektrum SPMXSM1700 FIRMA 2050kv 1/8th Brushless Motor

Firma 2050Kv Brushless Motor

The Firma 2050Kv brushless motor is a perfect option for 1/7 and 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

• Perfect upgrade for 1/7 and 1/8 scale racers and bashers
• Safe-D Shaft provides a C-clip locking point to prevent pinion gear slip
• High efficiency design
• 6S LiPo power capable
• High-quality 4-pole sintered rotor
• 4mm gold plated bullet connectors
• High-quality construction with precision ball bearings and hardened steel 5mm shaft

Includes

• Firma 2050Kv Brushless Motor

Requires

• 150A ESC

• Application: 1/8 scale buggy, truggy or monster trucks with 3S-6S LiPo setup
• Output: 5050W
• Number of Poles: 4
• Product Weight: 0.92lbs (415g)
• Shaft Diameter: 0.196" (5 mm)
• Size: 4074
• Maximum Continuous Current: 62A
• Motor Type: Brushless - Sensorless
• Input Voltage: 12 - 25.2V
• RPM/Volt (Kv): 1900Kv
• Outer Diameter: 1.57" (40 mm)
• Motor Design: Inrunner
• Connector Type: 4mm Bullet
• Efficiency: 85%
• Motor Size: 4074-2050Kv Brushless Inrunner
• Product Length: 2.9" (74 mm)
