Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

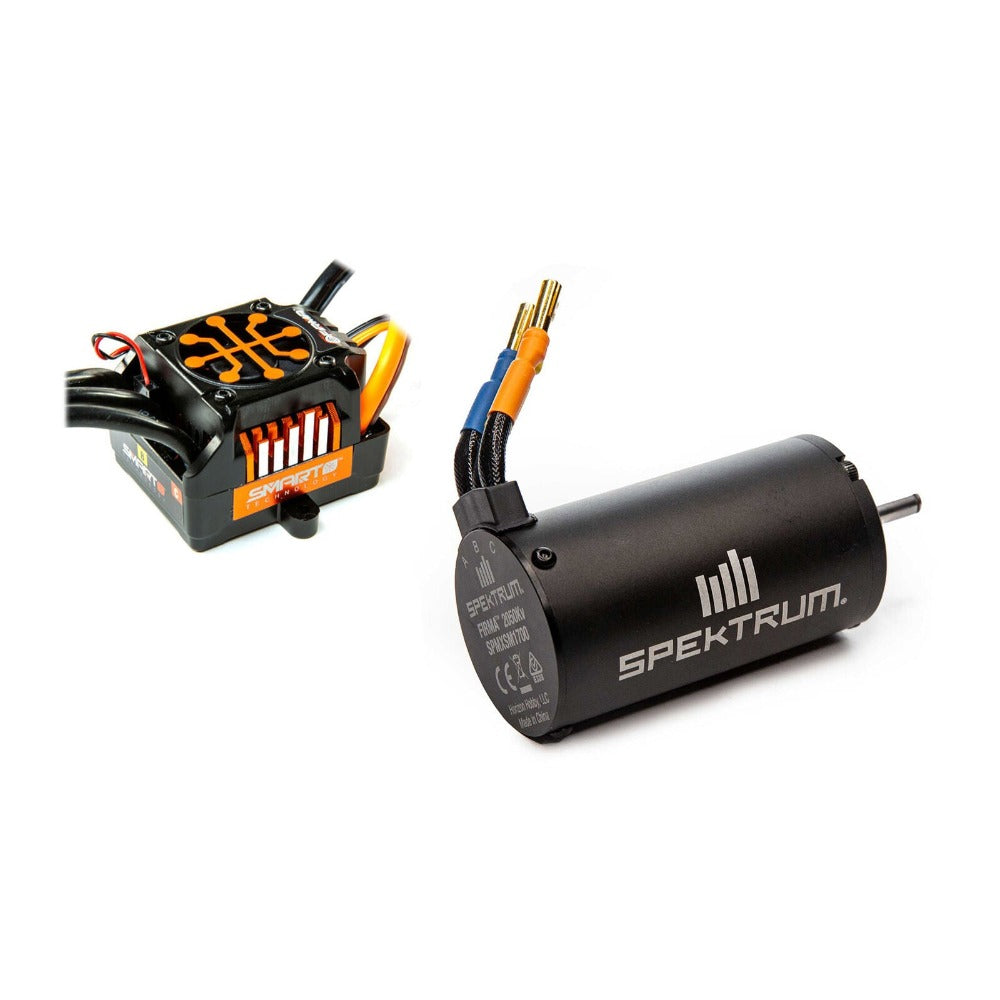

This ESC comes bundled with a Spektrum Firma 2050Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

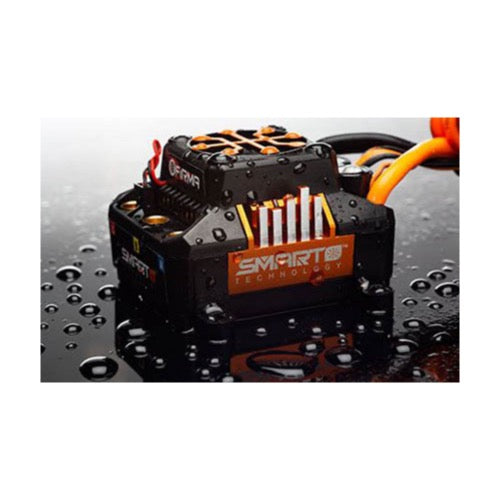

WATERPROOF
The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

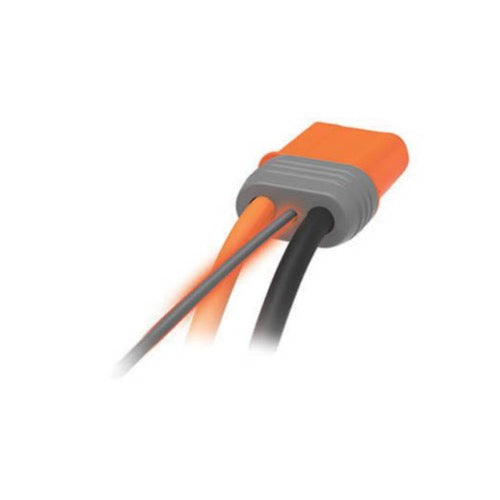

EC3™/EC5™ BACKWARDS COMPATIBLE
Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.
ONE-WIRE TELEMETRY
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

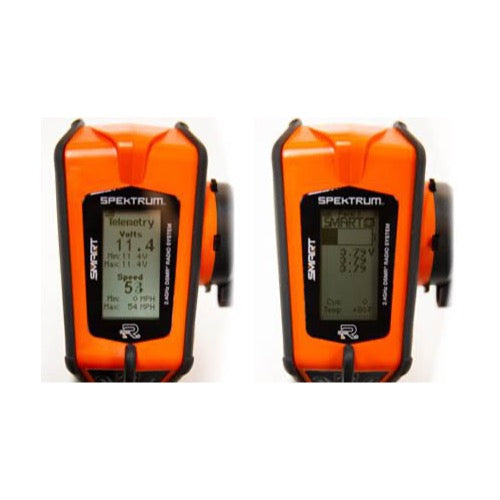

SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!
MULTIPLE PROGRAMMING OPTIONS
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.
FAST, POWERFUL M4 PROCESSOR
The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Comes bundled with Spektrum Firma 2050Kv Brushless Motor
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty
Spektrum™ Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
(1) Spektrum™ Firma™ Smart ESC
(1) Spektrum™ Firma™ 2050Kv Brushless Motor
(1) Spektrum Smart sticker sheet
(1) Product Manual
Amperage: 120A or larger
BEC Type: Linear
Max Input Voltage: 22.2V
Application: Surface
Auto Cutoff: Yes
BEC Continous Current: 4
Low-Voltage Cutoff Programmable: Yes
Output: 3000W
Overload Protection: Yes
Product Weight: 8.4oz (238g), ESC
Shaft Diameter: 0.197" (5 mm)
Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
Brakes: Yes
Integrated ESC: No
Programmable: Yes
Connector Type: IC5
ESC Type: Brushless
Motor Class: 1/8 Scale
Product Length: 2.3" (58mm), ESC
Maximum Burst Current: 950A
Maximum Continuous Current: 150A
Motor Type: Brushless
Constant Wattage: 3000W or more
Outer Diameter: 1.57" (40 mm)
Battery Input Lead: IC5
Product Width: 1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs, ESC
Technology: Smart
Forward: Yes
Reverse: Yes
RPM/Volt (Kv): 2050Kv
Sensor Type: Sensordless
BEC: Yes
BEC Voltage: 6V
Input Voltage: 3S - 6LiPo
Kv Rating: 2000-2499Kv
Motor Output Lead: 6.5mm
Product Application: Surface
Product Height: 1.5" (38.5mm), ESC
