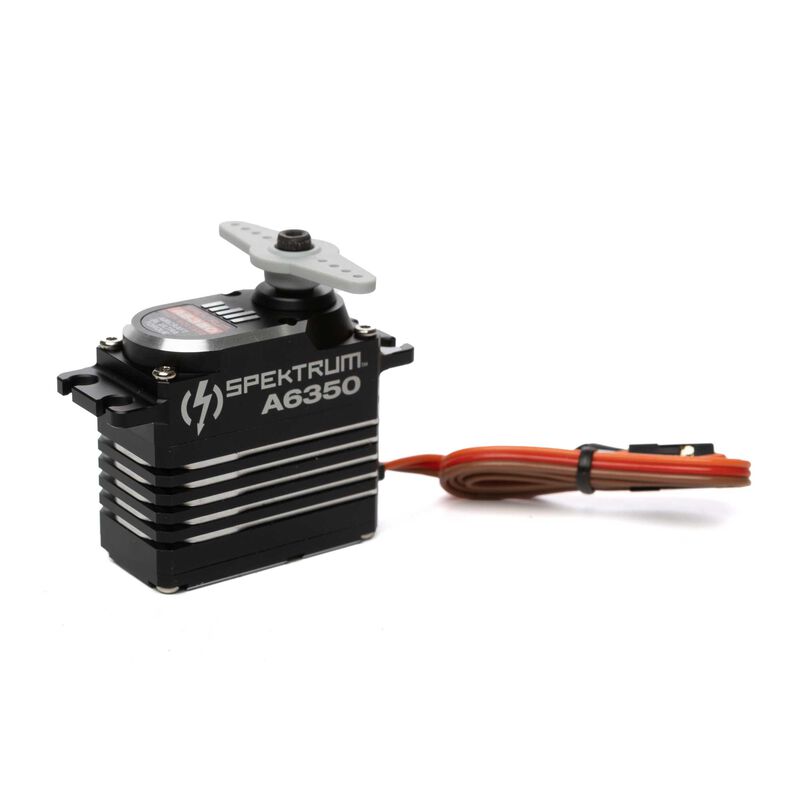

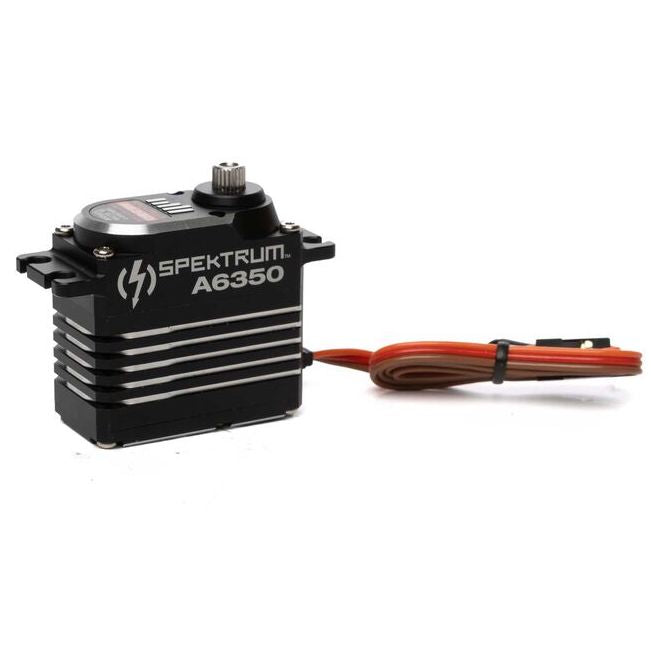

Spektrum SPMSA6350 A6350 Ultra Torque High Speed Brushless HV Servo

Product Code: SPMSA6350
Barcode: 605482154922
$471.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

A6350 Ultra Torque High Speed Brushless MG HV Servo

The Spektrum™ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.

Features

  • High Voltage (HV) capable (6.0-8.4v input range)
  • Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
  • Durable and long-lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Operating Frequency: 200hz to 333hz

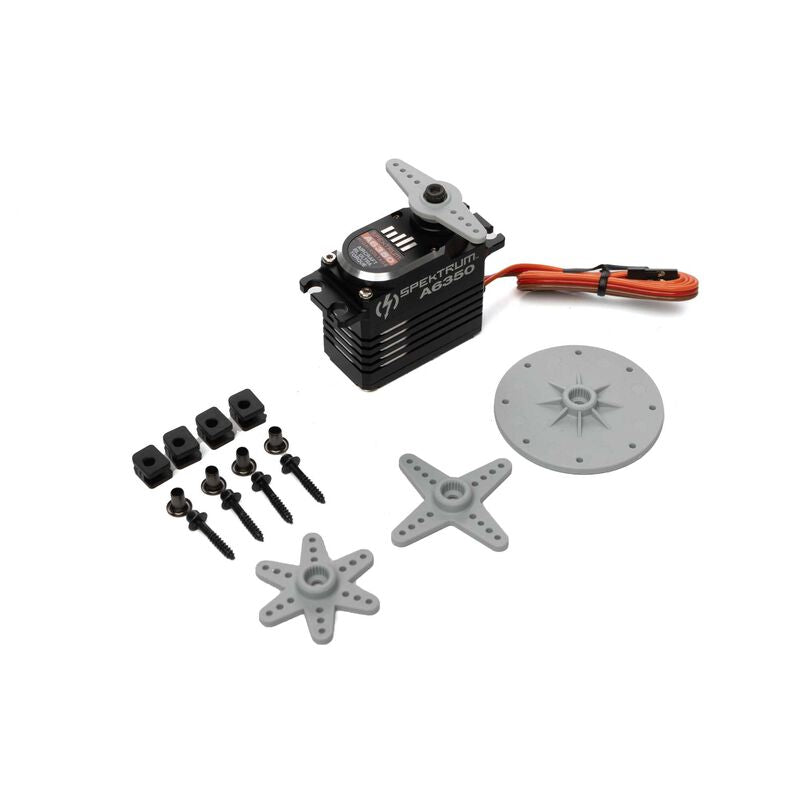

Contents

  • (1) A6350 Brushless Servo
  • (4) Mounting Grommets, Eyelets, and Hardware
  • (4) Plastic Servo Arms and (1) Screw
  • (1 Set) “Guided by Spektrum” Decals
  • Bushing Or Bearing : Bearing
  • Gear Type : Metal
  • Maximum Servo Speed : 0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V
  • Spline Count : 23 - Tooth
  • Product Weight : 3 oz (85g)
  • Max Servo Torque : 500+ oz-in
  • Overload Protection : Yes
  • Product Length : 1.61" (41 mm)
  • Bearing : Dual BB
  • Maximum Servo Torque : 576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
  • Product Width : 0.83" (21 mm)
  • Material : Aluminium
  • Servo Size Category : Standard
  • Input Voltage : 6.0V to 8.4V
  • Product Height : 1.61" (41 mm)
  • Servo Type : Digital
  • Motor Type : Brushless
  • Servo Operating Voltage : 4.8 - 8.4V (HV)
