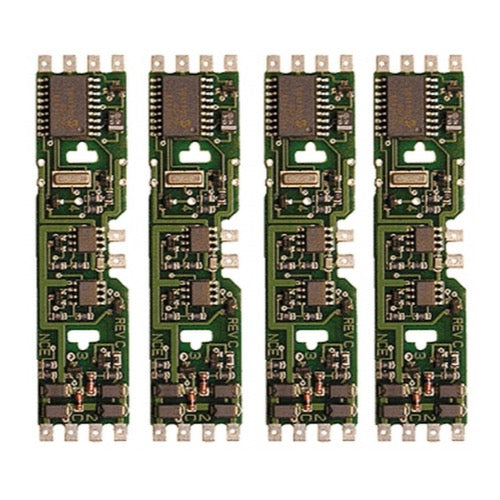

NCE DCC 0107 DA-SR Decoder (4 Pack)

Product Code: NCE-0107

$173.99

Share

Description

For models: HO Scale Atlas GP38, GP40, RS1/2/3, C424/5, GP7, RSD4/5/12, C30-7, U23B, U33/36C Athearn "Genesis" series locomotives; F7, F3, SD70, SD75, SD80, etc Kato GP35, SD40, C44-9W Stewart AS16, F3A, F3B, F7A, F7B, F9A, F9B and U25B

Features

Silent Running™ motor drive

Improved DC operation (with lighting effects)

Torque Compensation (dither) for ultra smooth low speed performance

Programmable Start, Mid and Maximum speed works for all speed modes

Motor rating 1.3 Amp continuous, 2.0 Amp peak (stall)

All five function outputs have lighting effects generators

Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)

Lighting outputs can be mapped to different functions

Uploadable speed table interpolated to 128 speed steps

Decoder assisted consisting

Support for all forms of DCC programming

Decoder programming lock mechanism

Brake on DC feature assists automatic train control

Dimensions: 72.0mm x 17.0mm x 3.2mm (2.85" x .65" x .125")
