Pre-order

Kyosho 1/10 KC10 Toyota Land Cruiser 60 4WD RC Crawler

Product Code: KYO-34801T2

$699.99

A new generation high-performance R/C crawler.

The power and presence of the real vehicle are perfectly captured in 1/10 scale!

KC10 Series TOYOTA LAND CRUISER 60

Experience the off-road adventure of crawling over rocky terrain and rugged trails in one of the most dynamic R/C categories. Kyosho’s 1/10 scale electric crawler Toyota Land Cruiser 60 is a striking blend of scale realism and serious off-road capability, powered by the all-new KC10 chassis.

At its core is a high-rigidity, pressed steel main frame paired with a sophisticated suspension setup incorporating 3-link front with lateral rod and 4-link rear system. Combined with a shaft-driven 4WD drivetrain, it delivers impressive crawling performance across the most challenging terrain.

The KC10 series gearbox comes standard in the Readyset with the internal gears required for both a 2-speed transmission and the DIG function. The DIG function allows the rear wheels to be locked while maintaining drive to the front wheels, enabling incredibly tight turning radii during operation.

In factory default condition, the 2-speed transmission is fixed in first gear (low), and the DIG function is set to OFF. By installing the optional CLW001 2-Speed Kit, shifting to second gear (high) can be controlled using the third channel of the transmitter. In addition, installing the optional CLW002 DIG Kit allows the DIG function to be switched ON and OFF. (A separate 4-channel transmitter is required to operate both the shifting function and the DIG function simultaneously.)

The body is a faithful reproduction of the iconic Toyota Land Cruiser 60, complete with a separate roof rack and rear ladder for added realism. A clipless body mounting system eliminates visible pins, enhancing the clean, scale look.

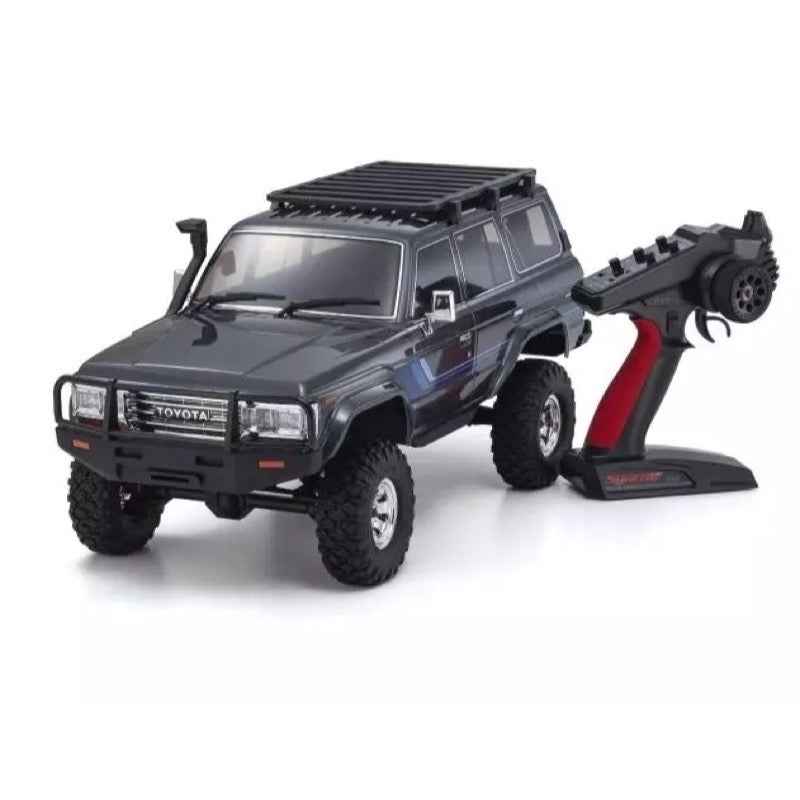

Fully assembled as a Readyset, it includes a pistol-grip transmitter so you can hit the trails straight out of the box.

With the rugged KC10 chassis and unmistakable Land Cruiser styling, this model delivers the full thrill of off-road crawling in stunning 1/10 scale detail.

Features

Pairs the newly developed KC10 chassis with a high-quality body for an impressive 1/10 scale electric crawler experience.
Fully assembled Readyset includes chassis, body, transmitter, and all R/C electronics.
Features officially licensed, highly detailed Toyota Land Cruiser 60 body for authentic scale realism.
Full-scale suspension system and 4WD drivetrain deliver exceptional off-road performance.
Oil shocks include multiple piston hole options for a wide range of suspension tuning.
Comes standard with newly developed 15kg high-torque servo for precise steering control.
A newly developed, robust 550-size 32T motor delivers powerful and reliable torque.
Pre-installed receiver is protected in a dust- and water-resistant case for enhanced durability.
Includes Syncro 2.4GHz KT-231P+ pistol-grip transmitter with adjustable settings.
Full lineup of optional parts available, including DIG unit, 2-speed transmission, counterweights, LED light kits, and more.
Main motor battery and charger sold separately.

Factory assembled chassis with built in R/C unit
Factory finished body with decals applied
Syncro KT–231P+ transmitter
Hex wrench (1.5 / 2.0 mm)
Cross wrench (4 / 5 / 5.5 / 7 mm)
Setting change parts

Requires

4 x AA batteries for transmitter
Battery for chassis
Charger for battery for chassis

Full-Scale Power In 1/10 Size!

Next-Generation High-Performance R/C Crawler

Introduced in 1980, the Land Cruiser 60 represents the fifth generation of the series. Door mirrors were introduced in 1984, and in a minor change in 1987 the headlights changed from round to square. The VX grade also gained overfenders, giving the vehicle a more refined appearance. The snorkel, which prevents water entering the engine during river crossings, underscores its intrepid off-road credentials.

Realistic Details

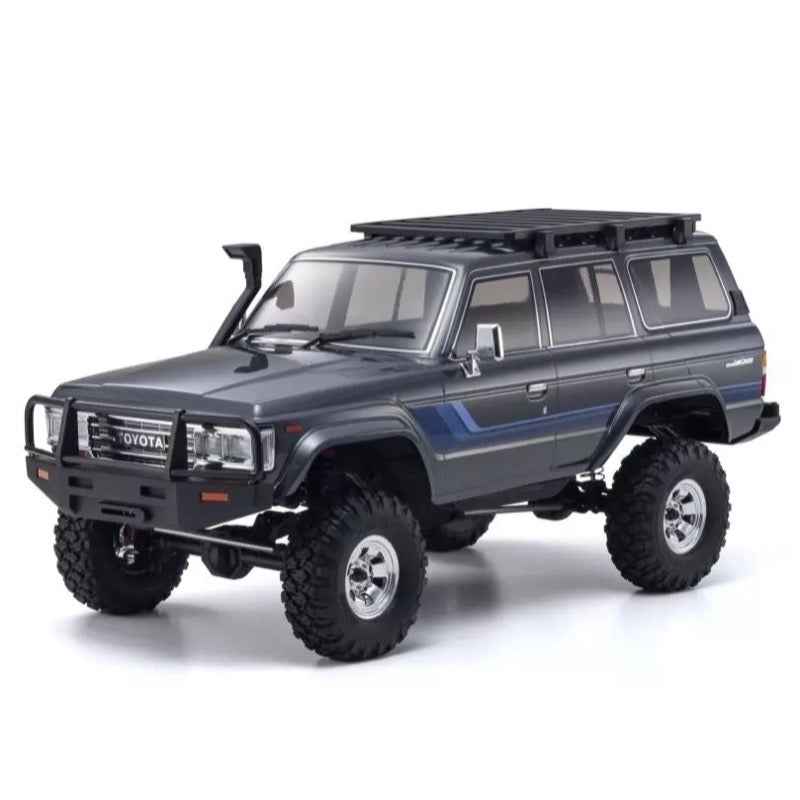

Kyosho’s 1/10 scale Toyota Land Cruiser 60 captures the legendary look of the original with impressive realism. Molded from durable polycarbonate, the body includes separately molded parts like the roof rack and rear ladder for added scale detail. It’s a true-to-life R/C experience that brings the spirit of the classic Land Cruiser to every adventure.

Snorkel

A snorkel that protects the engine from water intake, fueling your spirit for off-road adventure.

Front Mask

The simple yet iconic horizontal-slat design of the front grille is replicated. The "TOYOTA" logo at the center is a key element that symbolizes the vehicle's classic face.

Mirrors

Type 1 features retro fender mirrors for a timeless feel, while Type 2 offers sleek door mirrors for a modern, rugged side view.

Wipers

Two-blade wipers for the large windshield are intricately reproduced, including their shape and the base of the arm. The fine molding of the wiper blades enhances the overall precise scale realism of the body.

Push Bar

The popular optional push bar is precisely replicated. When installed, it amplifies the rugged, wild presence unique to an off-road vehicle, emphasizing its tough 4x4 character.

Rear Bumper

A simple and functional rear bumper design. Details such as the tow hook and step section are finely molded, enhancing the practical and utilitarian look of the rear view.

Roof Rack

Equipped with a roof rack, which is used for loading luggage and is a highly popular custom part. This emphasizes the rugged, wild, and expedition-ready atmosphere.

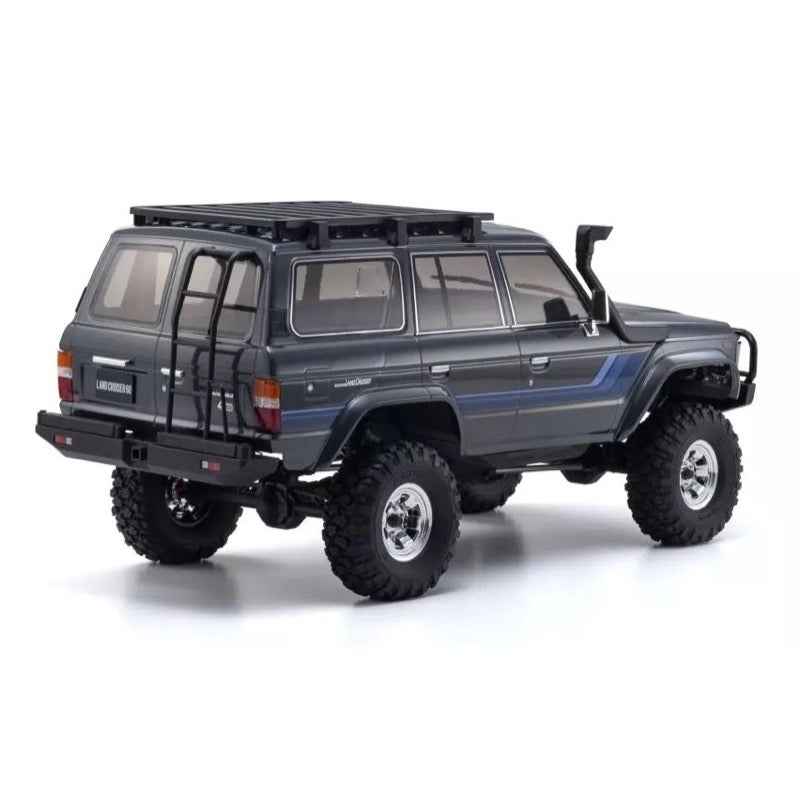

Ladder

The ladder, essential for accessing the roof rack, is realistically reproduced, down to the thinness of the pipes and the step intervals. Mounted on the rear gate, it creates a rear view with heightened scale realism.

Window Mold Stickers

Decorative stickers applied around the windows. They serve as an exterior accent and tighten the overall feel of the vehicle.

Door Handles

The shape of the small door handles is intricately reproduced, and the robust molding enhances the tough texture and scale realism, just like the actual vehicle.

Easy Chassis Access

To maintain its ultra-realistic appearance, the model uses a clipless body mounting system that eliminates visible body pins for a cleaner, scale finish. A quick-release front latch allows easy access to the chassis for battery changes etc. without needing to remove the entire body.

KC10 Tires & 1.9" Beadlock Wheels

All-new KC10 1.9-inch retro-style beadlock wheels deliver authentic scale looks and rock-solid tire retention. Paired with KC10 All-Terrain tires made from soft compound and optimized inner foam, they offer outstanding grip on rocks, dirt, mud, and everything in between.

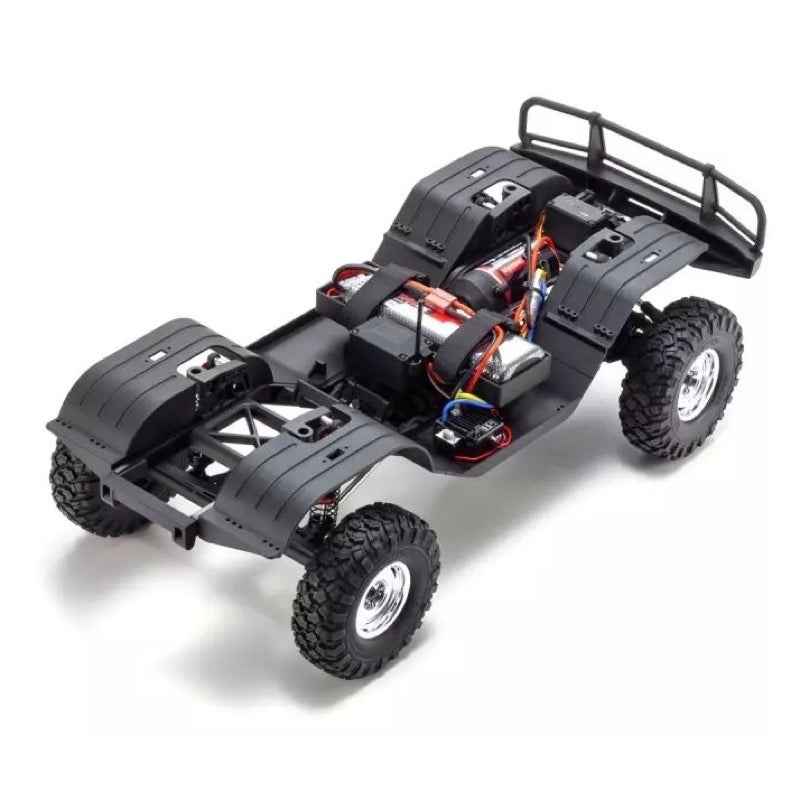

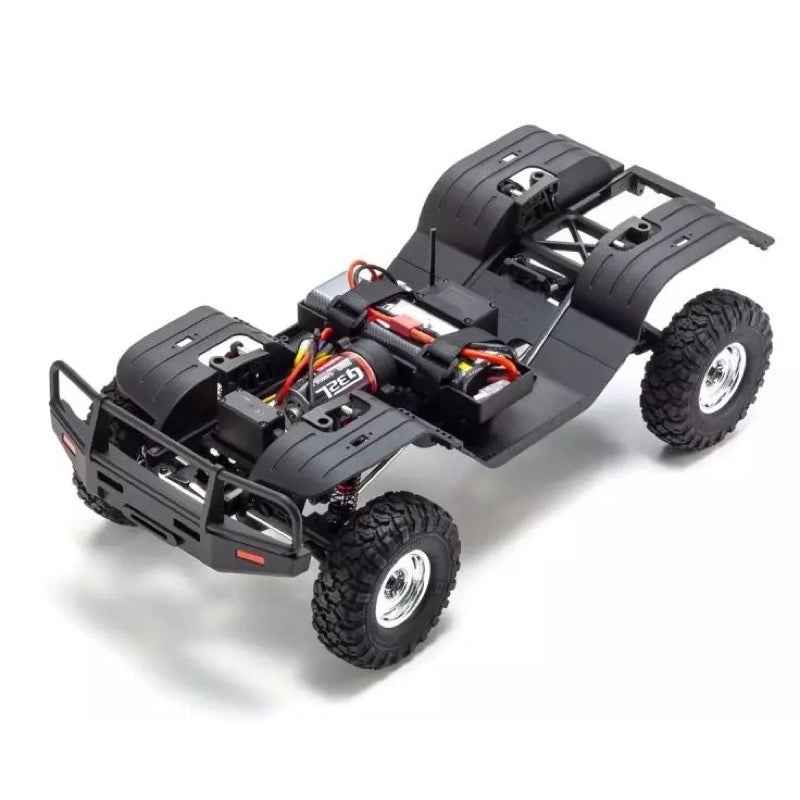

KC10

Specifically developed for crawler models, the all-new KC10 chassis delivers exceptional off-road performance.

With generous ground clearance and long-stroke suspension, it handles rough terrain with confidence.

Ladder Frame

The press-formed steel main frame delivers outstanding strength and rigidity, providing a stable platform across rough terrain. This solid structure also helps reduce stress on the drivetrain and suspension, enhancing durability and overall performance.

KC10 Suspension System

The durable long-travel multi-link suspension strikes the perfect balance between scale realism and high-performance articulation. Combined with heavy-duty solid axles and an optimized high-clearance steering linkage, it delivers class-leading crawling capability and control.

KC10 Heavy Duty Gear

Precision CNC-machined steel hypoid ring and pinion gears maximize strength and ensure smooth, reliable power delivery. Compact differential housings provide increased ground clearance, while the perfectly balanced gear ratios deliver massive low-speed torque with minimum gear noise.

Oil Shocks

Fitted with large-capacity oil shocks and threaded spring adjusters, the suspension allows easy ride height tuning to match your terrain. The rubber O-ring for the oil seal uses an X-section type to reduce friction, ensuring smooth, responsive damping even over rough surfaces.

Battery Mount

The main battery is mounted centrally with hook-and-loop straps, while a rear-mounted sub-battery holder lowers the center of gravity. Using the sub-holder enhances stability, helping prevent nose-dives on steep descents.

Molded Inner Fenders

Precision fenders that close the gap for a flawless scale finish. Featuring universal fitment and authentic 3D styling inspired by real trucks. Tough, functional, and beautiful—shielding your chassis from mud and stones on every trail.
