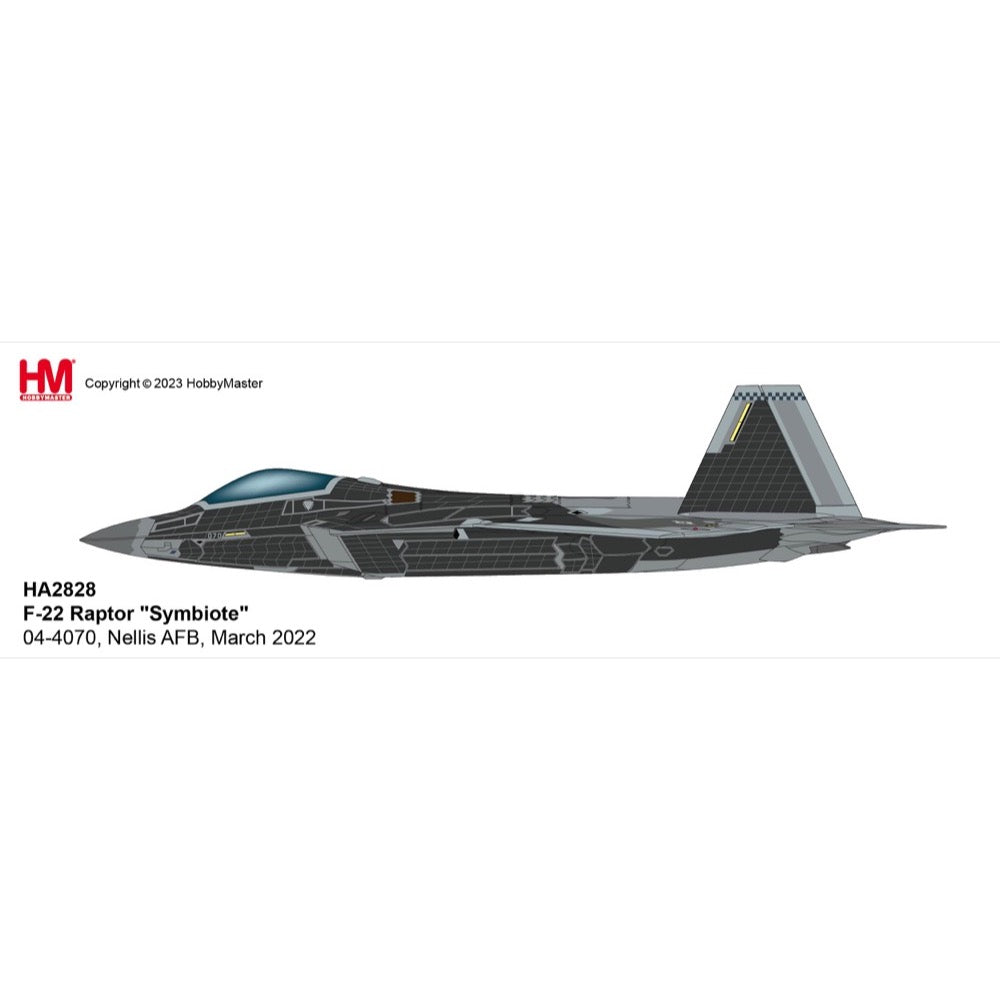

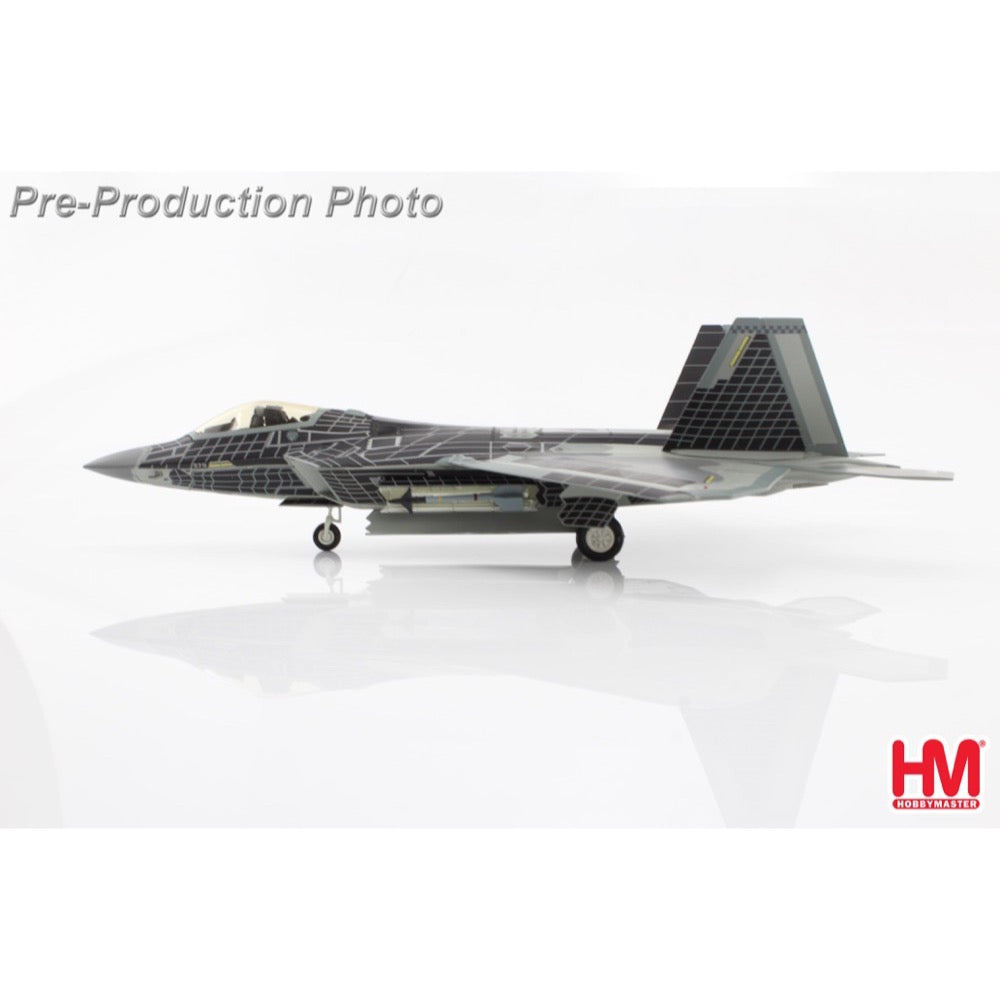

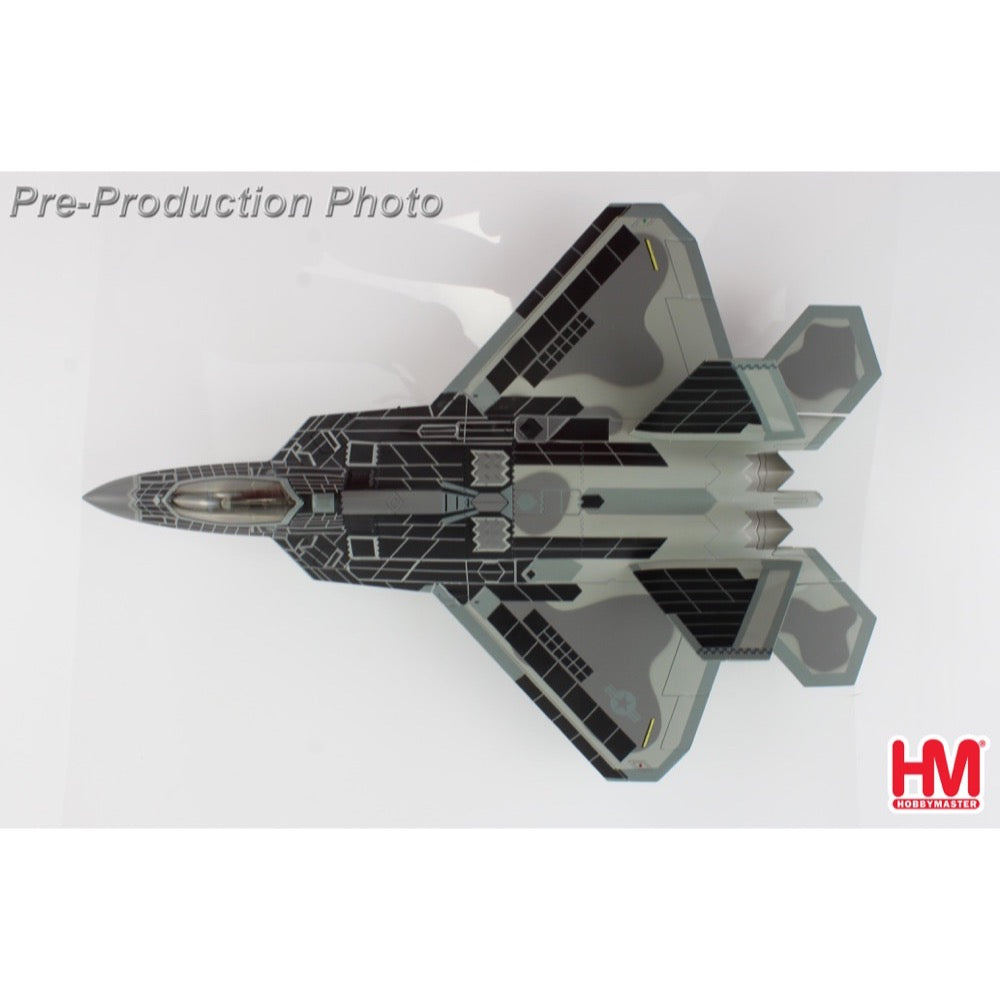

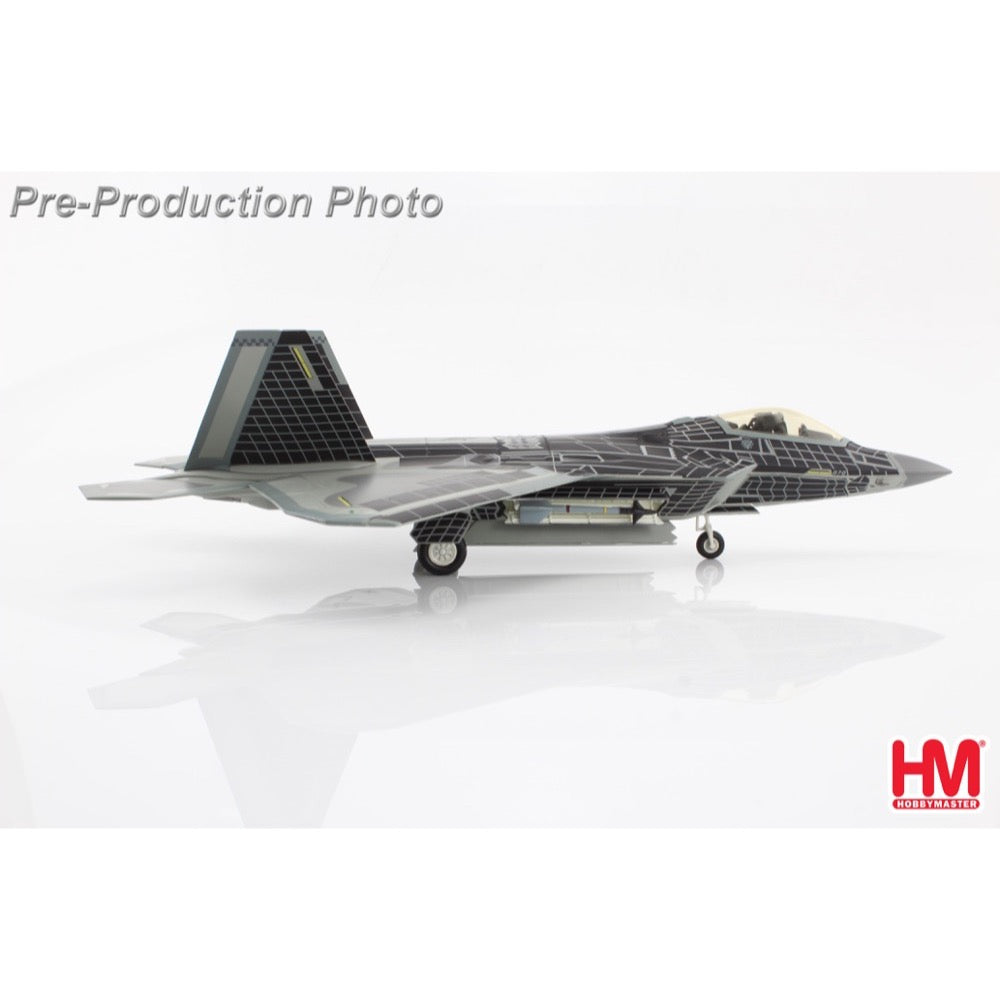

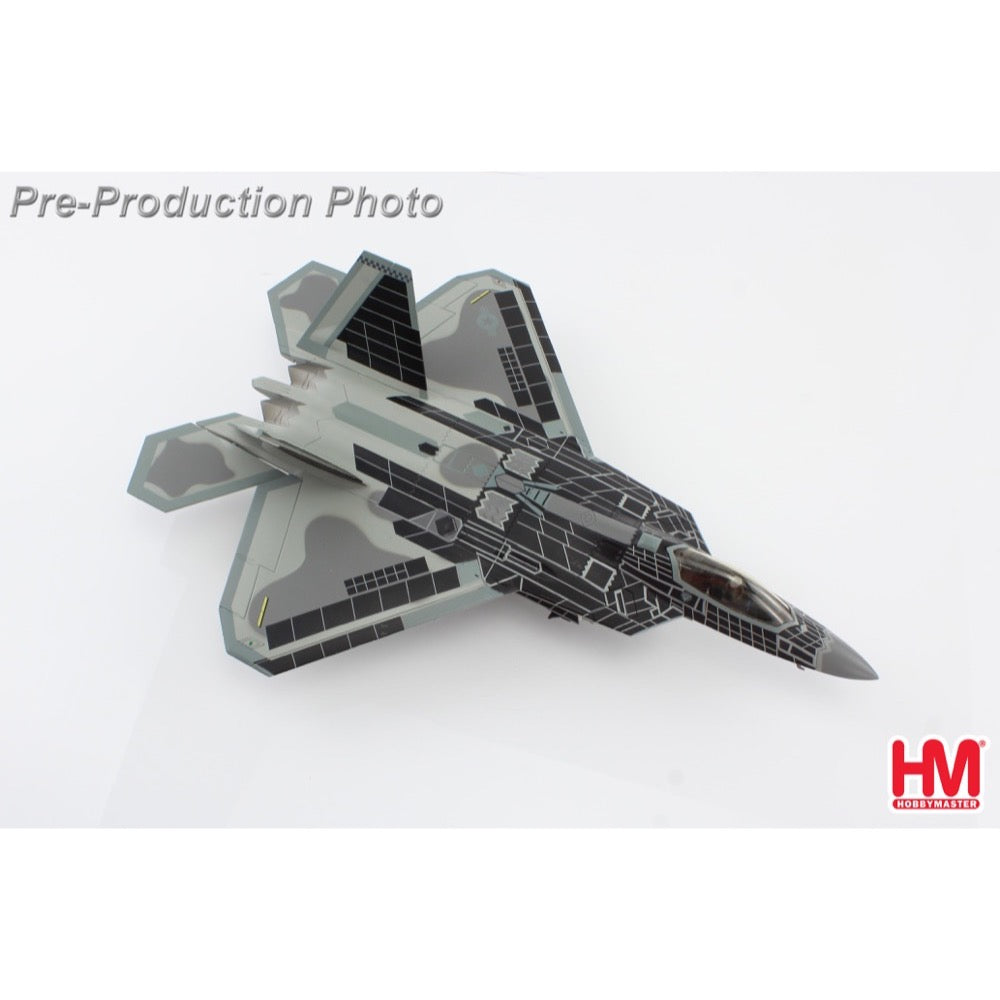

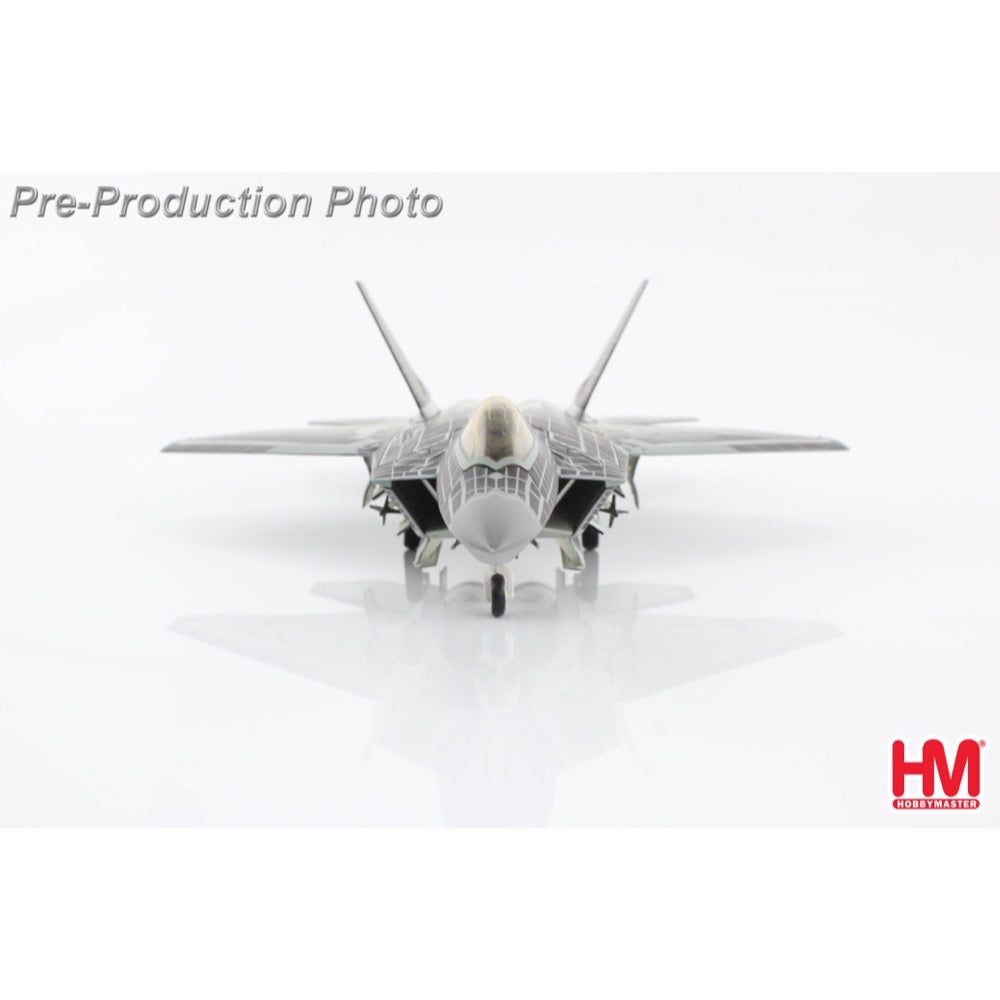

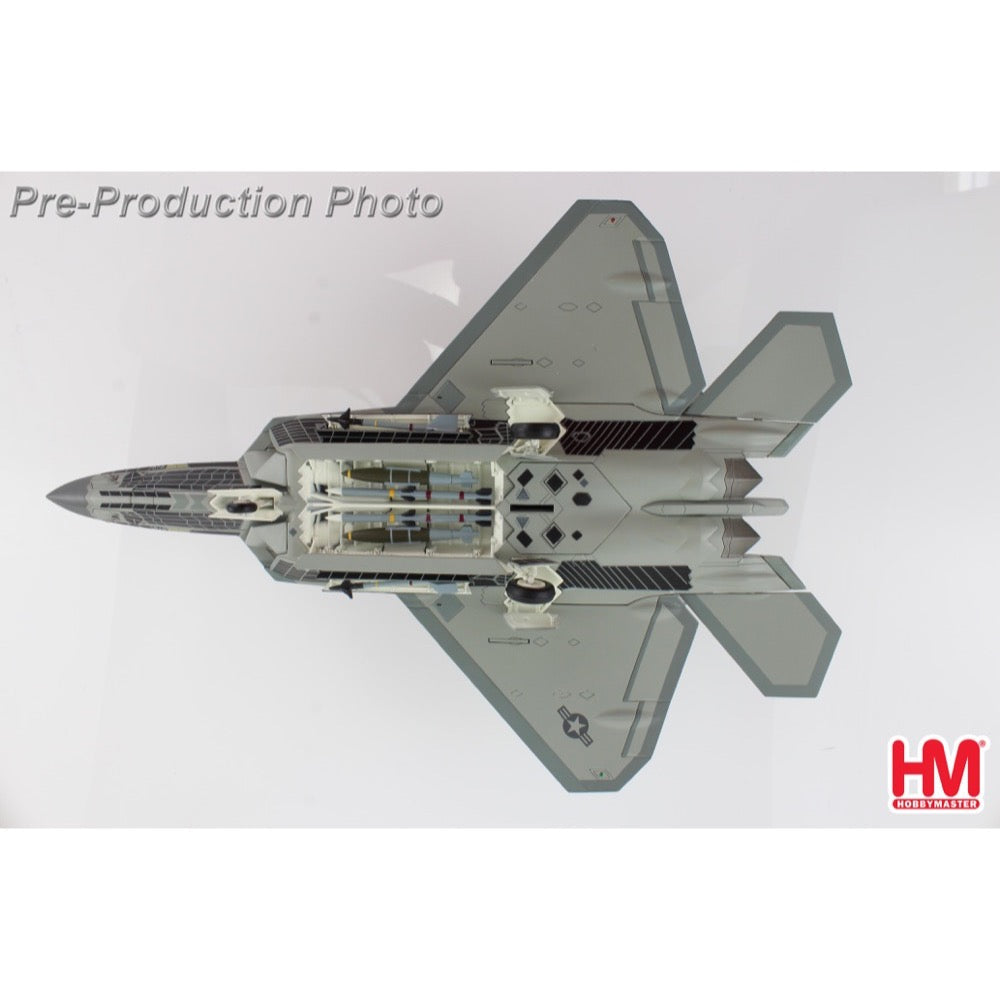

Hobbymaster 2828 1/72 F-22 Raptor Symbiote 04-4070 Nellis AFB March 2022

Product Code: HA2828
Barcode: 895173419041
$244.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

The USAF developed a requirement for a new air superiority fighter to replace the F-15 Eagle. Two proposals were submitted with the Lockheed Martin F-22 Raptor being selected as the new Advanced Tactical Fighter (ATF). The aircraft is constructed using 39% titanium, 24% composite material, 16% aluminum and 1% thermoplastic by weight. All these components contribute to the F-22 being a light weight, extremely maneuverable, extremely fast aircraft that uses stealth technology. The F-22 is also capable of ground attack, electronic warfare and signals intelligence.

Specifications

  • First flight:
  • September 7, 1997
  • Planned Production: 750 aircraft initial program objective
  • Altered plan in 1990: 648 aircraft
  • Altered plan in 1994: 442 aircraft
  • In 1997 Department of Defense report: 339 aircraft
  • In 2006 the Pentagon wanted -183 aircraft: 2008 approval for 4 additional aircraft bringing the total to 187
  • Number built as of August 2009: 145
  • Role:
  • Air superiority fighter
  • Crew: (1) pilot
  • Performance
    • Engines: (2) Pratt & Whitney F119-PW-100 engines producing 35,000 lbst of thrust
    • Speed: Mach 1.8 (super cruise: Mach 1.5)
    • G Limit: +9 G
    • Ceiling: 60,000 ft (18,290 m)
    • The F-22 and other fighters can reach this altitude, but only the F-22 can perform tactical maneuvers at this level.
  • Dimensions
    • Length: 62.08 ft (18.90 m)
    • Height: 16.67 ft (5.08 m)
    • Wingspan: 44.5 ft (13.56 m)
    • Wing Area: 840 sq ft (78.04 sq m)
    • Horizontal Tail-span: 29 ft (8.84 m)
  • Weights
    • Empty Weight: 31,670 lb (14,365 kg)
    • Maximum Takeoff Weight: 60,000 lb (27,000 kg)
  • Armament:
  • Internal:
    • (1) 20mm Cannon
    • (4) AIM-9 Sidewinders (side weapon bays)
    • (4) AIM-120A AMRAAM (internal ventral bay)
    • (6) AIM-120Cs (internal ventral bay)
    • (6) GBU-32 JDAM PGMs (internal ventral bay)
    • (8) GBU-39 Small Diameter Bombs (250lbs ea)
  • External:
    • (4) under-wing hard-points with a maximum of 5,000lbs (2,270kg) of mission-specific weaponry or fuel drop-tanks.
