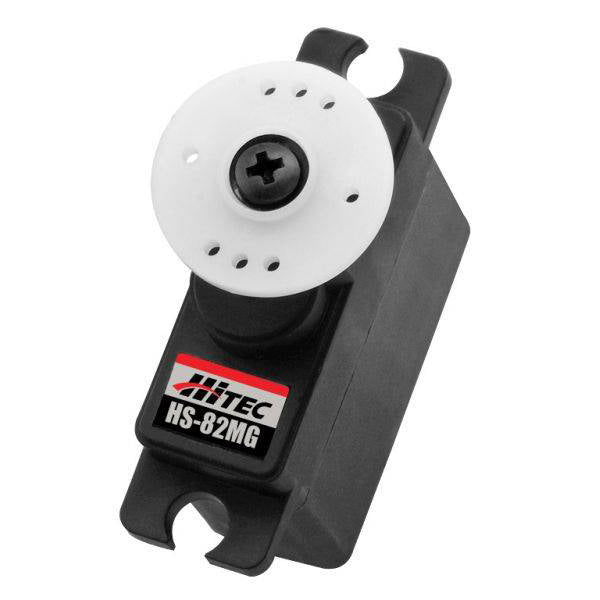

Hitec HS-82MG Micro Servo With Metal Gears

Product Code: HRC32082S
$39.99 $32.99 18%
-
+

In-stock items and stock levels are subject to continuous change. Click & collect orders can be used to reserve items prior to in store collection. Store transfers and holds available on request.

We took one of our top selling servos and made it even better. Based on the ultra popular HS-81MG the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required. Features Top Selling Metal Gear Micro Servo Strong Three-Pole Ferrite Motor Rugged Metal Gears Accessories Metal Gear Set | Link | Plastic Case Set | Link | Applicable Horns HS-82MG Servo Specifications Performance Specifications Operating Voltage Range (Volts DC) 4.8V 6.0V Speed (Second 60deg.) 0.12 - 0.10 Maximum Torque Range oz. / in. 39 - 47 Maximum Torque Range kg. / cm. 2.8 - 3.4 Current Draw at Idle 10 mA No Load Operating Current Draw 280 mA Stall Current Draw 1,800 mA Dead Band Width 5 us Physical Specifications Dimensions (Inches) 1.17 x 0.47 x 1.16 Dimensions (Metric) 29.8 x 12.0 x 29.6 Weight (Ounces) 0.66 Weight (Gram) 19.0 Circuit Type HT7003 Analog SMT Motor Type 3 Pole Metal Brush Ferrite Gear Material Metal Bearing Type None Output Shaft (type / 0mm) Standard 24 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20
