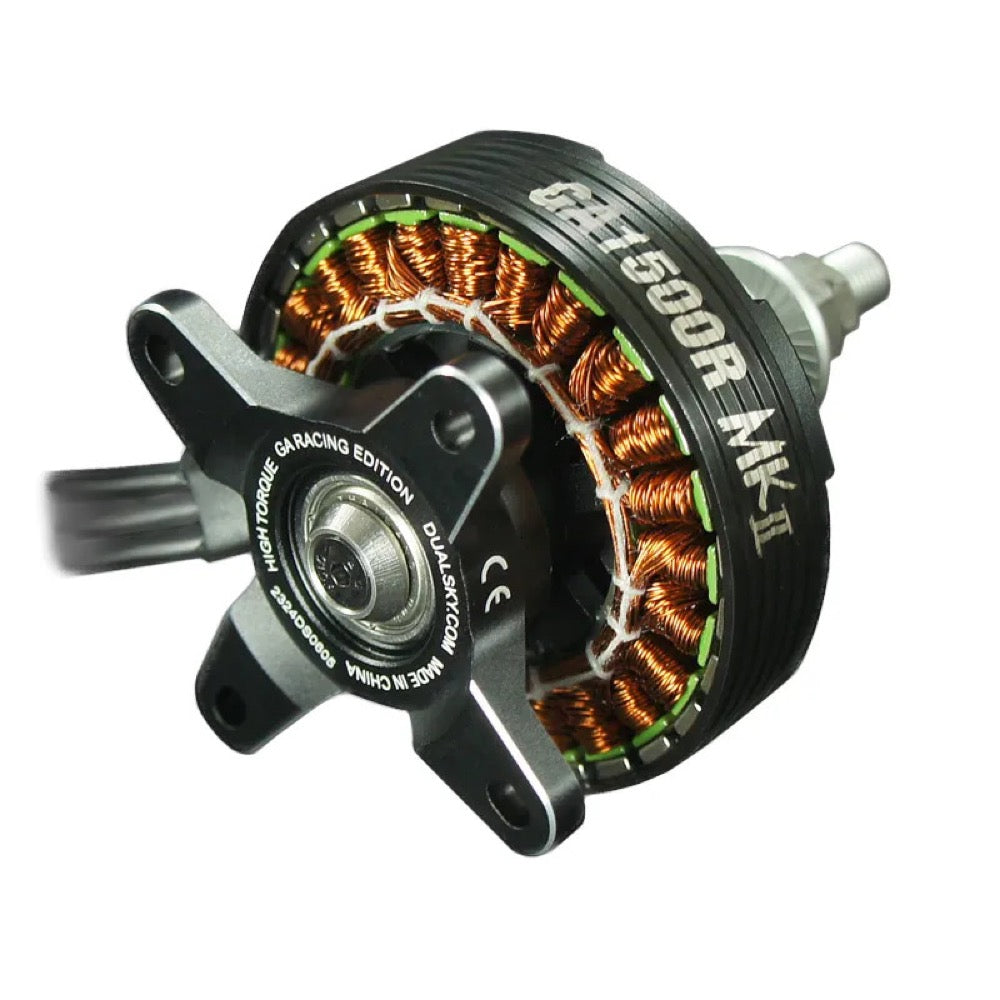

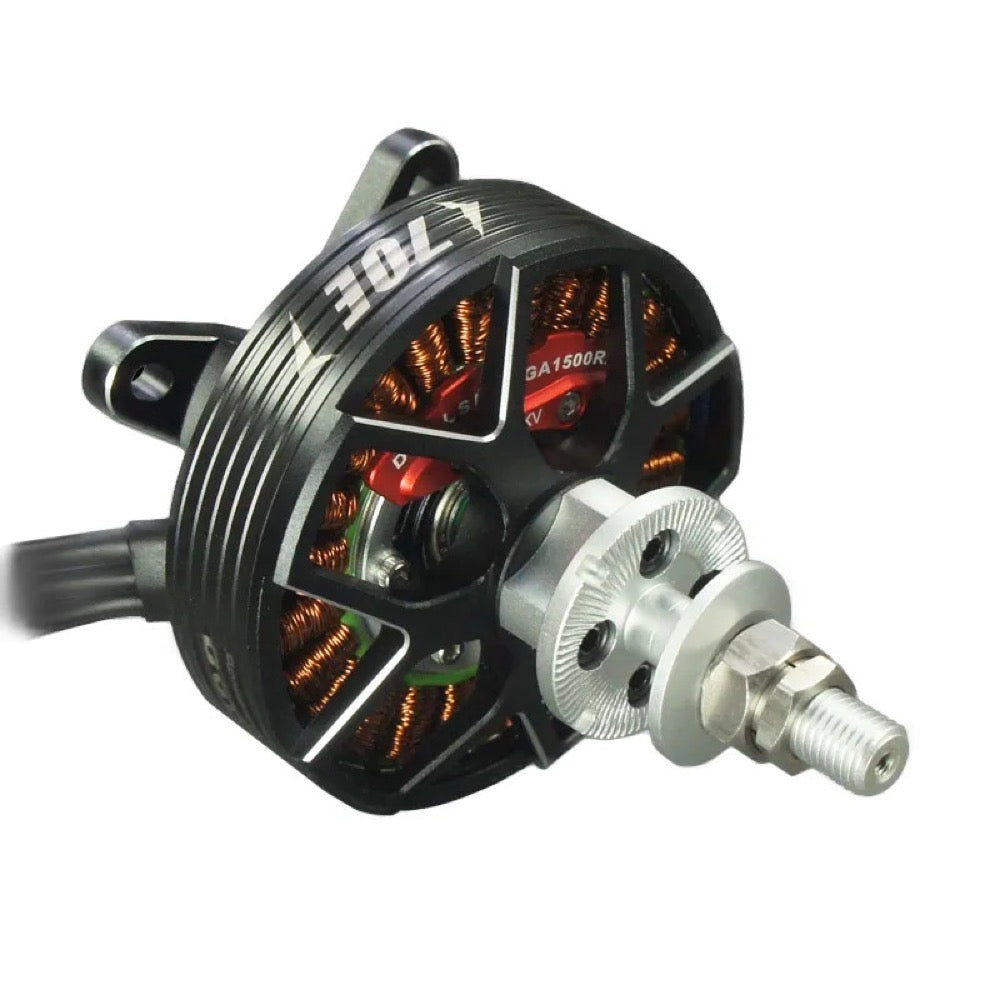

Dualsky DSXM52246 GA1500R.9 MKII Brushless Motor 15cc 545kv

The Dualsky GA1500R.9 MKII Racing Edition Giant Airplane Motor is designed for 70-80E class aircraft.

Specifications

• KV: 545
• Weight: 305g
• Dimensions (D x L): 69 x 58mm
• Length: 90mm
• Diameter of Shaft: 8mm (internal), 8mm (output)
• Spec. of Mounting Holes: 55 - 58
• Slots & Poles: 24, 28
• Io @ 10V: 2.35 A
• Ri (mOhm): 12.9
• No. of Cells: 18.5V - 22.2V, 5S - 6S LiPo
• Peak Power (15S): 2112 W
• Burst Current (15S) & Peak Torque: 88A, 1.93 N*M
• Cruising Power (8 mins): 850 W
