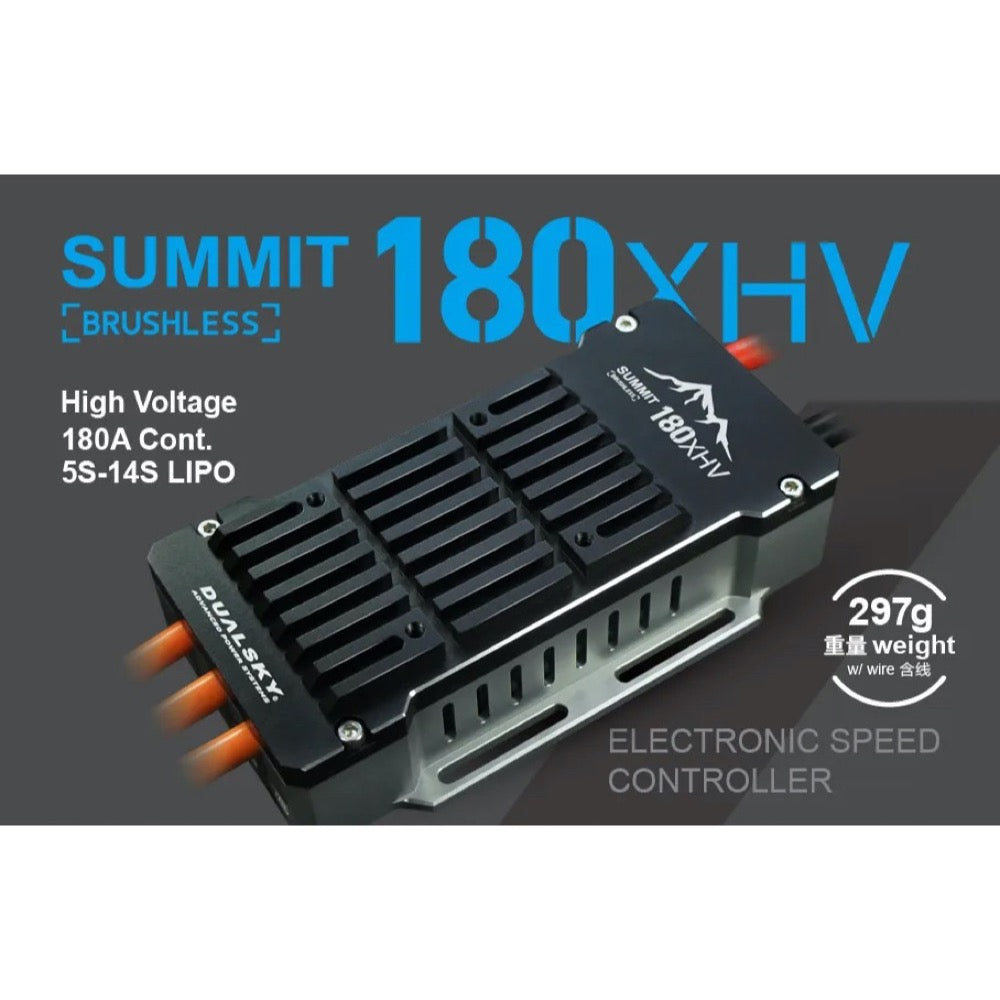

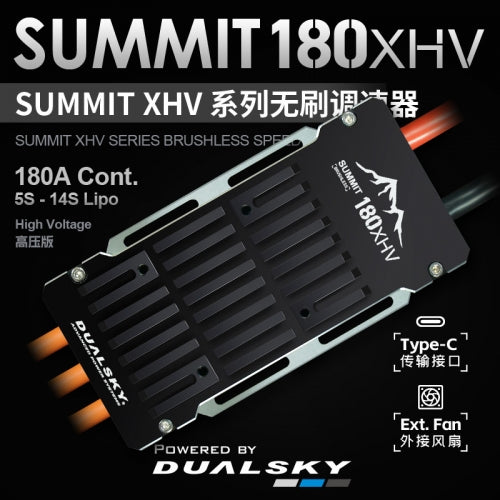

Dualsky DSXM42286 SUMMIT 180XHV Brushless 5S-14S ESC

Product Code: DSXM42286
$542.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky SUMMIT 100XHV Brushless ESC is designed for 3D aircraft or fixed-wing UAVs.

Features

  • Designed for 3D airplanes and fixed-wing UAVs

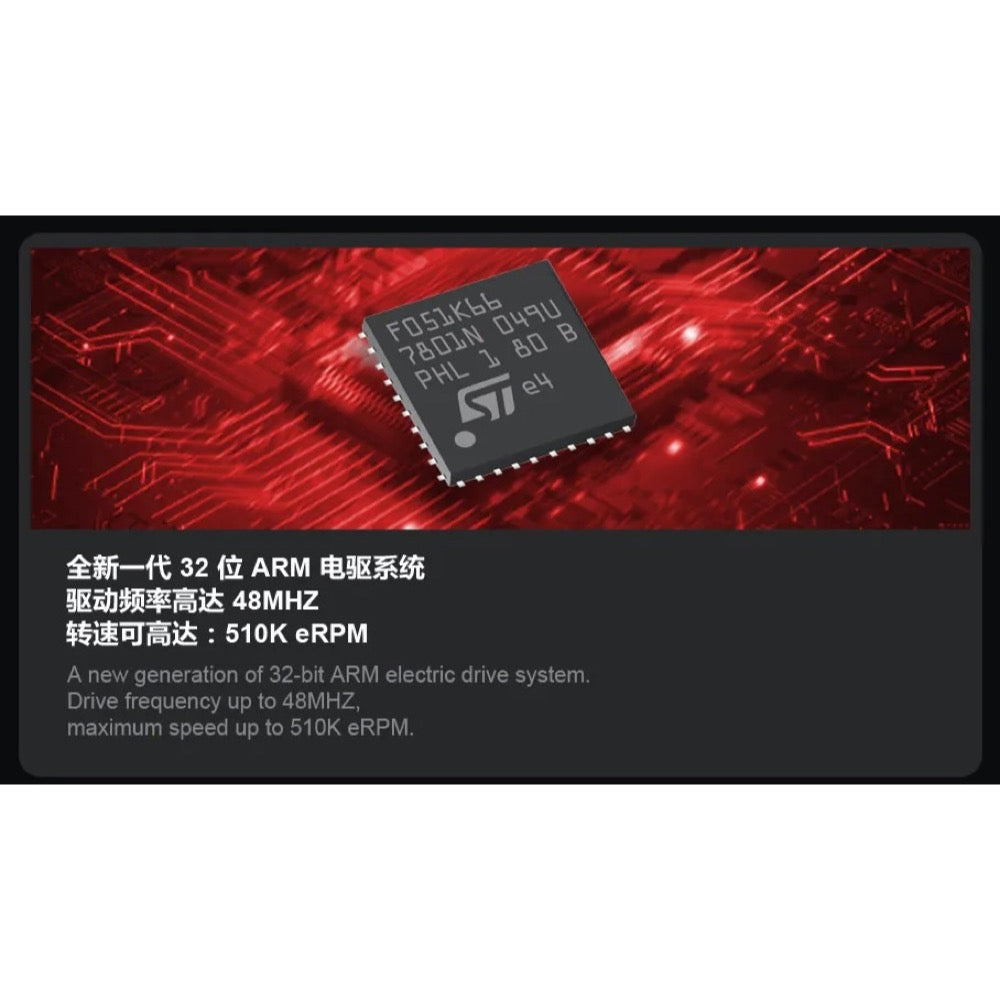

  • New generation 32-bit ARM electric drive system

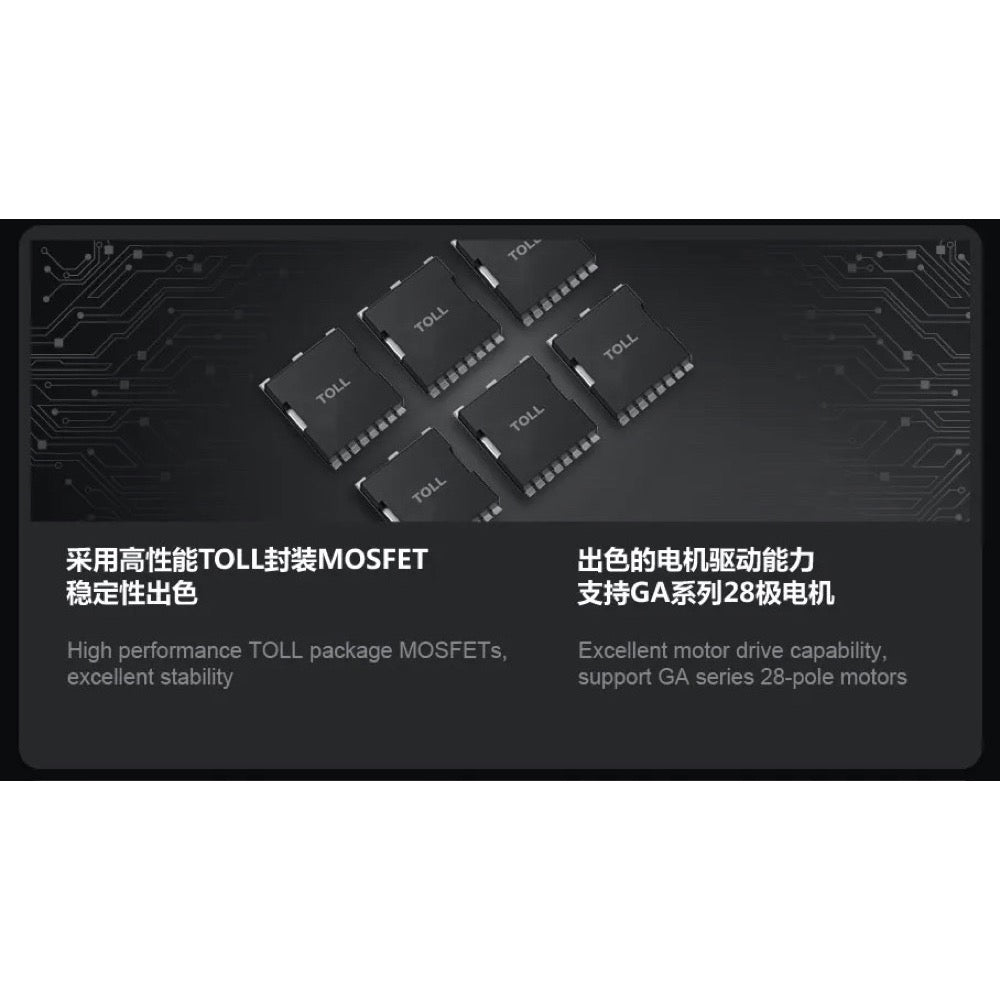

  • High performance TOLL package MOSFETs for excellent stability

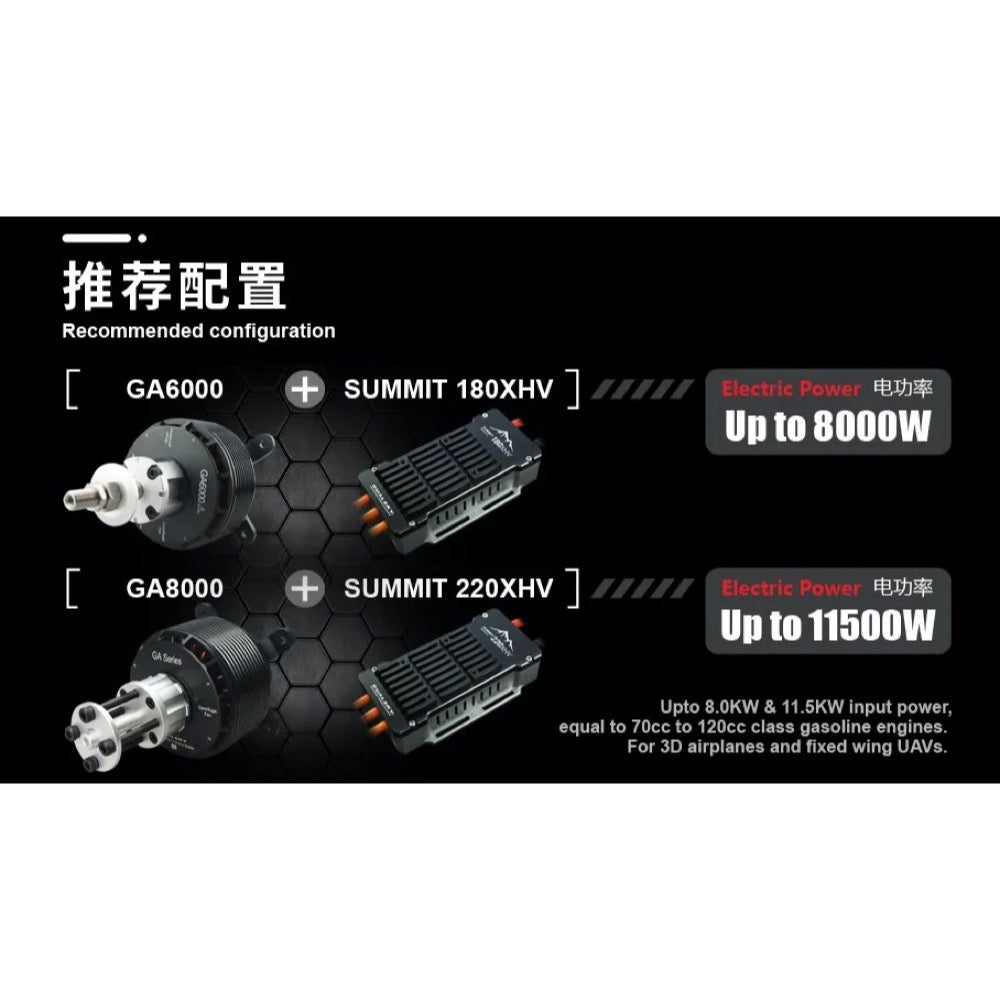

  • Excellent motor drive capability, supporting GA series 28-pole motors

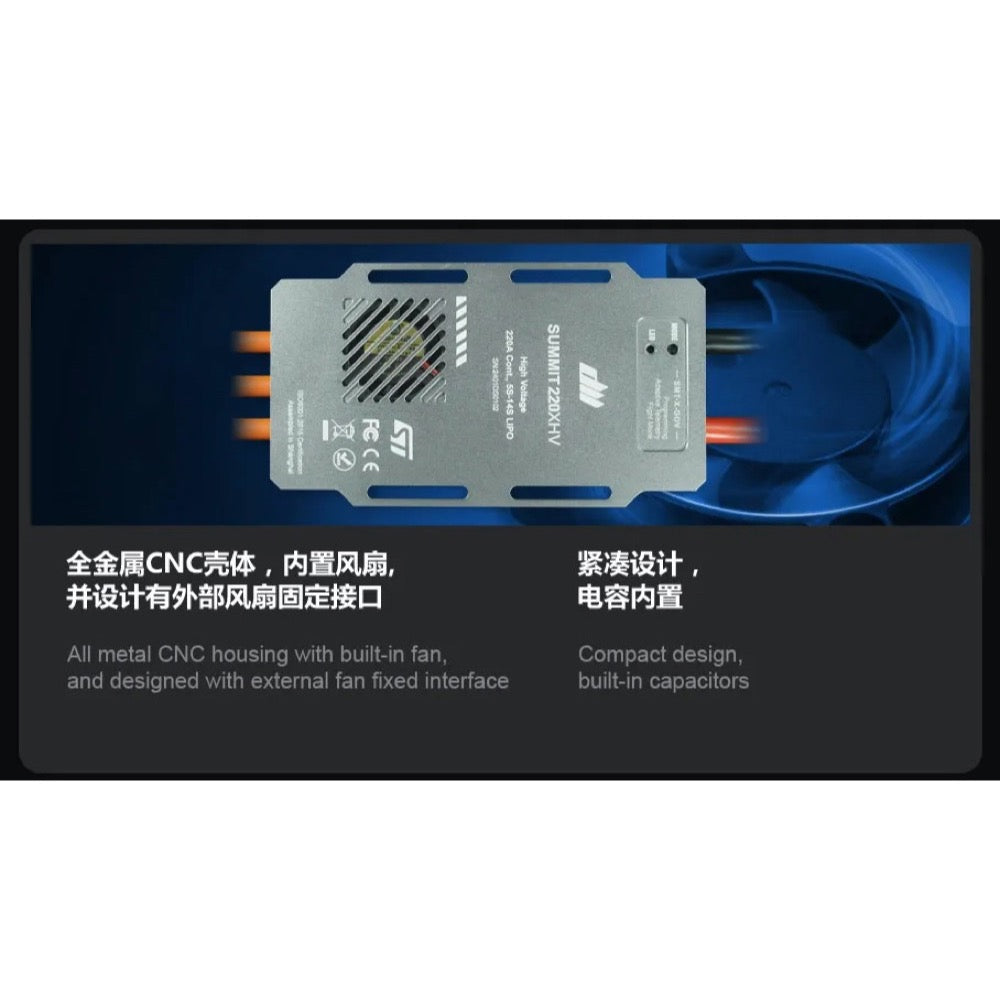

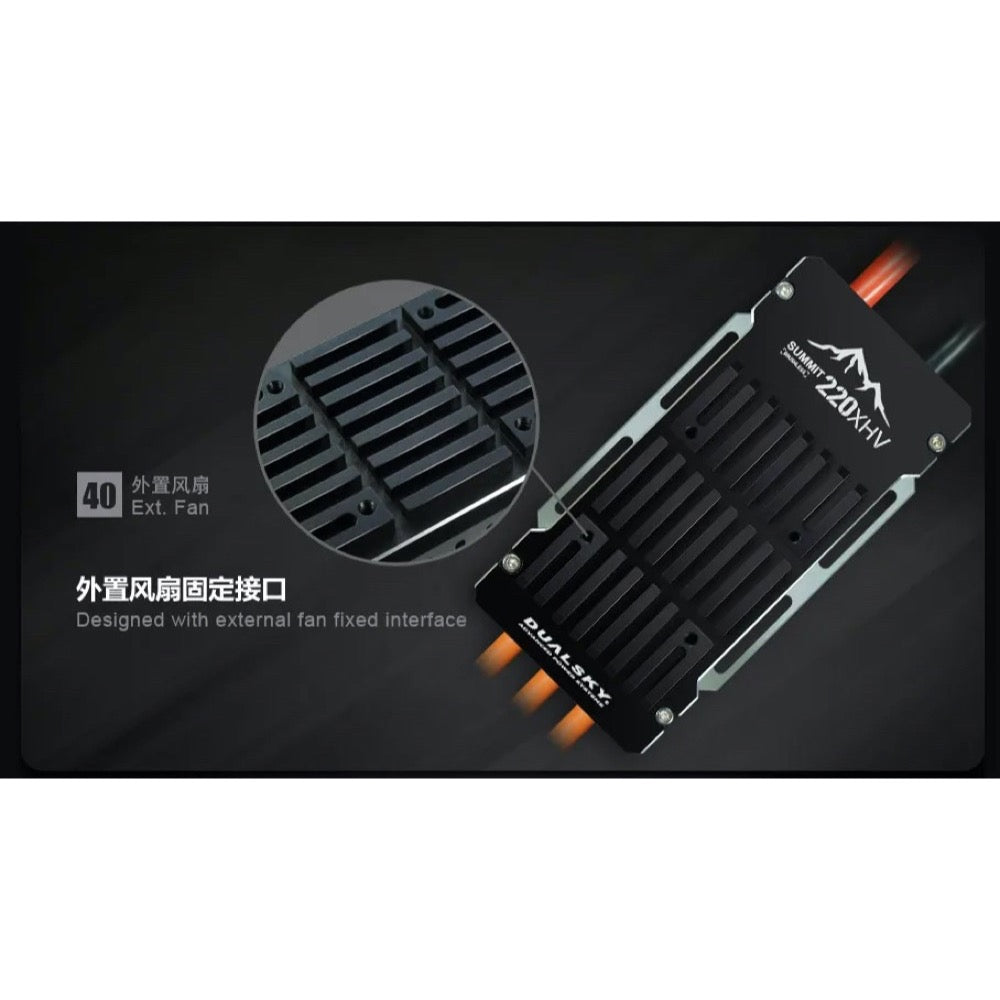

  • All metal CNC housing with built-in fan, also designed with an external fan fixed interface
  • Compact design with built-in capacitors

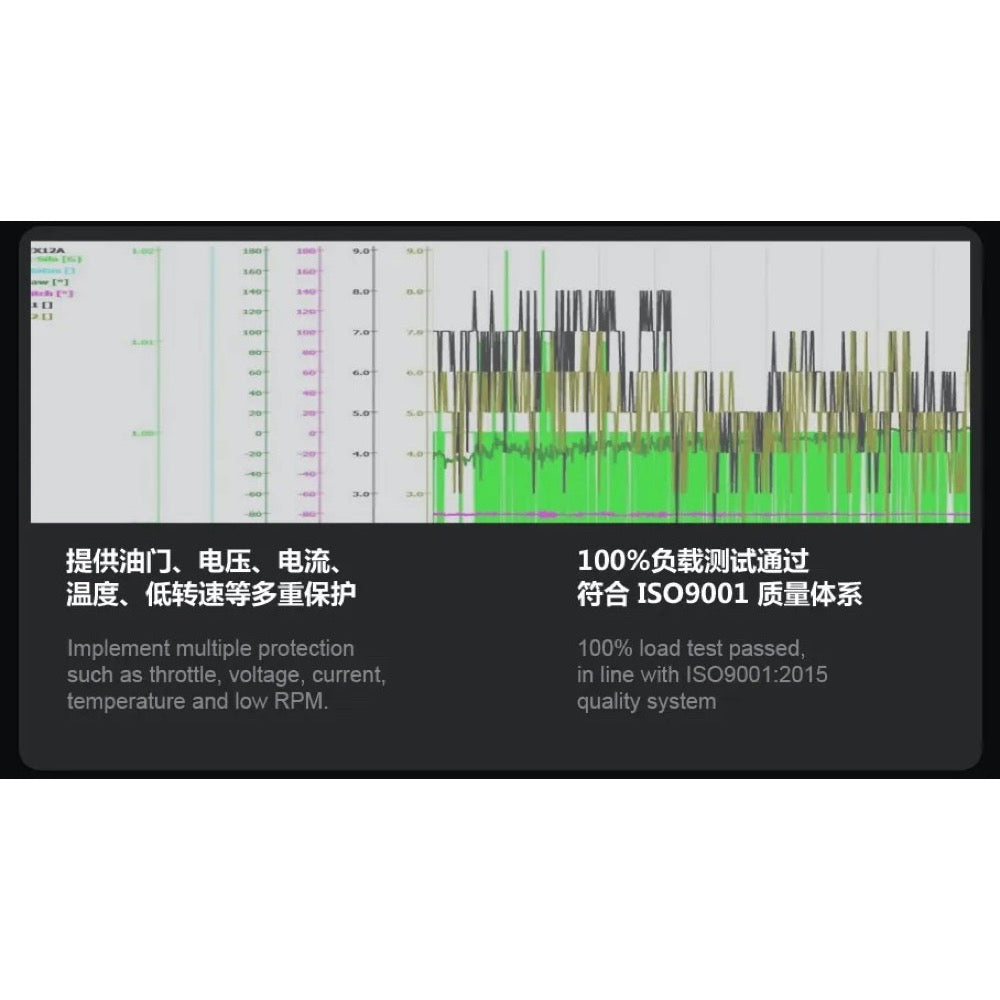

  • Multiple protection measures are implemented, throttle, voltage, current, temperature, and low RPM
  • 100% load test passed
  • Efficient driving core, abundant torque
  • Effictivley avoid sync-loss conditions
  • Supports efficient SINE wave working mode
  • Regenerative braking supported
  • Rorational direction can be set. Bidirectional operation is also supported

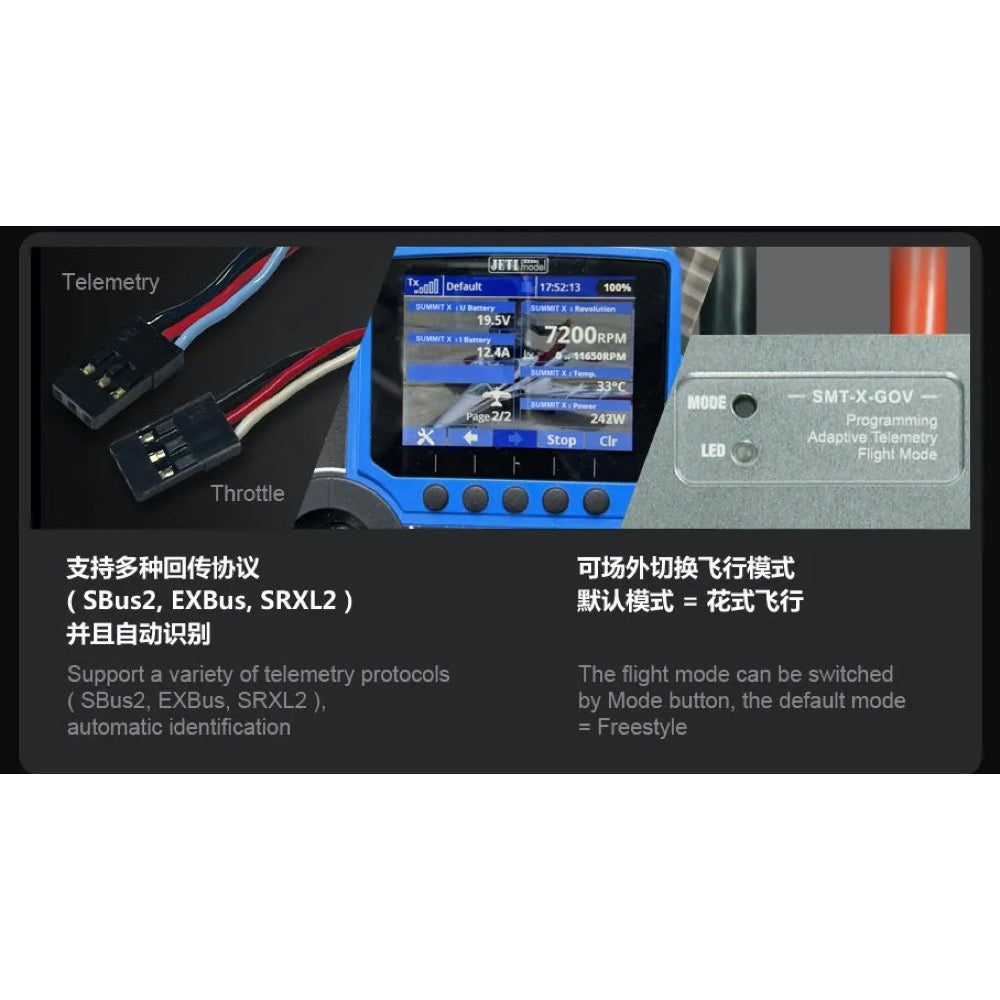

  • Supports a variety of telemetry protocols (SBus2, EXBus, SRXL2)
  • Flight modes can be switched by the Mode button

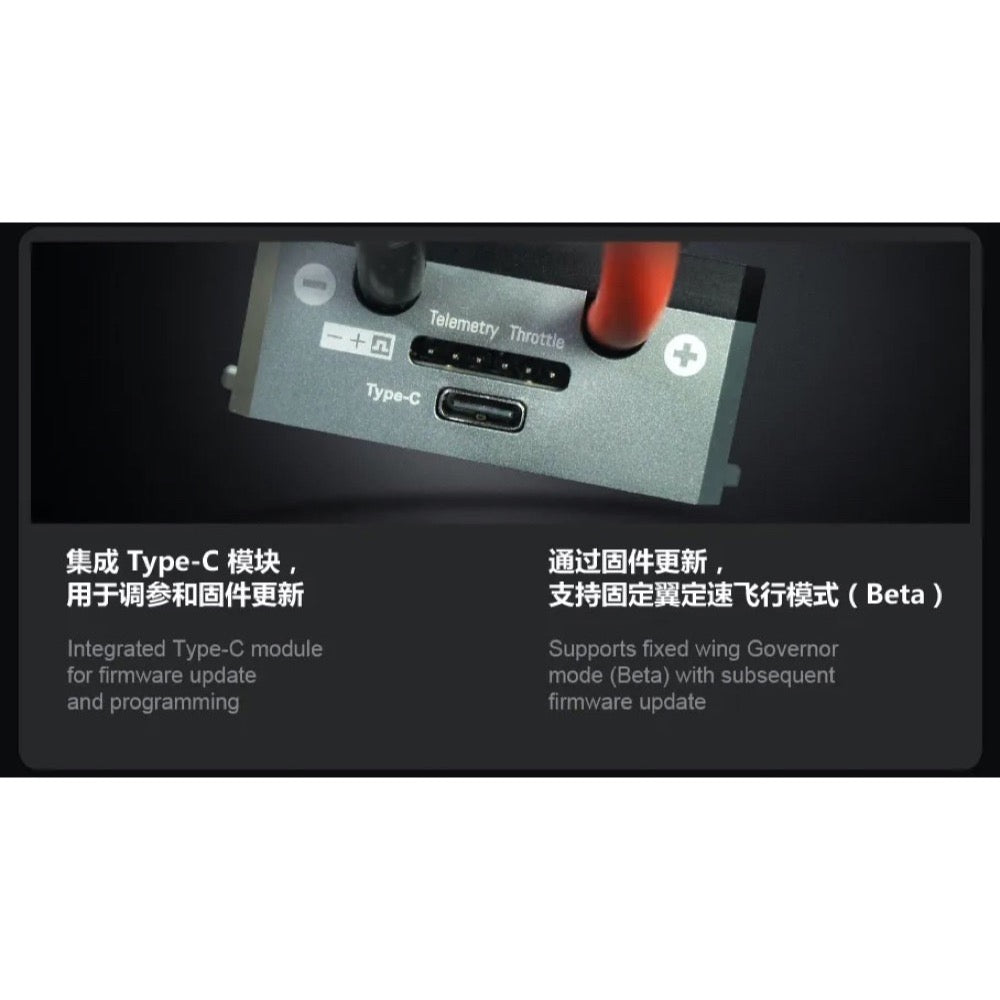

  • Type-C USB port for firmare updating and programming
  • Supports fixed wing govenor mode (in Beta, with subsequent firmware update)

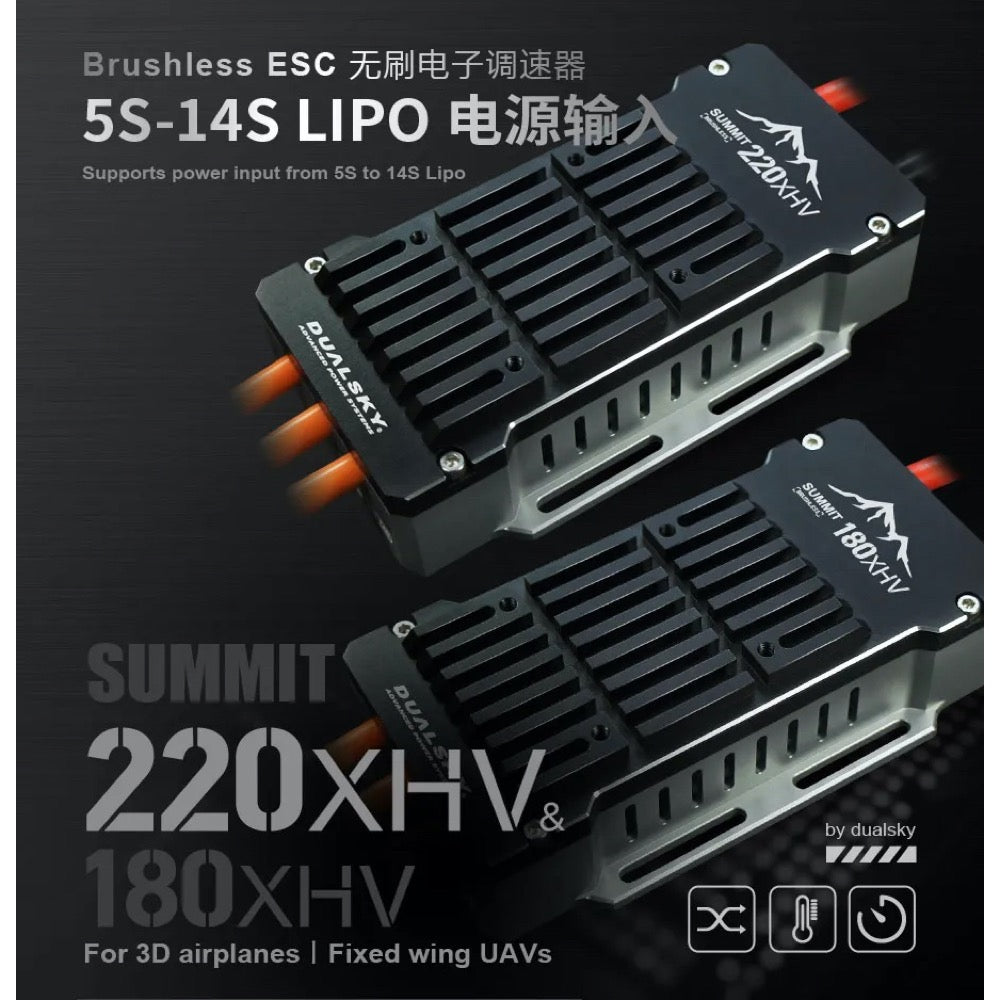

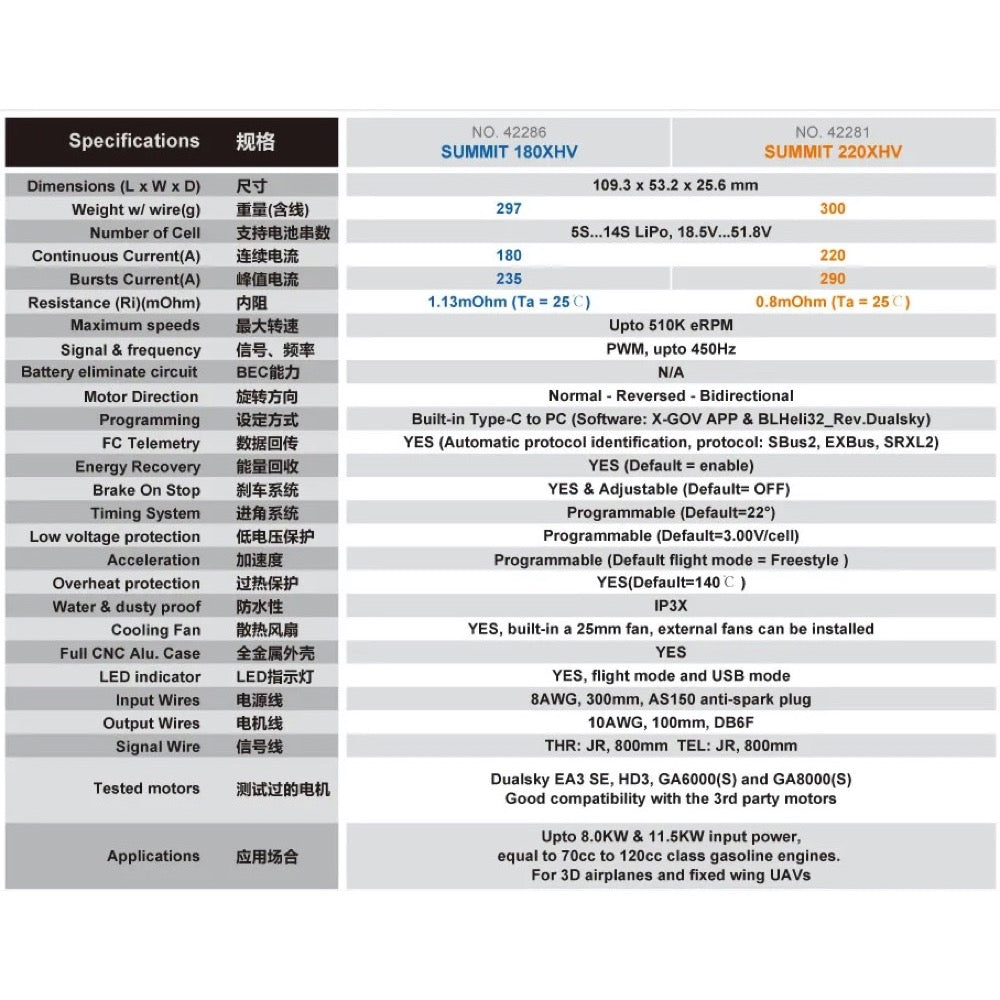

  • LiPo Input: 5S-14S
  • Amps: 180A Cont.

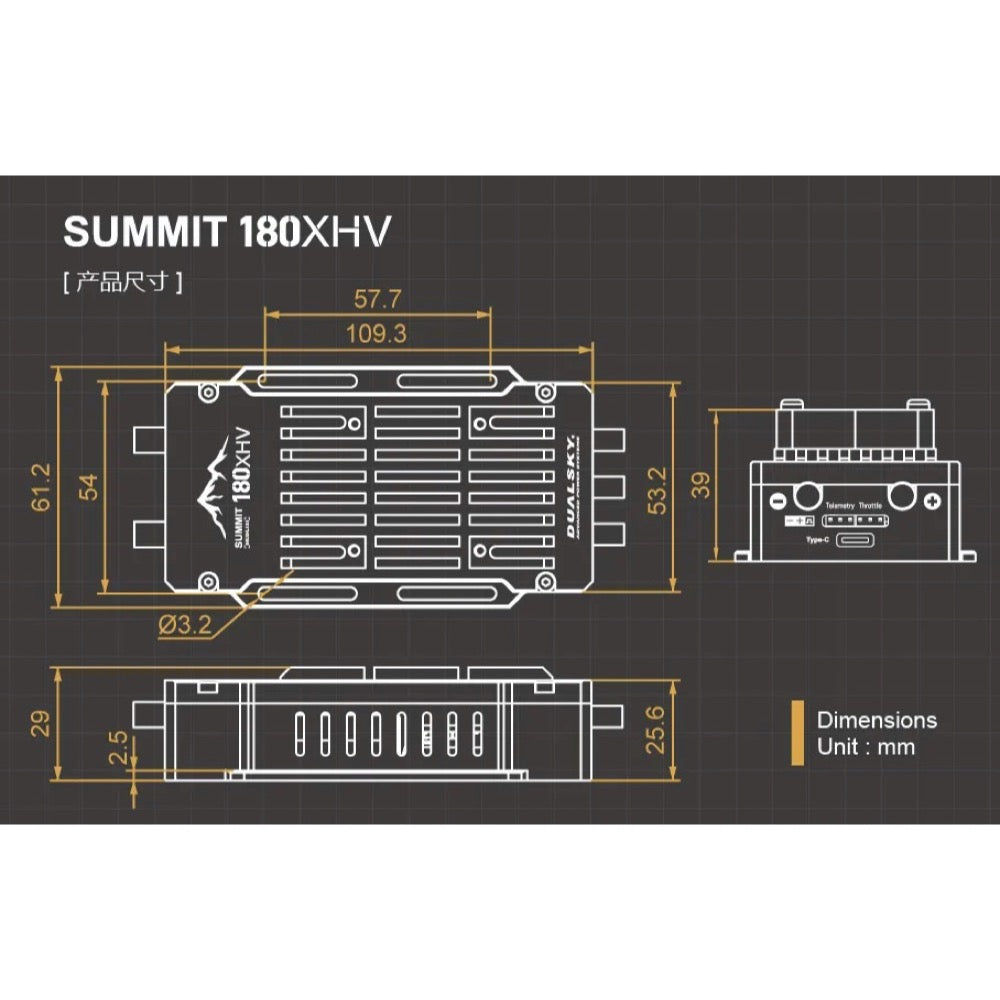

  • Dimensions (LxWxH): 109.3 x 61.2 x 29 mm
  • Weight: 297g
  • Drive Frequency: Up to 48MHZ
  • Max. Speed: 510K eRPM
  • Telemetry Support: SBus2, EXBus, SRXL2
