Cicada Nano 10A 4-in-1 ESC

Product Code: BL-S-10A-3S
Barcode: 184605
$64.99 $39.99 38%
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

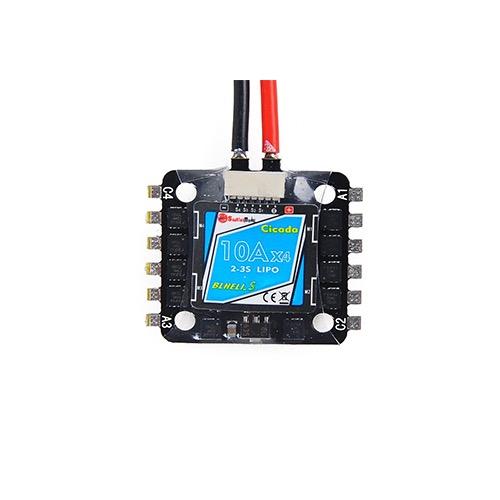

Cicada 4 in 1 ESC 10A BLHeli-S Electric Speed Controller 2-3S for FPV Racing Drone

Features

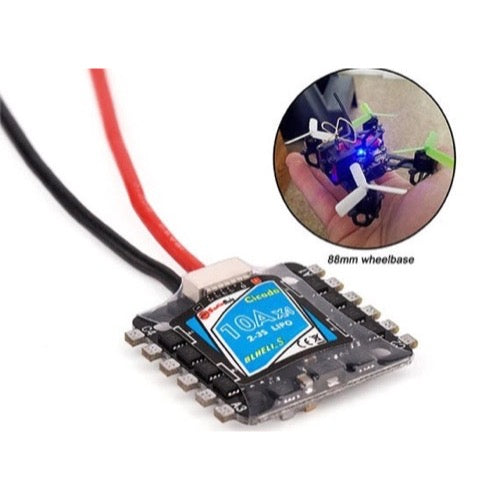

  • Designed for Micro-size quadcopters with 1102-1105 motors,perfect on wheelbase 90-100 mini drone

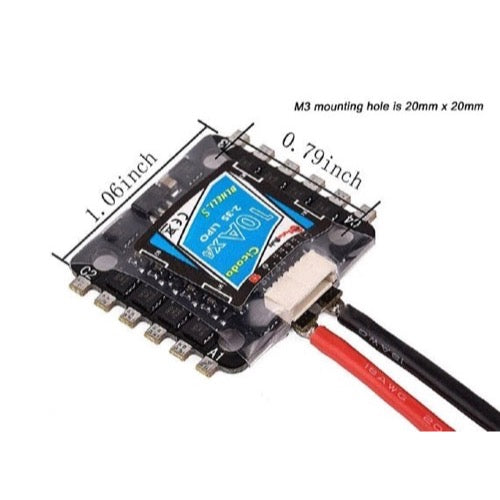

  • BLHeli-S 4 in 1 ESC 10A,small size 27*27mm combined with light weight only 7.5g for easy installation, the M3 mounting hole is 20mm x 20mm
  • The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) , Multishot (5-25us) and Dshot
  • All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
  • The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts

Specification

  • Item: BLHELI-S 4IN1 10A ESC
  • Con.Current:10A
  • Peak Current(10s):15A
  • BEC:NO
  • Lipo:2-3S
  • Programming :YES

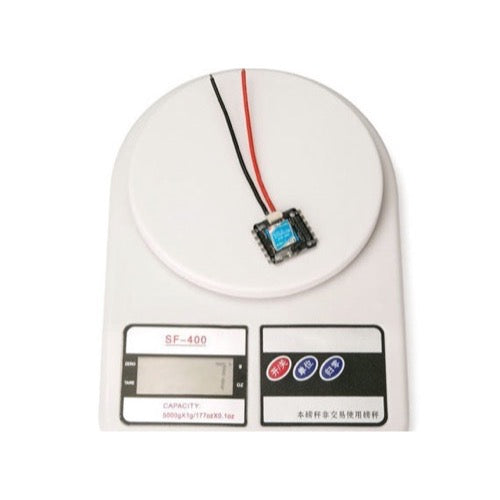

  • Weight:7.5g
  • Size(PCB):27*27mm
  • M3 mounting hole£º20mm x 20mm

Includes

  • 1 * 10A Mini 4-in-1 BLHELI_S ESC
  • 1 * Signal wire connector with servo connections
  • 1 * 6p mini signal wire
