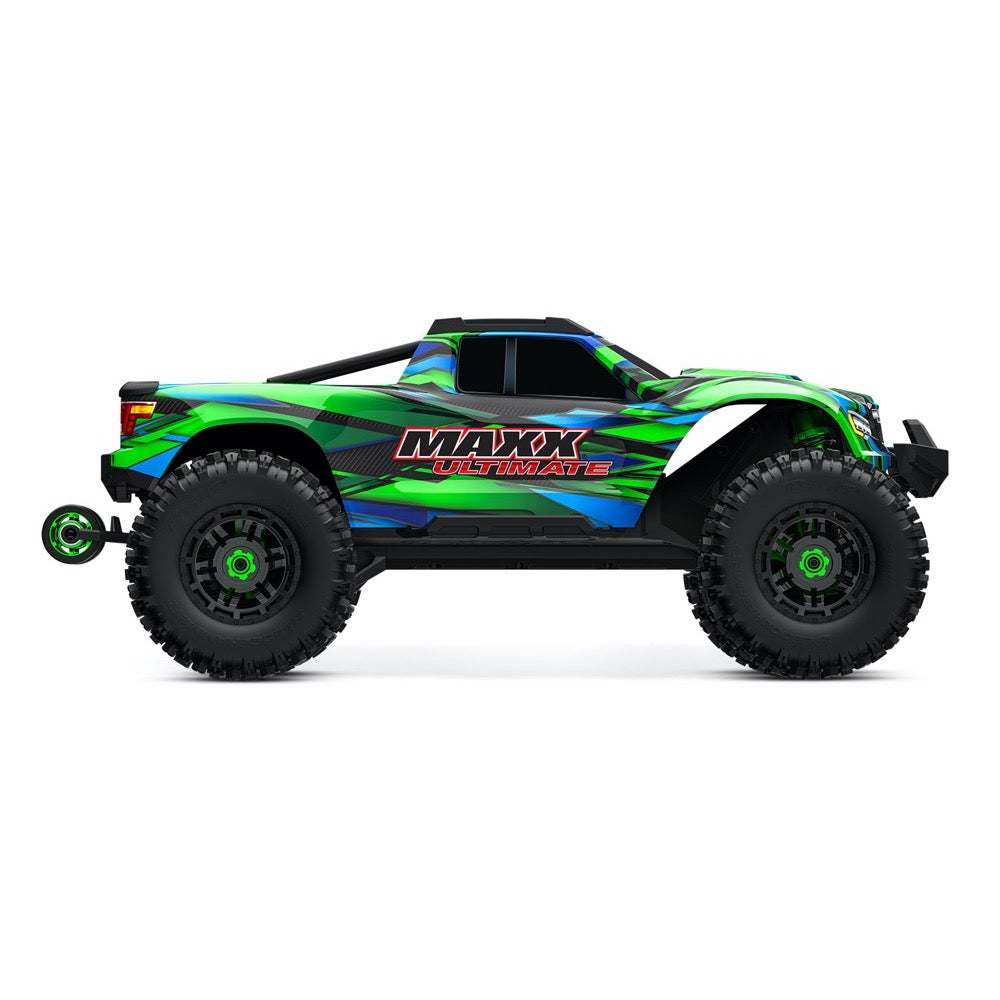

Traxxas Maxx Ultimate 4S 1/10 Brushless Monster Truck 89087-4 (Green)

The new Traxxas Maxx Ultimate (89087-4) is loaded with premium factory upgrades for extreme strength, control, and performance. From steel driveline parts to aluminum hubs, suspension, and steering components—all color-matched to bold new bodies— Maxx Ultimate is built tougher than ever.

Features

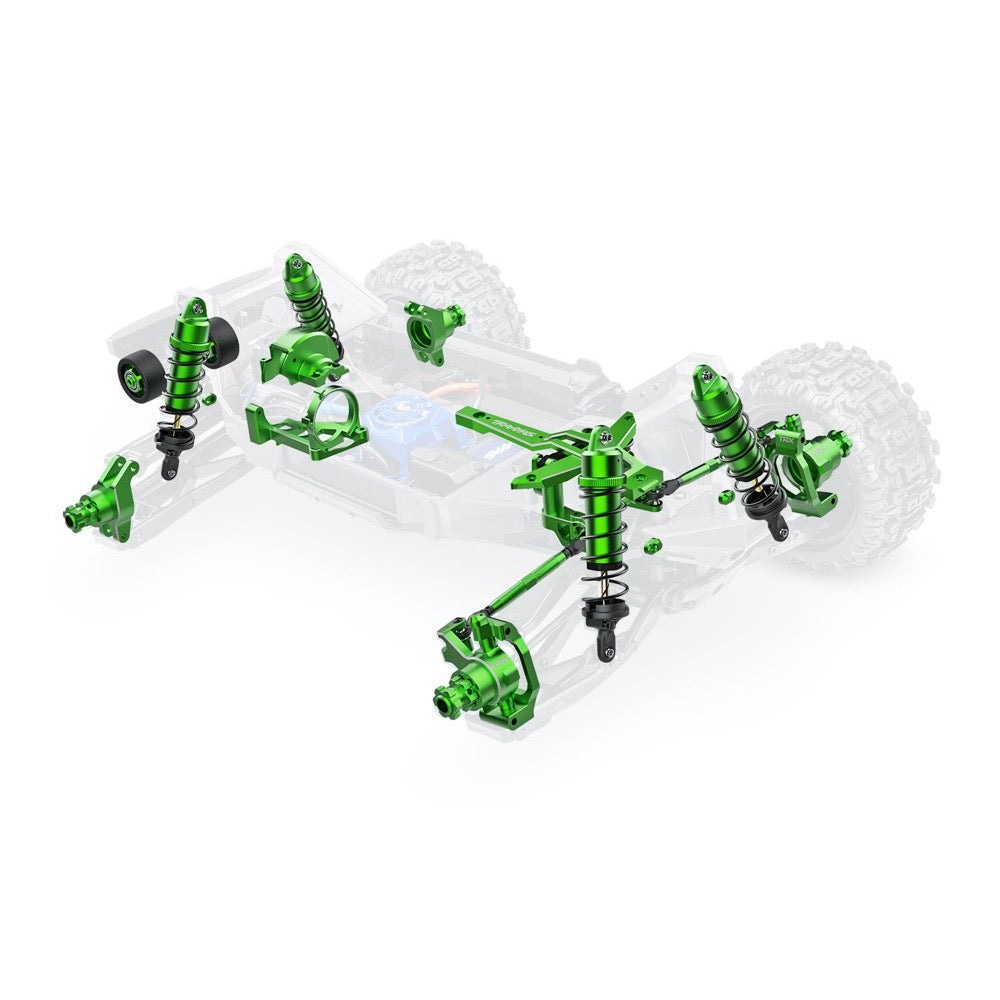

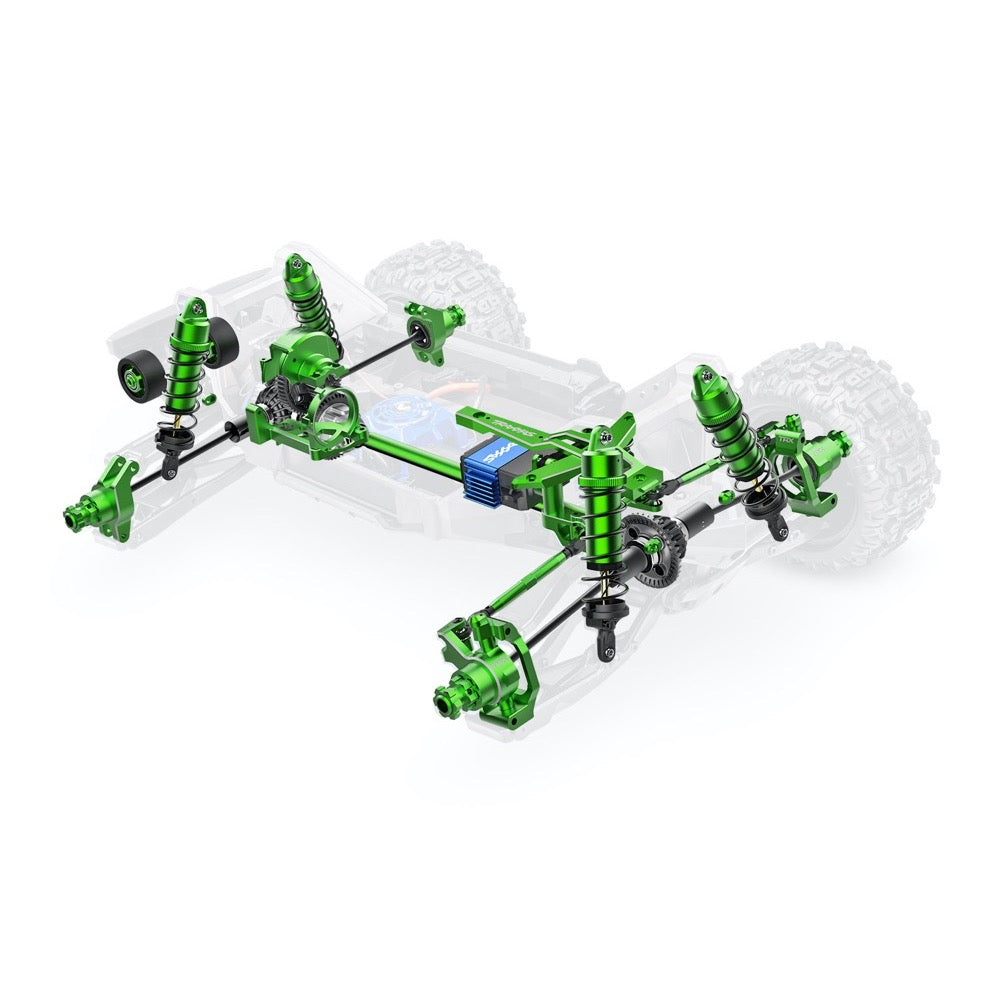

• High Performance Aluminum Upgrades

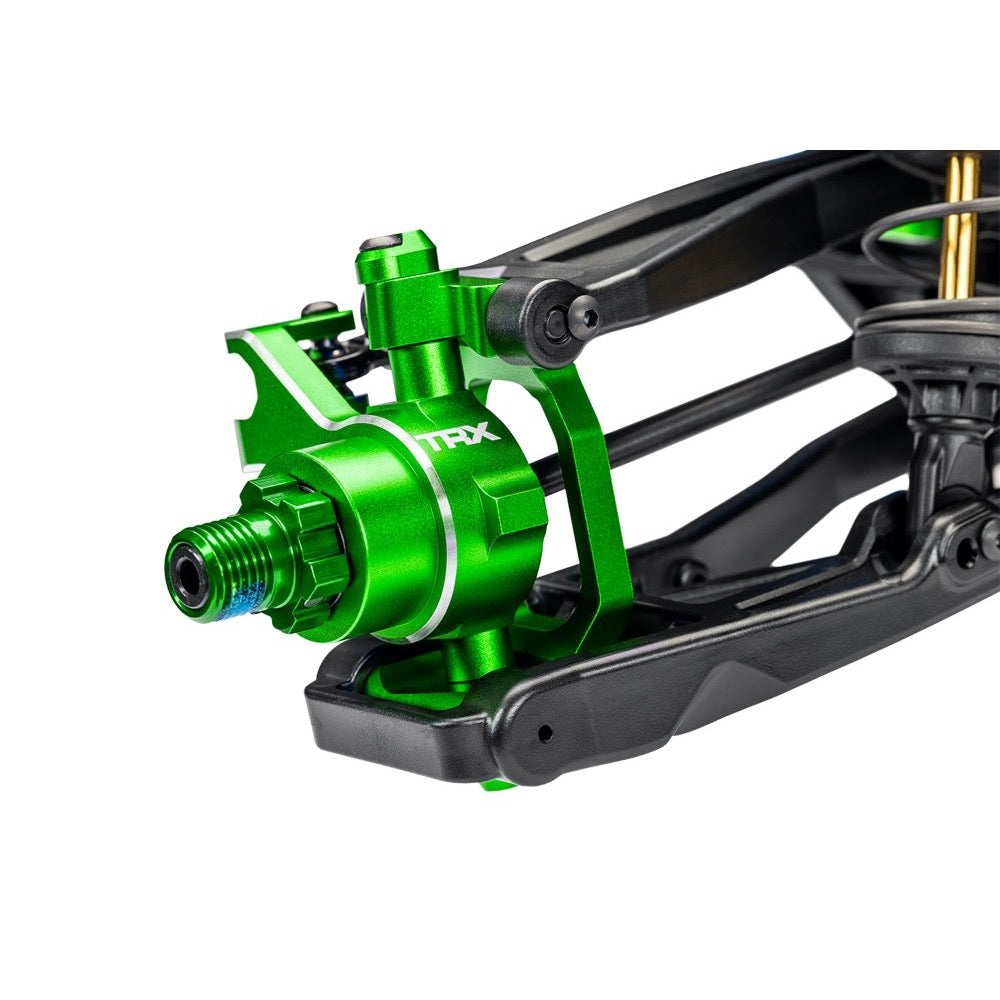

• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• 6061-T6 aluminum transmission cover
• 6061-T6 aluminum motor cradle
• 55 mph out of the box using single 4s LiPo battery (sold separately)
• 60+ mph with optional gearing & 4s LiPo battery (sold separately)
• VXL-4s™ Waterproof Electronic Speed Control
• 3s–4s LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link™
• Machined heat sinks
• 10 gauge silicone wire
• Integrated protection circuits
• LED status lights
• Waterproof
• Velineon^® 540XL Brushless Motor
• Long format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Aluminum heat sink
• Cooling fan
• Traxxas Stability Management^®
• Helps prevents spinouts and loss of control
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
• Factory-installed telemetry through VXL-4s ESC
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Clipless Body Mount System
• Unique Maxx Ultimate graphics
• Quick one-hand installation and removal
• Uses pivoting rear latch mechanism
• Eliminates body posts and clips
• Molded body reinforcements for extra protection against tearing
• Driveline
• Full-time shaft-driven 4-wheel drive
• Steel constant-velocity driveshafts
• Torque-Biasing Center Drive with aluminum housing
• 17 mm aluminum axle adapters & wheel nuts
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Heavy-duty Cush Drive™ with steel spur gear
• Splined aluminum center driveshaft
• Secure Motor Mounting System
• Aluminum full-length motor cradle
• Precise, fixed gear mesh adjustments
• Motor retention separate from gear mesh

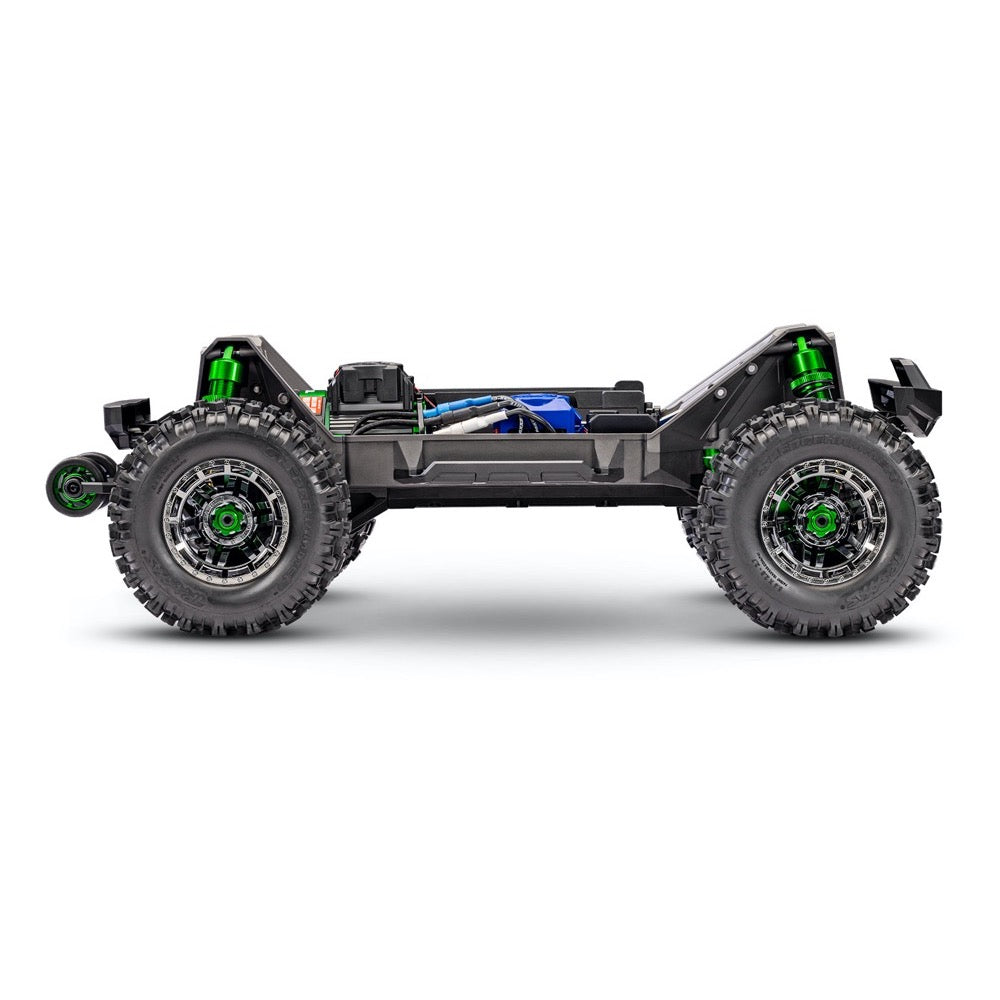

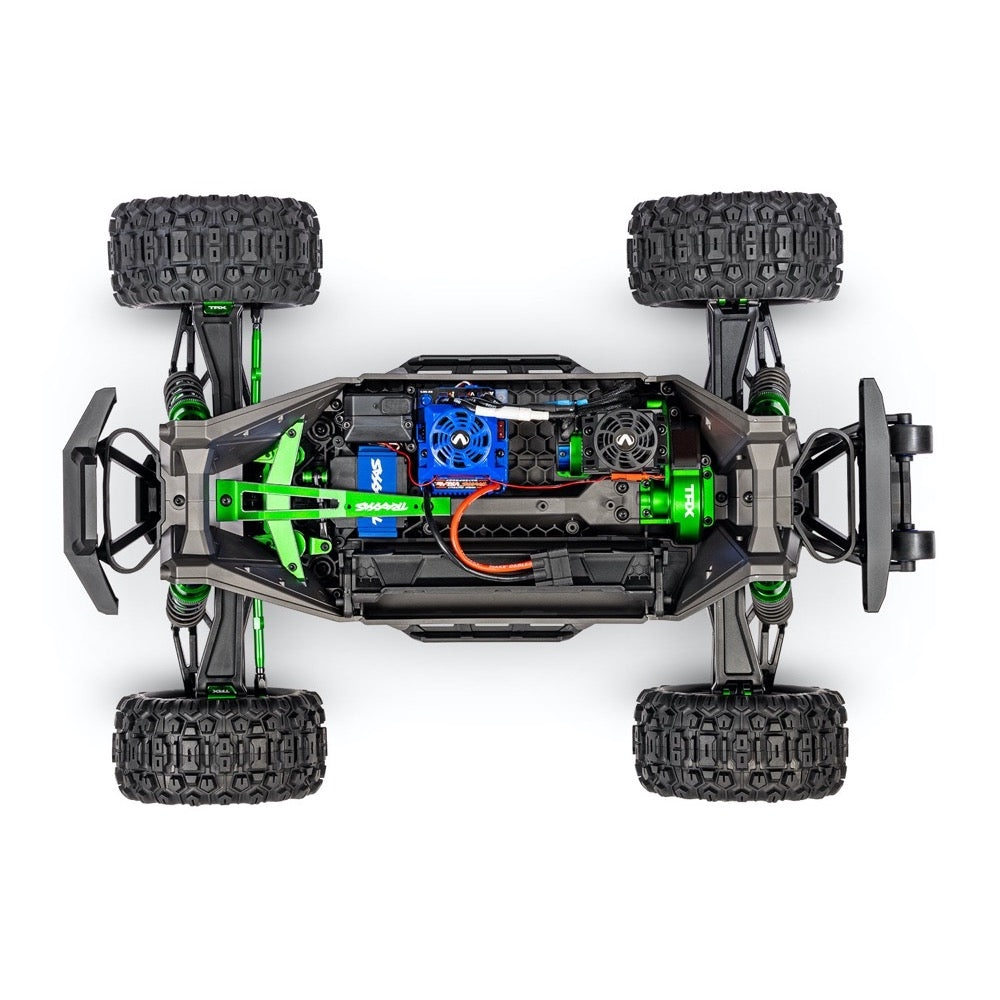

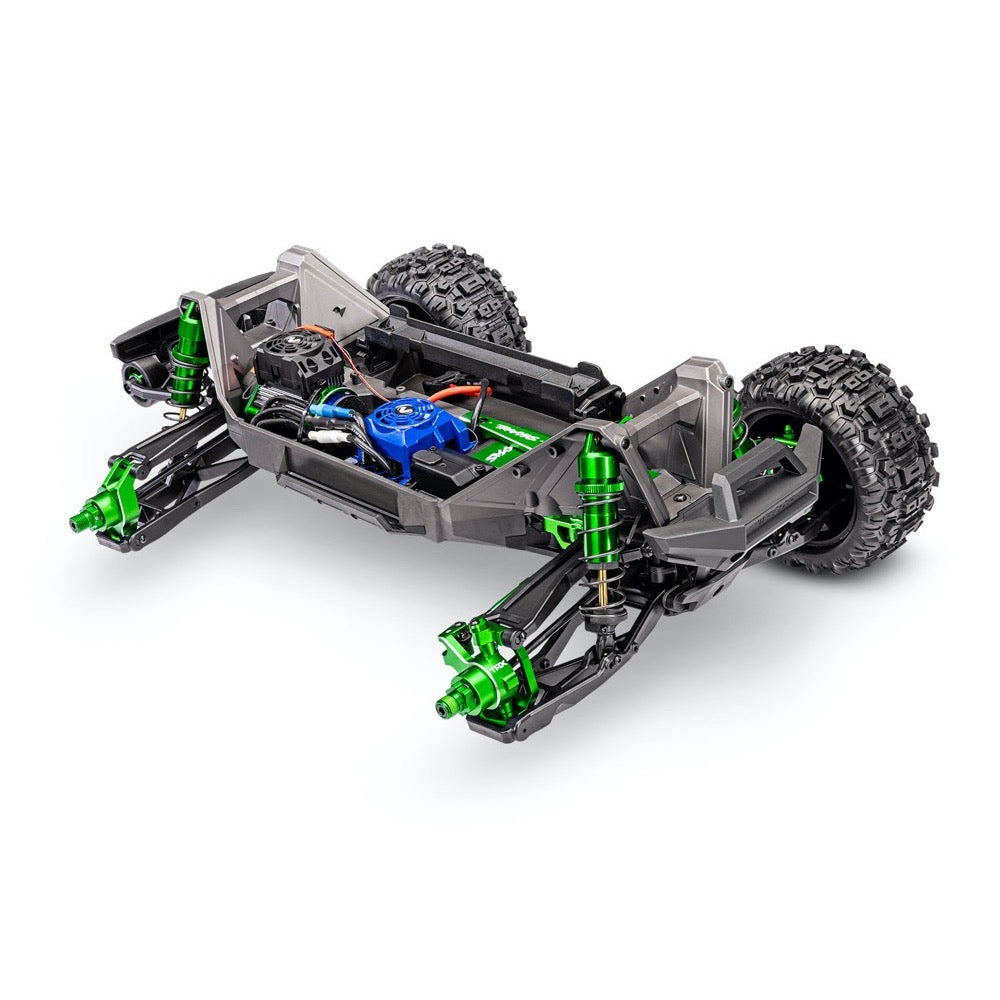

• Modular Composite Chassis
• Extended modular chassis design interlocks with front and rear bulkheads
• Absorbs and distributes impact energy
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit
• Easy Battery Access
• Extended battery tray accepts Traxxas’ largest 6700 mAh 4-cell LiPo battery
• Battery is protected deep in the chassis
• Battery hold-downs pivot for easy access
• More secure than conventional retention systems
• Steering

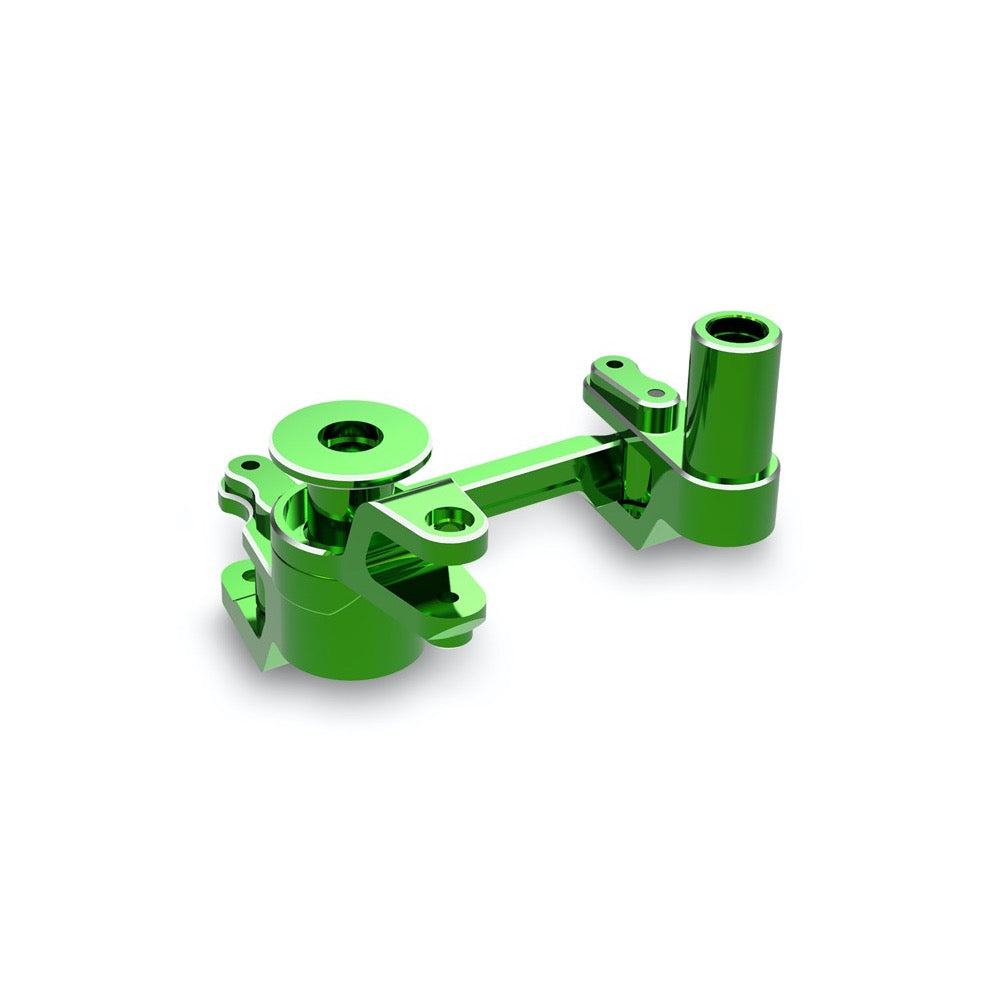

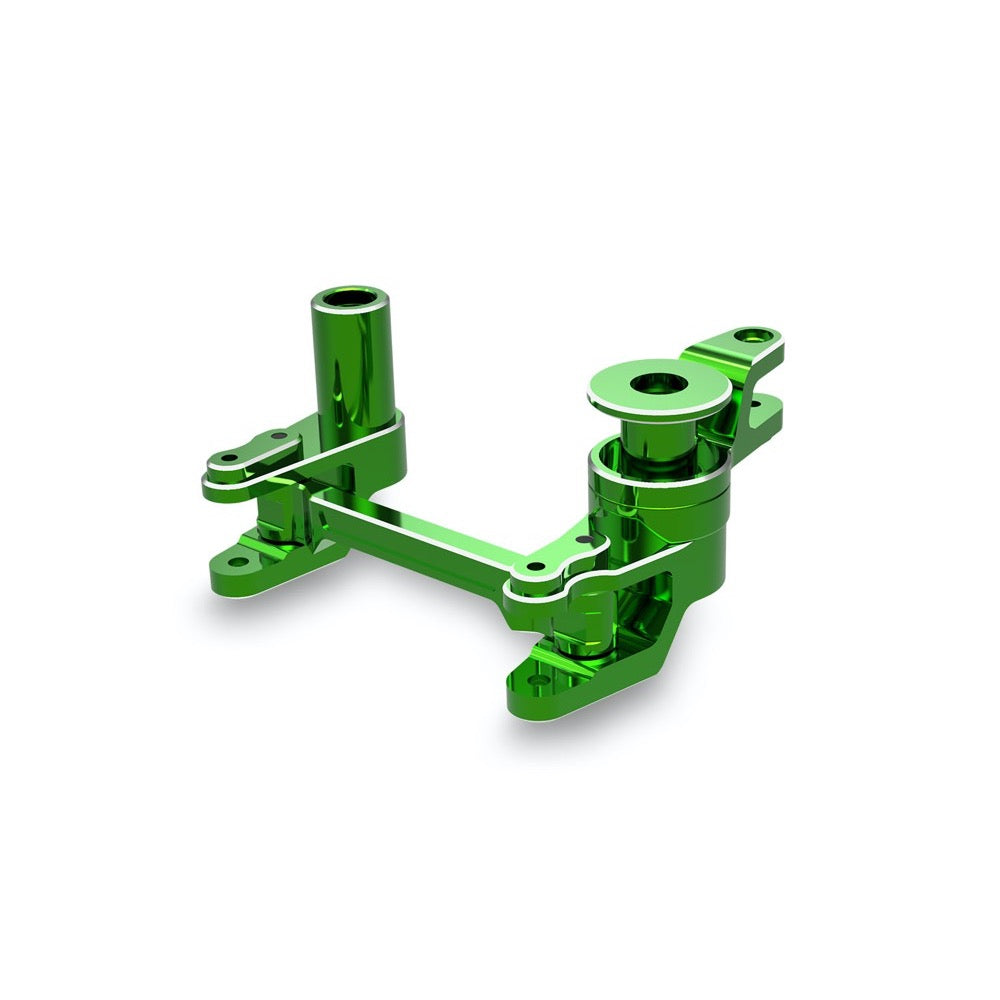

  • 6061-T6 aluminum steering bellcranks
  • 2085RL high-output metal gear steering servo
    • 650 oz-in torque at 6.0 volts
    • 0.13 sec/60° at 6.0 volts
  • Double-shear aluminum servo horn
  • Heavy-duty servo saver spring
• Suspension
  • Tough composite formula resists impact damage, even in cold weather
• TUBES 7075-T6 Aluminum front toe links
• WideMaxx^® suspension arms
• All critical suspension points have double shear strength
• Aluminum suspension pin retainers
• Steel pivot balls

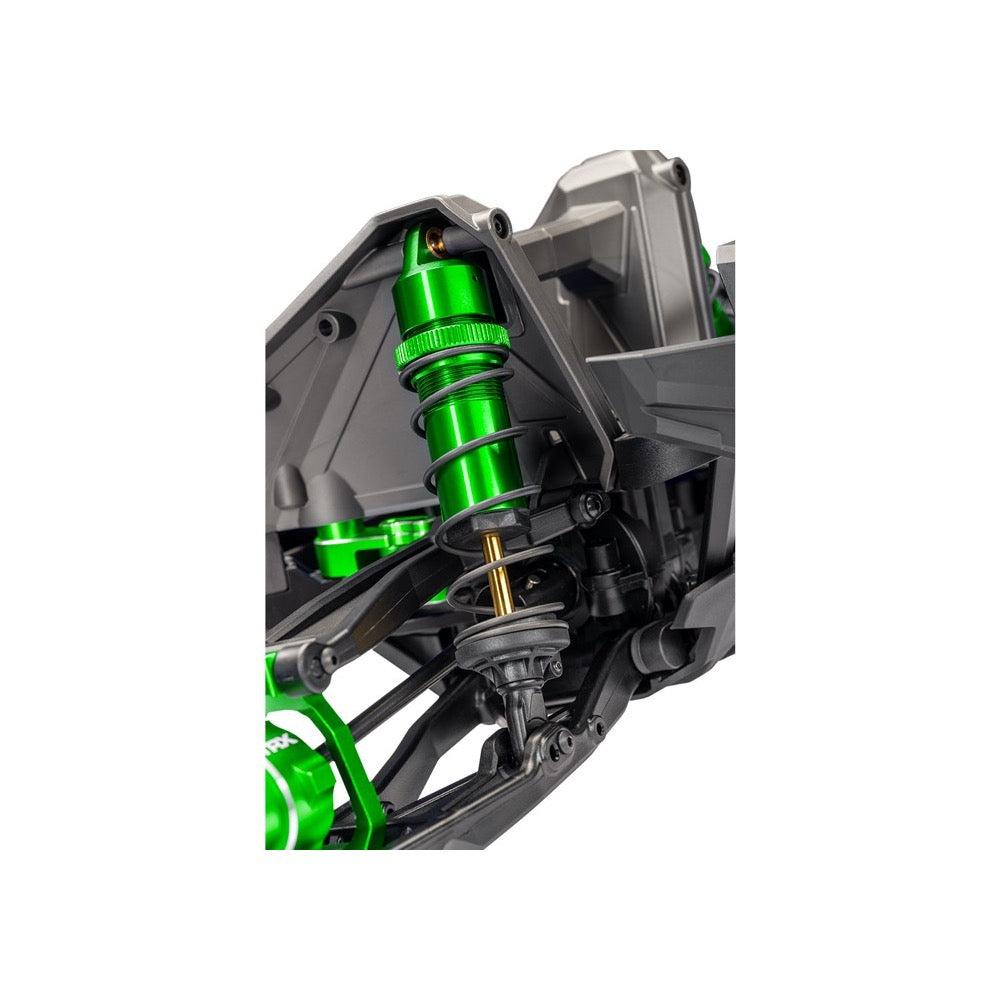

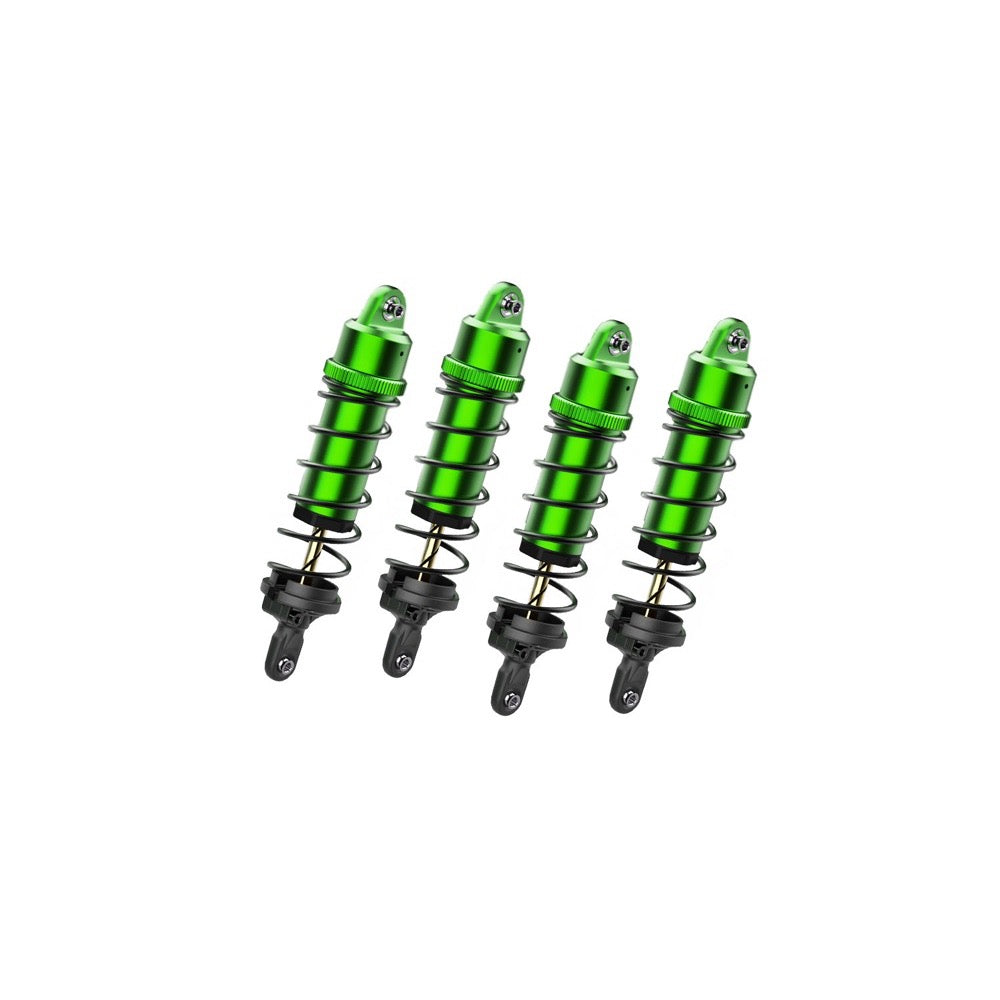

• GT-Maxx^® Shocks
• Threaded aluminum body
• Aluminum shock caps with pivot balls
• Ultra-smooth TiN-coated damper shafts
• Adjustable aluminum upper spring retainer
• Lower seal cartridge with dual X-rings
• Lower spring perches bolted on
• Bumpers
• Tough energy absorbing front and rear bumpers
• Lower front and rear skid plates for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Wheelie bar with aluminum wheels
• Wheels & Tires
• 2.8″ black chrome wheels with keyed 17 mm hex receptor
• Sledgehammer^® extreme tires for sure-footed traction
• 1-piece foam inserts
• Pre-glued, TSM^® rated

Includes

• Maxx Ultimate with Velineon^® 540XL brushless motor
• VXL-4s waterproof electronic speed control with integrated telemetry
• TQi 2.4 GHz radio system with factory-installed wireless module
• Quick Start Guide
• High quality maintenance tools

Requires

• Name: Maxx Ultimate
• Type: Monster Truck
• Top Speed: 60+ mph with 4s LiPo battery and optional gearing
• Skill Level: 4
• Scale:1/10
• Weight: 10.20 pounds (4.63 kg)
• Length: 22.50 inches (572 mm)
• Width: 15.95 inches (405 mm)
• Track:15.95 inches (405 mm)
• Height: 9.12 inches (232 mm)
• Wheelbase:13.85 inches (352 mm)
• Center Ground Clearance: 2.6 inches (67 mm)
• Driveline: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type:Sealed, hardened steel bevel, limited slip
• Gear Ratio (Internal): 12.37:1
• Gear Pitch: 1.0 metric pitch
• Steering Servo: 2085RL metal gear ultra-high-torque (650 oz-in)
• Radio System:TQi™ 2.4 GHz 2-channel transmitter with wireless module
• Battery Compartment Specs:186 mm X 48 mm X 43 mm

MOTOR

• Name: Velineon® 540XL
• Motor Type: 2400 Kv sensorless brushless
• Weight:317 g (11.18 oz)
• Length:3.58 inches (91 mm)
• Diameter: 1.41 inches (36 mm)
• Shaft Size: 5 mm
• Connector Type:6.5 mm bullet connectors

ESC

• Name: Velineon® VXL-4s
• ESC Type: Brushless
• Case Size: 72 mm L x 59 mm W x 49 mm H
• Weight:7.09 ounces (201 grams)
• Motor Connectors: 6.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors
