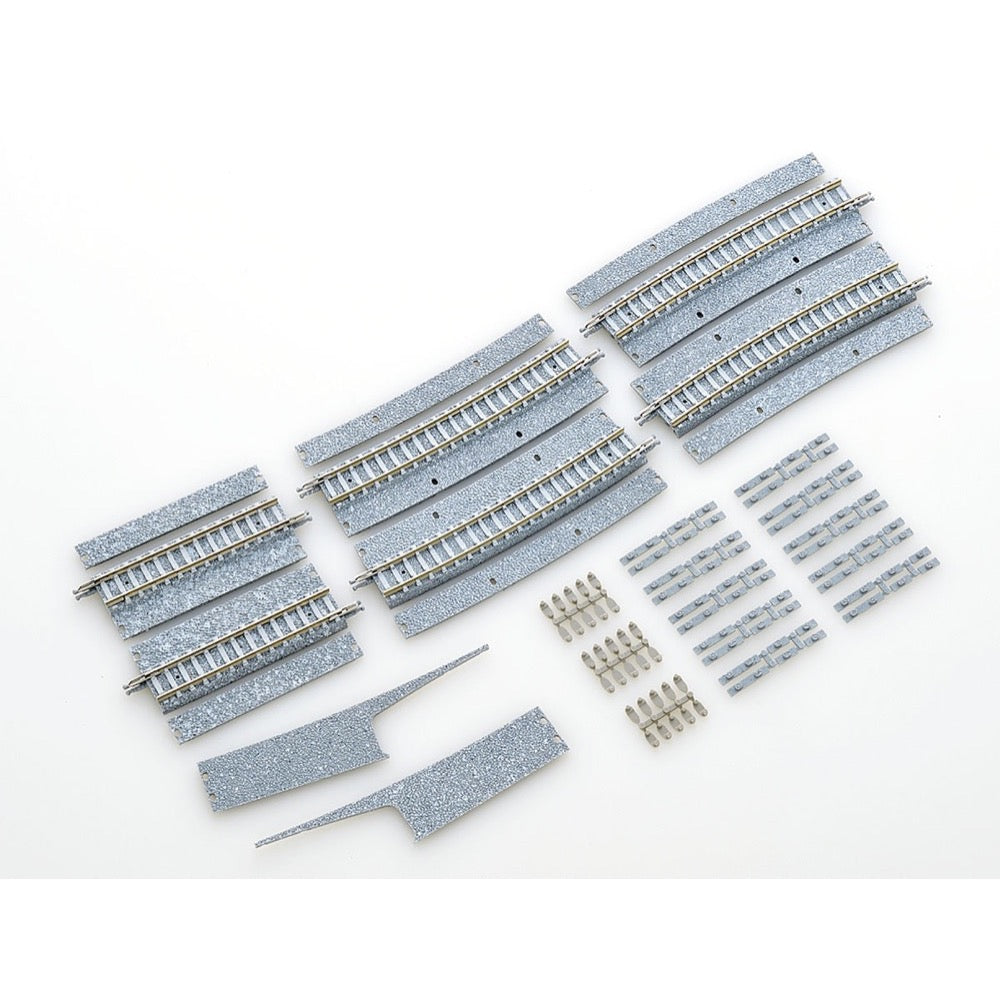

Tomix 1750 N Wide PC Curved Track 23-13/16" 605mm Radius 10° (4) & 2-3/4" 70mm (2)

This is a single set of wide rails that widens the gap between double tracks to 55.5 mm for island platforms on S-curves with a curve radius of 605 mm. *This does not have a cant as it is mainly used to expand the gap between double tracks.

Features

• Ballast and sleepers are painted for a beautiful appearance
• PC sleepers are expressed
• The double track spacing of the wide rail has been expanded from 37mm to 55.5mm
• There are two types: C605-10-WP A(F) which allows the ballast on the outside of the curve to be attached and detached, and C605-10-WP B(F) which allows the ballast on the inside of the curve to be attached and detached
• By removing the ballast on one side and matching the side without ballast, you can create C605-10-WP A(F) and C605-10-WP B(F) can be connected in an S shape and then S70-WP(F) can be connected to the side of an island platform
• Can be used as a normal wide rail if ballast is attached to one side
• Rails are joined with claws for an easy and secure connection
• Compatible with conventional TOMIX rails
• Separately sold handrails, side walls, and fences can be attached to the side of the rail
• Can be used as a double-track rail by connecting two or more in parallel
• When used as a double-track rail, a wide rail/slab rail coupling can be attached to the underside to accommodate double-track viaduct piers
• Power can be supplied by attaching a wide rail/slab rail feeder to the underside (slab rail feeder can also be installed, conventional feeders cannot be installed)
• Wide rail/slab rail sensors can be installed by the user through additional work (slab rail sensors and one-touch attachment sensors cannot be installed)
• Compatible with various overhead line poles
• *In order to attach wide rail walls S140 or various overhead line poles at 140mm intervals to this product, C605-10-WP A(F) and C605-10-WP Be sure to connect S70-WP(F) to the S-shape of B(F) to make the total rail length 280mm.
