Tomix 91047 N Embankment Large Curve for Double Track Set

Transform your train track with TOMIX 91047 N Gauge Embankment Large Curve Rail Double Track Set! Create a single line embankment curve with ease, using this product in combination with the [91045] or [91046] sets.

Features

• Rails can be easily and securely connected

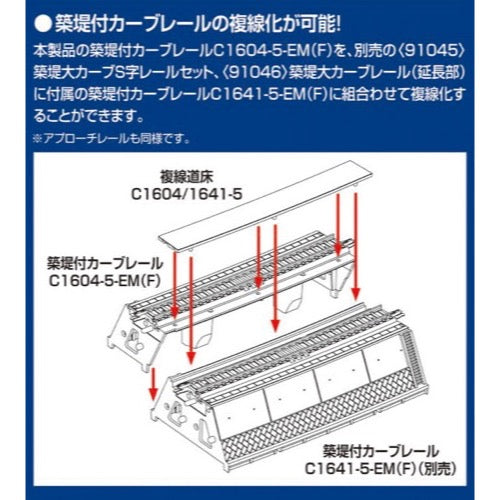

• By combining this product with the separately sold <91045> Embankment Large Curve S-shaped Rail Set or <91046> Embankment Large Curve (extension),
  it is possible to double track a single-track embankment large curve
• To double track the separately sold <91045> Embankment Large Curve S-shaped Rail Set, one set of this product and one set of separately sold <1803> Straight Rail S72.5(F) (set of 4) are required

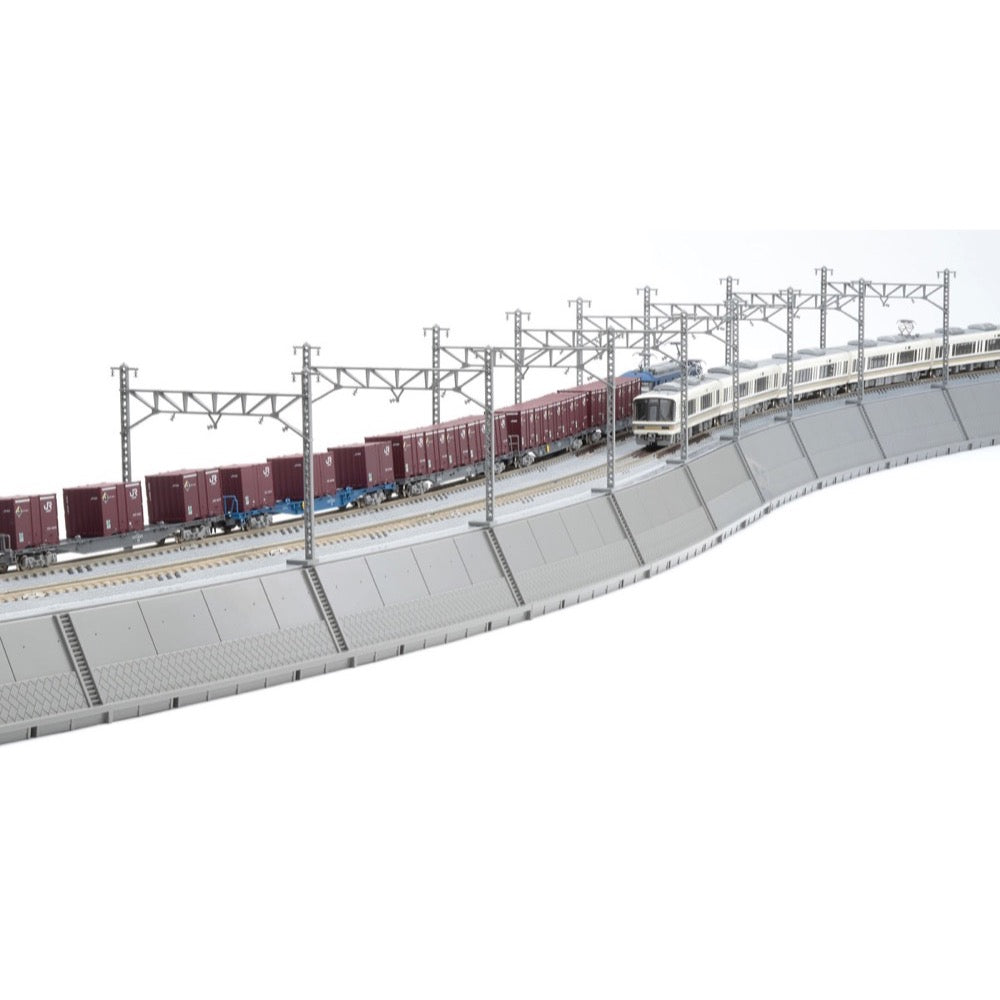

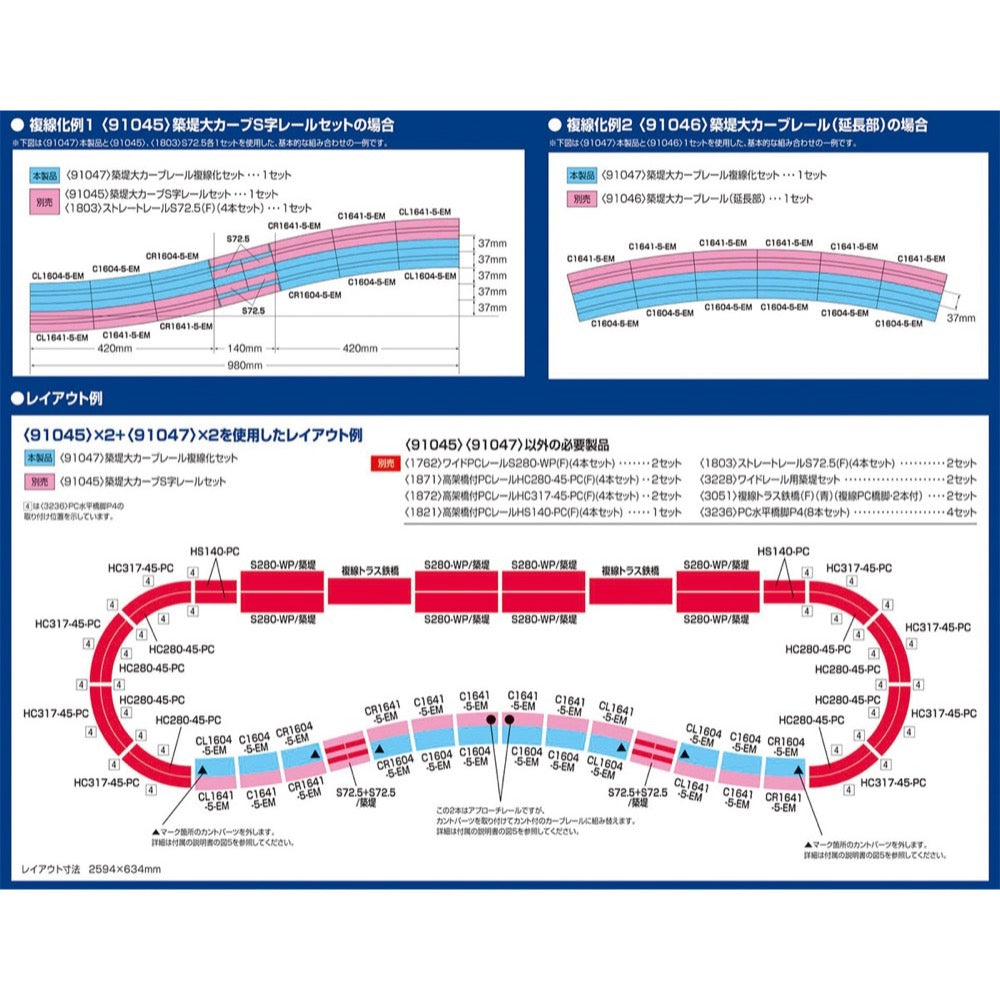

• When <91045> is double tracked, the dimensions are 980 mm in length and an S-shaped layout with a 148 mm offset
• To double track the <91046> Embankment Large Curve Rail (extension)

*One set of this product is required for this purpose
*The height of the embankment of this product is the same as one stage of the separately sold <3228> Wide Rail Embankment Set, and the exterior has the same design
*The curved rail with embankment C1604-5-EM is a wooden sleeper type
*The curved rail with embankment C1604-5-EM is a canted rail with an embankment of radius 1604 mm and curve angle of 5 degrees, with a cant inclination angle of approximately 4 degrees
*By removing the cant parts of the curved rail with embankment C1604-5-EM, it can be changed to an approach rail that can be connected to a normal rail
　*A precision Phillips screwdriver is required
*Various overhead poles (sold separately) can be attached

Special Notes

• This product cannot be used alone
• he embankment of this product cannot be used in double layers

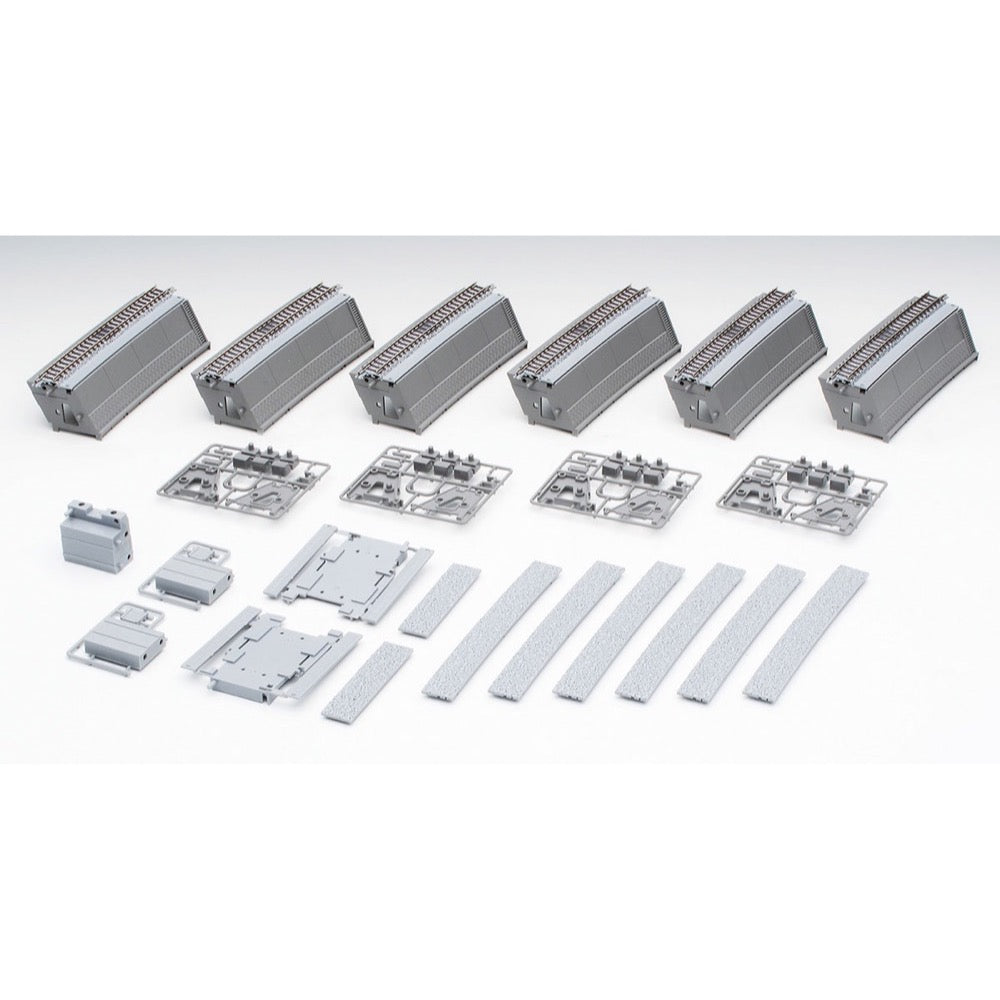

Contents

Curved rail with embankment C1604-5-EM x 6

Accessories

• Runner parts: Embankment S2.5, etc.
• Runner parts: Piers for large curved rail embankment double track
• Parts: Double track ballast for embankment S72.5
• Parts: Double track edge ballast for embankment S72.5
• Parts: Double track ballast for embankment C1604/1641-5
• Parts: Piers for embankment
