Tomix 5572 N TCS 3lights signal WP

A three-light traffic light compatible with wide PC rails.

Features

• Ballast and sleepers are painted for a very beautiful appearance
• Simple and reliable connection, gray concrete sleeper paint expression
• Beautiful and realistic signal in black and white two-tone
• Trackbed compatible with wide rails with a trackbed width of 37 mm
• Ballast on the opposite side of the signal pole is removable and can be installed next to a station
• Fences, handrails, and side walls (sold separately) can be attached to the side of the rail
• Compatible with single-track piers by attaching the separately sold single-track pier base S70 to the underside
• Includes ballast to fill the gap when a signal pole is placed between double tracks
• Lights up independently when powered by a TCS connector
• Lights change just like the real thing according to the movement of the train
• Color is red (when stopping) The lights change in the following order: stop → yellow (caution) → green (go ahead)
• The arrangement of the color lights is blue, yellow, and red from top to bottom
• The train's lap time is counted and stored, and the time for switching on the lights for the next lap is continuously variable according to the lap time of the cars from the previous lap - the light changes slower if the lap time is long, and faster if it is short
• The signal lights up in the direction opposite to the train's direction of travel in red
• Equipped with a mode that detects when the track becomes unpowered while in operation and turns the signal red
• Can be installed in any number of locations
• Touch sensor type that is not affected by external light
• Signal poles are connector type for easy replacement
• LEDs are used for the signal lights
• Current consumption: approx. 10mA

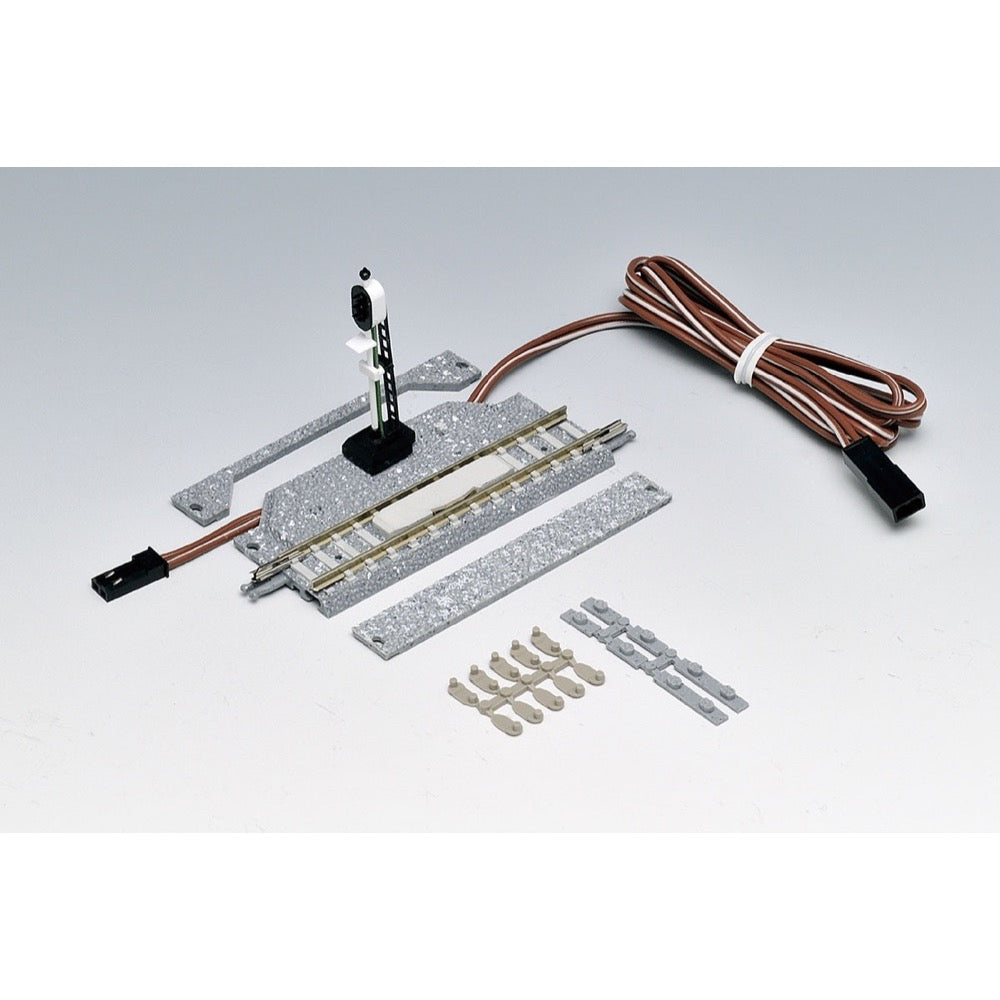

Contents

• 3-light signal WP(F)
• Wide ballast S70(F)
• Ballast for signal posts between double tracks
• Runner parts: W rail joint large, small
• Runner parts: ballast joint, hook
