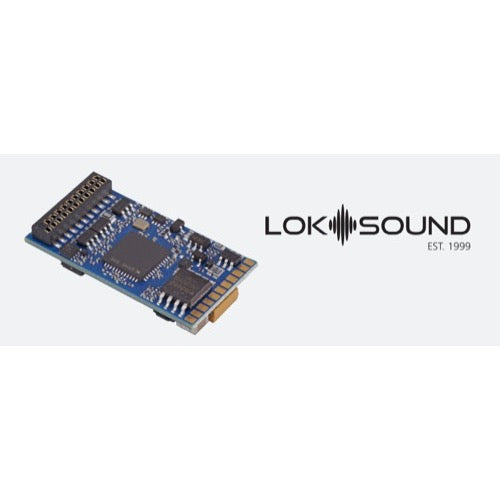

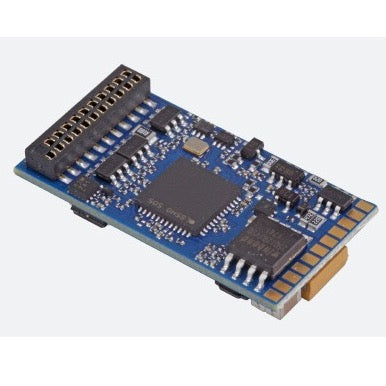

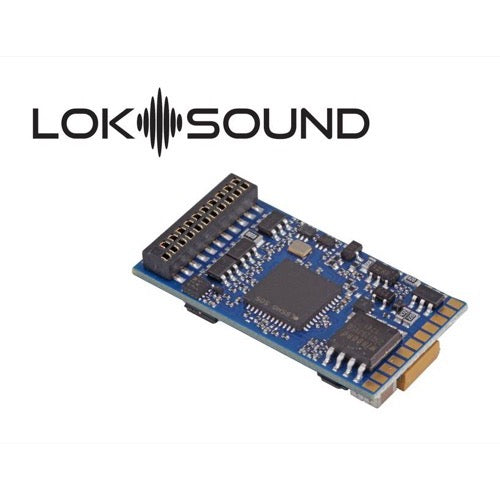

ESU 58419 LokSound 5 DCC/MM/SX/M4 Blank Decoder 21MTC Retail With Speaker 11x15mm Gauge 0 H0

• Operation under DCC with RailComPlus®, M4, Motorola® and Selectrix®
• 32 switchable functions (depending on the control panel)
• 32-bit processor
• Digital class "D" amplifier with up to 3 W power (LokSound 5 XL: 13 W)
• Each channel in 16-bit resolution and 31250 kHz sample rate
• Sound memory with 128 Mbit capacity
• Motor control with 50 kHz switching frequency
• RC servos and Susi modules can be controlled
• 3 new, individually adjustable brake controls
• Two-stage heavy duty simulation
• Updateable with ESU-LokProgrammer

LokSound 5

• Universal sound decoder for gauges H0 and 0
• Motor current 1.5 A
• Depending on the interface, up to 12 amplified function outputs for special functions (total: up to 15 outputs)
• 10 sound channels can be played simultaneously
• Factory fitted with 11x15mm "sugar cube" speakers with adjustable sound capsule set
• PowerPack storage capacitor can be connected as an option
• Dimensions: 30mm x 15.5mm, height dependent on interface

Interfaces

• 8-pin NO 652
• PluxX22
• 6-pin NO 651
• 21MTC
• 21MTC MKL
