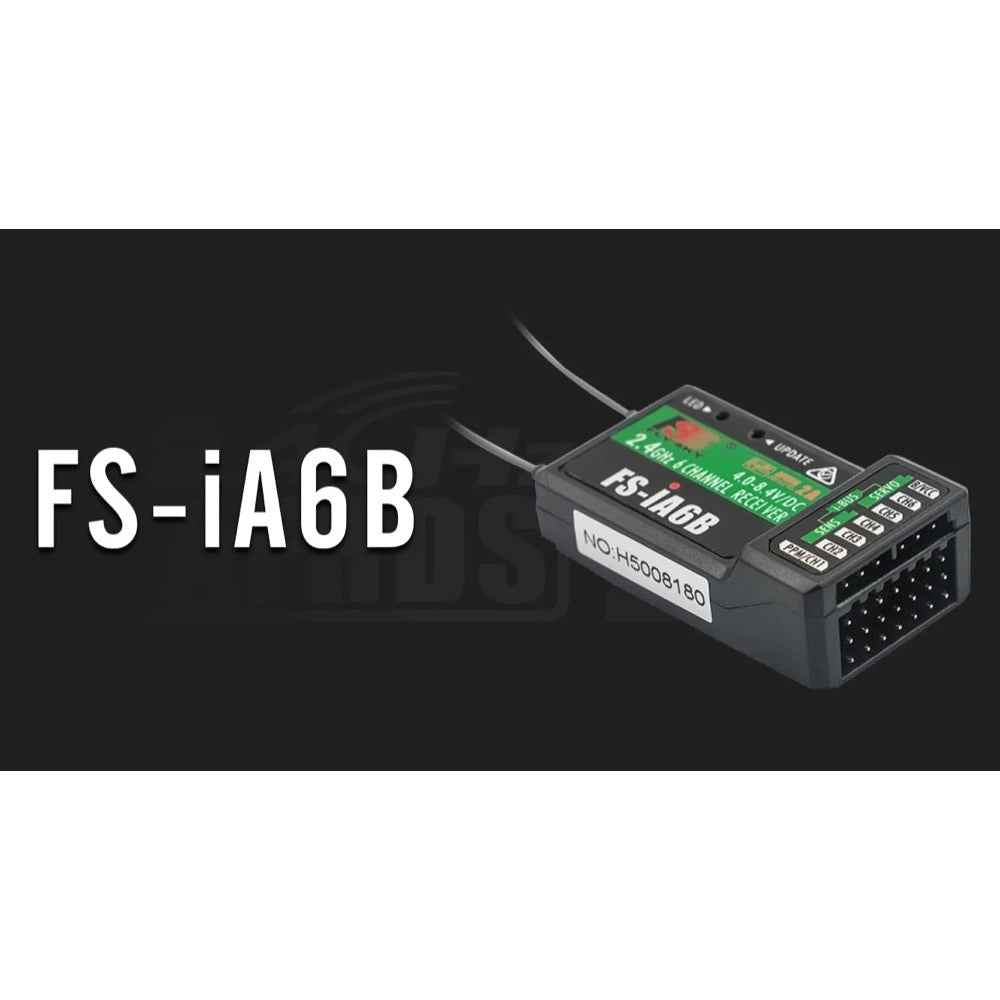

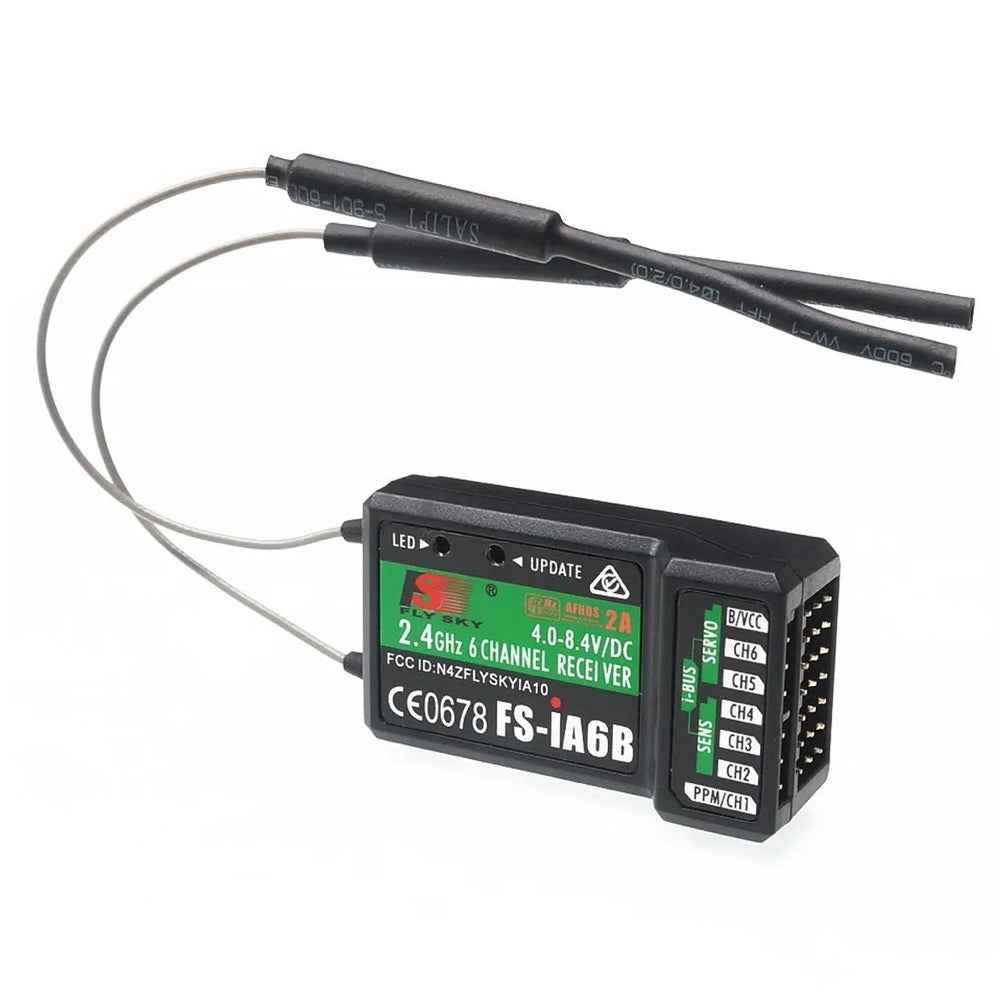

FlySky iA6B 2.4GHz 6 Channel Receiver

This FlySky FS-iA6B 6ch Receiver works great with the FlySky FS-i6 Controller. This compact 6 channel receiver is great for any model using up to 6 channels and, with a range exceeding 500 meters, it can be considered to be full range for all but the most demanding of applications. The receiver has end-on connectors to enable a neat installation in tight spaces. Built in connectors allow you to use any of the optional FlySky telemetry sensors. Dual antennas give the FS-iA6B excellent reception and interference rejection capability. With easy binding, compact dimensions, optional telemetry and dual antennas!

Specifications

• Channels : 6
• Frequency Range : 2.4055–2.475 GHz
• Band Width Number : 140
• Transmitting Power : 20dBm
• RF Receiver Sensitivity : -105dBm
• 2.4G Mode : Second generation enhanced version of automatic FM digital
  system
• Encoding : GFSK
• Antenna Length : 26mm x 2 (dual antenna)
• Input Power : 4.0–8.4V DC
• Dimensions : 47 x 26.2 x 15mm
• Weight : 14.9g
• Color : Black
• i-Bus Interface : Yes
• Data Acquisition Interface : Yes
• Model Type : Airplane / Glider / Helicopter
• Compatible Transmitters : FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

Contents

• 1x Flysky FS-iA6B receiver
• 1x Bind plug

• Product Model: FS-iA6B
• PWM channel: 6
• Wireless frequency: 2.4GHz
• Wireless protocol: AFHDS 2A
• Range: 500 ～ 1500m (in the air)
• Antenna type: Dual copper tube antenna (150mm * 2)
• Power: 4.0-8.4V
• RSSI: Supported
• Data port: PWM / PPM / i.bus / s.bus
• Temperature range: -10 ℃ — + 60 ℃
• Humidity range: 20% -95%
• Online Update: Yes
• Dimensions: 47 * 26.2 * 15 mm
• Weight: 10g
• Certification: CE, RCM, FCC ID: N4ZFLYSKYIA10
