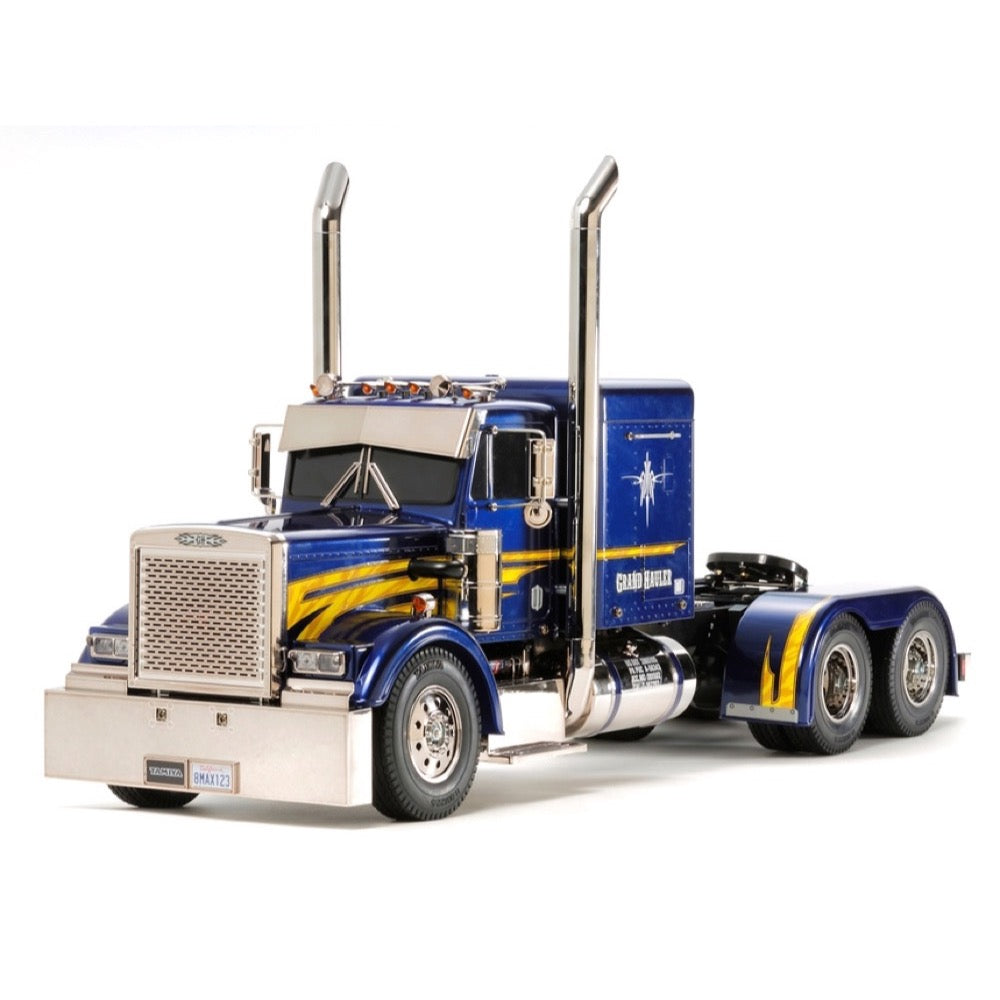

Tamiya 56344 Grand Hauler 1/14 Radio Controlled Truck Kit

The Big Kahuna of RC trucks

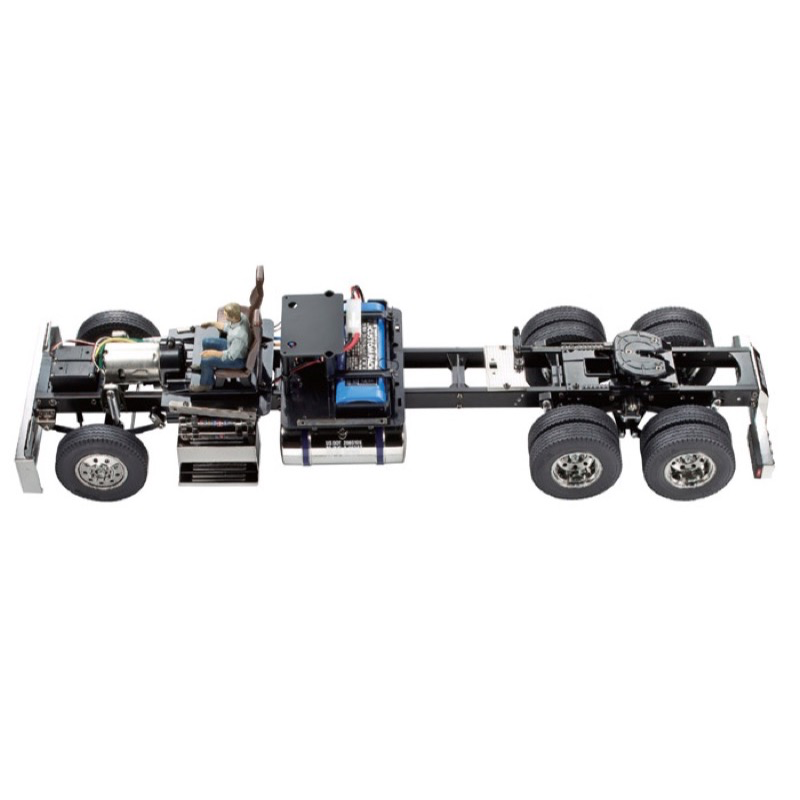

Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations.

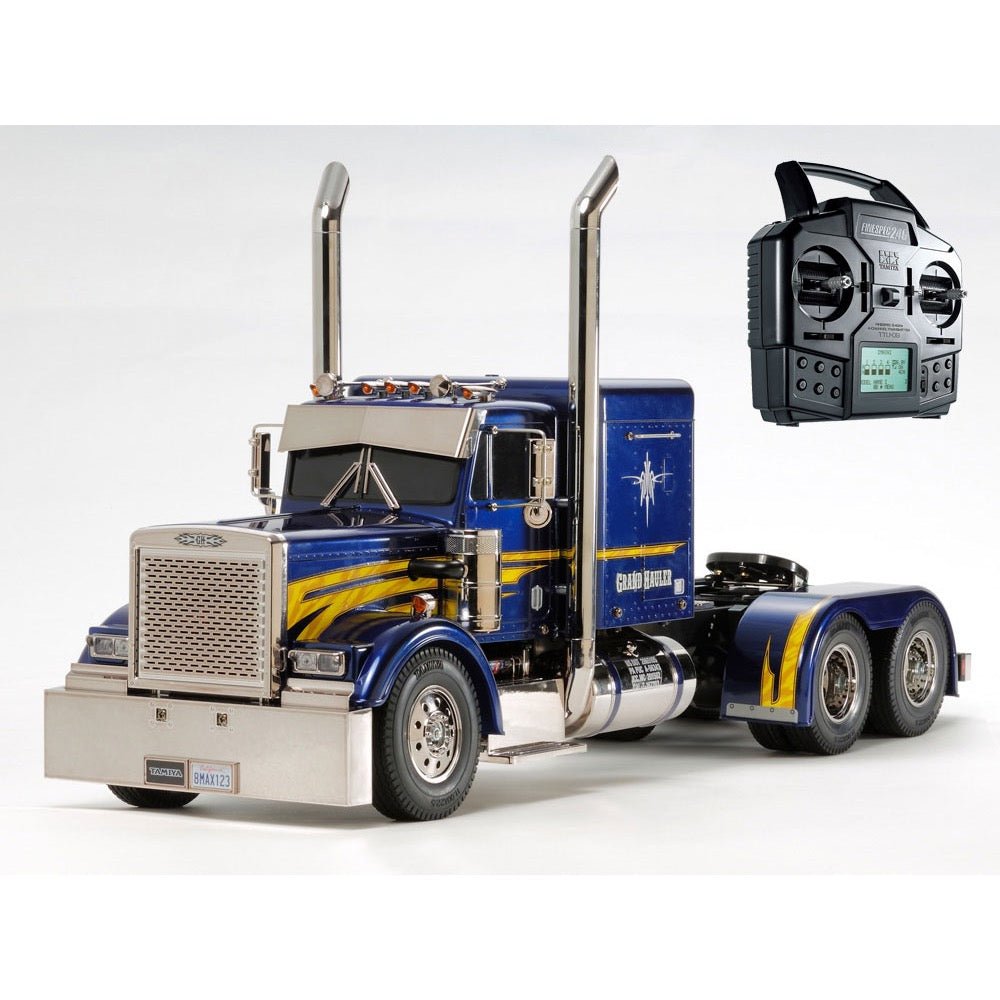

The Grand Hauler resembles a classic customized american tractor truck. The included 540 motor drives a 3-speed transmission, which has no problem turning the dual rear axles. Leaf spring and shocks keep the axles suspended to the metal C-Channel ladder frame, which keeps the power to the pavement.

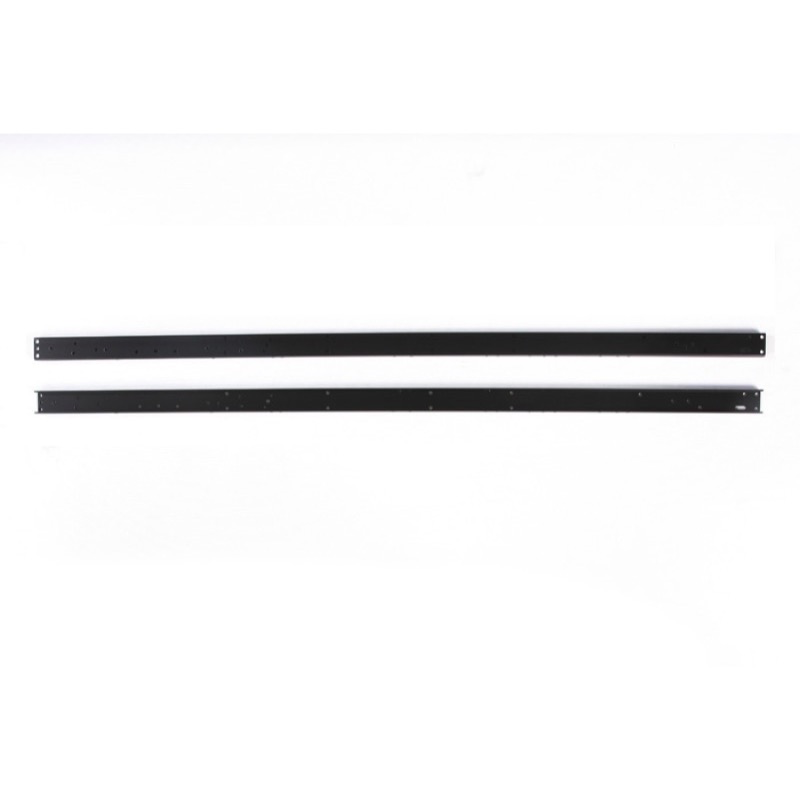

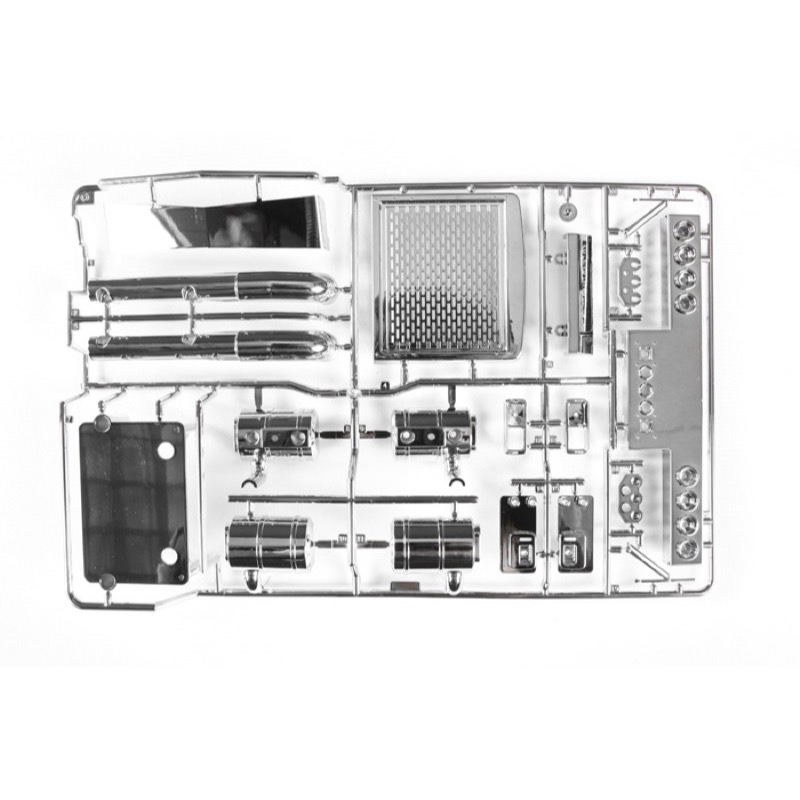

The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing. Features a tough ladder frame construction with aluminum side channels and plastic cross members. Realistic drivetrain setup sees the front mounted motor powering twin rear axles. Metal leaf spring dampers with built-in coil springs provide durable suspension. Newly-designed 1/14 scale driver figure included. Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.

Realistic lights, sounds, and vibration

Multi-Function Control Unit (MFC) (included for Japanese market only) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

6 Types of Semi-Trailer Separately Available

6 types of trailer including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.

Features

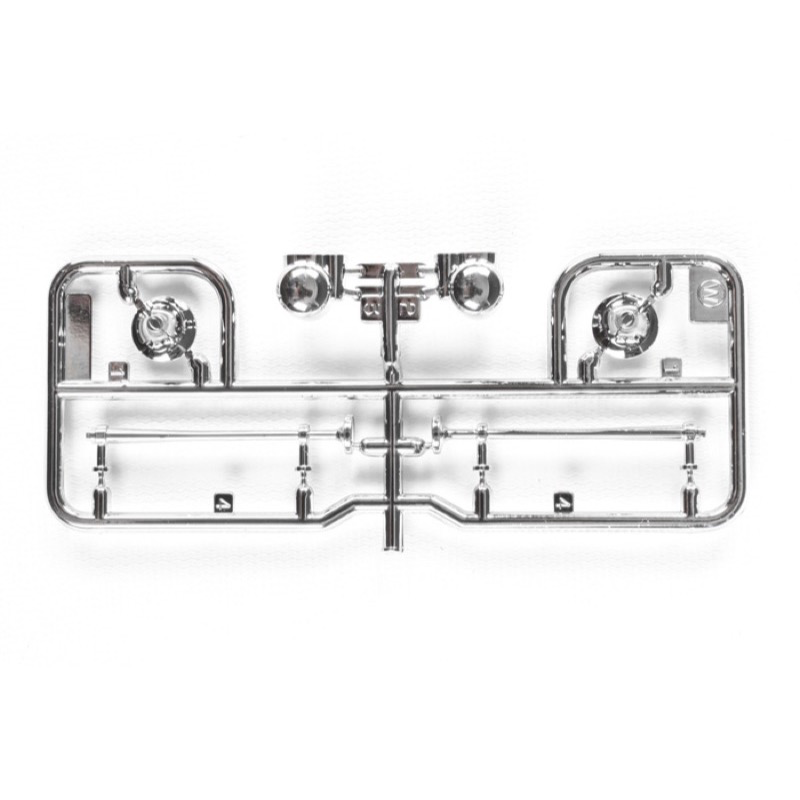

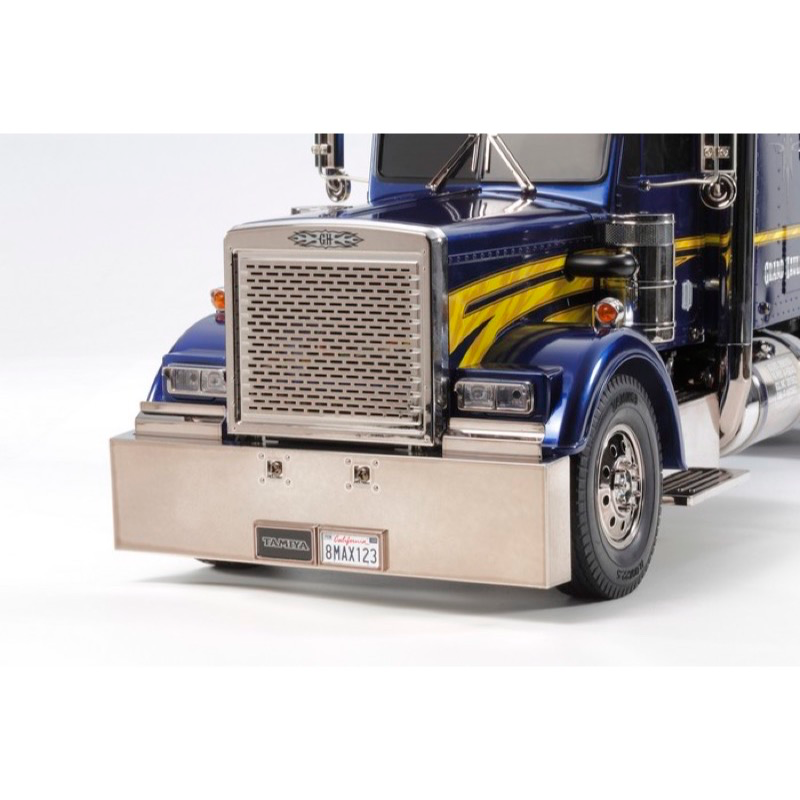

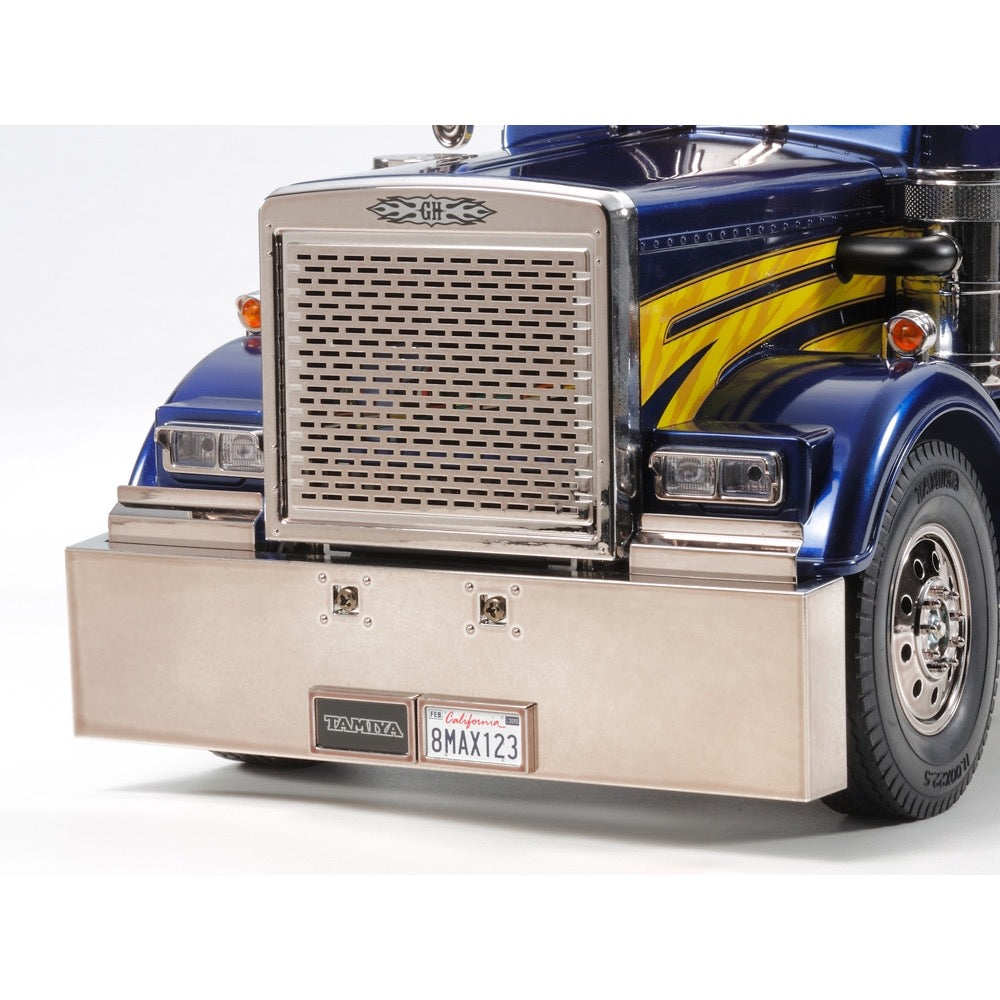

• Enjoy that customized mood, enhanced by metal plated parts such as the front bumper and radiator grille.

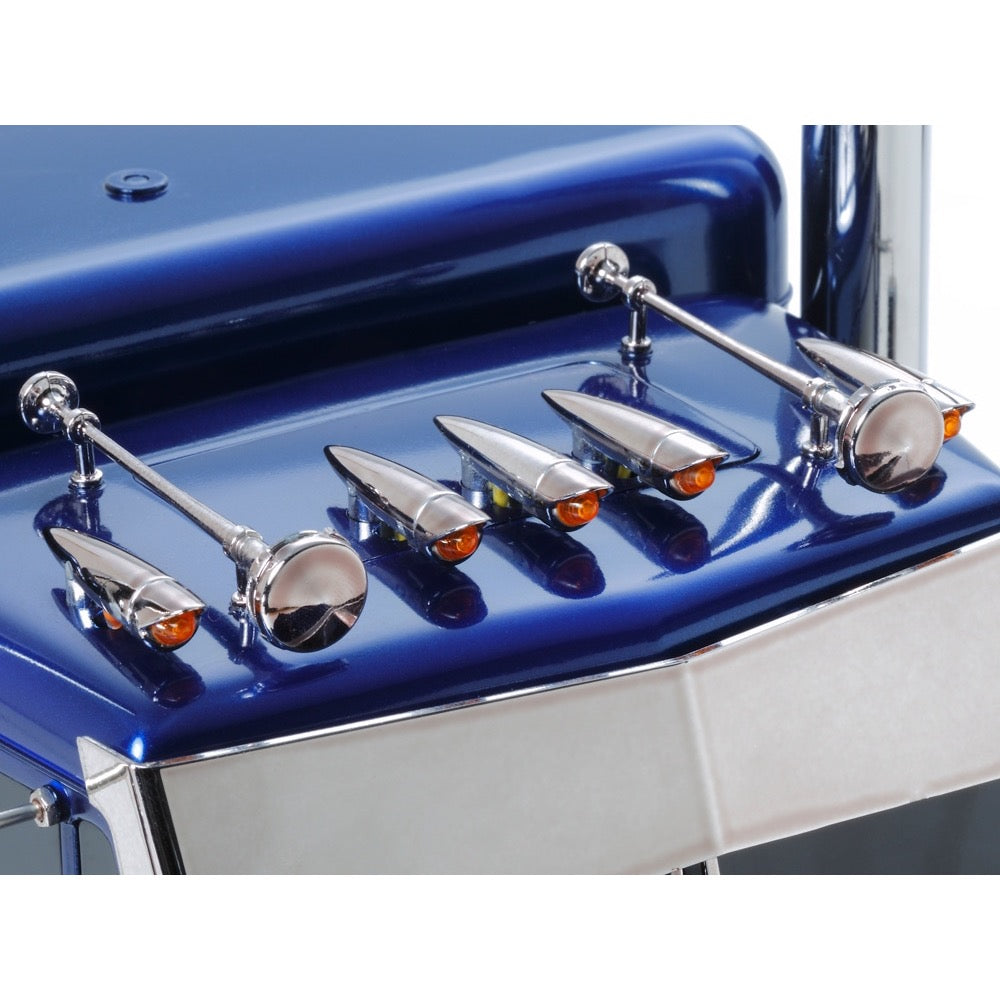

• The roof also features plated horn and light bezel parts. LEDs can be inserted to light up your model!

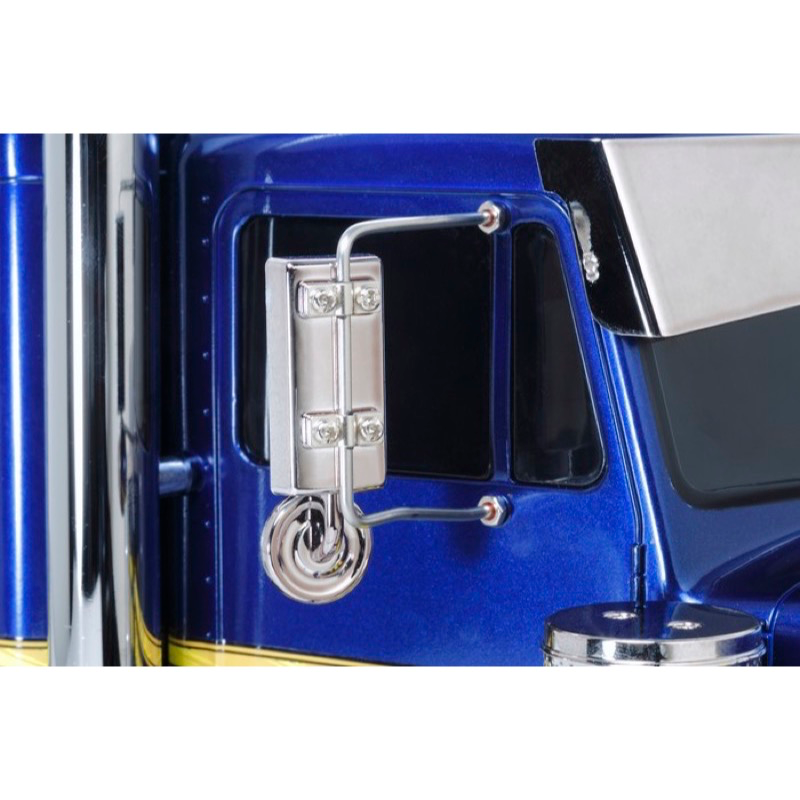

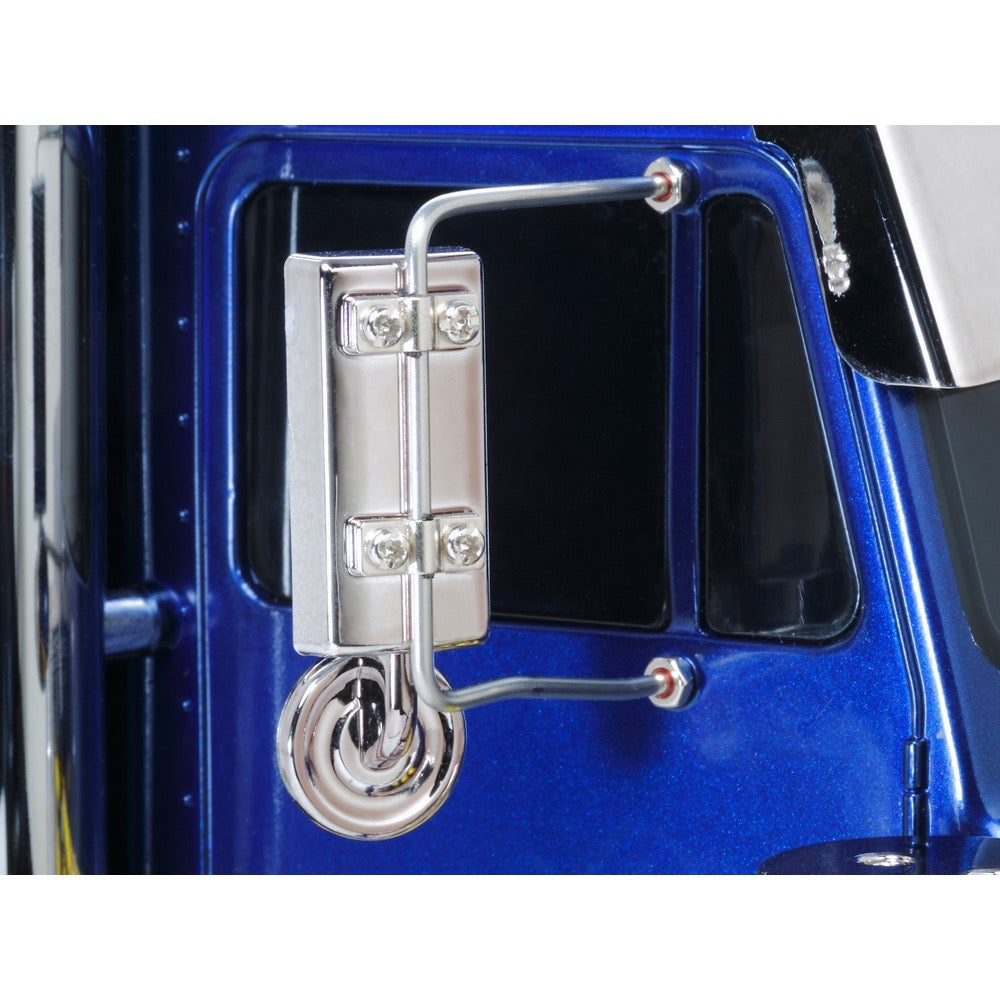

• Plated side mirror parts also include kerb mirrors. Moving metal stays allow adjustment of mirror position.

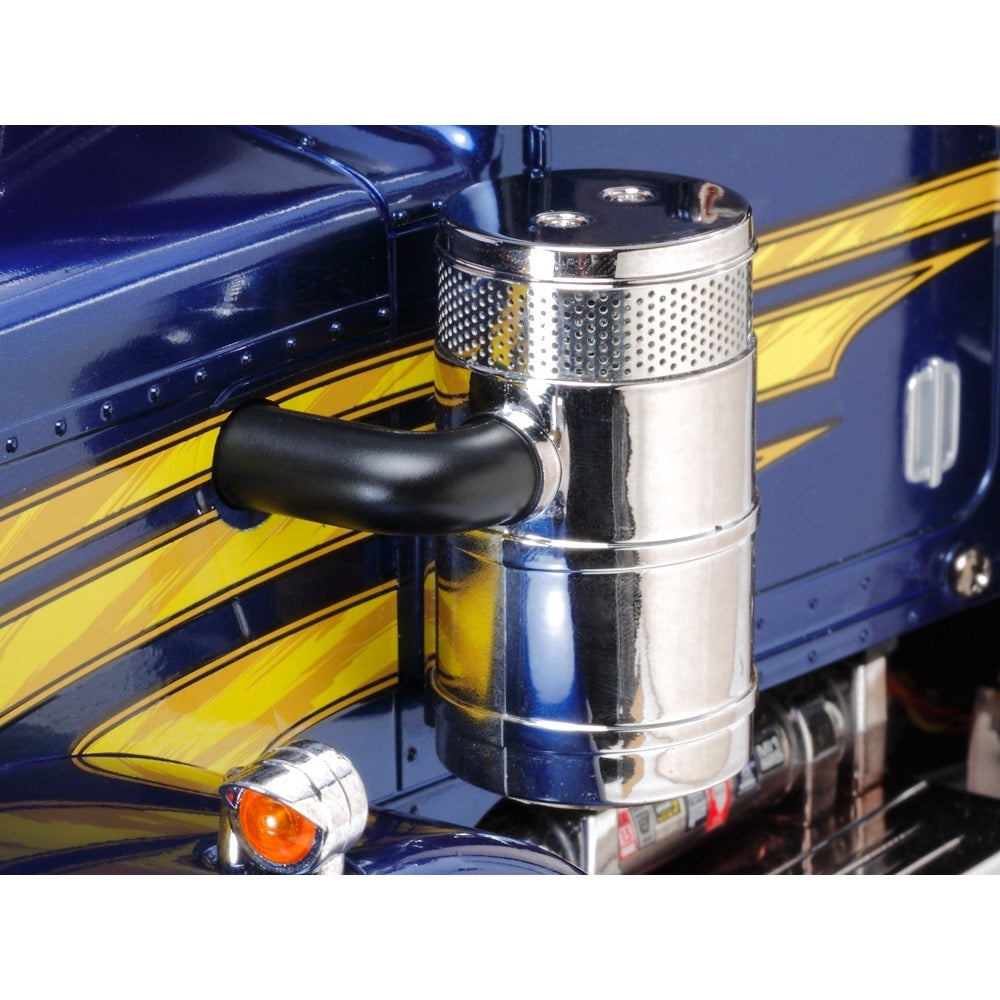

• Further detail is added to the oversized air cleaners, with photo-etched parts depicting air intakes.

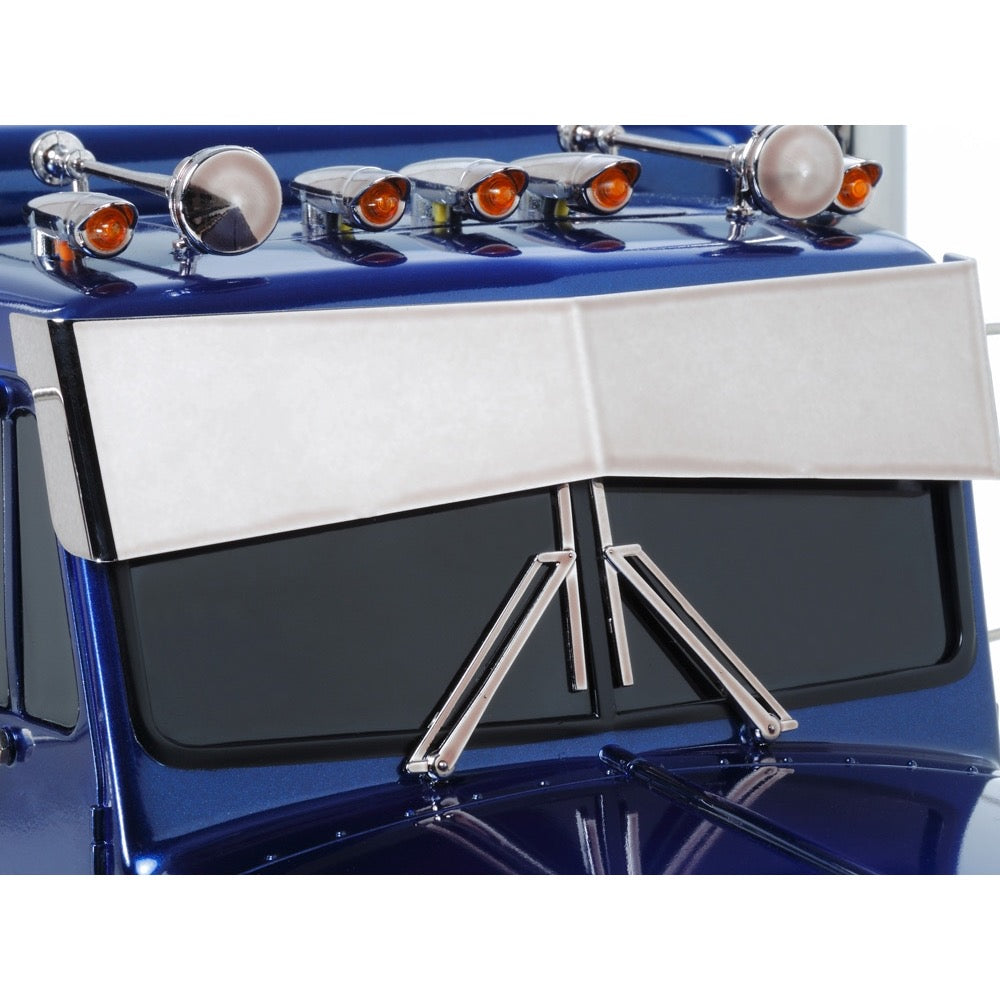

• The cab oozes a custom mood, enhanced by parts such as the bulky metal plated sun visor.

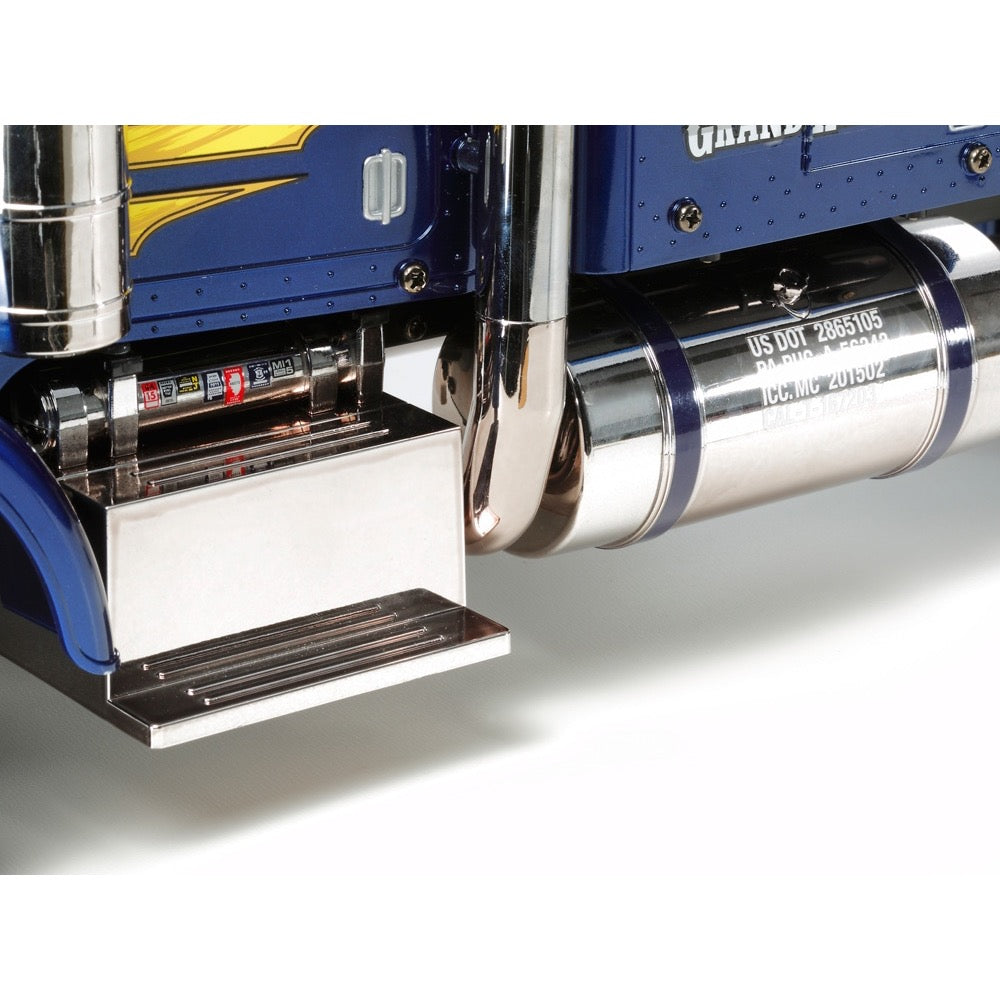

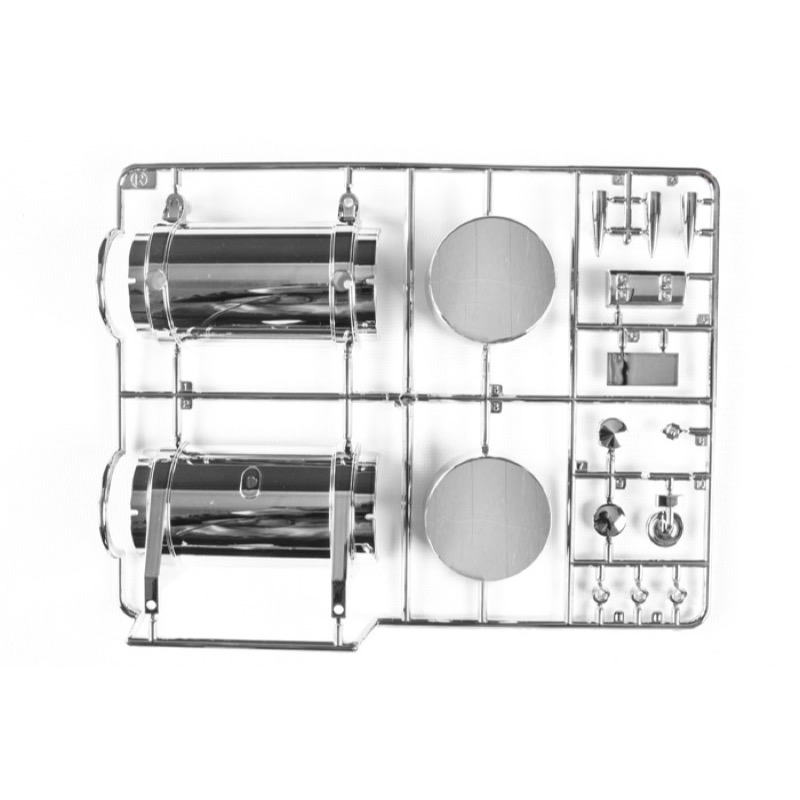

• Lowered step provides storage location for MFC unit. Fuel tanks are also mounted low under the body.

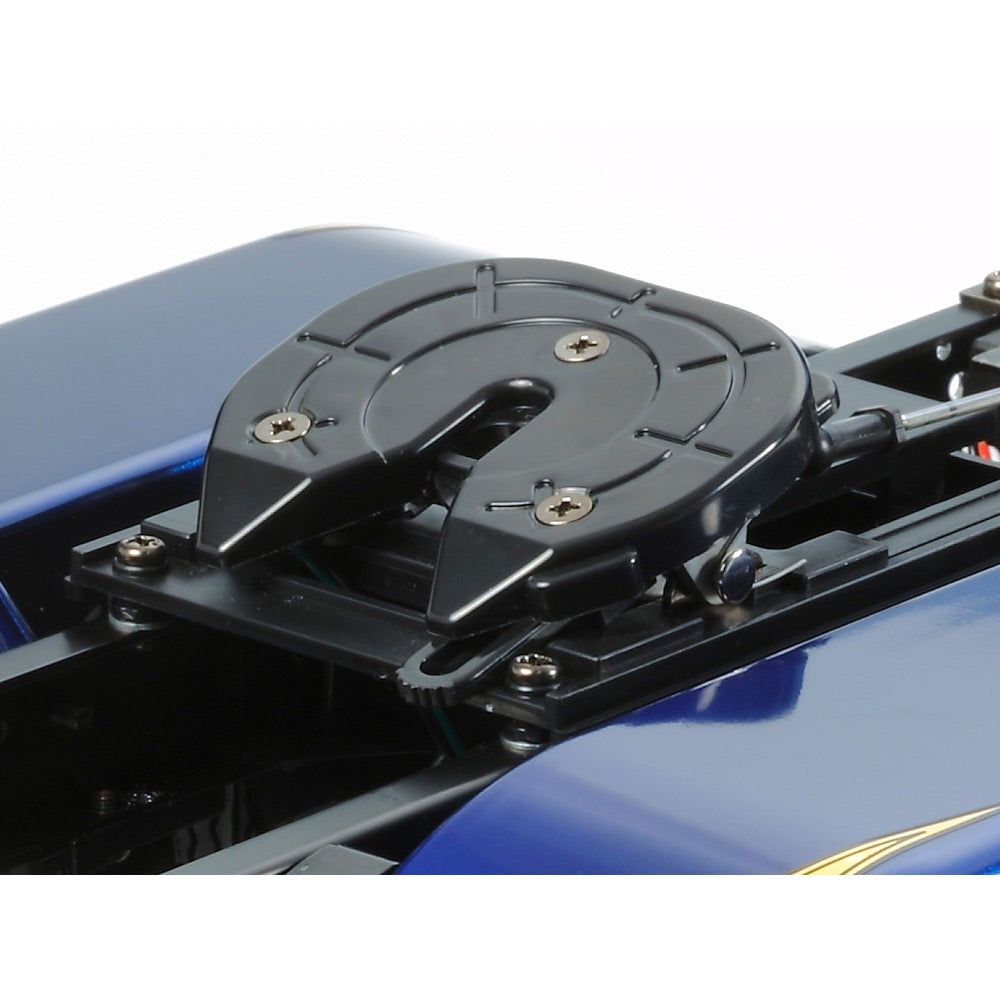

• Use the coupler to attach any of Tamiya's 1/14 scale trailers, and listen out for the different engine sound.

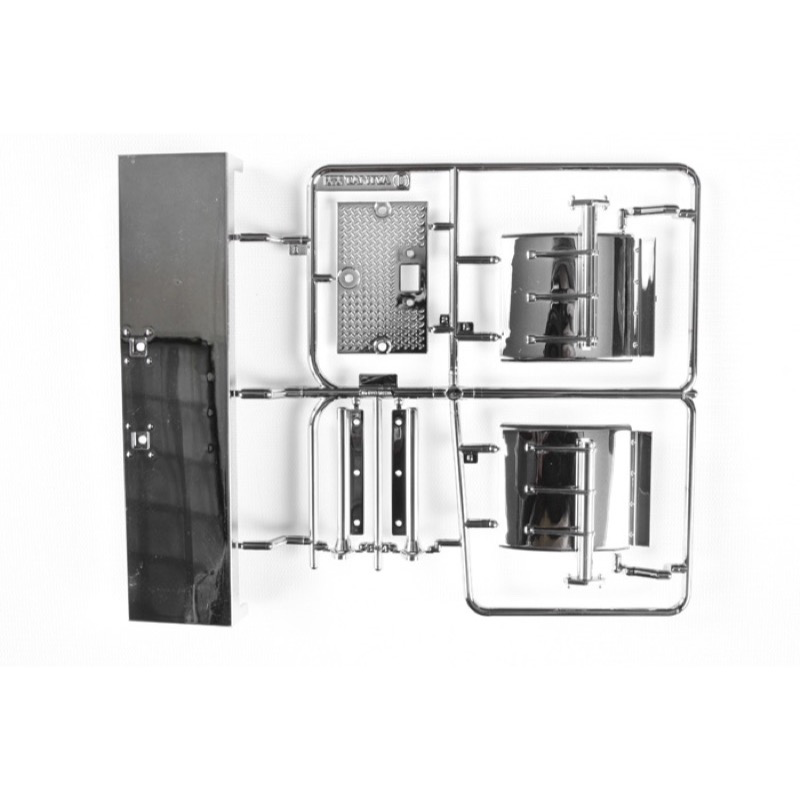

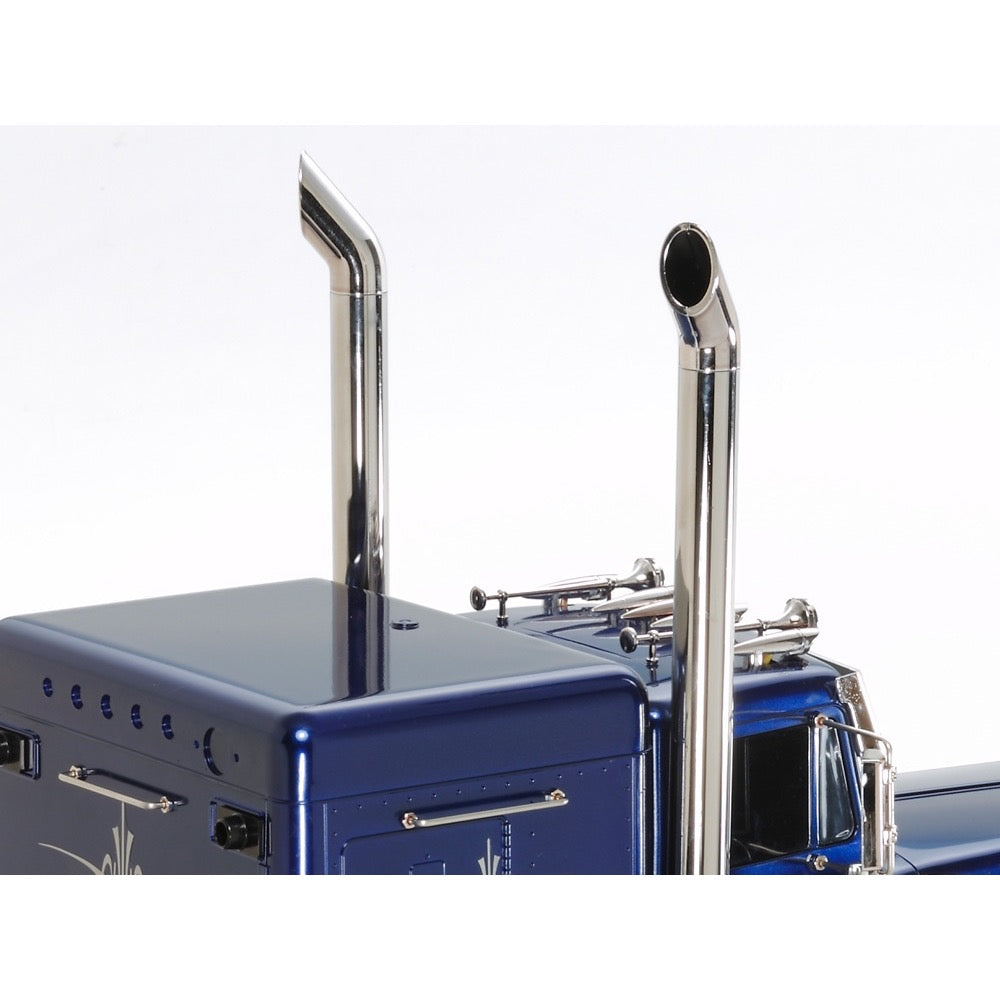

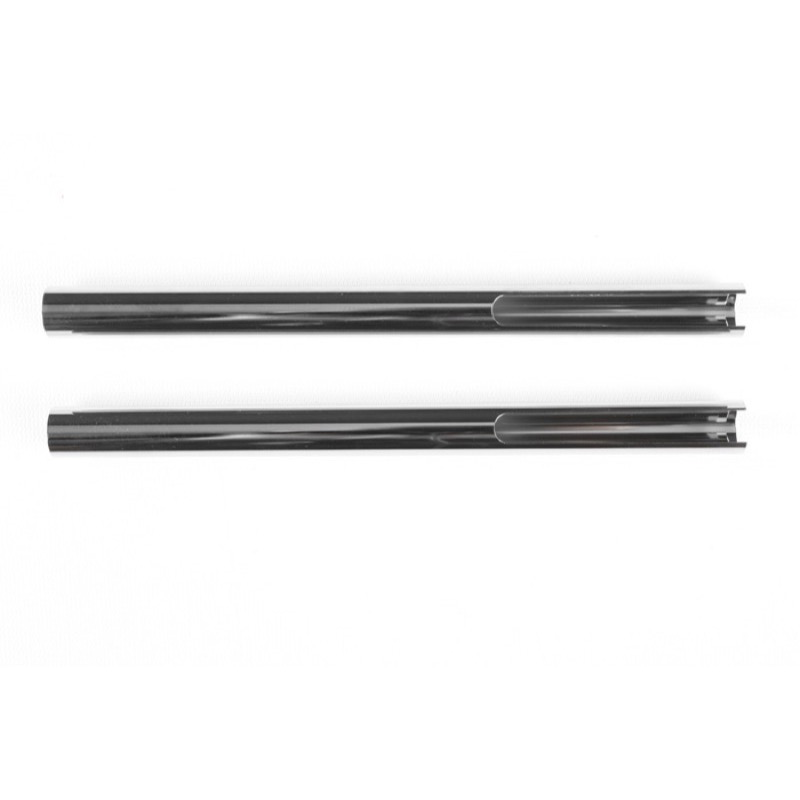

• Model utilizes metal pipes to depict mufflers, while their optional covers are gleaming metal-plated resin.

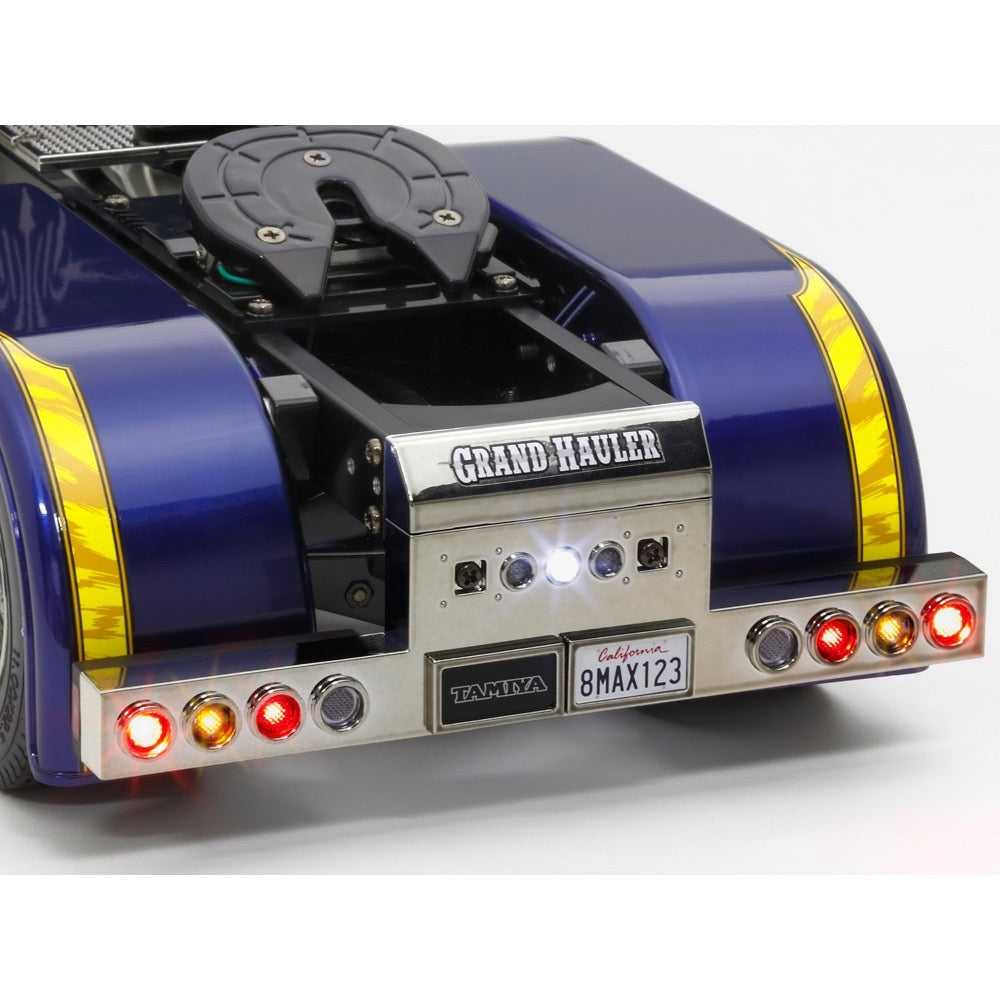

• Low-down rear bumper offers multiple lamp positions, compatible with LEDs. Fender parts are included.

Requires

• 4 Channel Transmitter
• NiMH batteries
• Suitable Charger
• Poly-carbonate Spray for body shell
• Steering Servo x 2
• ESC - Electronic Speed Controller

• Length: 692mm, width: 190mm, height: 300mm.
• Terrain use On-Road
• Drive-train 4-axle semi
• Drive type 3-speed
• Drive line Dog bone
• Differential type Live axle
• Suspension Leaf spring
• Steering mechanism Bell-crank
• Shock damper Friction damper
• Shock damper material Aluminum
• Tire type Rubber
• Tire tread Radial
• Body material ABS Plastic
• Chassis material Aluminum & plastic
• Electronic Speed Control (ESC) Not included
• ESC model N/A
• LED Light not included
• Motor 540-brushed type
• Bearings Metal bearings
• Adjustable camber Fixed
• Adjustable toe angles Front only
• Adjustable ground clearance Fixed
• Adjustable gear ratio 3-speed transmission
• Adjustable wheelbase Fixed
• Adjustable track width Fixed
• Adjustable shock angle Fixed

Download Product Manual
