Tamiya 56014 1/16 M4 Sherman 105mm Howitzer Full Option RC Kit

Immense Realism

The M4 Sherman was a mainstay of the Allied WWII war effort, and was manufactured in a number of different variants including the 105mm howitzer depicted by this highly realistic R/C model assembly kit. Along with the accurate form of the vehicle, this model features moving suspension, realistic sounds and even lights for a truly all-encompassing scale armor experience.

To commemorate the 50th anniversary of the 1/16 R/C Sherman kit in 2024, Tamiya is delighted to announce the reproduction of Item 56014 1/16 R/C M4 Sherman 105mm Howitzer Full-Option Kit.

The M4 Sherman was a mainstay of the Allied WWII war effort and was manufactured in several different variants including the 105mm howitzer depicted by this highly realistic R/C model assembly kit. Along with the accurate form of the vehicle, this model features moving suspension, realistic sounds and even lights for a truly all-encompassing scale armor experience.

This R/C tank recreates the Centurion in 1/16 scale as a radio control model. The Centurion Mk. III was developed as a heavy cruiser tank to counter the powerful German Army tanks during WWII. The Mk. III was perhaps the most polished Centurion variant, equipped with the L/66.7 20 pounder long barrel gun. It was also deployed in the Korean War in 1950, and showed off overwhelming strength which saved the Allied forces from crisis many times. The production reached about 2,800 between 1948 and 1956. After the Korean War, the Mk. III were deployed in European countries, but also other areas such as India, Israel, and Egypt with their formidable force.

RC Sherman Tank Functions

1. Forward/reverse over wide range of speed.
2. Gradual turning, pivot turning, super pivot turning.

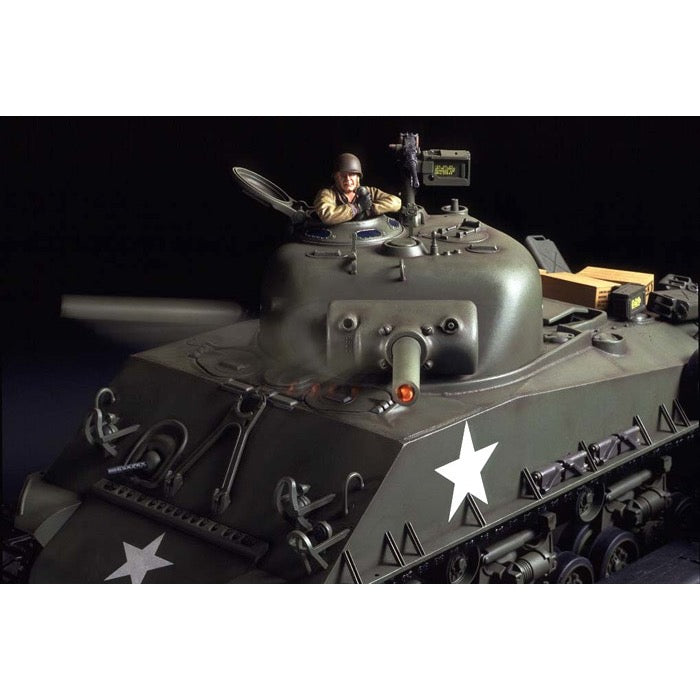

3. Rotation of turret, raising/lowering of cannon.
4. Illuminating head and taillights.

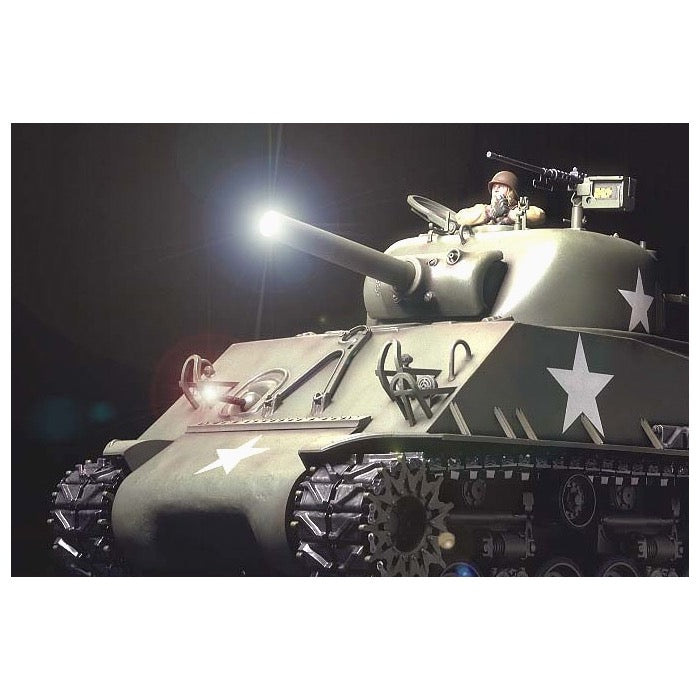

5. Cannon firing (w/light and sound effects).
6. Machine gun firing (w/light and sound effects).

Features

• 1/16 scale R/C model assembly kit. Length 603mm, width: 214mm, height: 187mm.

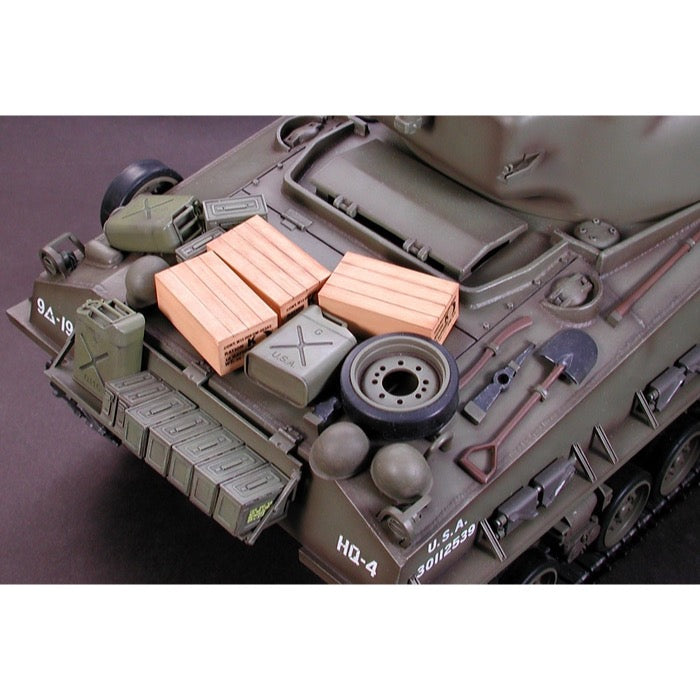

• Features realistic depictions of cast surface patterns and weld lines.

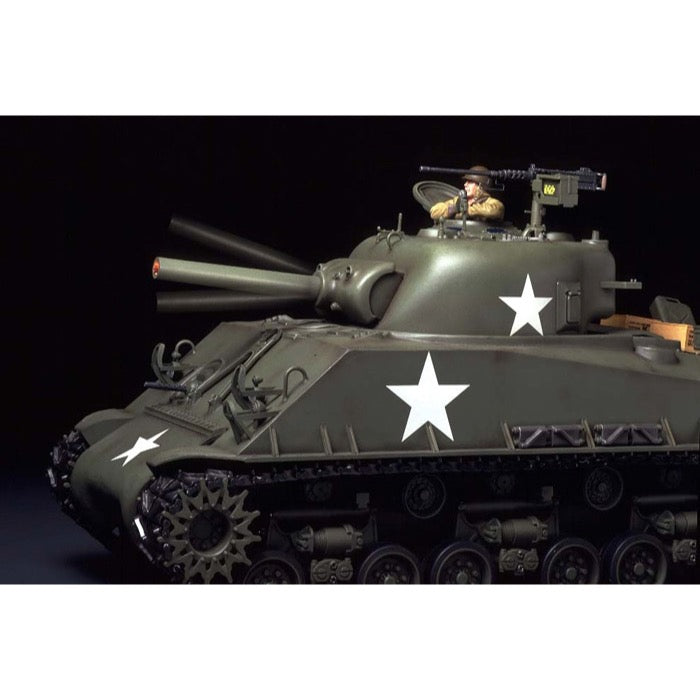

• Control Unit uses 4 channels to control forward/back movement, sharp and pivot turning at any speed. Gun elevation, recoil and turret rotation can also be controlled. Engine sounds are synchronized with model speed, while main gun and machine gun firing are realistically accompanied by lights and sound (facilitated by DMD Multi-Function Unit).
• Comes with Type 380 motors (x2, running), type 130 motor (x1, turret) and TSU-03 servos (x2, gun elevation and recoil).
• Gun barrel and chassis are aluminum, and suspension arms and drive sprockets are die-cast.

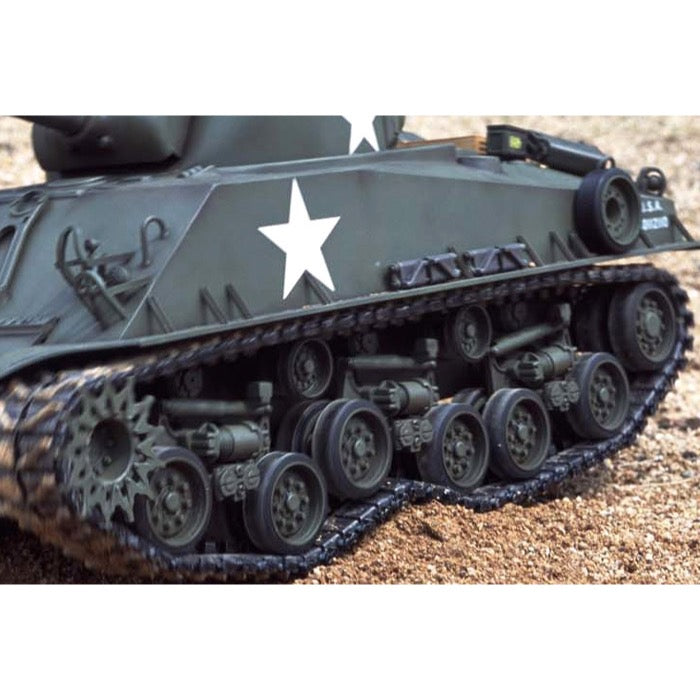

• Realistic motion is enhanced by movable Horstmann suspension, while tracks come pre-assembled.

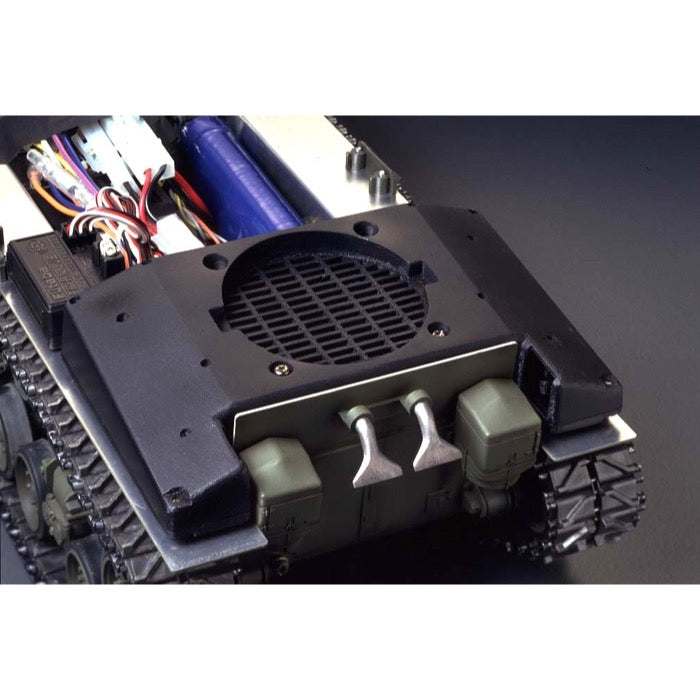

• The hatch is detachable by a magnet, which allows easy replacement of battery.
• Compatible with Item 53447 (Battle System (For 1/16 Scale Tanks)).

Requires

Tamiya 4-channel radio, 7.2volt battery with compatible charger, and Tamiya paint and finishing supplied to complete.

• Length: 376mm, Width: 183mm, Height: 205mm
• Fully-Equipped Weight: 3,400g
• Duralumium lower hull
• Die-cast metal drive sprockets, suspension arms and idler wheel bases
• Coil-sprung HVSS suspension

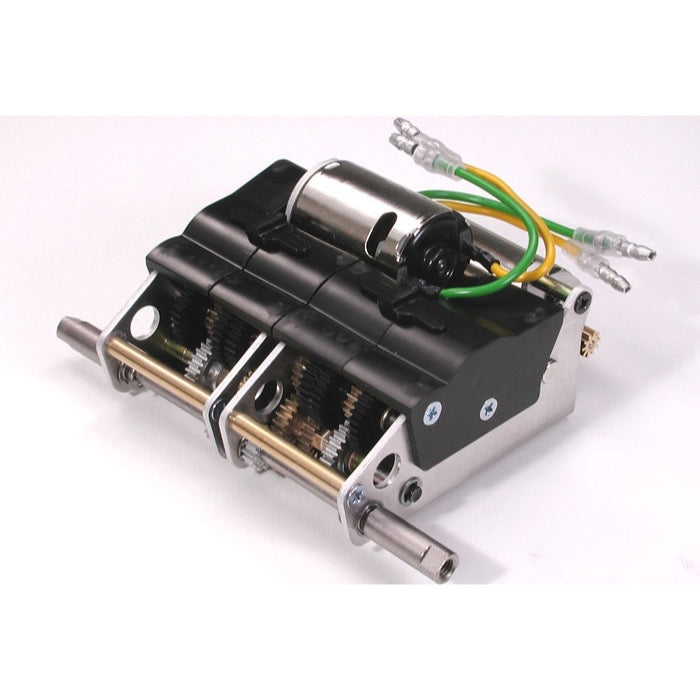

• Pre-assembled twin gearbox
• Pre-assembled plastic double-pin tracks with metal pins
• Adjustable Gear Ratio Fixed
• Bearings Metal bearings
• Body Material ABS Plastic
• Chassis Material Aluminum and ABS plastic
• Chassis Type Tank
• Construction Type Assembly Kit
• Decals Included
• Drive Type Dual Motor Gearbox
• Electronic Speed Control (esc) Included
• Motor 540-brushed type X2
• Required To Complete 4-Channel Radio (Tamiya Attack) 7.2volt battery with compatible charger, and Tamiya TS & Acrylic-Lacquer Bottle Paints
• Scale 1/16
• Suspension Coil-sprung HVSS suspension
• Terrain Use Multi-Purpose

Download Product Manual
