Tamiya 42384 1/10 TRF421 RC Chassis Kit

Product Code: T42384
$1,269.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

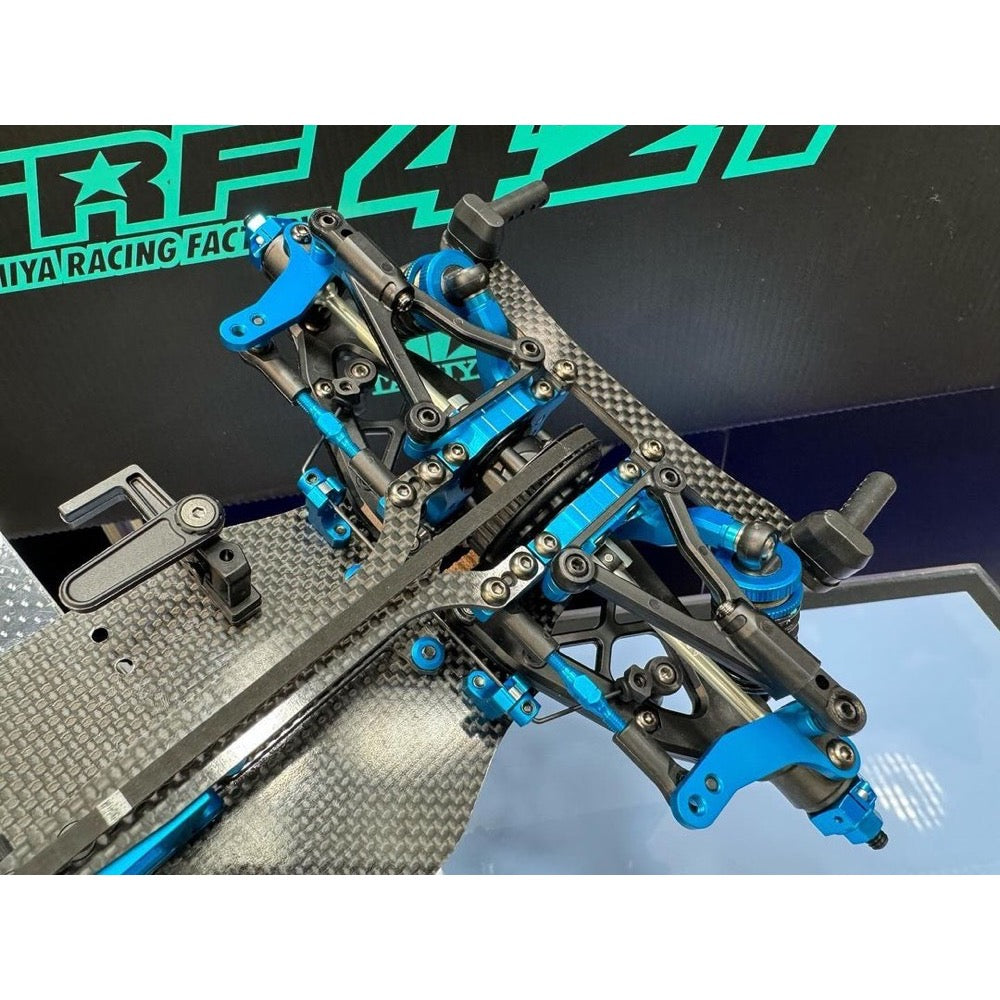

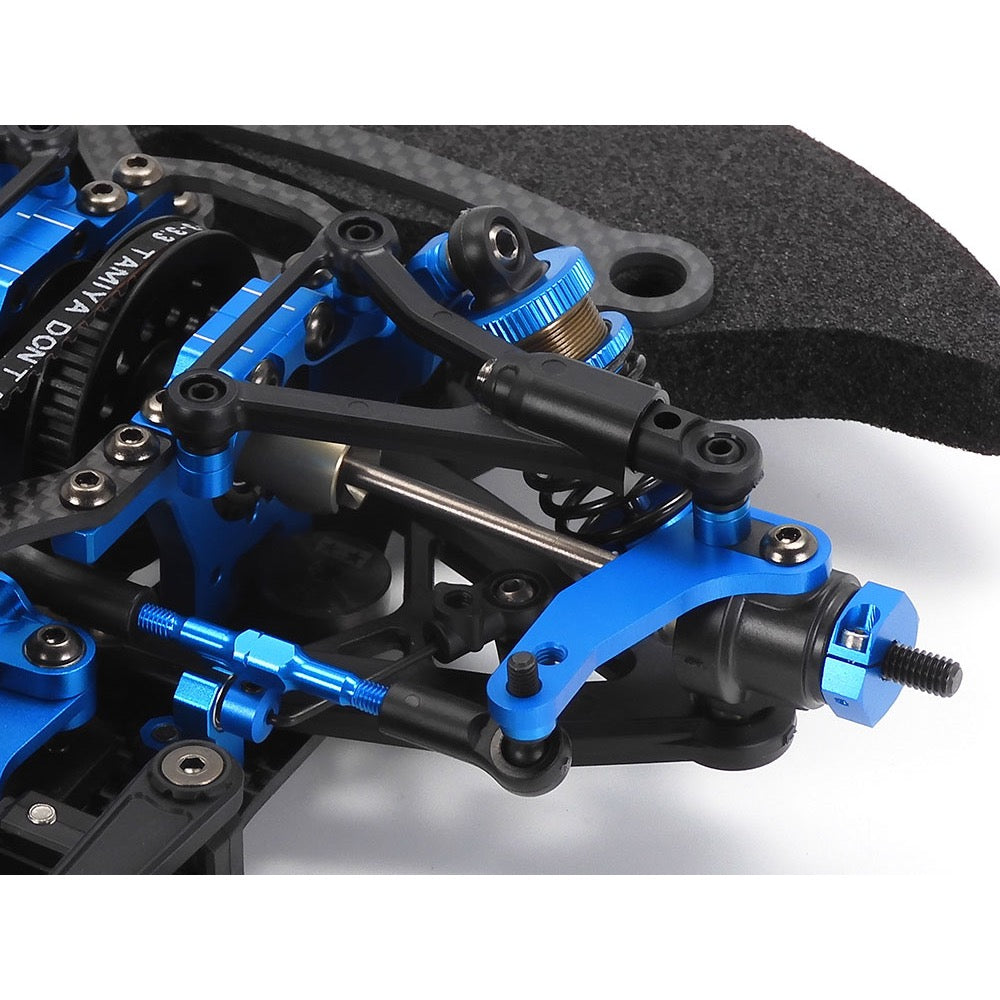

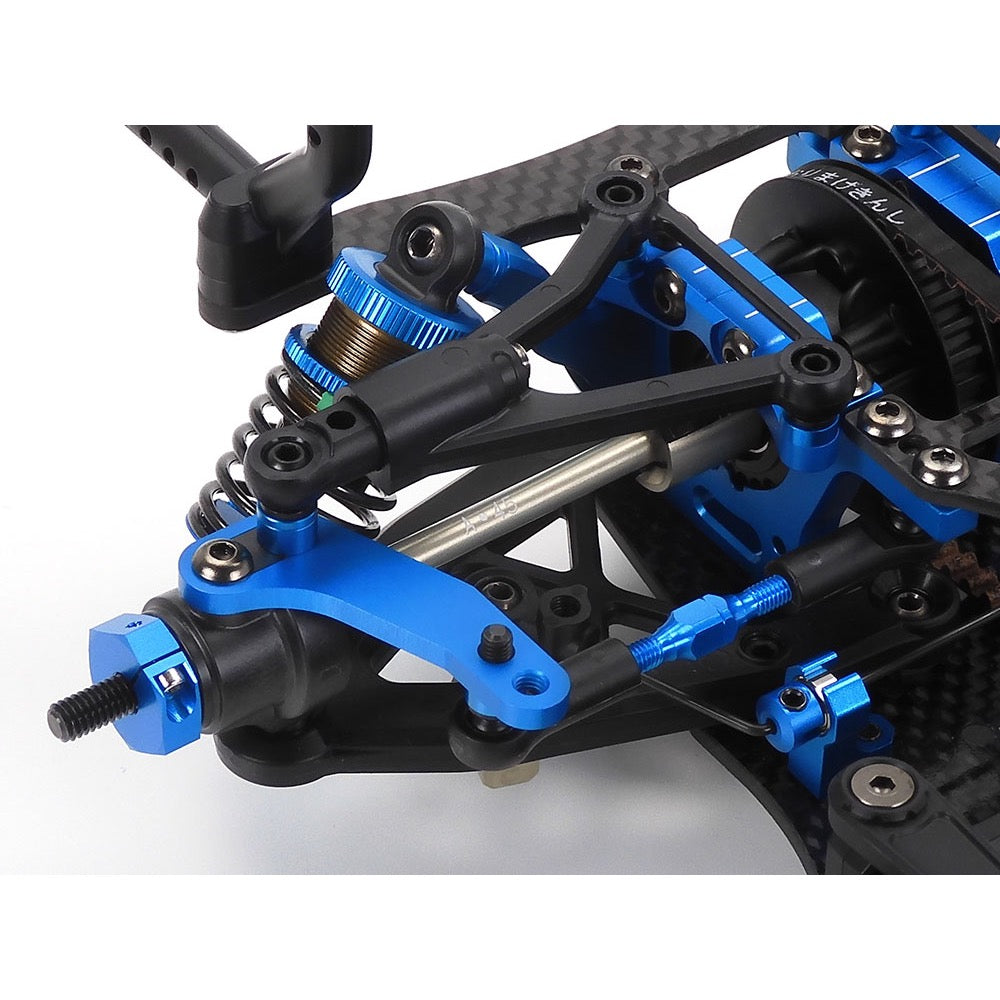

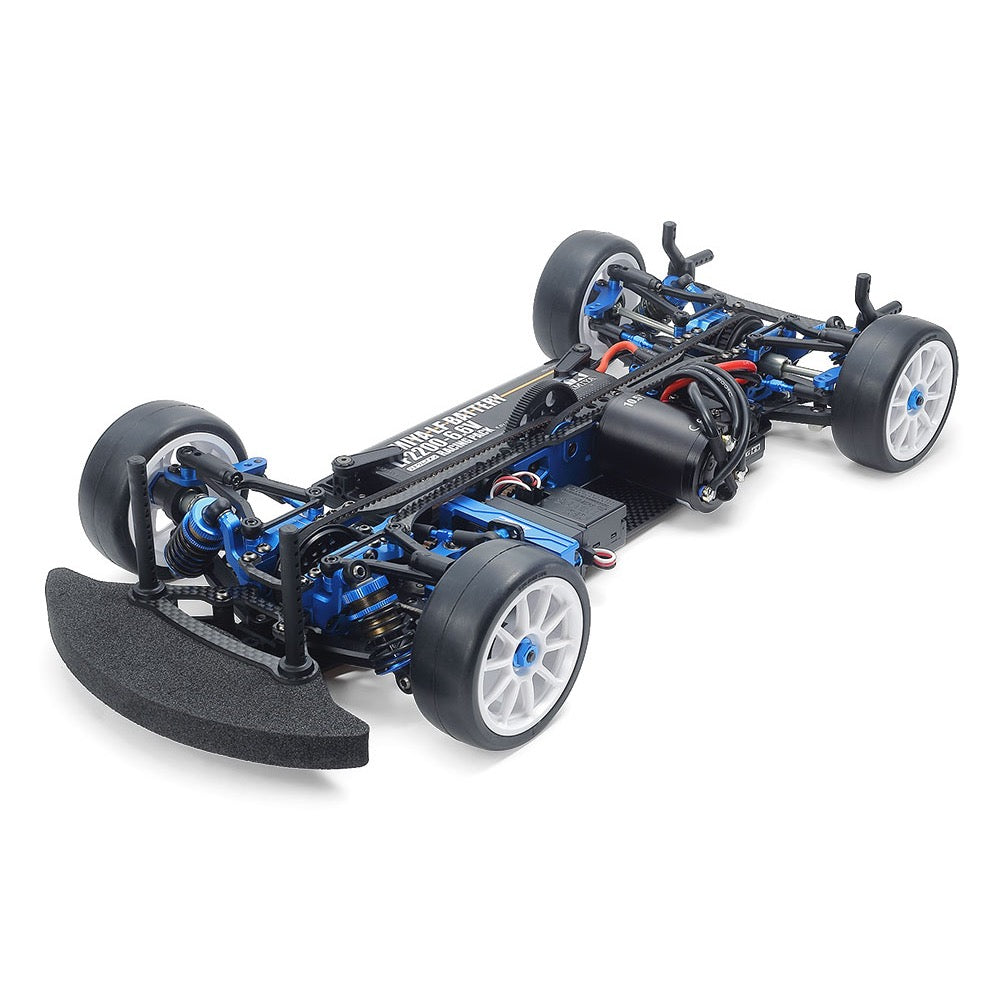

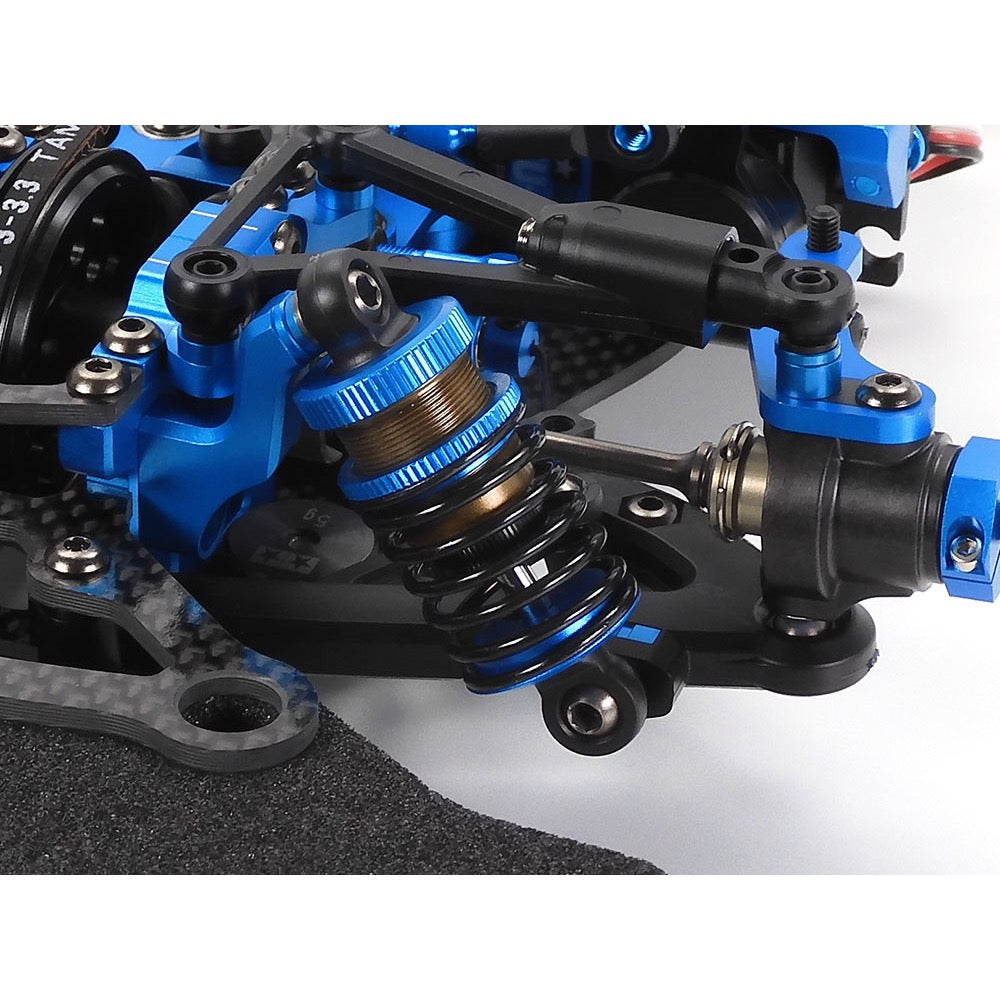

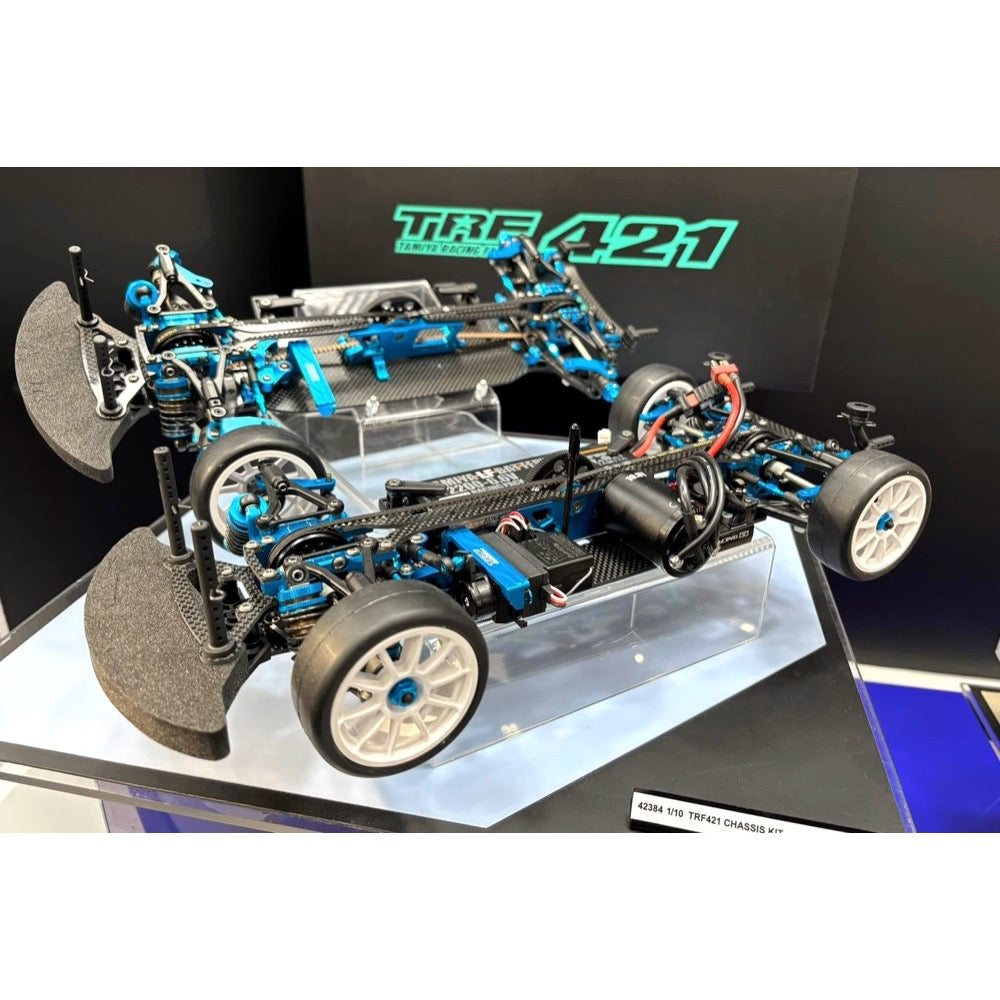

This R/C model assembly kit creates the 2 belt-driven 4WD TRF421, the latest model in the line of TRF (Tamiya Racing Factory) chassis, which offers a plethora of setup options and easier pit work. Its motor has been moved into an almost central position and drive belts are of equal size, contributing to greater pitching stability on the throttle. A choice of one- and two-piece versions of the upper deck lets you fine-tune your setup, and the refined drivetrain uses a front direct coupling and rear oil-filled gear differential. The suspension uses upper and lower A arms, with the latter employing ball connector mounts; new USBB (ultra-short big bore) dampers are mounted via aluminum stays, and can be further fine-tuned with spacers. A total of four stabilizers (three thicknesses: 1.0mm x1, 1.1mm x2, 1.2mm x1) is included, and countless parts across the chassis have been updated.

Body, motor, wheels, tires, R/C equipment, battery pack and charger are sold separately.

Features

  • 2.25mm carbon fiber lower deck

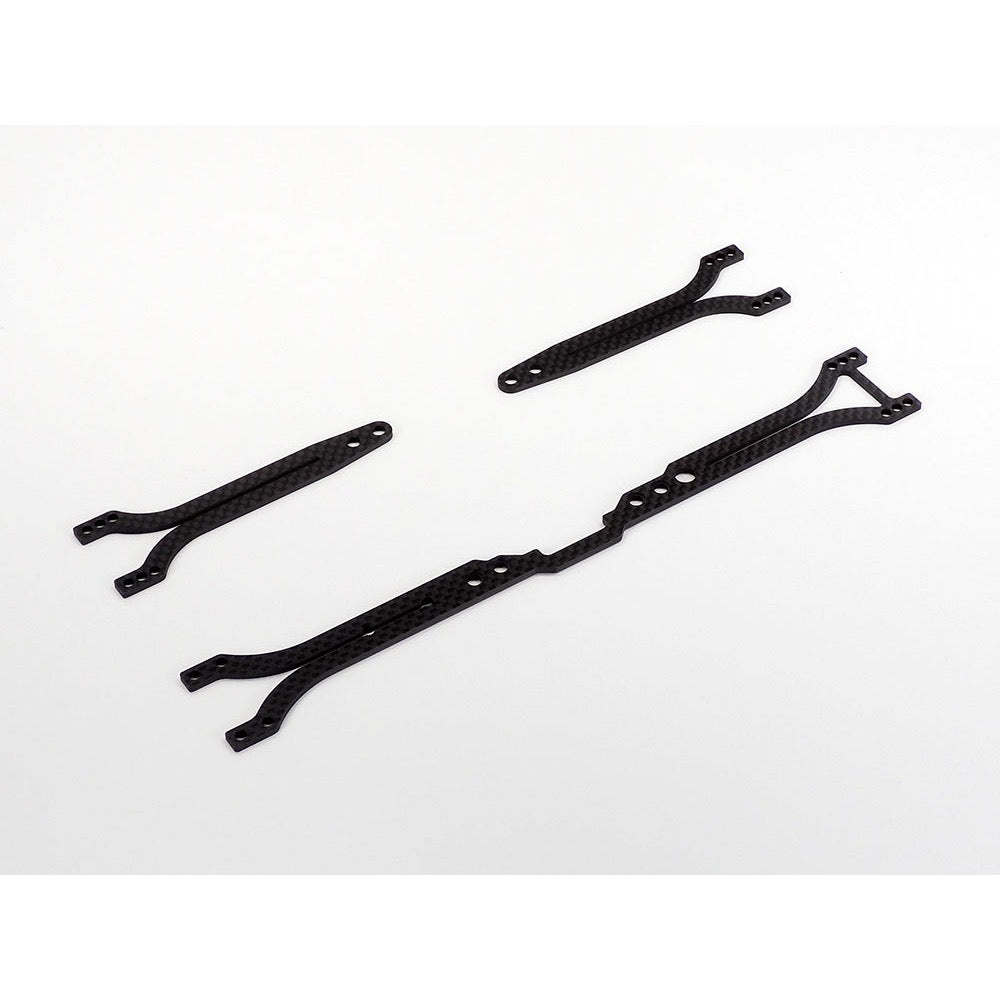

  • 2.0mm carbon fiber upper deck (1-piece & 2-piece designs included)
  • Aluminum damper stays
  • 2.0mm carbon fiber bumper support
  • Aluminum upper & lower bulkheads

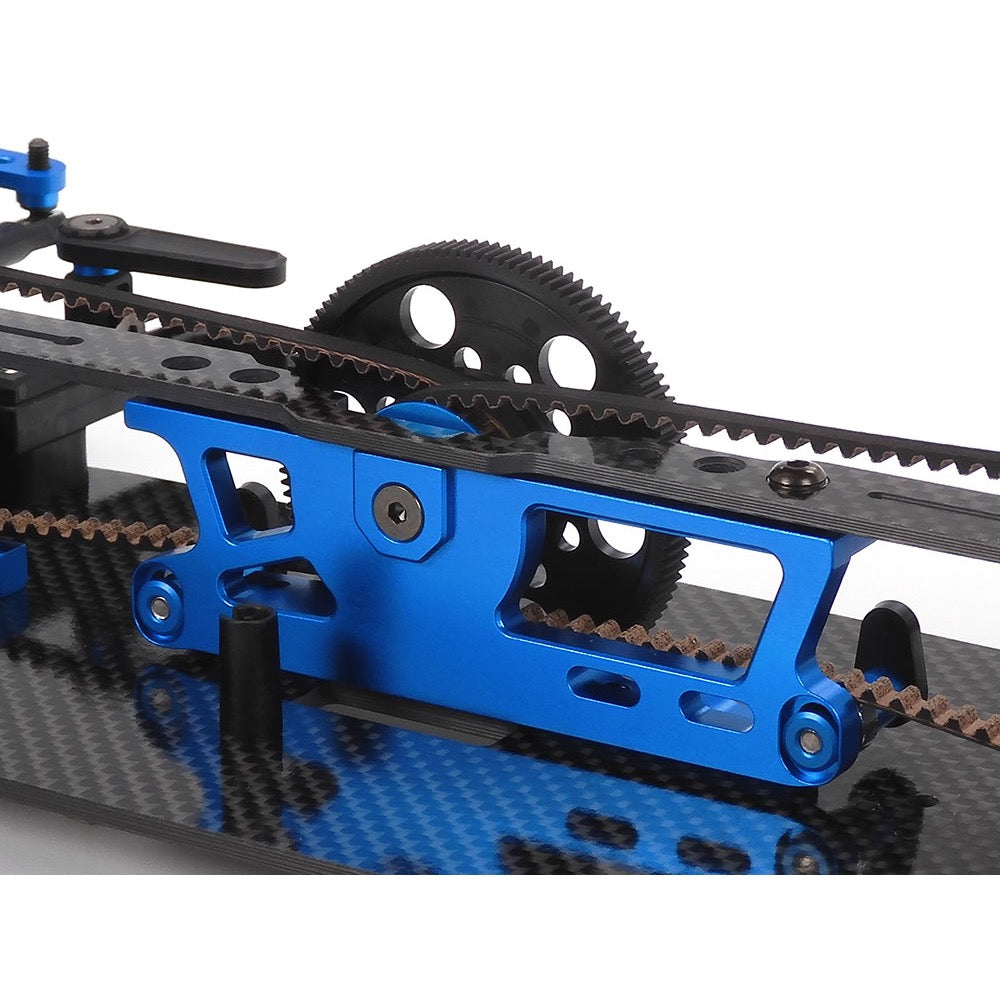

  • Aluminum motor mount
  • Aluminum servo mount
  • Aluminum steering bridge

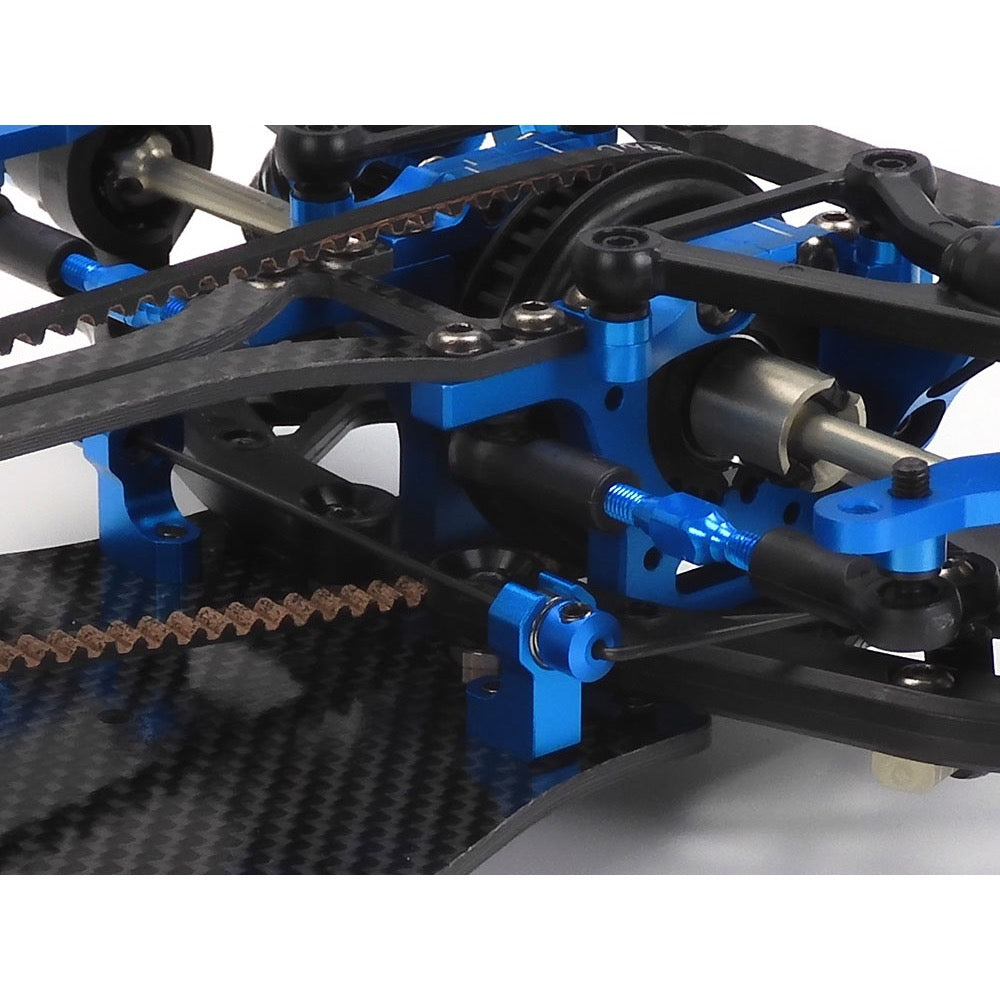

  • Front direct coupling & double cardan drive shafts
  • Rear oil-filled gear differential & lightweight universal shafts (45mm drive shafts)

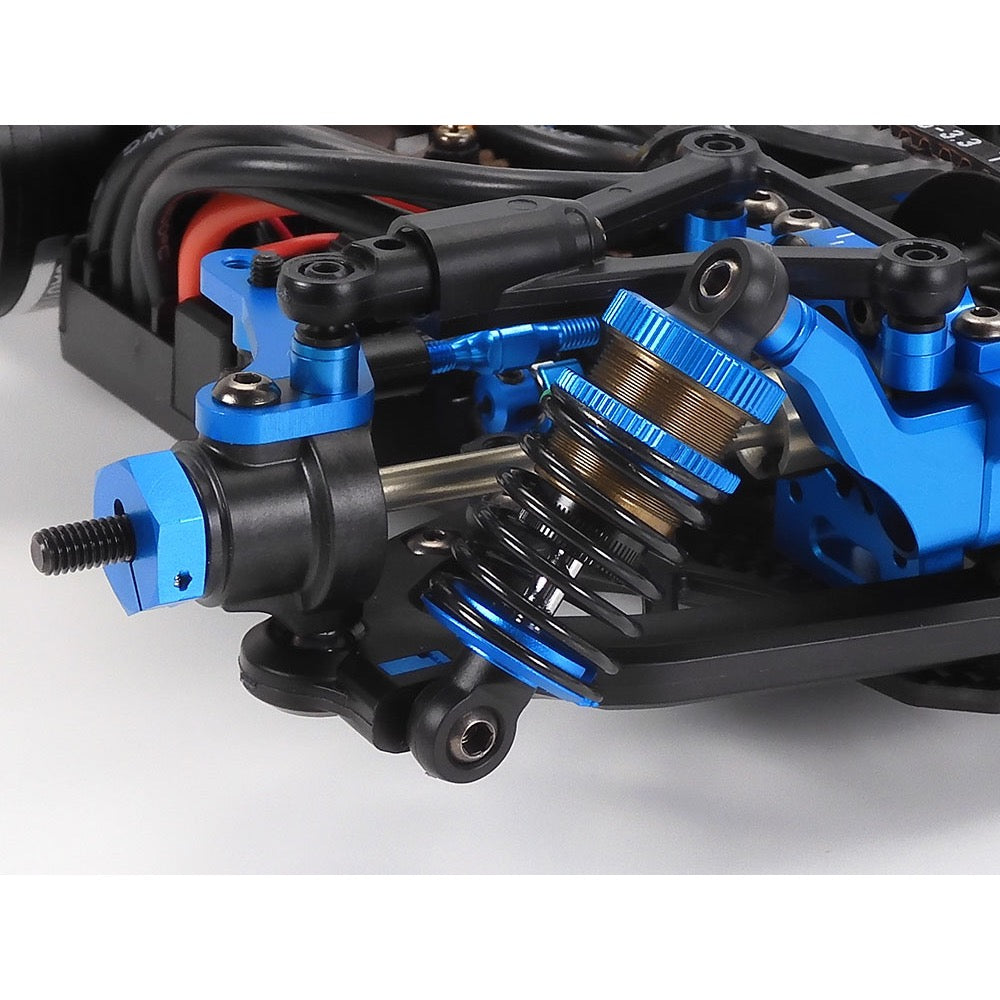

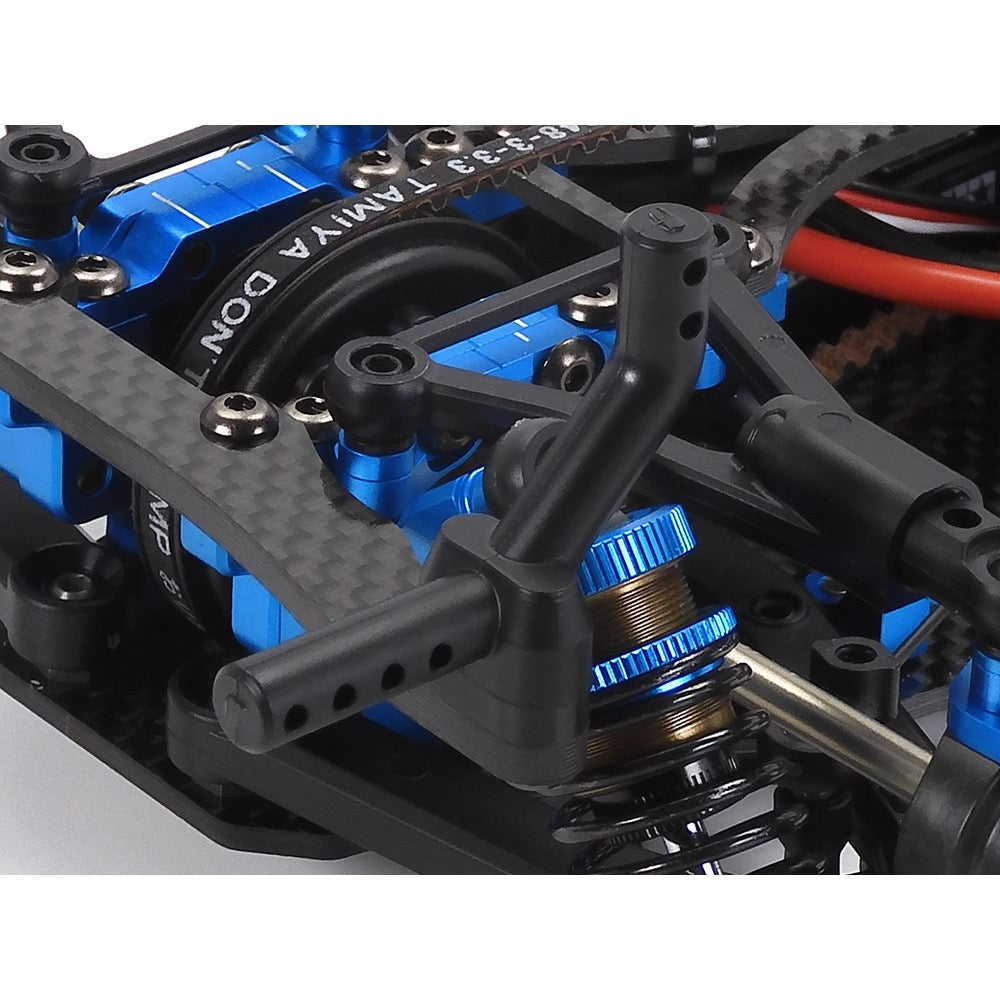

  • USBB dampers
  • Precision stabilizers
  • Aluminum bearing holders
  • Rubber sealed ball bearings

Requires

  • Body
  • Brushless motor
  • Wheels
  • Tires
  • 2-channel R/C system w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger
  • Length: 397mm (not including body)
  • Width: 187mm
  • Wheelbase: 257mm
  • Double deck frame (carbon fiber 2.25mm lower and 2.0mm upper decks; 1- & 2-piece upper decks included)

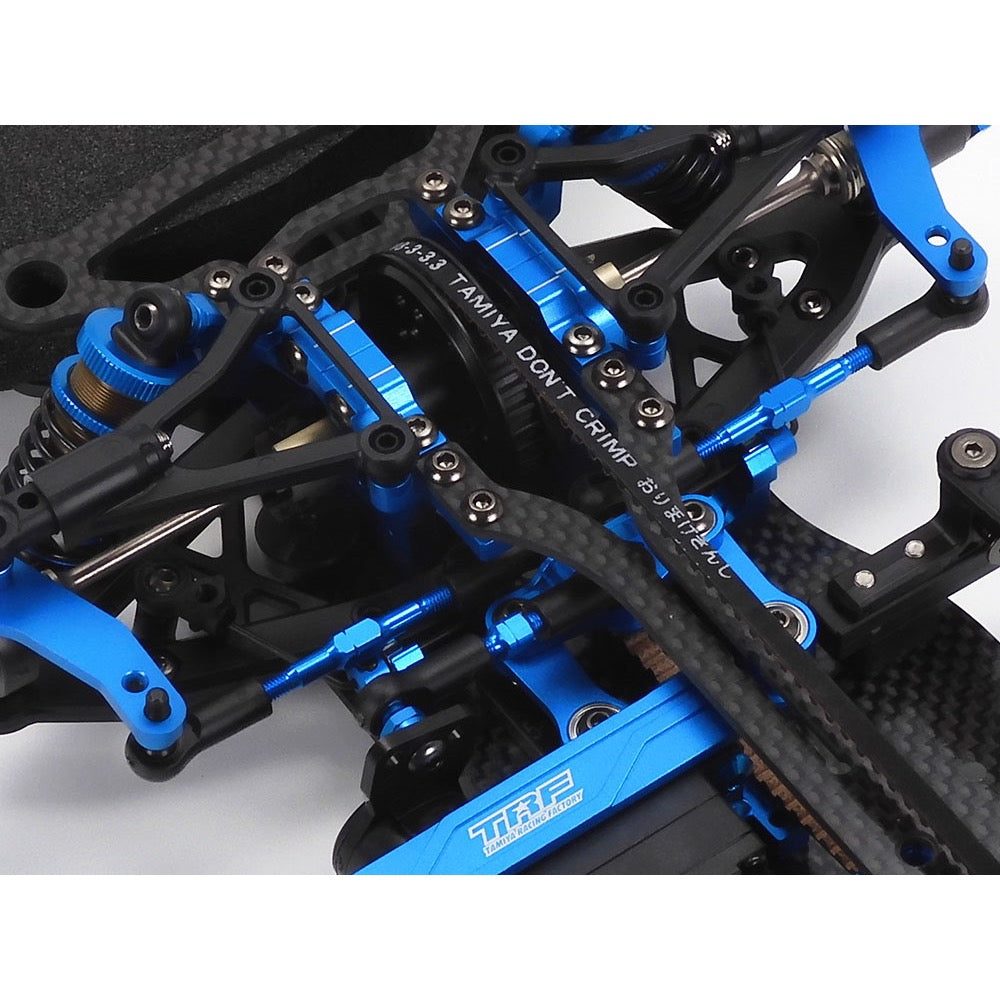

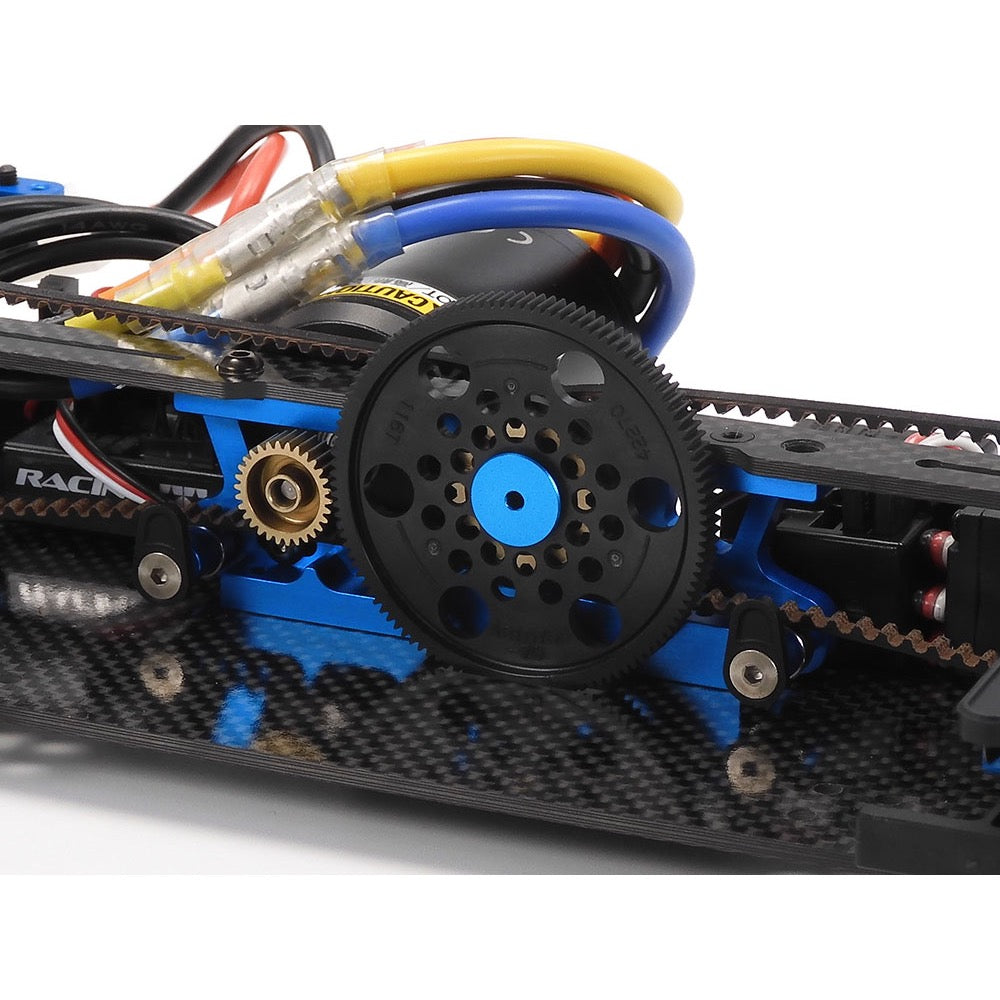

  • Transverse motor & 2-belt driven 4WD
  • Front direct coupling
  • Rear oil-filled gear differential
  • 3-piece steering tie-rod
  • 4-wheel independent double wishbone suspension
  • USBB dampers
  • Contact your local Tamiya Agent regarding the ESC.
