Tamiya 58691 1/10 1998 Ford Escort Custom TT-02 On-Road RC Car Kit

Custom Classic

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car, and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-liter engine offering 300PS and 50Kgm of torque.

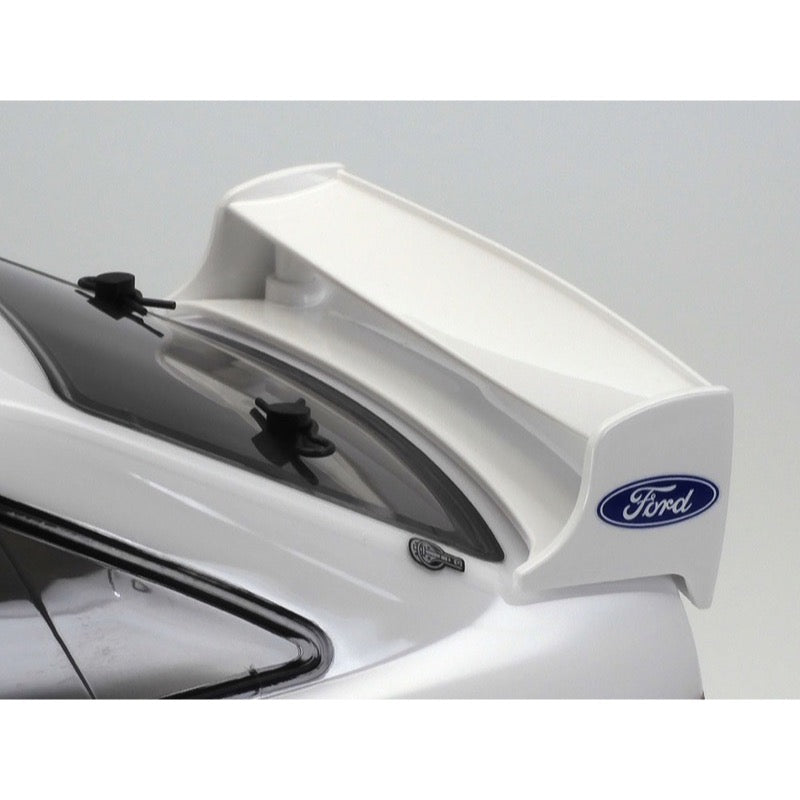

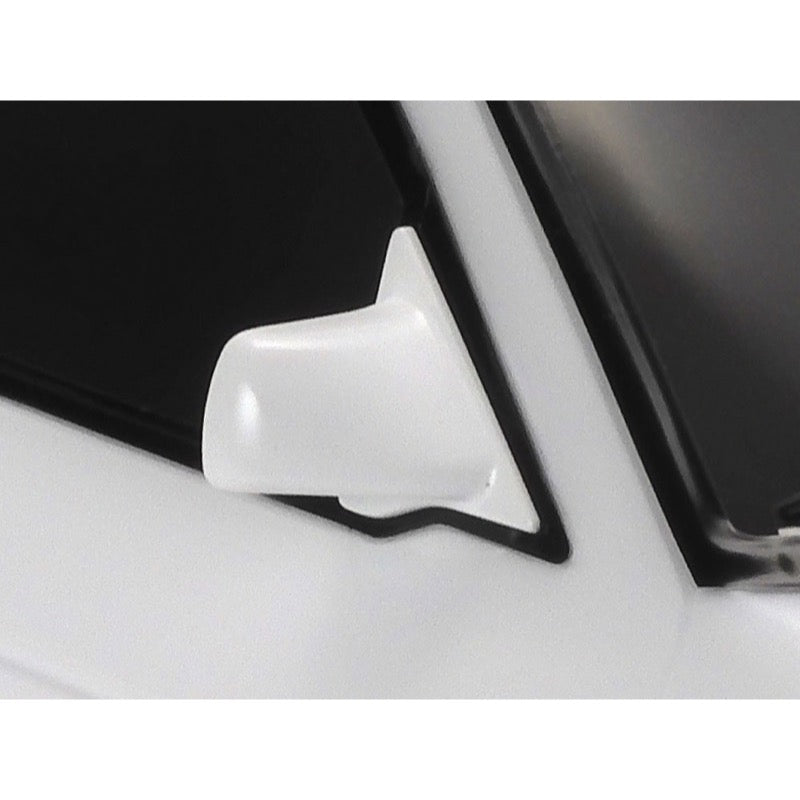

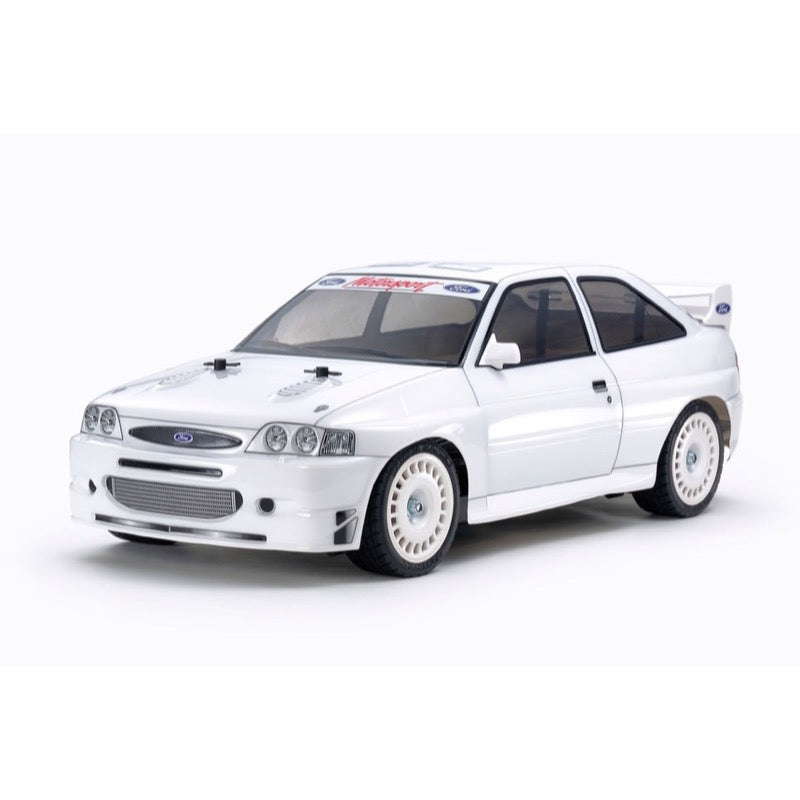

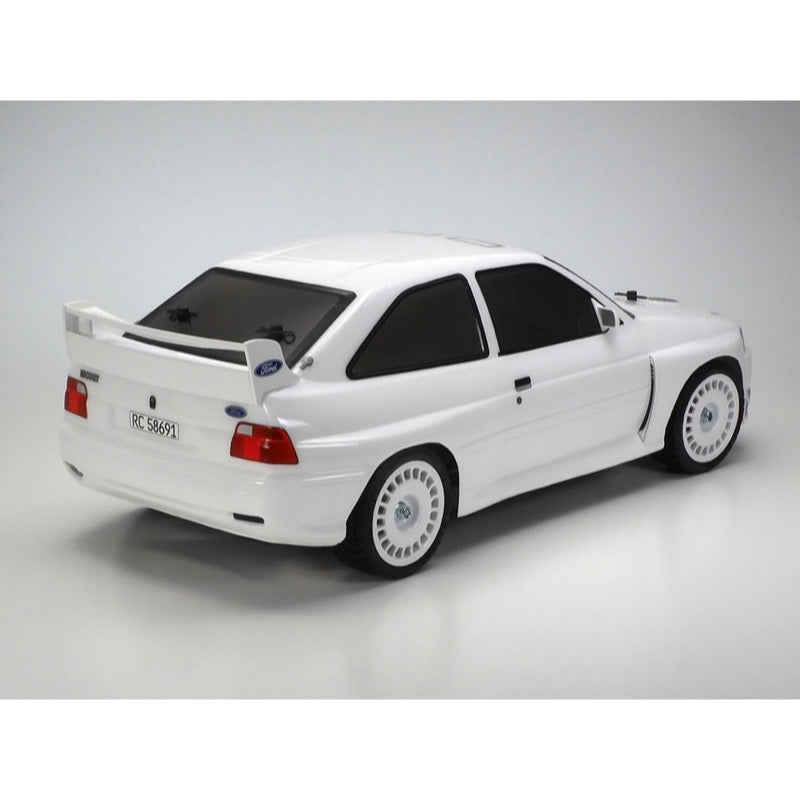

This R/C model assembly kit recreates a three-door hatchback Ford Escort Mk.6 with customizations such as blister fenders, front spoiler and rear wing. The powerful form is captured by a lightweight and durable polycarbonate body, and stickers are included to add detail. The model is based upon the adaptable and user-friendly TT-02 chassis, which offers shaft-driven 4WD.

TT-02: Adaptable, balanced shaft driven 4WD

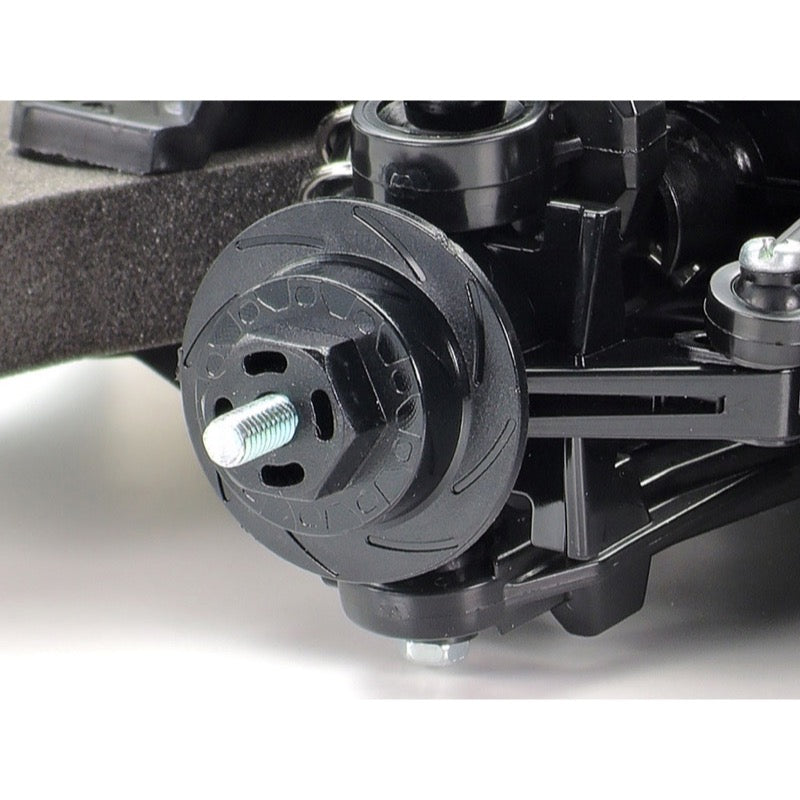

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use tread patterned semi-pneumatic tires.

Features

• 1/10 scale R/C model assembly kit. Length: 425mm, width: 189mm, height: 145mm. Wheelbase: 257mm.
• Features a 1.0mm thick polycarbonate body.

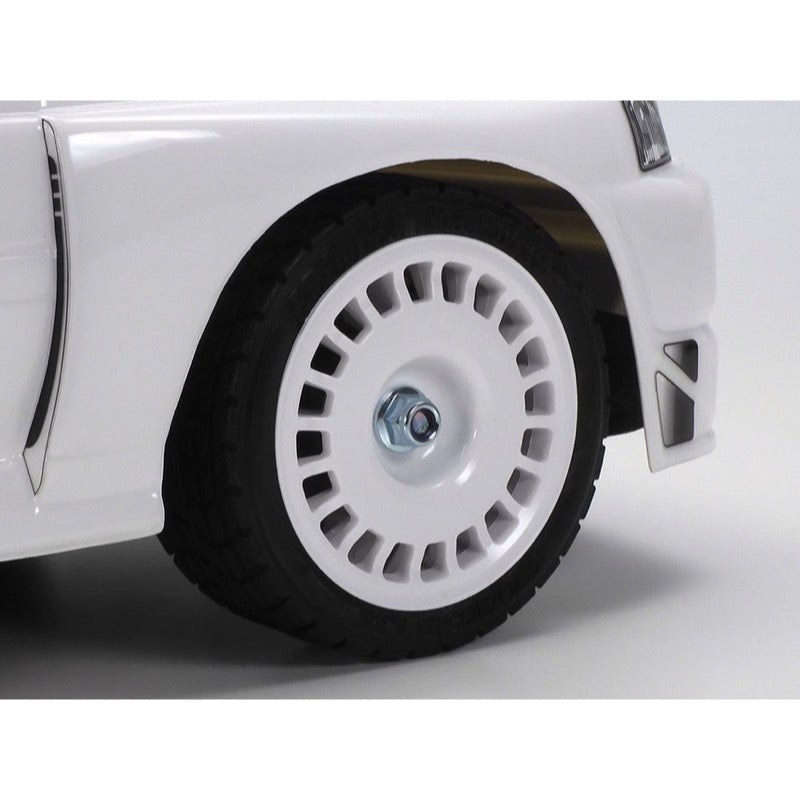

• Dish-type wheels are molded in white ABS plastic, and paired with treaded tires.
• Stickers and window painting masking stickers for use in the paint process included.
• The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.

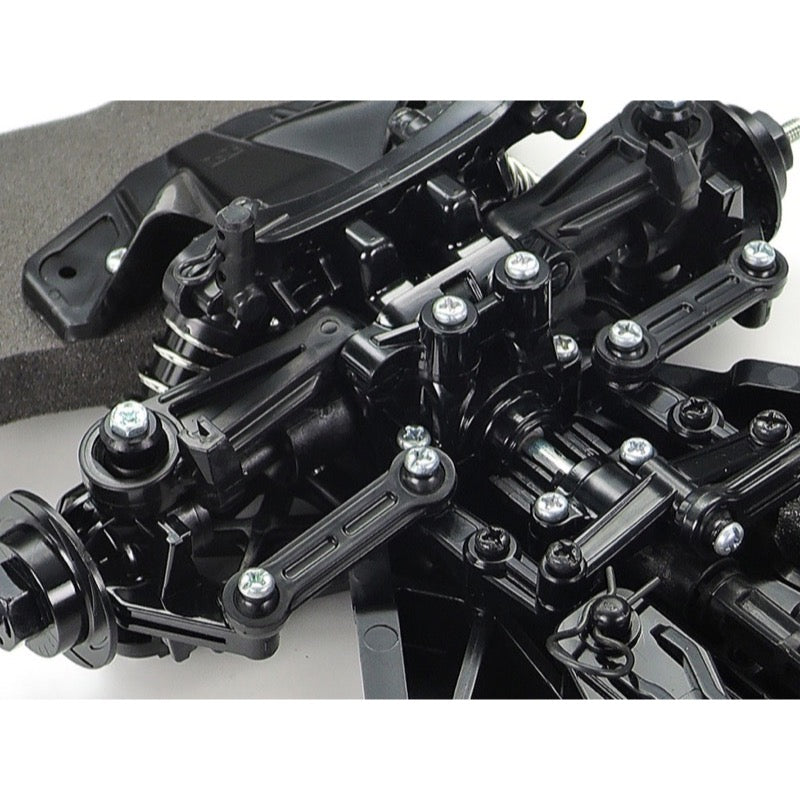

• 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance.
• A wide range of Hop-Up Option parts is available to customize your chassis.

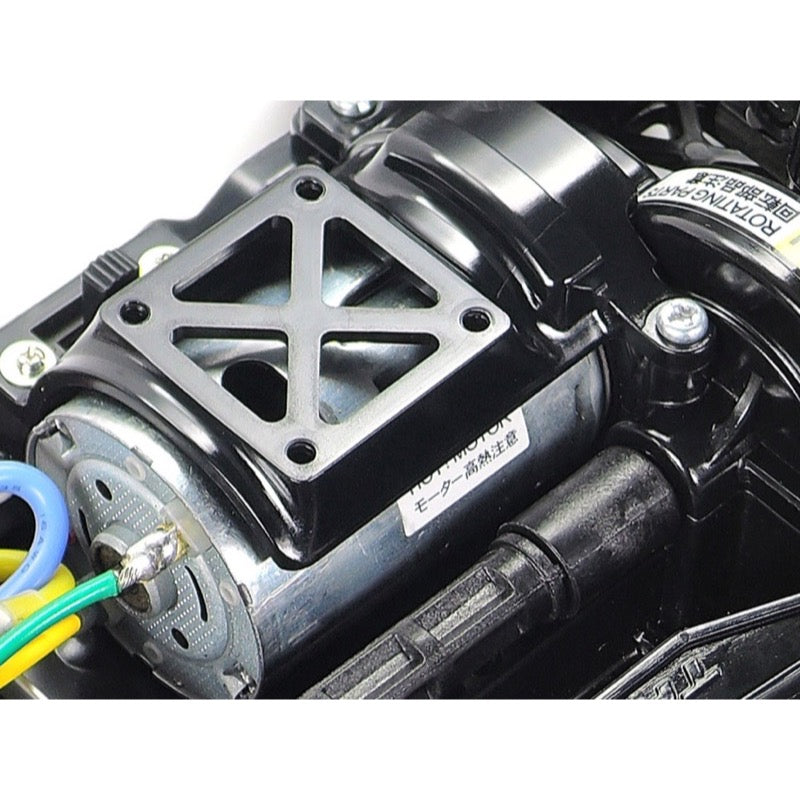

• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.

Requires

2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint.

• Length: 425mm, Width: 189mm, Height: 145mm
• Wheelbase: 257mm　
• Tire Width/Diameter: 27/67mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension

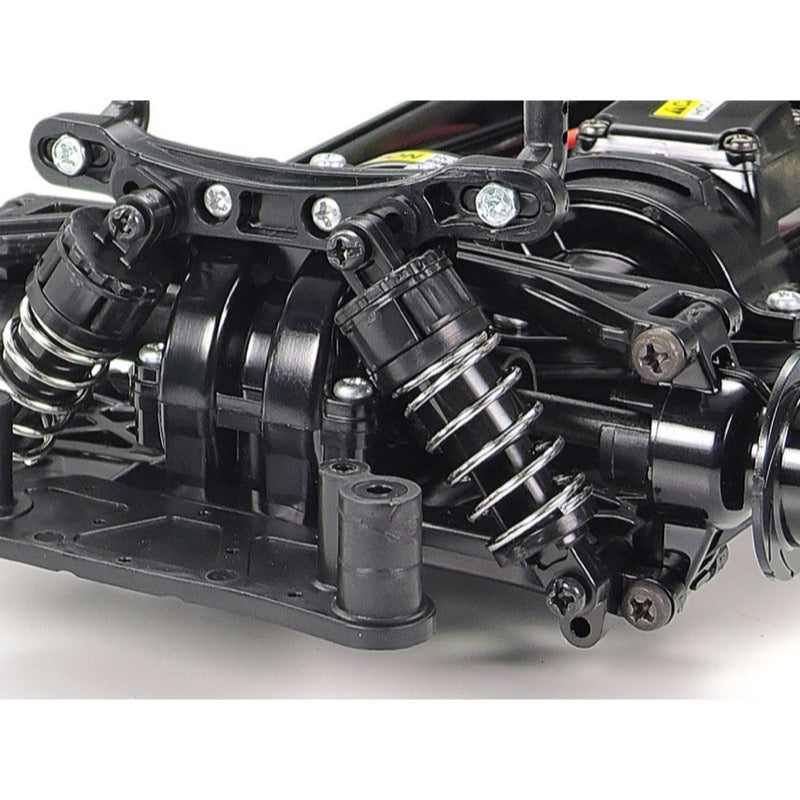

• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately.
