Tamiya 1/10 Motul Autech Z TT-02 Chassis RC Car Kit 58735

The Motul Autech Z was raced by the NISMO team in the 2023 Super GT series. It got off to a great start, winning the opening race of 2023 in Okayama, and followed that up with creditable runner-up finishes in Round 6 and the final Round, helping the NISMO team to third place in the championship. This assembly kit R/C model recreates the complex racecar with a polycarbonate body, and a sticker sheet to recreate the various sponsor logos and markings. The TT-02 chassis is an adaptable and accessible platform.

This Tamiya R/C car kit recreates the Motul Autech Z! The Motul Autech Z is raced by the NISMO team in the 2023 Super GT series. Although it inherits elements of the NISSAN Z road car design, it is different, with a carbon fiber body and a front 550hp-plus 2-liter 4-cylinder single turbo engine. It got off to a great start, winning the opening race of 2023 in Okayama.

TT-02: Adaptable, Balanced Shaft Driven 4WD

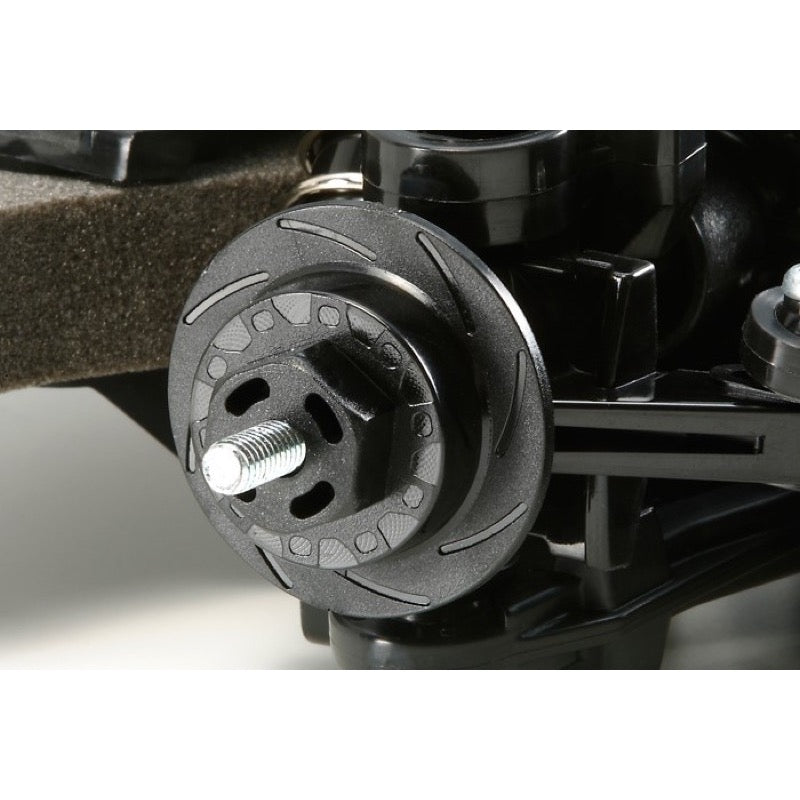

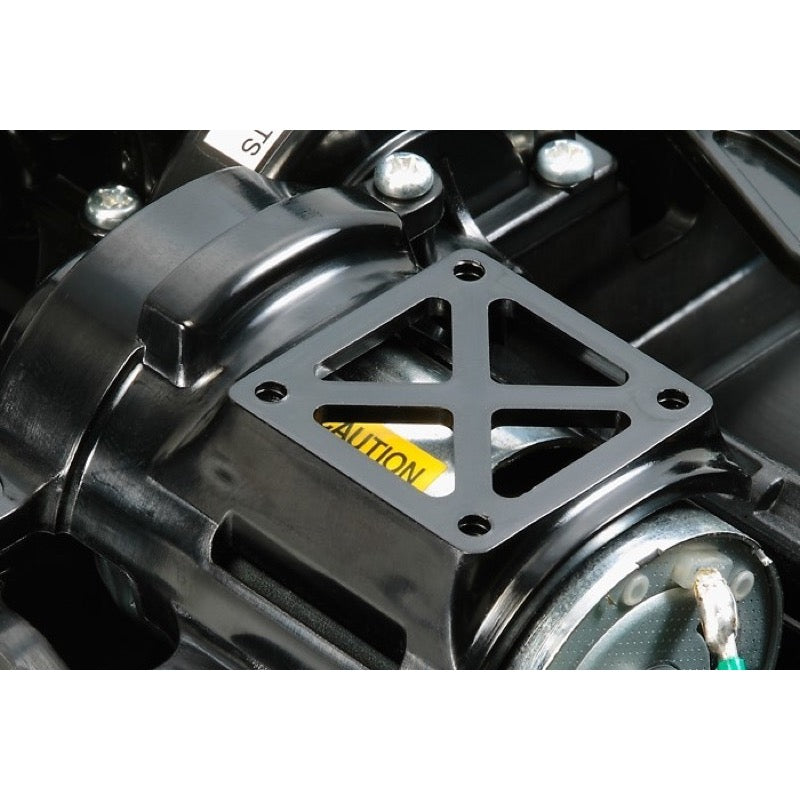

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Features

• 1/10 scale R/C model assembly kit. Length: 468mm, width: 188mm, height: 120mm. Wheelbase: 257mm.

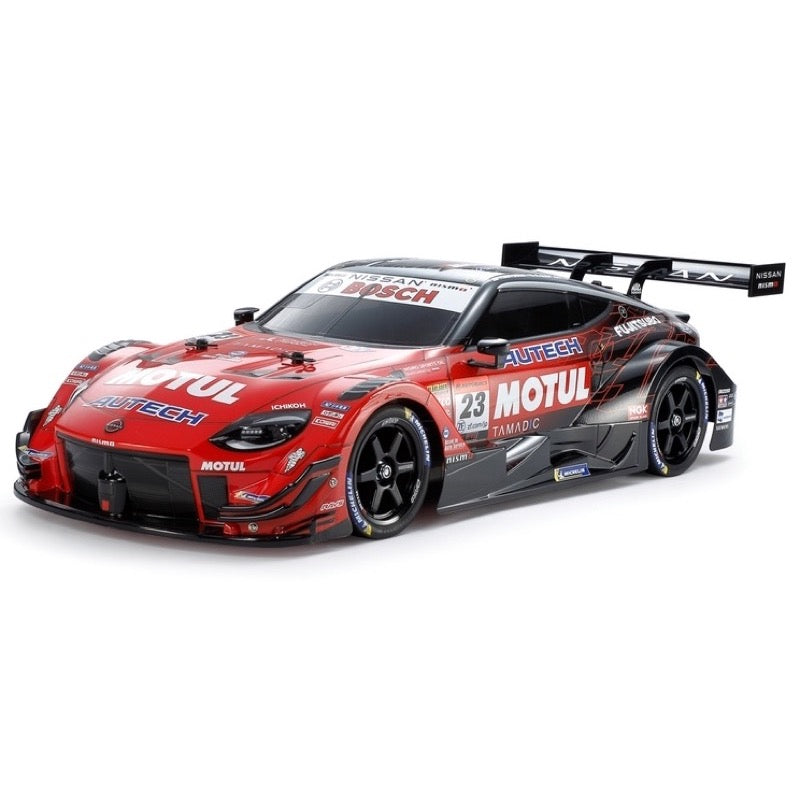

• Lightweight, rigid polycarbonate body with separate polycarbonate front and rear light cases (LEDs are not attachable) and canards.
• Separate black ABS plastic parts realistically depict distinctive side mirrors and a large rear wing.
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• 6-spoke black wheels are paired with slick tires.
• Includes 540-bushed motor and ESC.
• Comes with livery stickers and masking window tape for use in the painting process.

Requires

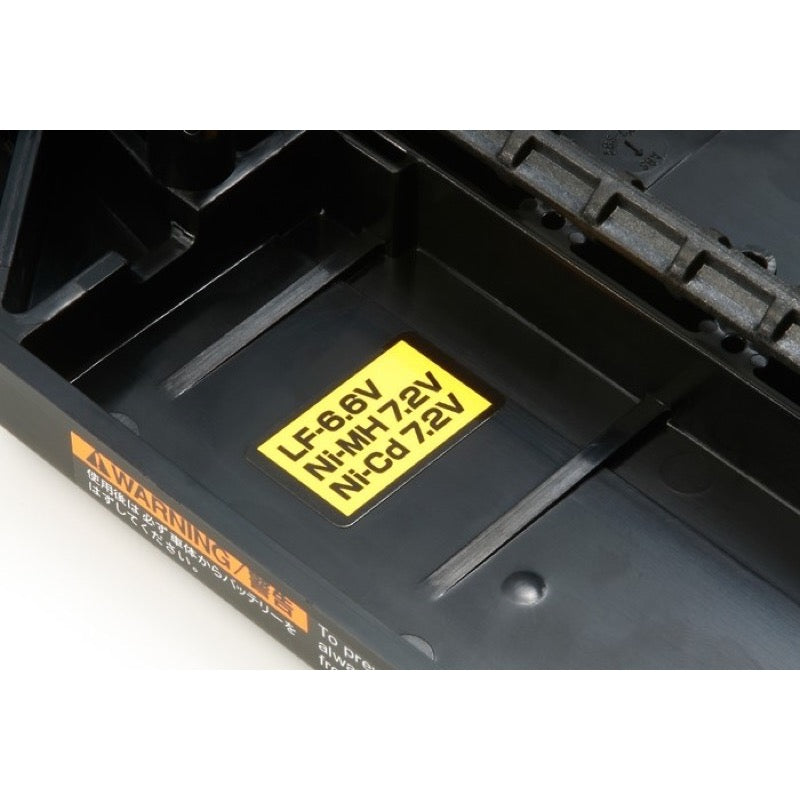

2-channel radio, servo, 7.2-7.4volt battery & compatible battery charger, and Tamiya PS paint.

• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: TT-02
• Construction Type: Assembly Kit

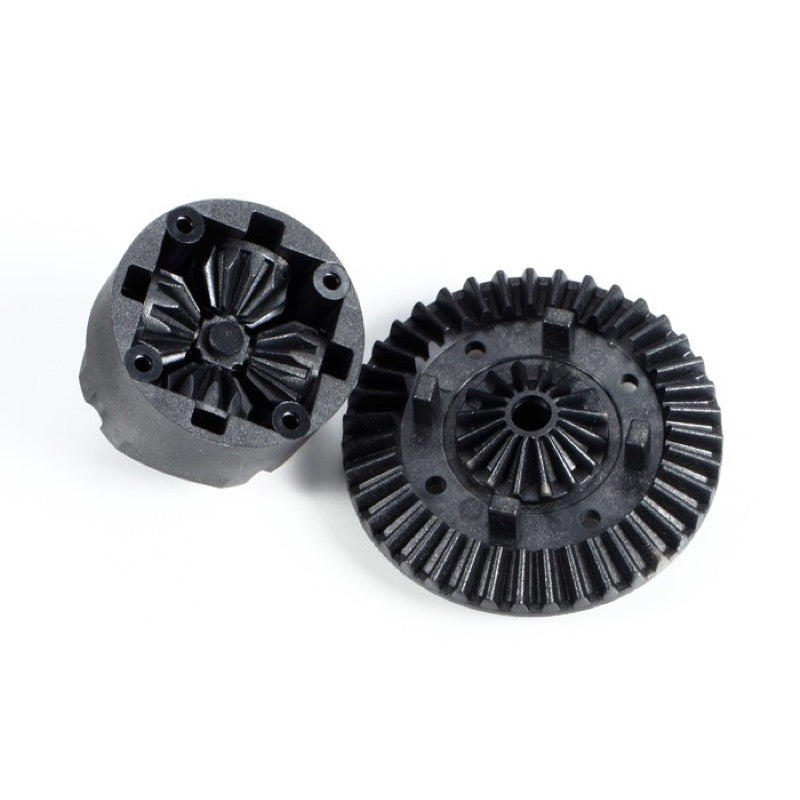

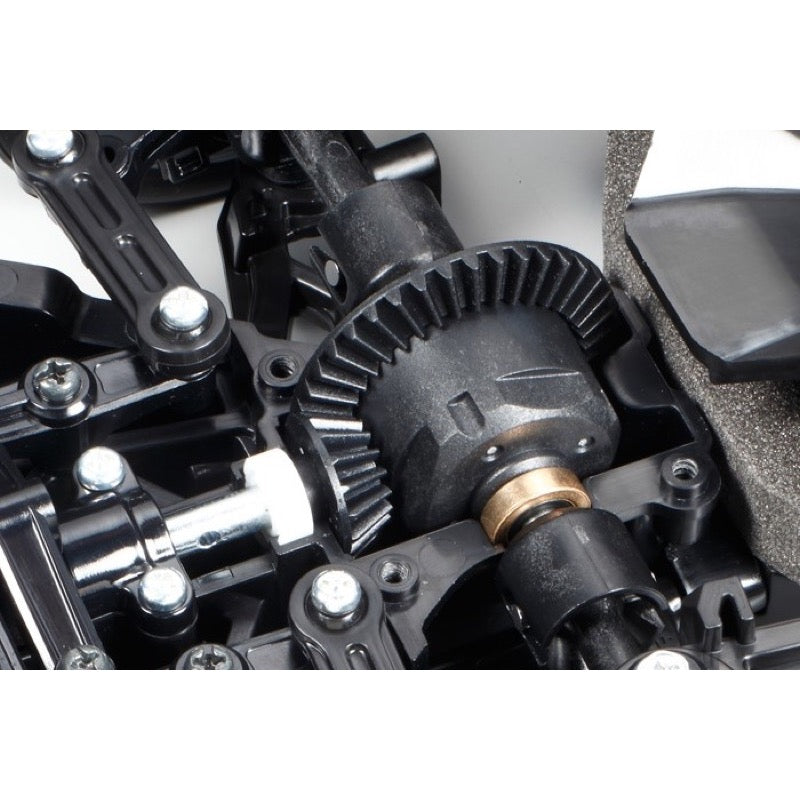

• Differential: Type Gear
• Drive Type: 4WD

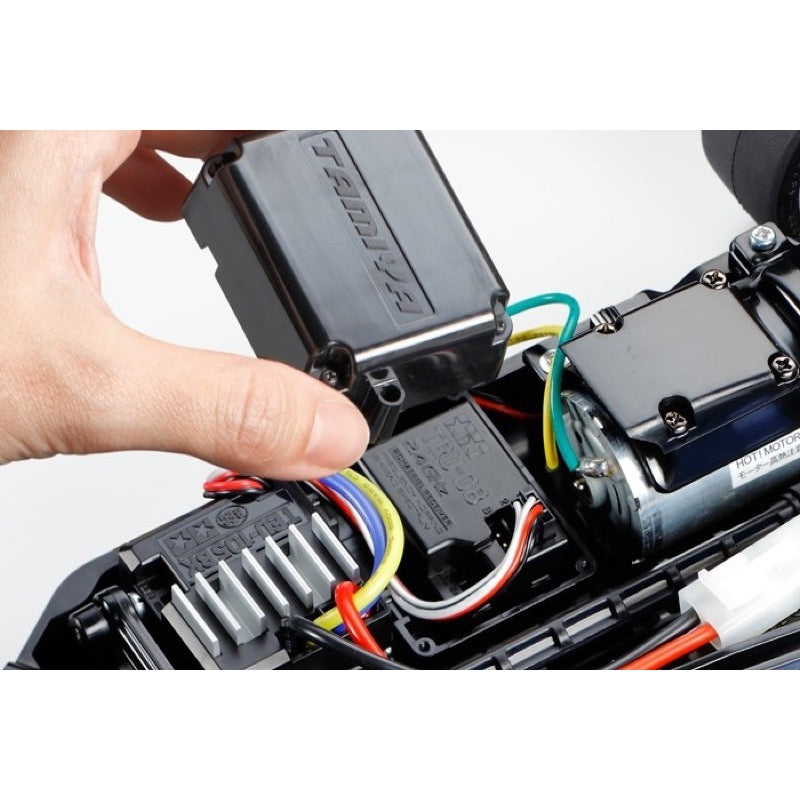

• Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor: 540-brushed type
• Required To Complete: 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
• Scale: 1/10
• Shock Damper: Friction damper

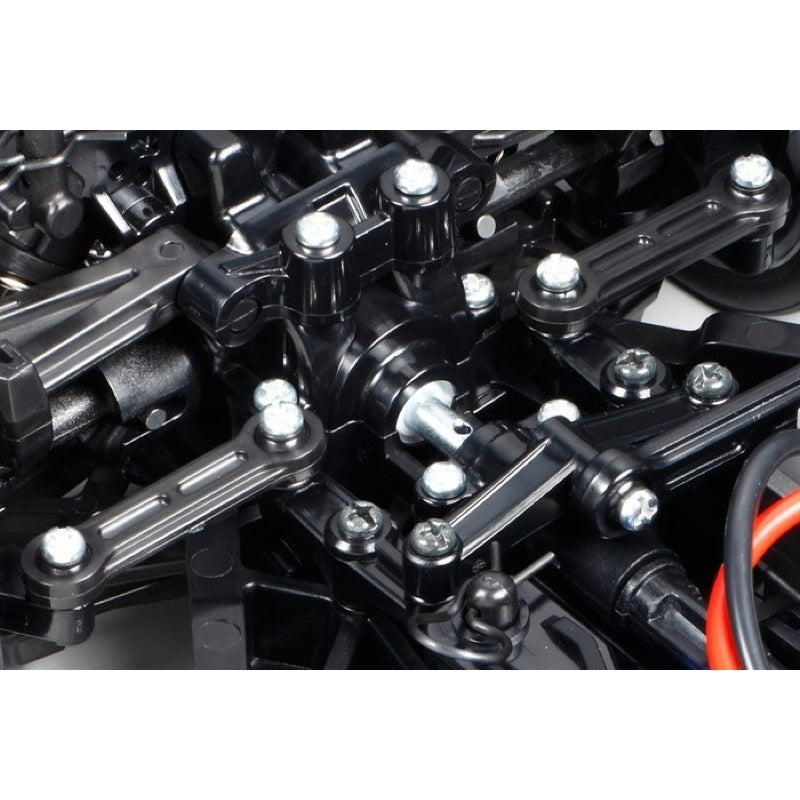

• Suspension: Fully Independent Double Wishbone
• Terrain Use: On-Road

Download Product Manual
