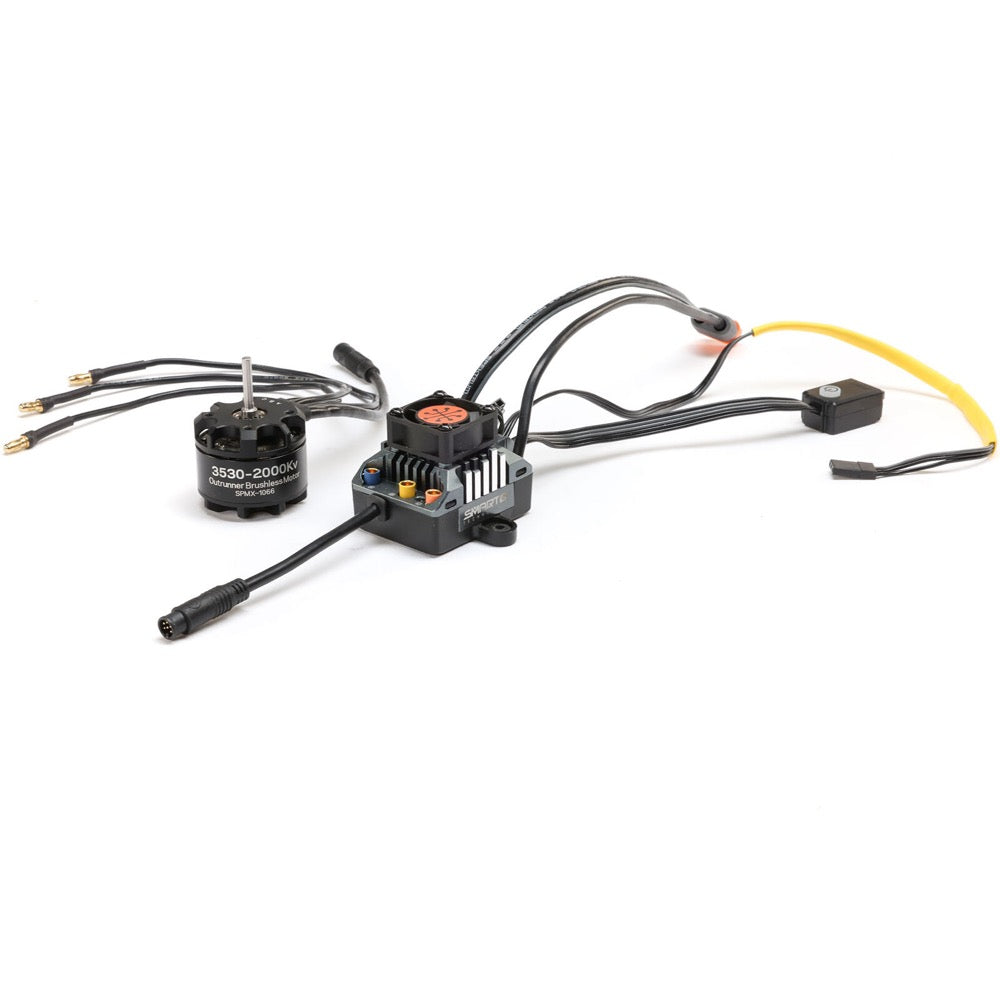

Spektrum Firma 2000KV 1/10 Sensored Outrunner Motor and ESC Combo

The Spektrum™ Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).

Features

Spektrum Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S)

• Smart All-In-One Telemetry
• Enable/Disable Drag Brake From Compatible Spektrum Transmitters
• Fast, Powerful 32-Bit ARM M4 Processor
• Multiple Programming Options
• Multi-Point Protection
• Waterproof (See Instructions For Details)

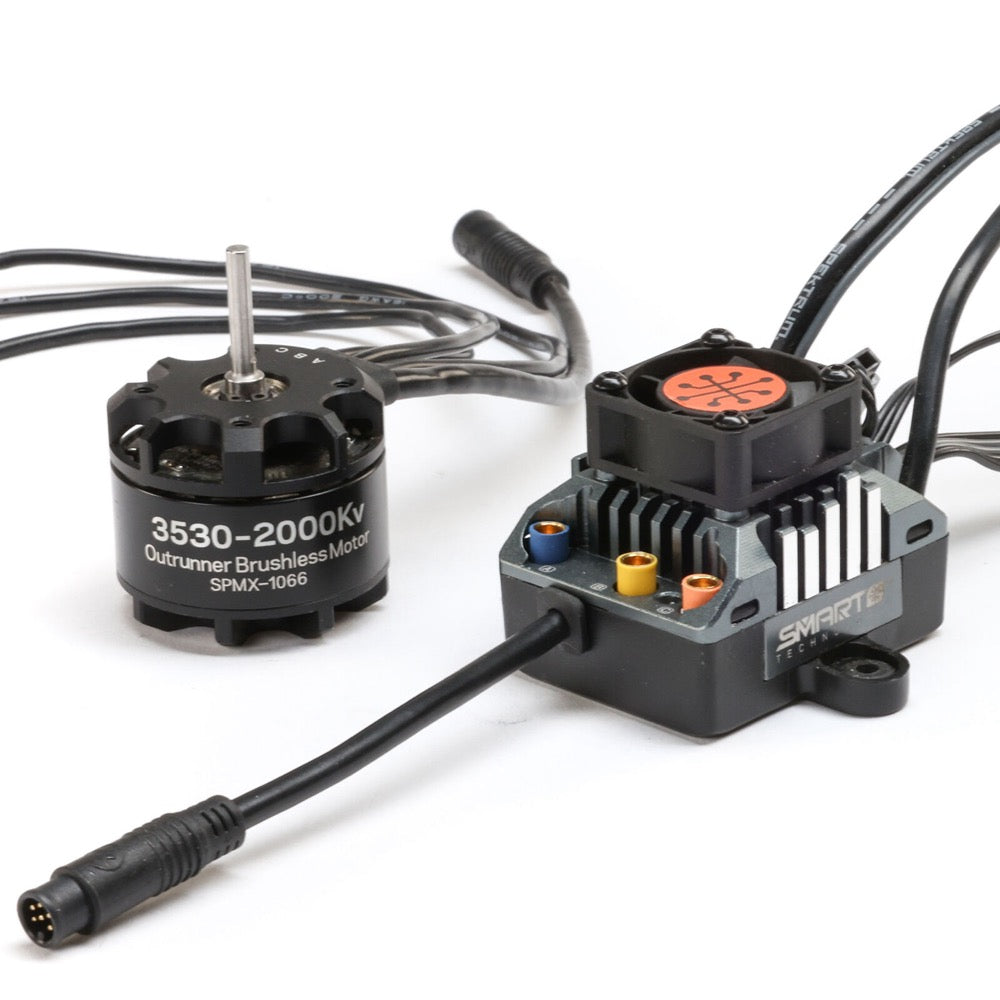

Spektrum Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor (SPMX-1066)

• 2-3S LiPo Power Compatible
• 12-pole Outrunner
• 3.175mm Output Shaft
• Pre-installed 3.5mm Gold-plated Bullet Connectors

• Amperage : 80A
• Auto Cutoff : Yes
• BEC Voltage : 6V/7.4V at 6A
• Connector Type : 3.5mm Bullet, IC3
• ESC Type : Sensored Brushless
• Forward : Yes
• Input Voltage : 2-4S LiPo
• LiPo Compatibility : 2S, 4S, 3S
• Low-Voltage Cutoff Programmable : Yes
• Maximum Burst Current : 360A
• Motor Limit : 4S less than 2000Kv, 3S up to 2500Kv
• Number of Poles : 12
• Overload Protection : Yes
• Reverse : Yes
• RPM/Volt (Kv) : 1700Kv
• Shaft Diameter : 3.175" (81 mm)
• Shaft Length : 18.5" (470 mm)
• Technology : Smart
