Power HD HV Brushless Servo (8.4V) 30kg

Product Code: PHD-GTS-3
$229.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

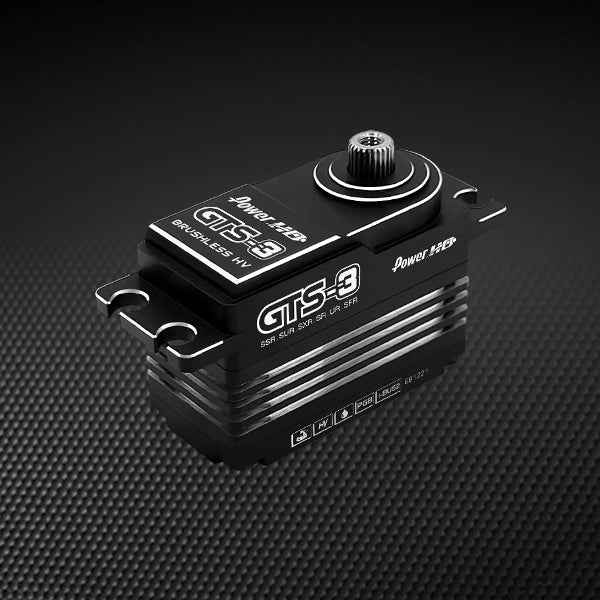

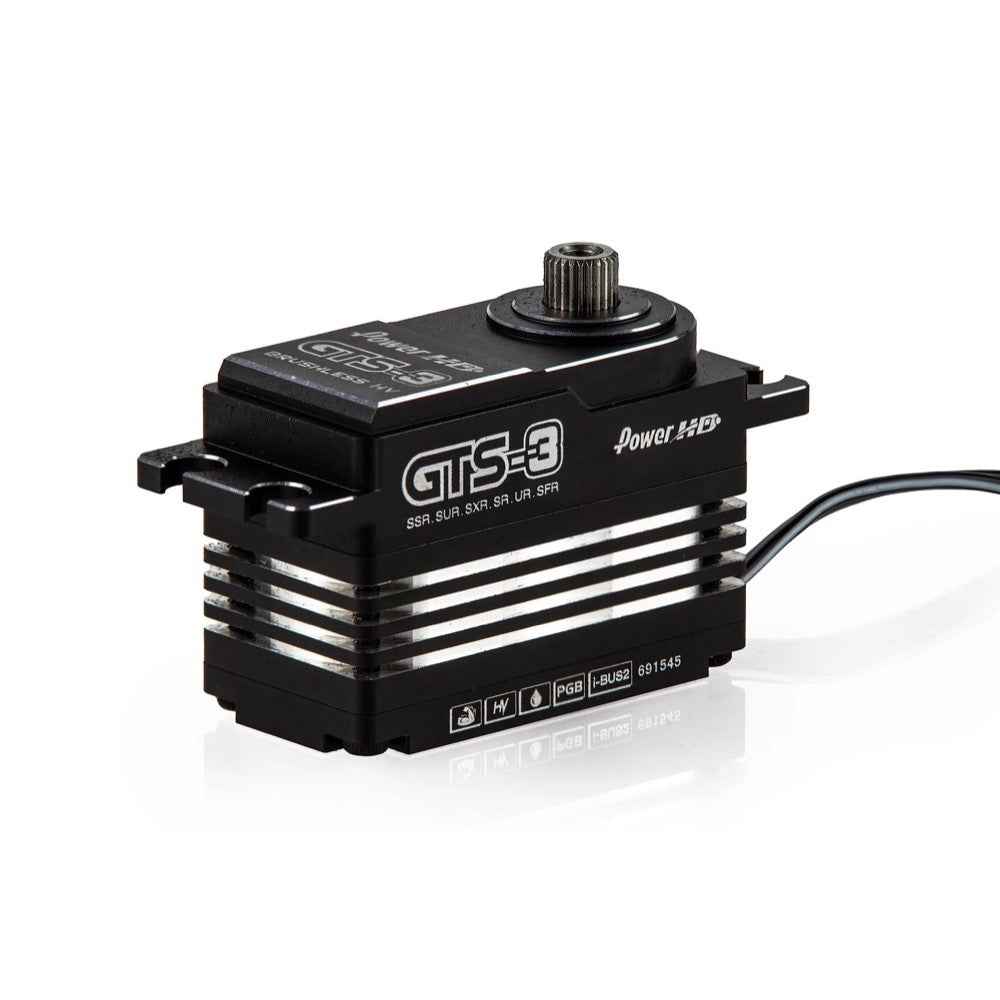

Power HD GTS-3 high-voltage brushless servo

30kg torque at 8.4V, FLYSKY i-BUS2 compatible, waterproof, with data monitoring.

  • 30kg torque at 8.4V with 4-pole brushless motor
  • High-voltage operation: 6V–8.4V
  • Supports FLYSKY i-BUS2 protocol; programmable via Power HD
    program box (sold separately)
  • Data monitoring records voltage, temperature, and signal information
    Waterproof construction

A high-voltage brushless powerhouse designed for RC enthusiasts.

Introducing the Power HD GTS series servo

With 8.4V and 30kg torque, it delivers unparalleled strength and precision. Compatible with FLYSKY i-BUS2 protocol, it supports high-speed modes and can be easily programmed using the Power HD program box. Featuring a 4-pole brushless motor, it offers exceptional performance, extended lifespan, and rapid response. The servo's data monitoring function records voltage, temperature, and signal information for up to an hour. It is also waterproof, ensuring durability for outdoor adventures.

Features

  • New high-voltage brushless GTS series servo by Power HD
  • Supports FLYSKY i-BUS2 protocol for seamless integration
  • GTS-3, GTS-5, GTS-6, GTS-7 models available
  • Alliance between Power HD and FLYSKY for enhanced performance
  • High-speed modes and programming with Power HD program box (sold separately)

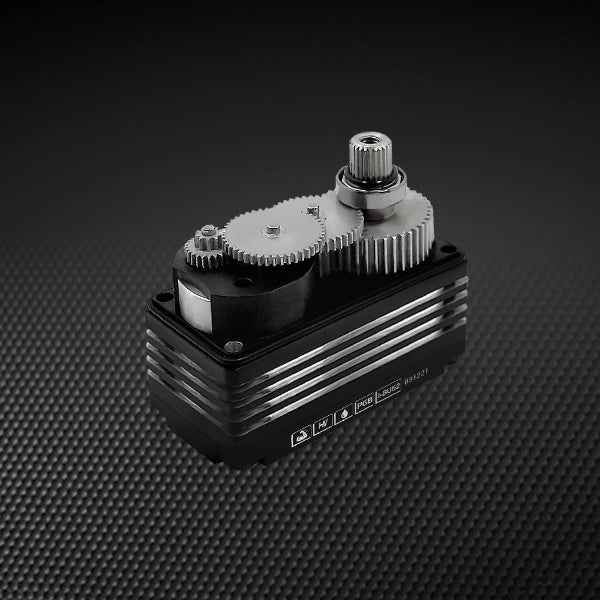

  • 4-pole brushless motor for superior performance and durability
  • Long lifespan and heat-resistant design for reliable operation
  • Faster response time for precise RC manoeuvres
  • Data monitoring function records voltage, temperature, and signal information
  • Waterproof construction for outdoor use and added durability
  • Torque (6.0V) : 20 kg-cm (277.7 oz-in)
  • Torque (7.4V) : 26 kg-cm (361.1 oz-in)
  • Torque (8.4V) : 30 kg-cm (416.6 oz-in)
  • Speed : 0.083 sec (6V) | 0.067 sec (7.4V) | 0.055 sec (8.4V)
  • Operating Voltage : 6V–8.4V
  • Weight : 63g (2.22 oz)
  • Bearing Type : Ball Bearing
  • Motor Type : Brushless
  • Operating Temperature : -20°C ~ 60°C
  • Refresh Rate : 1520μs / 1666Hz
  • Size : 41.0 x 20.0 x 29.0mm (1.61 x 0.79 x 1.14 in)
  • Servo Dimensions — Total Height (A) : 34mm | Body Width (B): 41mm | Below Mount (C): 19.7mm | Above Mount (D): 34mm | Total Length (E): 54.4mm | Total Width (F): 20mm
