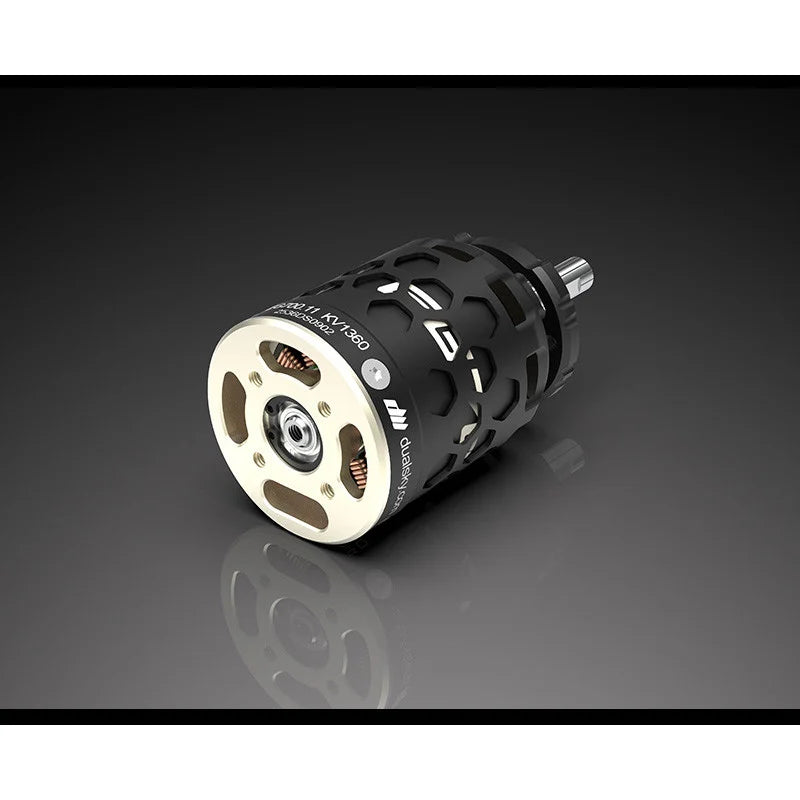

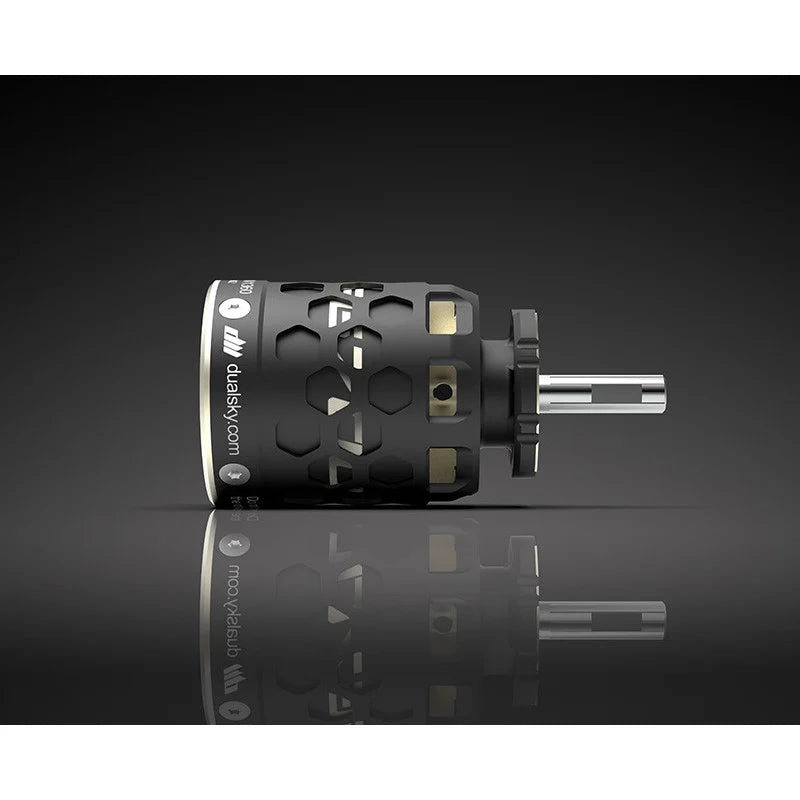

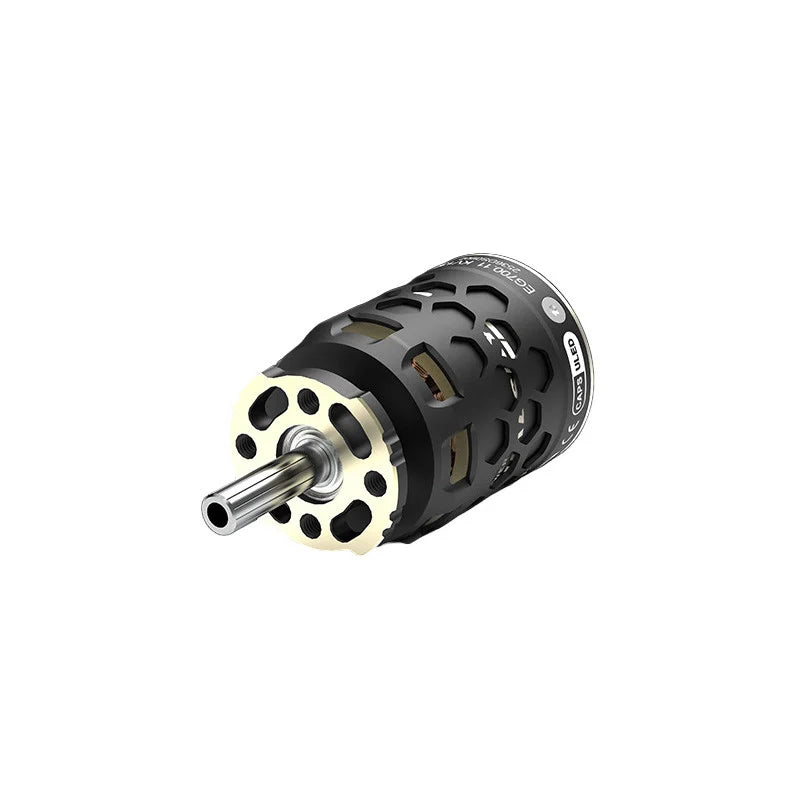

Dualsky EG700.14 1050kv Capsuled Brushless Glider Motor

Product Code: DSB52407
$130.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This EG700.14 Brushless Glider Motor is an all-new 87g capsule-style motor for 3-4S  suitable for lightweight FAI F5J models up to 2100gm. 

Features

  • The all-new generation of capsule-type motors, suitable for the lightweight version of FAI F5J
  • Motor housing diameter reduced to 29mm, compatible with D30mm fuselage model aircrafts
  • New magnetic circuit design with 50SH Ndfeb magnets, achieving high output torque in a compact size
  • New hollow main shaft with a 5mm output shaft featuring an anti-slip groove design.
  • Active air cooling rotor with buffer mechanism
  • Honeycomb structure capsule shell with both lightweight and foreign object discharge function
  • Independent fixing surface design to avoid damage caused by screws invading the body
  • Summit X/Slim ESCs are recommended (Timing 16 degrees & working frequency 24KHz)
  • KV: 1050
  • Weight (g): 87
  • Diameter (mm): Front Face 25 / Body 29
  • Length (mm): 41.8 / 58.8 incl. shaft
  • Diameter of Shaft (mm): 5 hollow
  • Pitch of Holes (mm): A16 / B19
  • Input Connectors: 3x GC3.5
  • Slots & Poles: 12N14P
  • Io @10V (A): 1.1
  • Resistance (Ri) (mOhm): 50.3
  • No. of Cells (LiPo): 3–4S
  • Max. Efficiency Current (A): 22
  • Max. Burst Current (15S) (A): 44
  • Max. Power (30S) (W): 704
  • Torque (mNM): 570
  • Recommended ESC: SUMMIT 60 Slim Timing 16°
  • Propeller: 4S DFP1070
  • Applications: FAI F5J Light to Standard
