Dualsky EG500.8 2600kv Capsuled Brushless Glider Motor

Product Code: DSB52402
$119.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

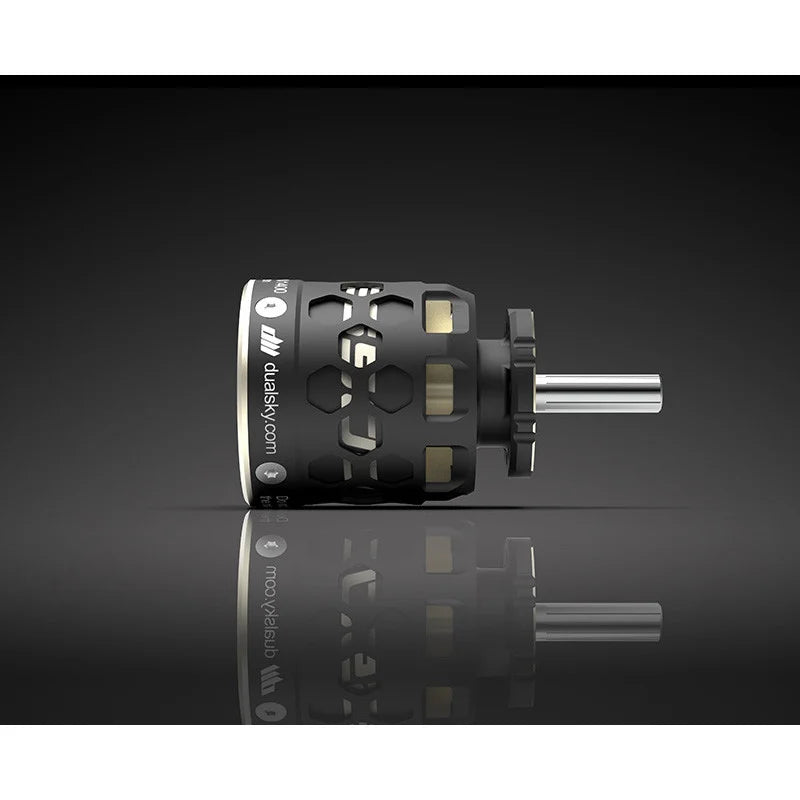

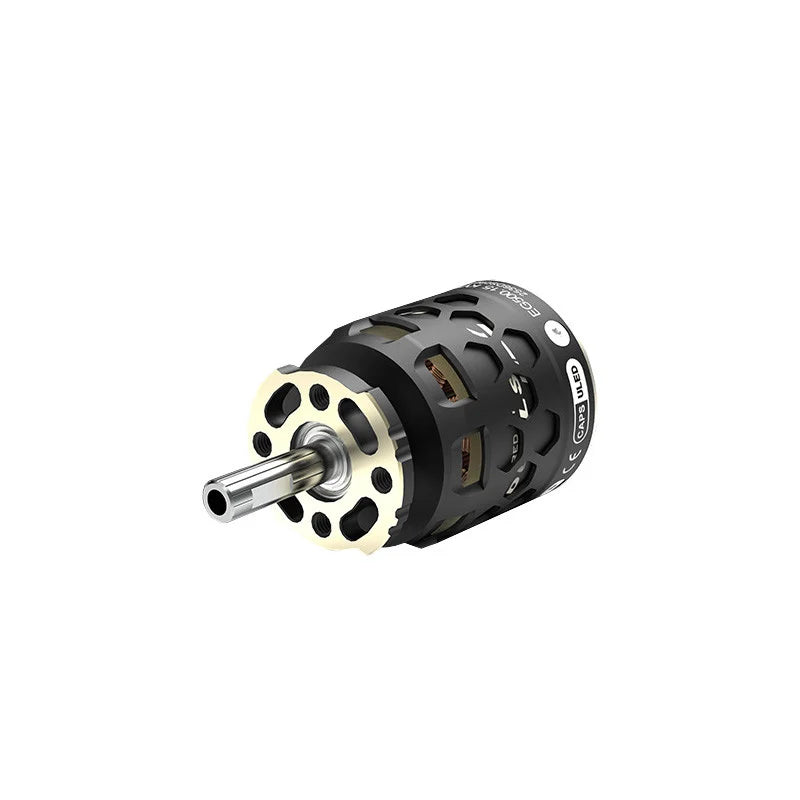

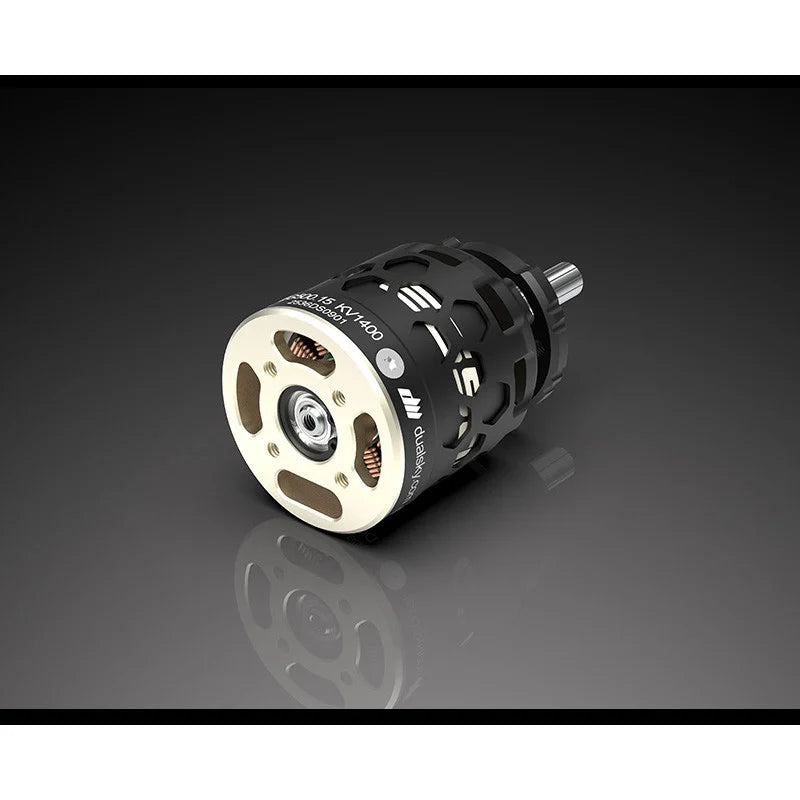

This EG50008 Brushless Glider Motor is an all-new 72g capsule-style motor for 2S  operation. This particular high kV motor is designed for fast launch gliders weighing up to 700g (for example ASFC F5B).

Features

  • The all-new generation of capsule-type motors, suitable for the lightweight version of FAI F5J
  • Motor housing diameter reduced to 29mm, compatible with D30mm fuselage model aircrafts
  • New magnetic circuit design with 50SH Ndfeb magnets, achieving high output torque in a compact size
  • New hollow main shaft with a 5mm output shaft featuring an anti-slip groove design.
  • Active air cooling rotor with buffer mechanism
  • Honeycomb structure capsule shell with both lightweight and foreign object discharge function
  • Independent fixing surface design to avoid damage caused by screws invading the body
  • Summit X/Slim ESCs are recommended (Timing 16 degrees & working frequency 24KHz)
  • KV: 2600
  • Weight (g): 72
  • Diameter (mm): Front Face 25 / Body 29
  • Length (mm): 36.8 / 53.8 incl. shaft
  • Diameter of Shaft (mm): 5 hollow
  • Pitch of Holes (mm): A16 / B19
  • Input Connectors: 3x GC3.5
  • Slots & Poles: 12N14P
  • Io @10V (A): 3.7
  • Resistance (Ri) (mOhm): 13.6
  • No. of Cells (LiPo): 2S
  • Max. Efficiency Current (A): 28
  • Max. Burst Current (15S) (A): 56
  • Max. Power (30S) (W): 448
  • Torque (mNM) :290
  • Recommended ESC: SUMMIT 60 Slim Timing 16°
  • Propeller: 2S DFP8560 / DFP9065
  • Applications: Fast launch gliders up to 700g (e.g. ASFC F5B)
