Kyosho 1/8 Inferno Neo 4.0 VR T1 4WD Brushless Racing Buggy Readyset

The 1/8 EP buggy, perfect for beginners, has been renewed and now boasts even more power for an exhilarating driving experience.

The "1/8 scale buggy" is a highly popular category where world-class competitions are held. In recent years, electric models (VE) have also been attracting significant attention. The "Inferno NEO 4.0 VE" is developed based on the "Inferno series," which has accumulated a track record in numerous races, including the World Championships. In addition to a powerful brushless motor, it adopts a new high-torque steering servo and strengthens the R/C mechanics. Furthermore, the thickness of the front damper stay has been increased to improve crash resistance. The body, with its vividly printed graphics, is available in two types to suit your preference. Although it is a "ready set" with the chassis assembled and the R/C mechanics installed, it offers driving enjoyment that far exceeds the realm of entry-level models.

Features

• A manufacturer-assembled ready-to-run set that includes body painting and R/C mechanics assembly & adjustment. You can enjoy driving it right after purchase.
• Includes the popular steering wheel & gun grip type KT-231P+ transmitter for R/C cars.
• An electric version that can be enjoyed in a wide range of fields and has low running costs.
• Employs a shaft-type full-time 4WD system that offers high driving stability and reliability.
• The main chassis is made of duralumin that balances moderate flexibility and high rigidity. It is also fitted with gray resin side guards that serve as a design accent.
• Uses hook-and-loop fastener type battery fixing that can accommodate batteries of different sizes.
• The front and rear suspensions are double wishbone type that ensures sufficient stroke.
• Diaphragm type oil dampers that are well-regarded for their high damping ability and stable operation. Oil is factory sealed.
• Full bearing specification with 18 ball bearings as standard equipment in the drive system, etc.
• Standard equipment includes a metal 1.0 module main gear that can withstand high loads during driving.
•  The ring and pinion gears of the front and rear gear differential units are made from high-precision, high-efficiency, and high-strength machined metal.
•  The center differential also uses high-strength and durable machined metal gears.
•  Setting changes and performance improvements are possible by using existing optional parts for the Inferno series.

Contents

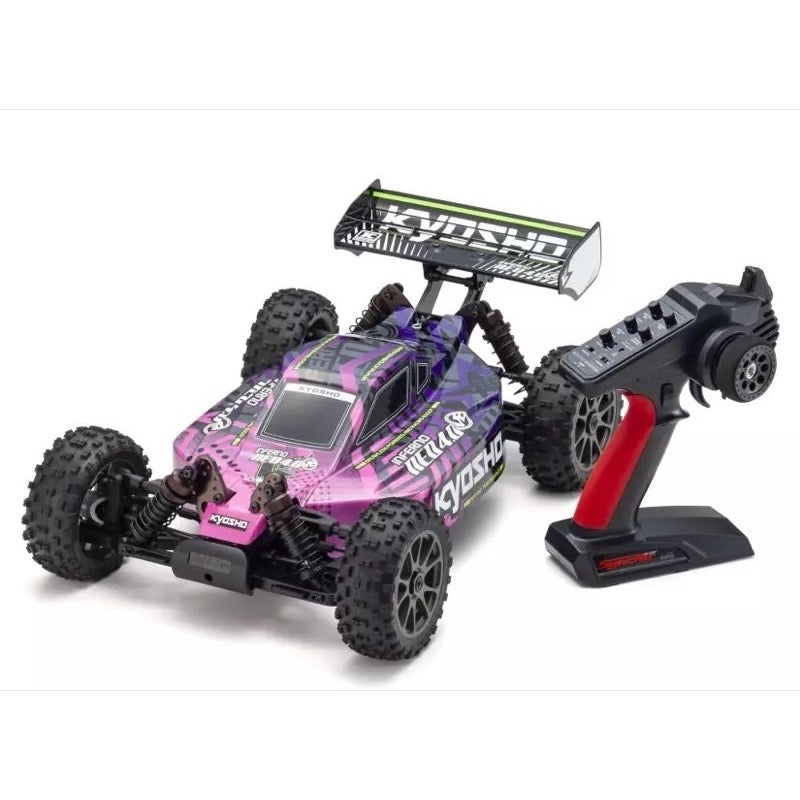

• Factory-assembled chassis with complete radio linkage
• Factory-assembled body with color printing
• 2.4GHz radio control system Synchro KT-231P + transmitter
• 1.5, 2.0, 2.5, 3.0mm L-shaped hex wrenches
• Cross wrench
• 17mm wheel wrench

Requires

•  4 AA alkaline batteries for the transmitter
•  Battery for driving (1-2 x 7.2V Ni-MH XT60 type batteries, or 1-2 x 7.4V Li-Po batteries)
•  Charger
•  Stabilized power supply
•  Phillips screwdriver (large and small)

• Overall length: 496mm
• Overall width: 307mm
• Overall height: 189mm
• Wheelbase: 323-328mm
• Tread (F/R): 258mm/261mm
• Tires (F/R): φ115×45mm/φ115×45mm
• Gear ratio: 12.7:1
• All-up weight: Approx. 3,550g
• Radio control system: 2.4GHz Synchro KT-231P+

Download Product Manual

Download Maintenance Manual

Download Parts List with Photos

Download Parts List

Download Exploded View
