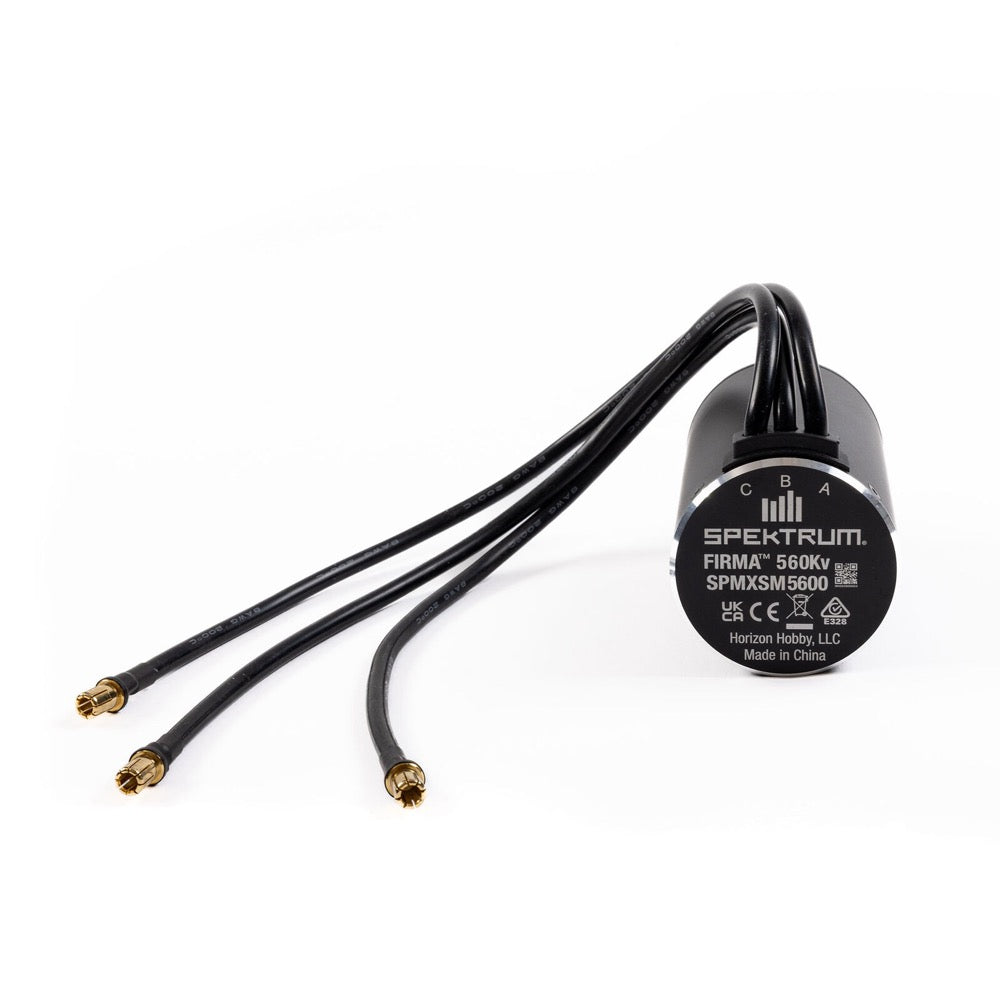

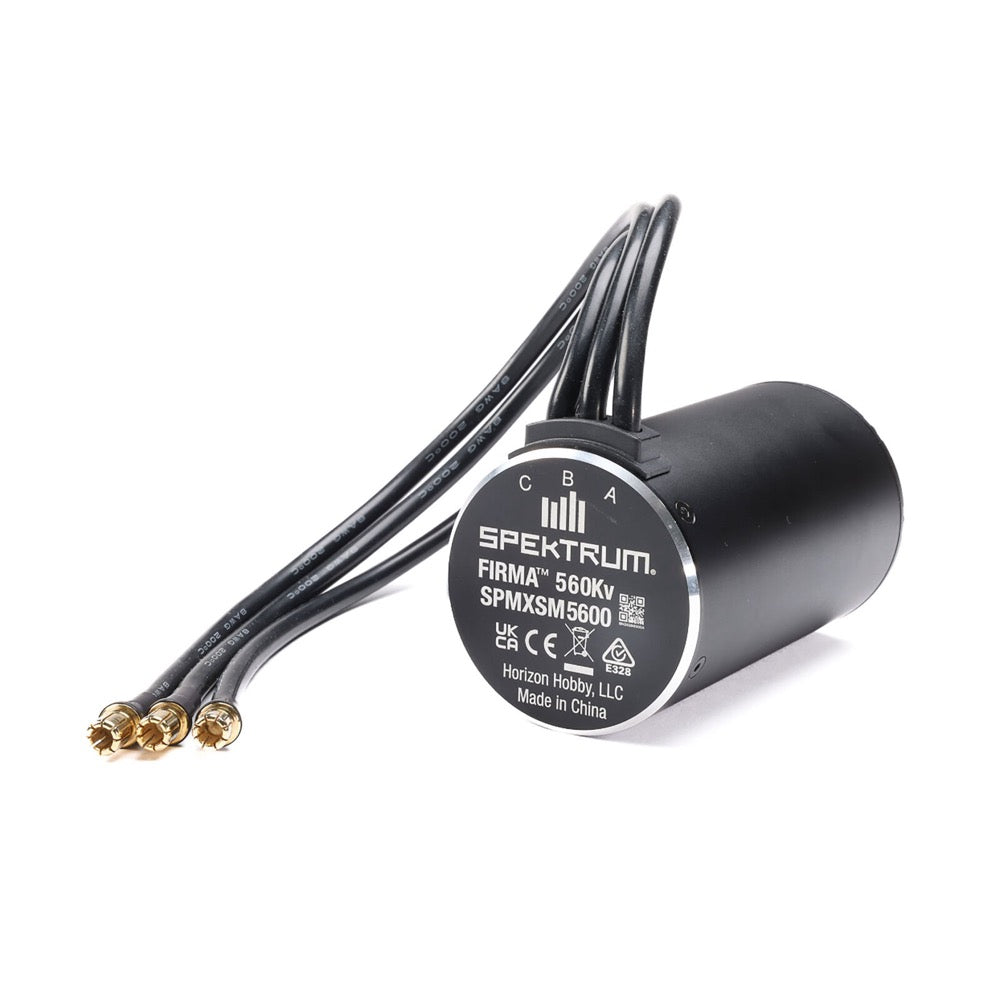

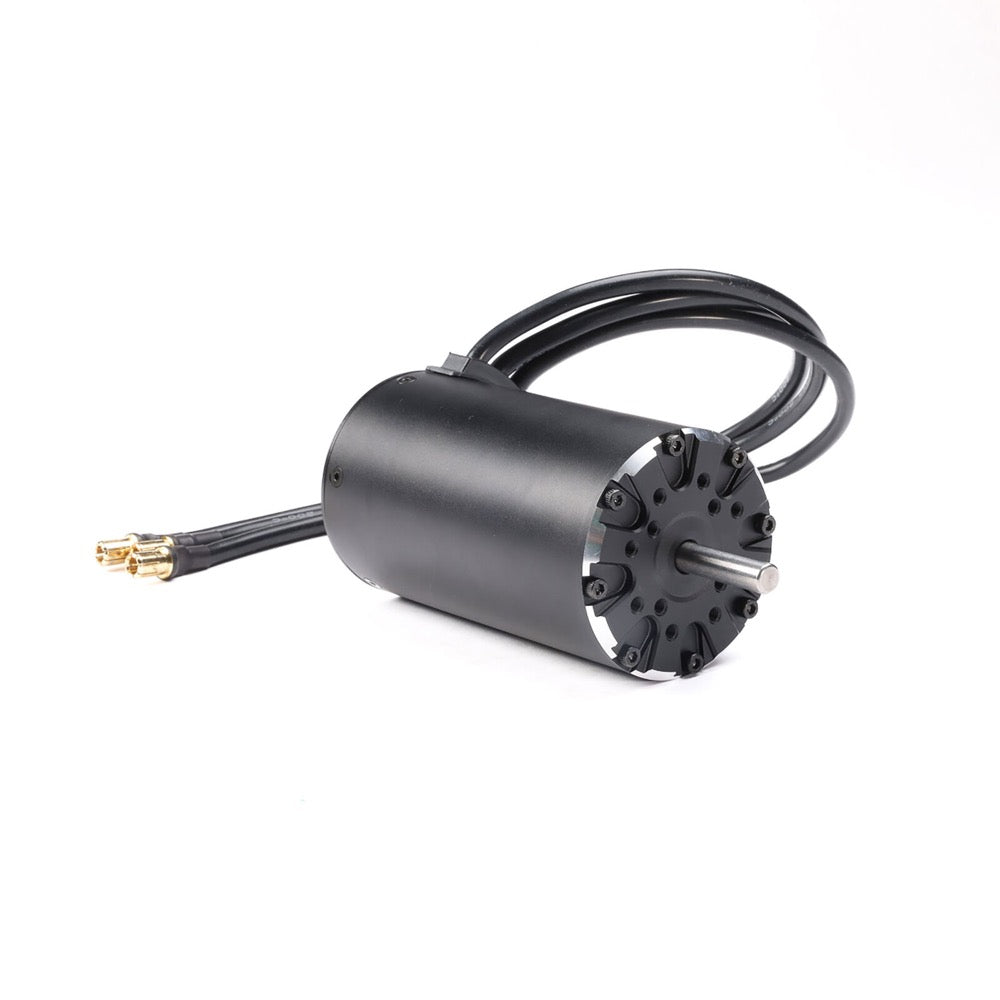

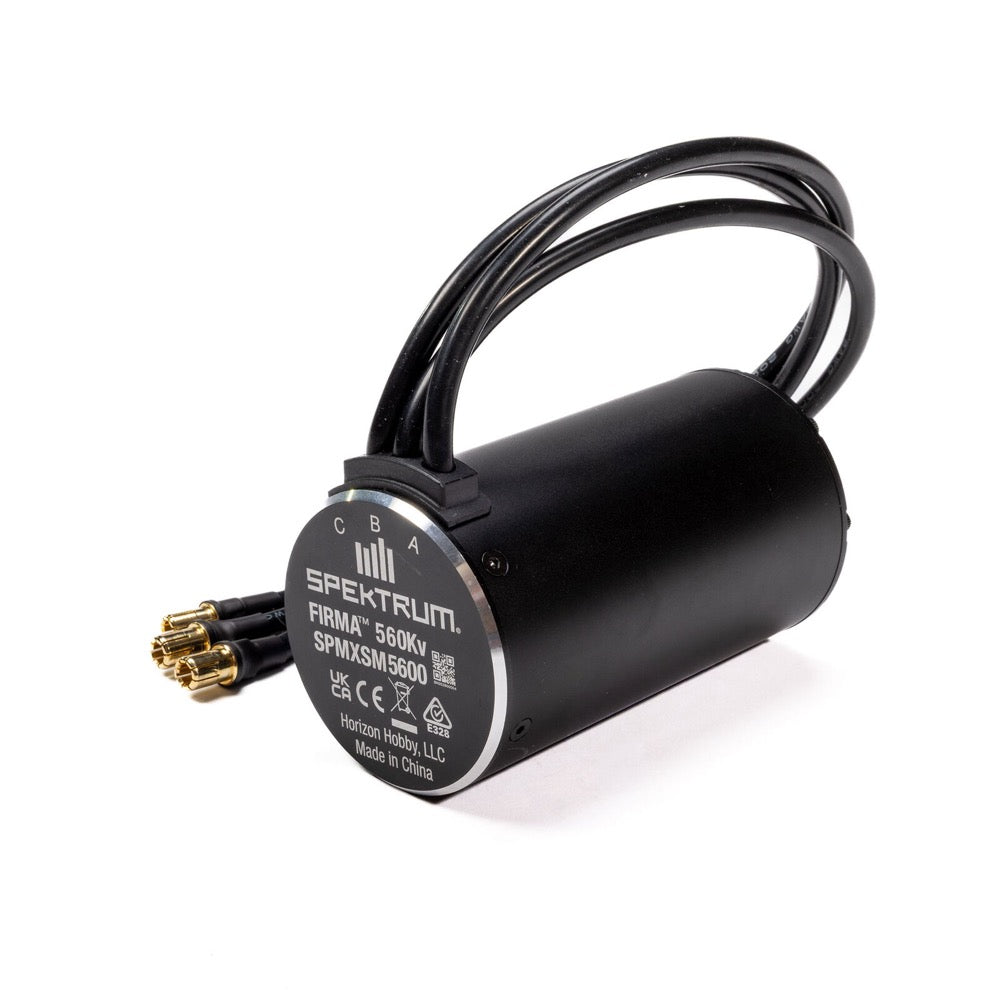

Spektrum Firma 70120 560Kv Brushless Motor 8mm Shaft 5IVE-TE 3.0

The Firma 560Kv brushless motor is the perfect pairing for the 5IVE-TE 3.0 1/5 Electric 4WD Desert Truck RTR. It features a low-cog 4-pole rotor design, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel output shaft, and precision bearings for durability and smooth rotation.

Features

• New 560kv smooth can motor

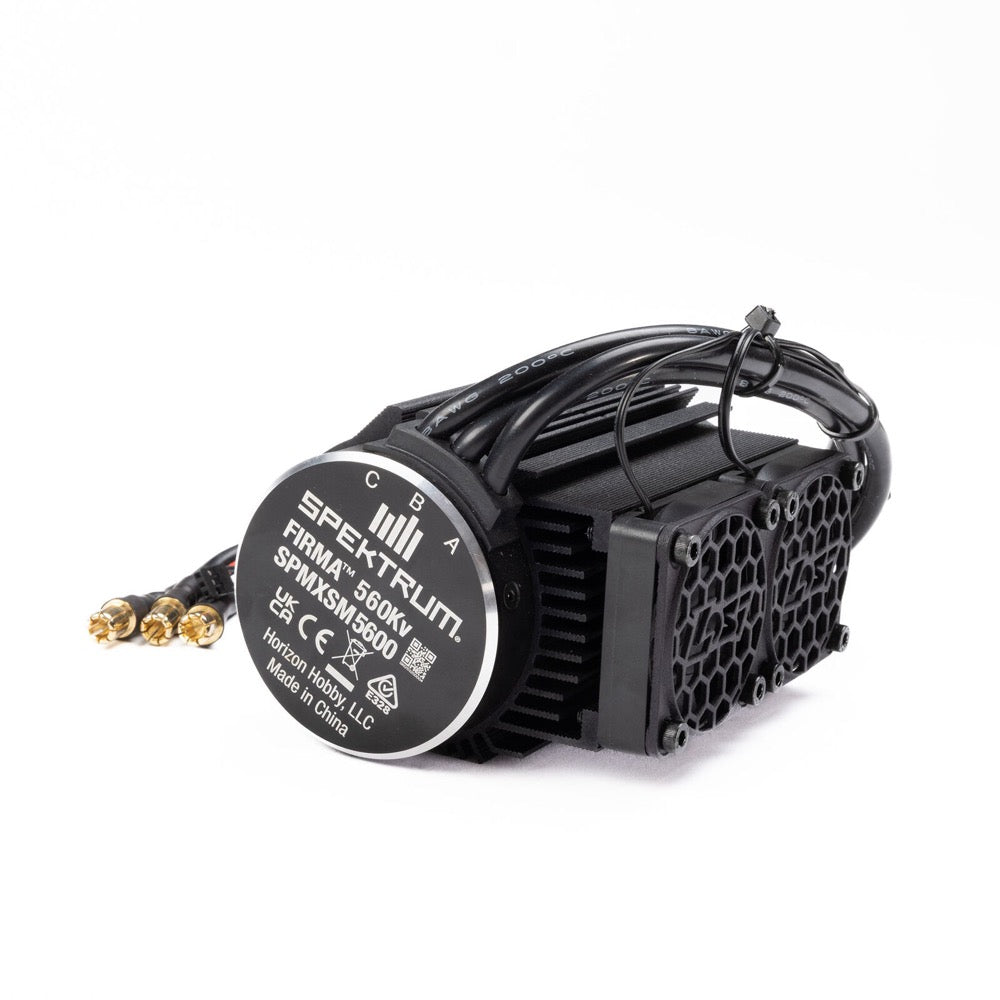

• Compatible with SPMXSMH3 Heatsink
• Motor dimensions are 66.5mm x 120mm

• Application : 1/5th Scale Off Road Vehicle
• Connector Type : 8mm Bullet
• Maximum Continuous Current : 250A
• Motor Size : 70120
• Motor Type : Brushless
• Number of Poles : 4
• Outer Diameter : 2.61" (66 mm)
• Product Length : 4.72" (120 mm)
• Product Weight : 2245g
• RPM/Volt (Kv) : 560Kv
• Shaft Diameter : 0.314" (8 mm)
• Shaft Length : 1.18" (30 mm)
• Voltage : 48V
