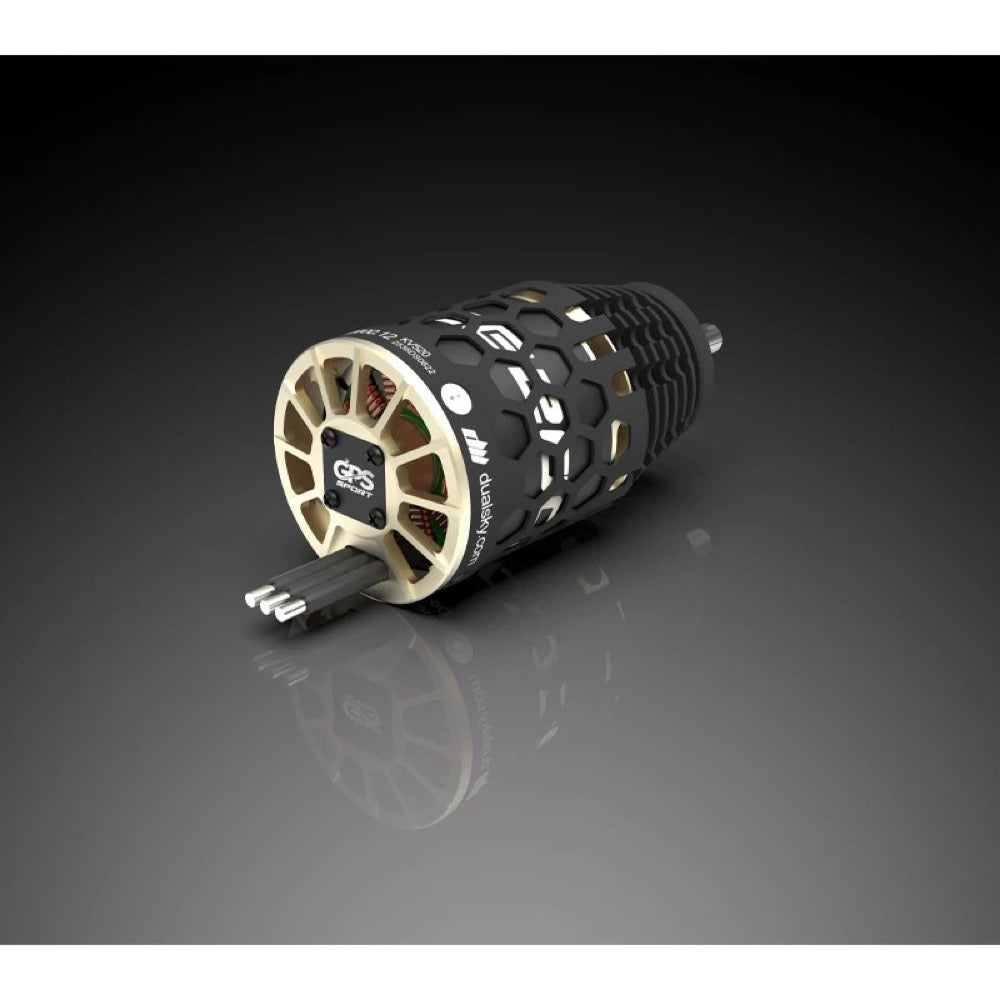

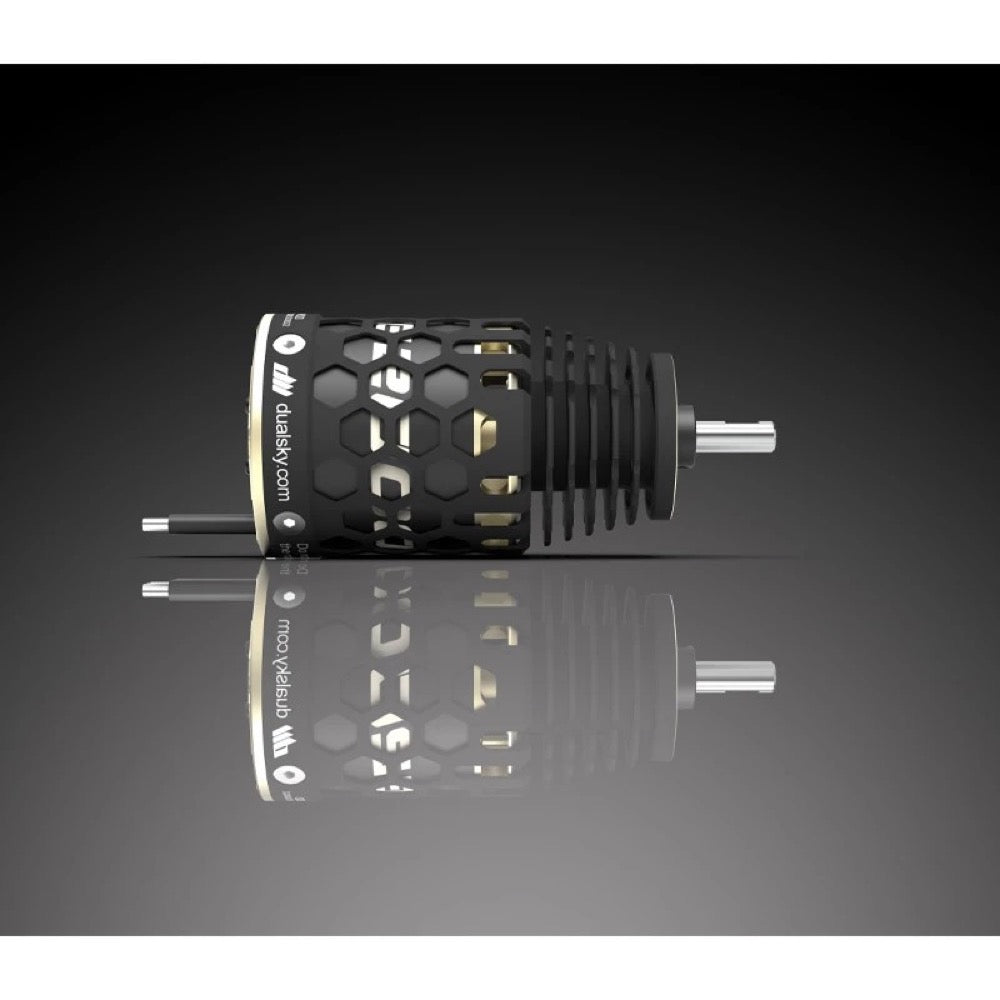

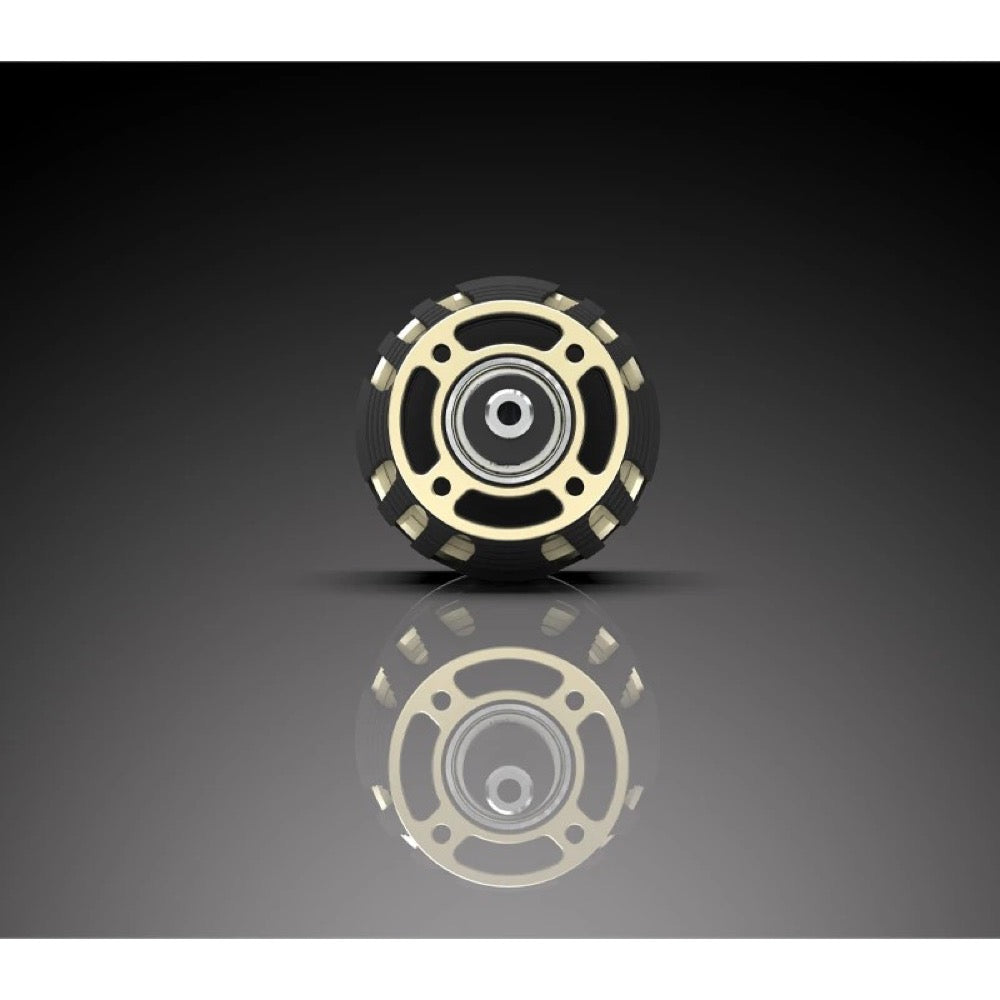

Dualsky EG2000.12 520kv Capsuled Brushless Glider Motor

Product Code: DSB52409
$272.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky EG2000.12 520kv Capsuled Brushless Glider Motor is designed for use in RC gliders up to 4000g (e.g., GPS Sports). Power it with a 6S LiPo battery.

Specifications

  • RPM/V (KV): 520
  • Weight (g): 319
  • Diameter (mm): Front Face 32 / Body 46.8
  • Length (mm): 79.2 / 99.2 incl. shaft
  • Shaft Diameter (mm): 6 (hollow)
  • Pitch of holes (mm): A:25 / B:25
  • Input Connectors: 3x GC4.0
  • Slots & Poles: 12N14P
  • Io @10V (A): 1.58
  • Resistance (mOhm): 22.5
  • No. of Cells (LiPo): 6
  • Max Efficiency Current (A): 42
  • Max Burst Current (15S) (A): 85
  • Max Power (10S) (W): 2040
  • Torque (N·m): 2.23
  • Recommended ESC: Summit 120 or Summit 130LITE / Timing 16°
  • Propeller: 6S:14x8E / 14x10E / 15x8E
  • Applications: RC gliders up to 4000g (e.g., GPS Sports)
