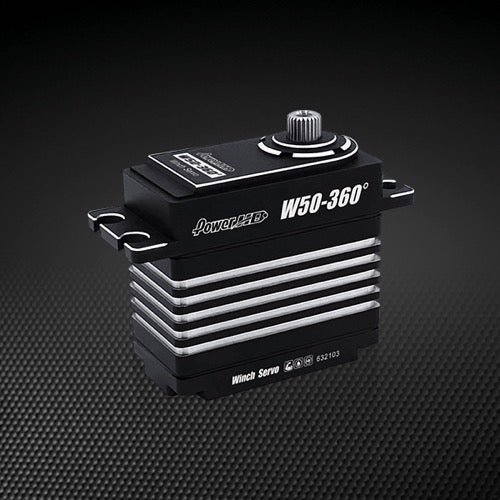

Power HD W50-360 HV Coreless Digital Winch Servo

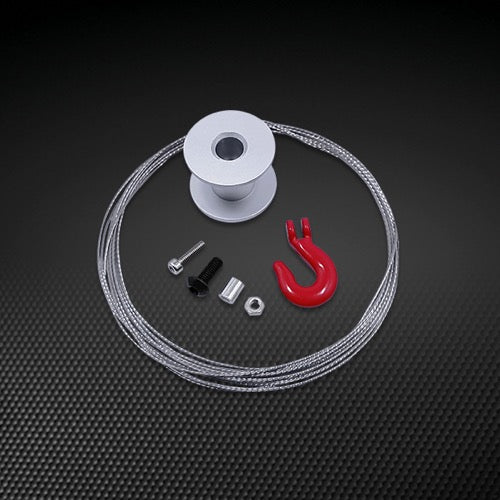

W50-360 degree winch servo, with maximum output torque of 50KG/cm, applicable to VP-VS4-10 chassis and other modified winch models.This full aluminum case winch servo equipped with steel towing rope, metal spool and hook, etc. It could be easily retractable and controlled through a multi-channel receiver

Specification

• Torque
  • (6.0V): 35.0 kg-cm ( 486.1 oz/in)
  • (7.4V): 45.0 kg-cm ( 625.0 oz/in)
  • (8.4V): 50.0 kg-cm ( 694.4 oz/in)
• Speed: 1.3 sec/360° (6.0V)│1.0 sec/360° (7.4V)│0.9 sec/360° (8.4V)
• Operating Voltage: 6.0 ~ 8.4V DC Volts
• Weight: 80 g (2.82 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type: Coreless Motor
• Gear Type: Steel
• Operating Temperature: -20℃~60℃
• Working frequence: 1520μs / 333hz
• Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
