Power HD S35-S Standard Brushless Motor Titanium and Steel Gear Digital Servo Silver

Product Code: PHD-S35-S
Barcode: 6929138035033
$199.00
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

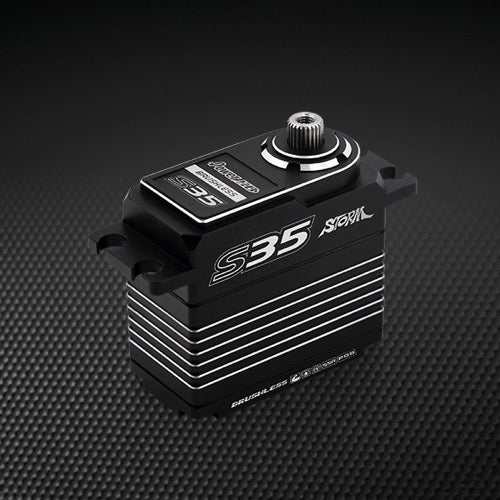

Introducing the Power HD S35 Silver HV Brushless Digital Servo, a high-performance servo specifically designed for demanding RC applications. With impressive torque, rapid response time, and a rugged CNC-machined aluminum case, this servo delivers the power and reliability needed for various RC models.

Features

  • High Torque: Delivering up to 35.0 kg-cm at 8.4V, this servo provides the necessary power for demanding RC applications.
  • Fast Response Time: With a response time of 0.070 seconds at 8.4V, this servo ensures quick and precise movements.

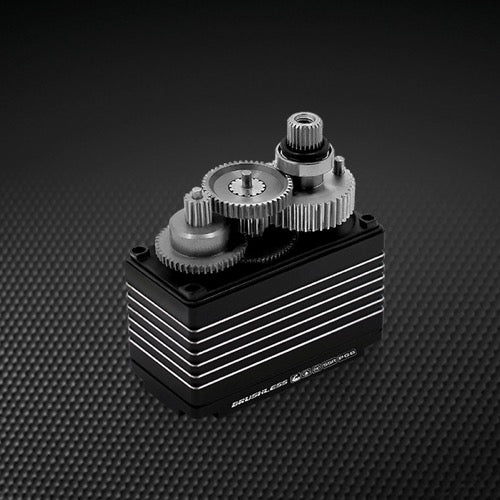

  • Robust Gearbox: The titanium and steel gearbox offers exceptional durability and reliability.
  • Dual Ball Bearings: Two ball bearings ensure smooth and efficient servo movement.
  • Brushless Motor: The brushless motor enhances efficiency and lifespan compared to traditional motors.
  • CNC-Machined Aluminum Case: The sturdy aluminum housing provides added durability and protection.
  • Wide Voltage Range: This servo operates with voltages from 6.0V to 8.4V, allowing for versatile applications.
  • Compact Size: Despite its high performance, the servo remains compact and easy to install.

Specification

  • Torque:
    • At 6.0V: 26.0 kg-cm (361.1 oz/in)
    • At 7.4V: 30.0 kg-cm (416.6 oz/in)
    • At 8.4V: 35.0 kg-cm (486.1 oz/in)
  • Speed:
    • At 6.0V: 0.095 sec/60°
    • At 7.4V: 0.075 sec/60°
    • At 8.4V: 0.070 sec/60°
  • Operating Voltage: 6.0 ~ 8.4 DC Volts
  • Weight: 75.0 g (2.65 oz)
  • Bearing Type: Dual ball bearings
  • Motor Type: Brushless motor
  • Gear Type: Titanium & steel
  • Operating Temperature: -20~60°C
  • Working Frequency: 1520µs / 333Hz
  • Dimensions: 40.7 x 20.5 x 38.6 mm (1.60 x 0.81 x 1.52 in)
  • Case Material: CNC-machined aluminum

The PowerHD S35 Silver HV CNC Brushless Digital Servo is the ideal choice for RC enthusiasts seeking a blend of high performance, rapid response, and robust construction. Perfectly suited for use in various RC models such as cars, airplanes, and more that require precise control and high power.
