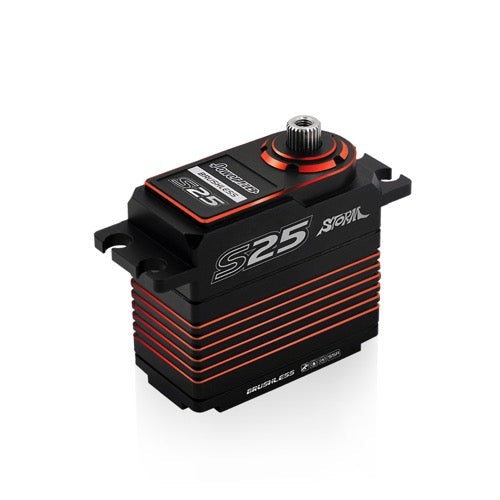

Power HD S25 Standard Brushless Motor Titanium and Steel Gear Digital Servo Red

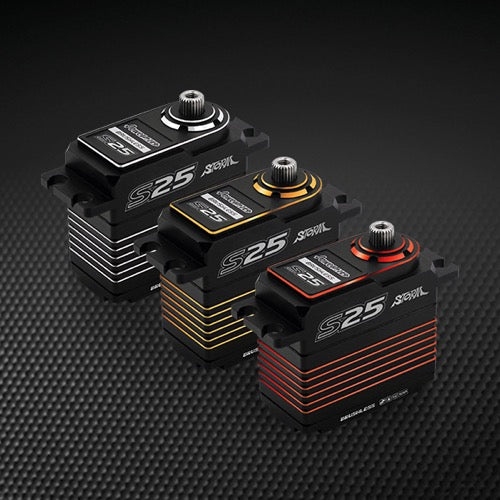

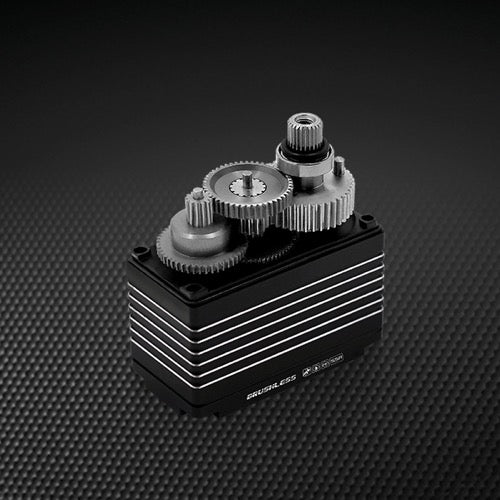

Servos feature all-aluminium housings in a 2-tone anodising that is available with silver, red or gold-colour details while the geartrains are made up using high-quality aluminium and steel gears. Japanese Noble potentiometers ensure highest possible precision and an updated PCB supports SSR and SUR modes. The line includes the S15 low-profile and S25 and S35 standard size servos all of which are usable with 6V to 8.4V input.

Specification

• Torque
  • (6.0V): 21.5 kg-cm (298.6 oz/in)
  • (7.4V): 25.0 kg-cm (347.2 oz/in)
  • (8.4V): 30.0 kg-cm (416.6 oz/in)
• Speed:
  • 0.075 sec (6.0V)
  • 0.060 sec (7.4V)
  • 0.055 sec (8.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 77.0 g (2.72 oz)
• Bearing Type：Ball Bearing x 2
• Motor Type：Brushless Motor
• Gear Type：Titanium & Steel
• Operating Temperature: -10℃~60℃
• Working frequency：1520μs / 50 ~1500hz
• Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)
• Compatible with ibus2 and program box
