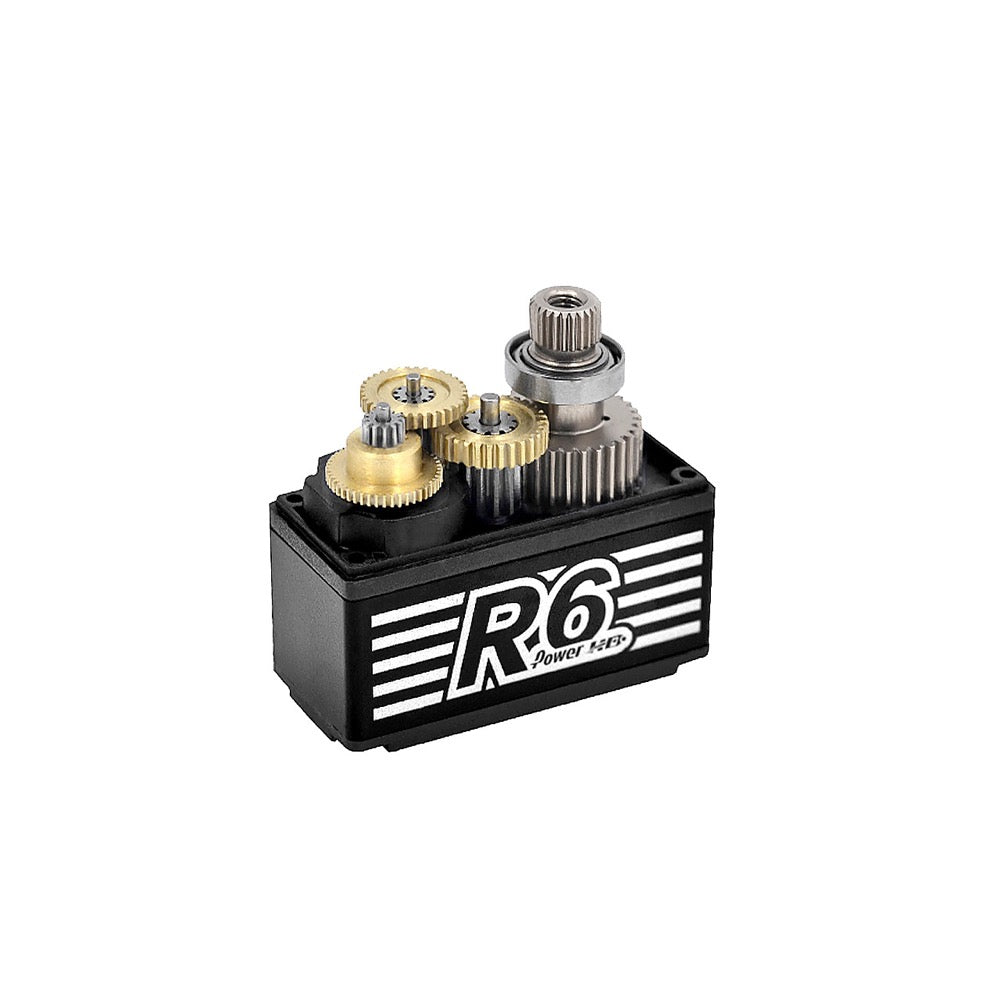

Power HD R6 Standard Coreless Motor Copper & Aluminum Gear Servo

Power HD R6 Standard Coreless Motor Copper & Aluminum Gear Servo

Specification

• Torque
  • (6.0V): 6.5 kg-cm (90.27 oz/in)
  • (7.4V): 7.5 kg-cm (104.16 oz/in)
• Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 28.5 g (1.01 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type：Coreless Motor
• Gear Type：Copper & Aluminum
• Operating Temperature：-10℃~60℃
• Working frequency：1520μs / 333hz
• Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
