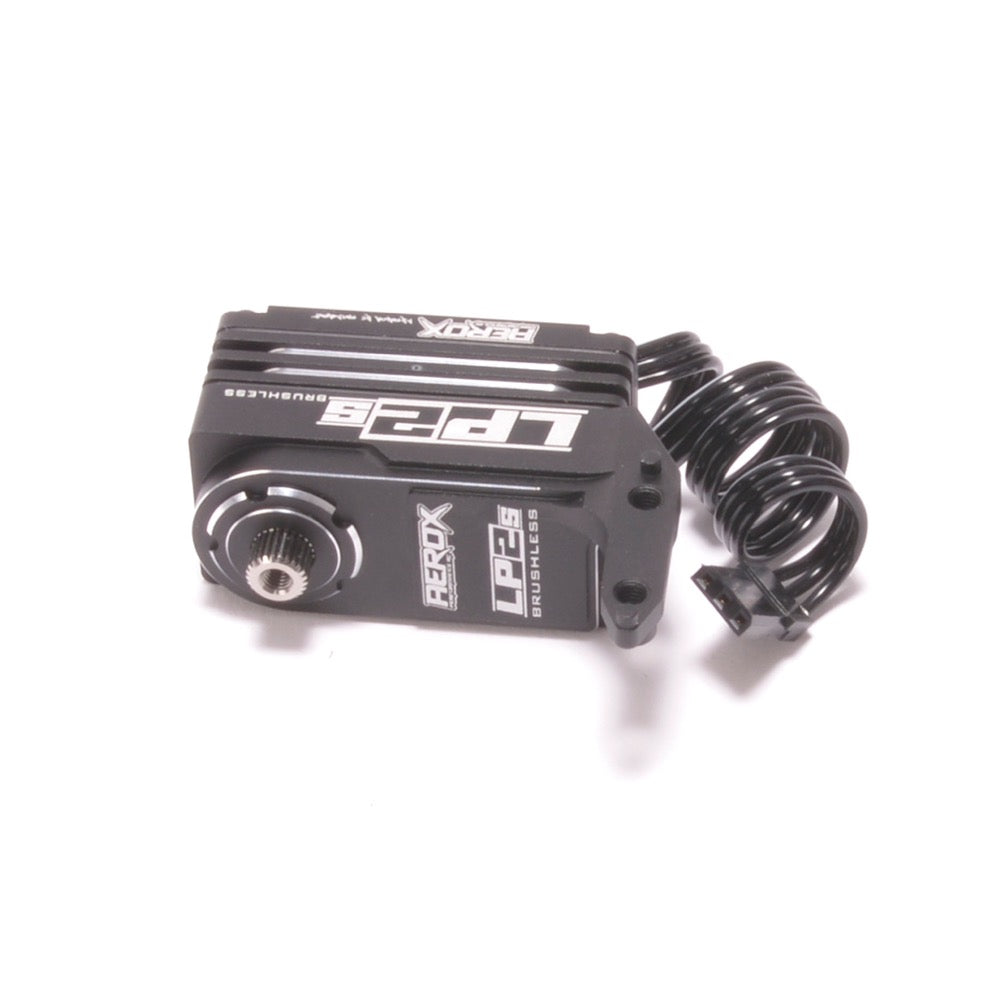

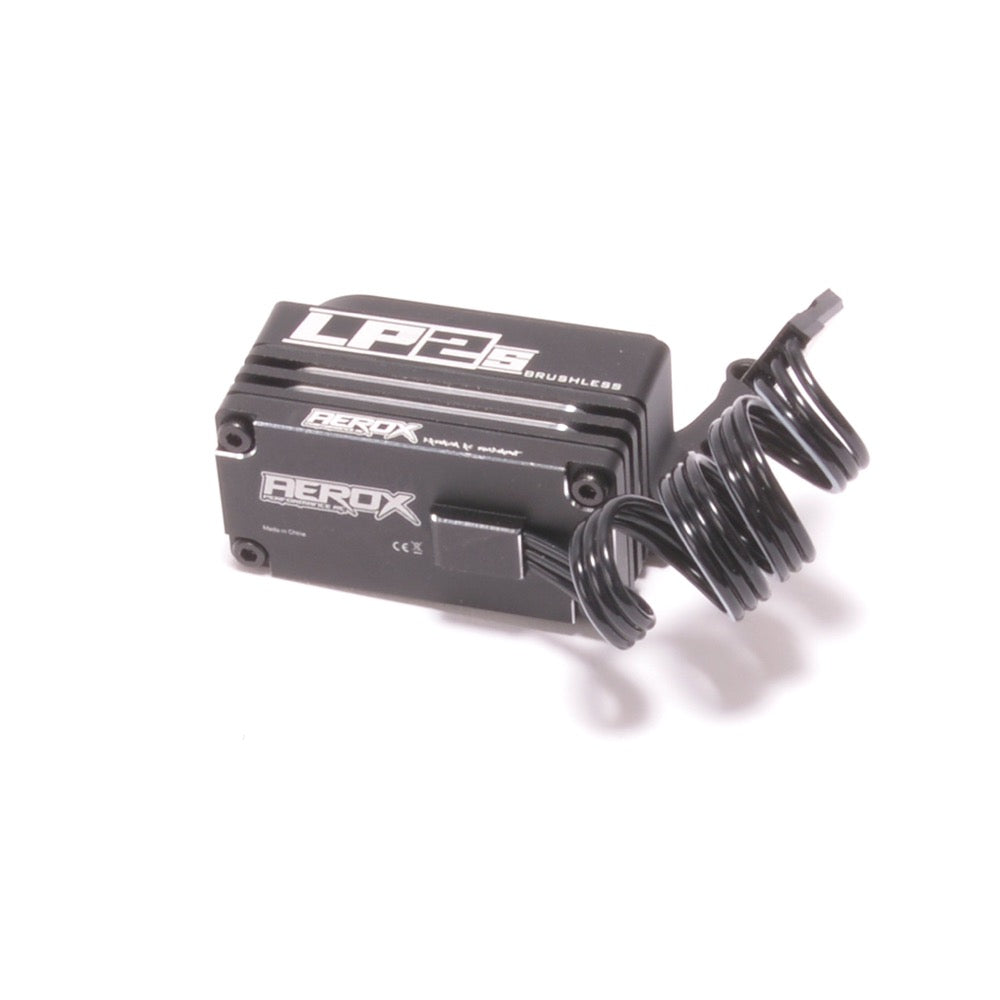

Aerox LP2S 1/10 Brushless Servo FT9 180mm

Introducing the new AEROX LP2s 1/10th Brushless Servo for the FT9.

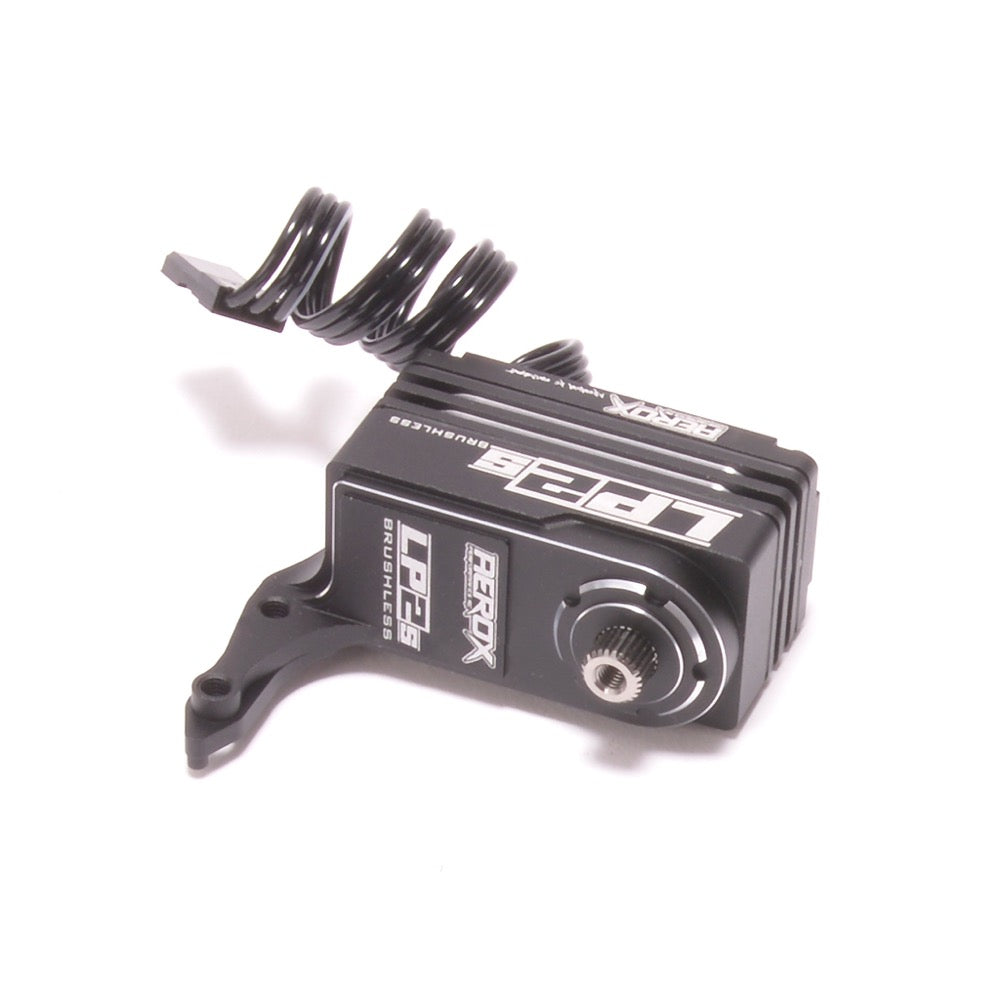

Aerox LP2s is a 1/10th Brushless servo which is direct mount for the Schumacher FT9.

The LP2s version see's improvement in having a 4 pole Brushless Motor, only 47g and super low profile at 23mm, 3mm shorter than the LP1s. Also includes a Titanium output shaft with 50% hardness and toughness increase. The output wire is now from the bottom of the case, making the receiver placement easier. Now compatible with the high-speed mode of major radios and the i-BUS2 protocol of FlySky Radio, it can remotely setup parameters and sense the temperature data on the FlySky NB4+ Pro Radio.

Direct mounting servo's can give a cleaner look and reduce weight.

This servo is for high level competition, boasing a full metal case, brushless motor, titanium and steel gears and is perfectly specified for speed and torqe requirements of modern touring cars.

Specification

• Torque(6.0V): 15.0 kg-cm (208.3 oz/in)
• Torque(7.4V): 18.0 kg-cm (250.0 oz/in)
• Torque(8.4V): 23.0 kg-cm (319.4 oz/in)
• Speed: 0.080 sec (6.0V)
• Speed: 0.073 sec (7.4V)
• Speed: 0.065 sec (8.4V)
• Operating Voltage: 6.0 ~ 8.4 DC Volts
• Weight: 47.0 g (1.66 oz)
• Bearing Type: Ball Bearing x 2
• Motor Types: 4-pole Brushless Motor
• Gear Type: Titanium & 7075
• Operating Temperature: -10˚C ~ 60˚C
• Working Frequency: 1520µ / 50-1666hz
• Size:41.0 x 20.0 x 23.6 mm
• Lead Length - 180mm
