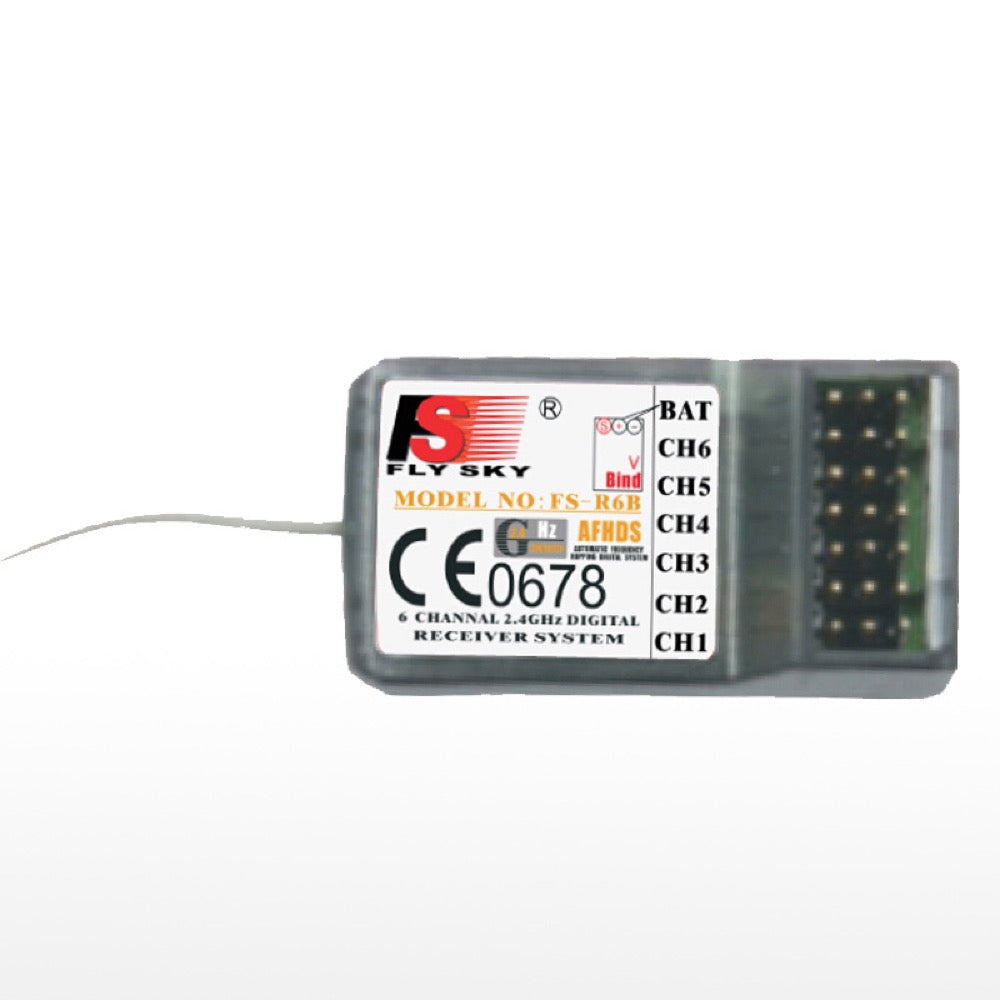

FlySky FS-R6B 6CH Receiver 2.4G

The FS-R6B Flysky 2.4ghz 6CH Receiver For Rc FS-CT6B FS-CT4B Receives Signal From Compatible Transmitter. In the world of racing of drones, the basic requirement is for small and lightweight components that will make a drone more and more nimble. This FS-R8S receiver fits these requirements superbly by being very small in size and light in weight. It Requires 4.8-6 Volts For Working. FS-R6B Flysky 2.4ghz 6ch Receiver Has 3 Pins Which Are Vcc, Ground, And Signal. FS-R6B Flysky 2.4ghz 6ch Receiver For Rc FS-CT6B FS-CT4B Can Be Powered Using Ubec Or 4.5-6.5v Battery.

Features

• 2.4ghz radio receiver with true Advanced Frequency Hopping Spread Spectrum (AFHSS) technology Channels: 6 Channels

• Compatible with the factory TX modules on these radios: FS-TH9x/TH9b and Turnigy 9x v2

• THESE SPARE 6CH RECEIVER UNITS ARE SPECIFICALLY FOR USE WITH THE FLY SKY 6CH CT6B PC PROGRAMMABLE 2.4GHz TRANSMITTERS

Specification

• Channels: 6
• Model Type: Fixed-Wing/Glider/ Helicopter
• RF Range: 2.4055-2.475GHz
• RF Channel: 140
• RF Receiver Sensitivity: -105dBm
• Bandwidth: 500KHz
• 2.4GHz System: AFHDS
• Modulation Type: GFSK
• Power: 4.0-6.5V DC
• Antenna Length: 26mm
• Weight: 13g
• Size: 52*35*15mm
• i-BUS Port: No
• Data Acquisition Port: No
• Color: Grey (Transparent)
• Certificate: CE0678, FCC
