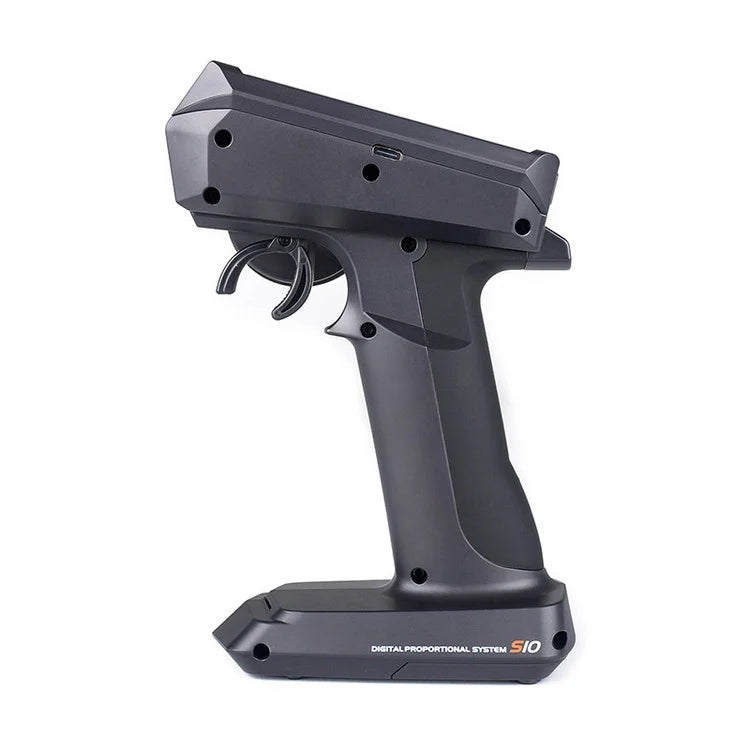

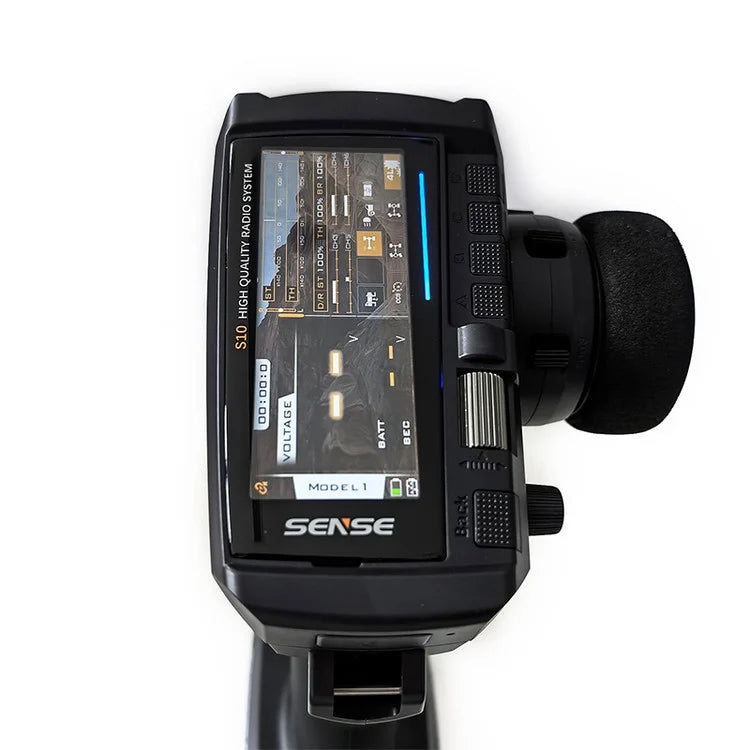

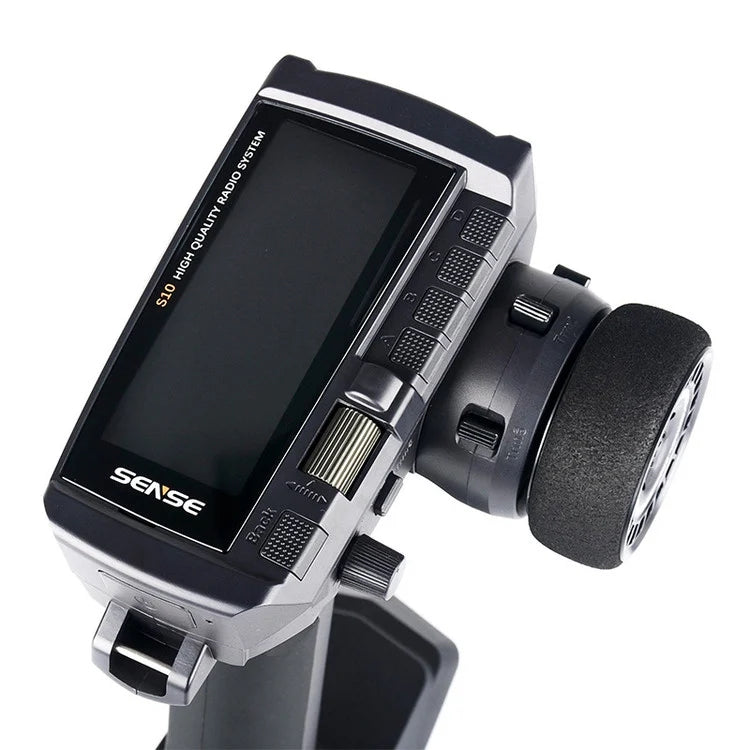

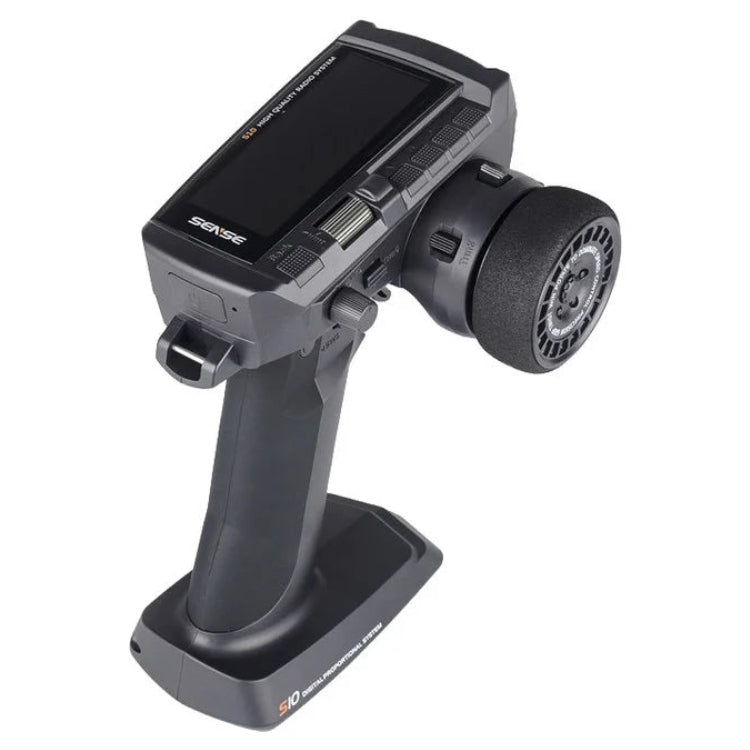

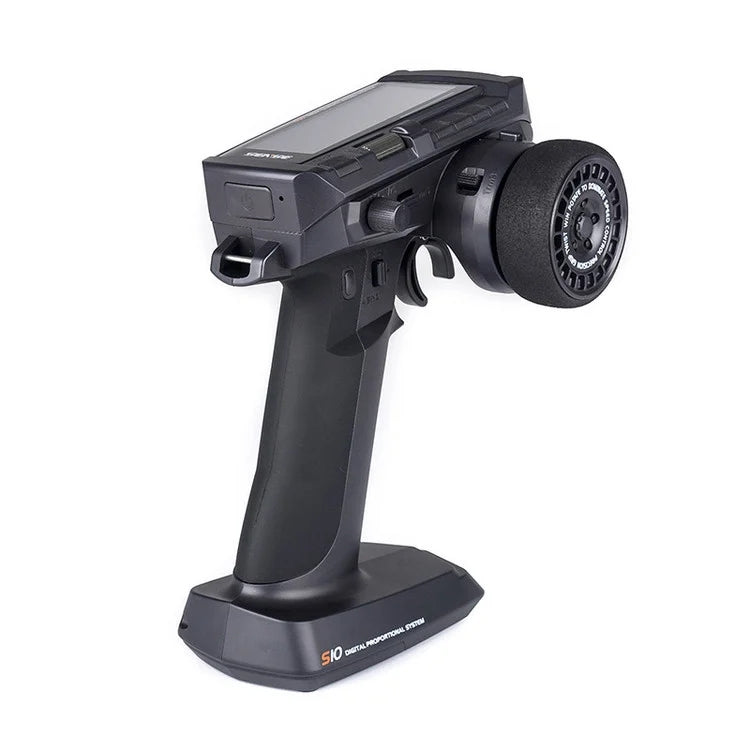

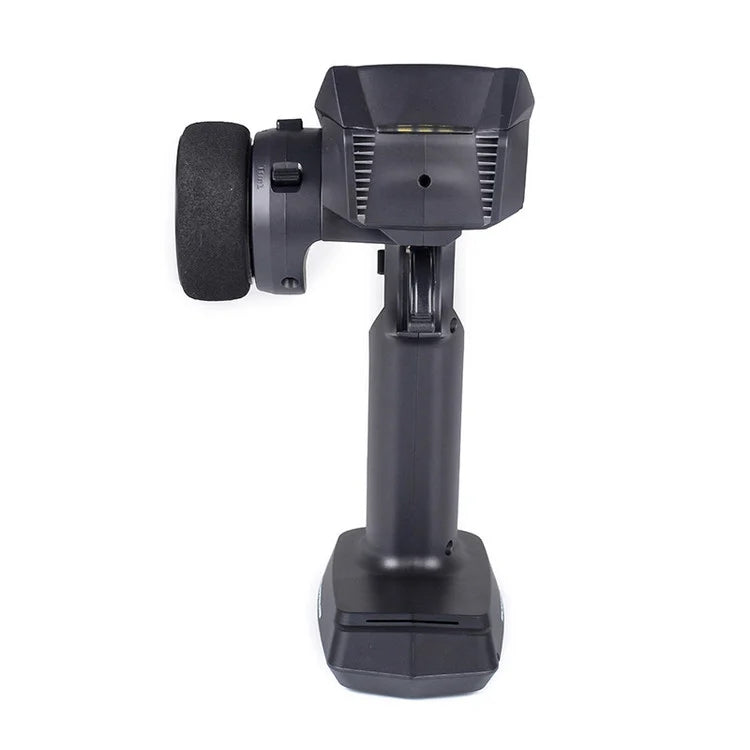

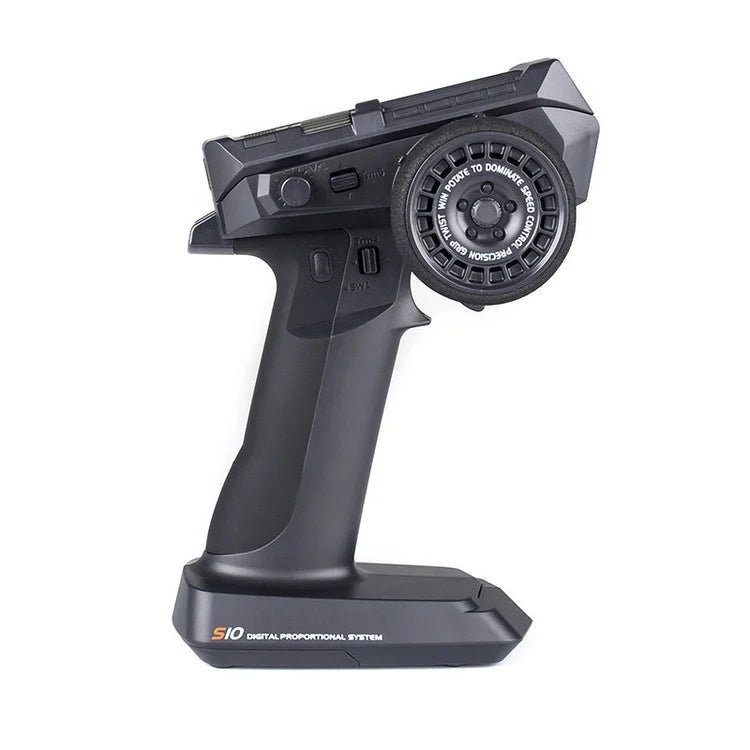

Sense Innovations S10 10ch Surface Transmitter with 10ch Receiver

Product Code: SENSES10SET
Barcode: SENSES-10SET
$249.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

The Sense S10 transmitter and S10RX receiver features the 2.4GHz automatic frequency-hopping system with support for up to 10 channels, including four ultra-fast response channels for precise control. Equipped with a high-resolution display and user-friendly interface, the S10 offers simple setup, real-time monitoring, and built-in presets for Crawlers, Nitro Cars, Electric Cars, and Boats.

Features

  • Uni/ bidirectional transmission
  • Built-in data passthrough
  • Independent identification system
  • User-freindly interface design
  • Wi-Fi firmware updates
  • Dual battery power and backup
  • 376x960 IPS LCD screen with wide viewing angles
  • Accent LED lights with 5 user adjustable colours
  • 40 model memory
  • Audio/ vibe alerts
  • Customisable model setup
  • USB-C compatible
  • Powerful programming capabilities with 12 switch/ trim/ knob options available

Uni/Bidirectional Transmission

The system supports flexible unidirectional and bi-directional data transmission modes. In unidirectional mode, the receiver only receives control commands from the transmitter. In bidirectional mode, a full-duplex data link is established, enabling the receiver to not only receive commands but also transmit real-time status and sensor data (e.g temperature, voltage, attitude/acceleration, and vehicle speed) back to the transmitter, facilitating data monitoring and system feedback.

Built-In Data Passthrough

The dedicated transparent data link function is deeply integrated into the RF system. Using a single RF transceiver link, it supports parameter configuration and firmware updates for the receiver system, simplifying the overall architecture.

Independent Identification System

Each transmitter and receiver possesses a unique identification code. Successful binding establishes this identity link. During operation, the system first performs identity verification; operation will not proceed if verification fails, thereby enhancing the system's active anti-interference capability and operational stability.

User-Friendly Interface Design

The device features an intuitive interface and a high-resolution display. All function settings are clearly presented, device status is monitored in real time, and operation is smooth and convenient.

Wi-Fi Firmware Updates

Supports over-the-air firmware updates for both the transmitter and receiver via WI-FI, enabling continuous access to new features and enhancing the product experience and long-term value.

Dual Battery Power and Backup

The system provides a dual power supply configuration utilizing both 18650 and AAA batteries, featuring seamless battery switching and backup functionality. This design effectively eliminates range anxiety and ensures extended operating time.

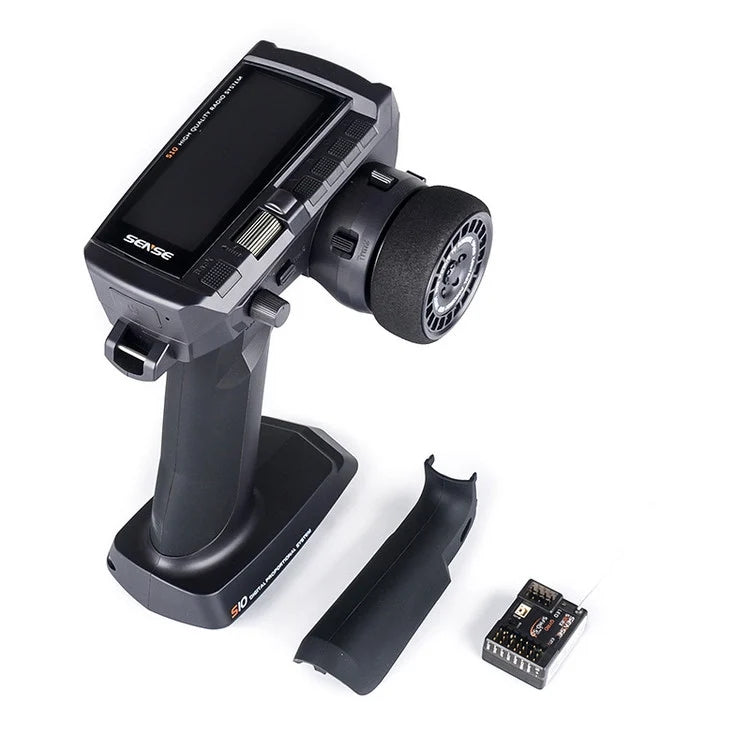

Contents

  • (1) Sense Innovations S10 10-Channel Transmitter
  • (1) 18650 Lithium Battery (installed)
  • (1) Small Silicone Grip (installed)
  • (1) S10RX 10-Channel Receiver with Gyro
  • (2) Receiver Antenna Protectors
  • (1) Type-C USB Cable
  • (1) Battery Voltage Detector Cable (BVD)
  • (1) Wrist Strap
  • (1) Medium Silicone Grip
  • Quick Start Guide

Transmitter Specifications

  • Model : S10
  • Compatible Receiver : S10RX
  • Compatible Models : Car, Boat
  • Number of Channels : 10
  • RF Frequency : 2403 MHz - 2480 MHz
  • Transmit Power : <100mW
  • Wireless Protocol : SFHD-SD
  • Low Voltage Alarm LiPO : 3.3 V; AAA4.25 V
  • Data Interface : USB Type-C
  • Charging Interface : USB Type-C
  • Antenna Type : Built-in Single Antenna
  • Display : 3.13-inch, 376 x 960 full-dot matrix IPS screen
  • Channel Resolution : 4096
  • Input Power : 1S 2600mAh LiPo Battery + 4x AAA Batteries
  • Control Range : >200m (open, unobstructed ground distance)
  • OTA Update : Supported
  • Operating Temperature : -10℃ ~ +60℃
  • Operating Humidity : 20% ~ 95% RH

Dimensions

  • 128 x 101 x 188 mm
  • Weight (without batteries) : 370g
  • Certifications : CE-RED, FCC-ID, RoHS

Receiver Specifications

  • Model : S10RX
  • PWM Channels : 10
  • RF Frequency : 2403 MHz - 2480 MHz
  • Wireless Protocol : SFHD-SD
  • Compatible : S10
  • Antenna Type : External Single Antenna
  • Operating Voltage : 5 - 9 V DC
  • Data Output : PWM / PPM
  • Operating Temperature : -10℃ ~ +60℃
  • Operating Humidity : 20% ~ 95% RH
  • OTA Update : Supported
  • Dimensions : 34.5 x 26 x 13.6 mm
  • Weight : 10g
  • Certifications : CE-RED, FCC ID, RoHS
