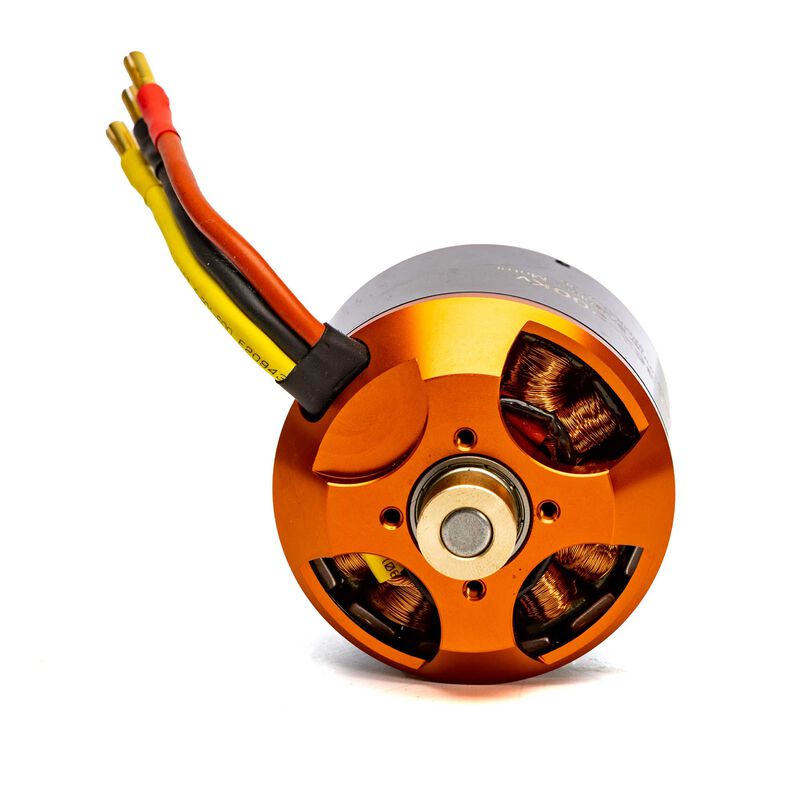

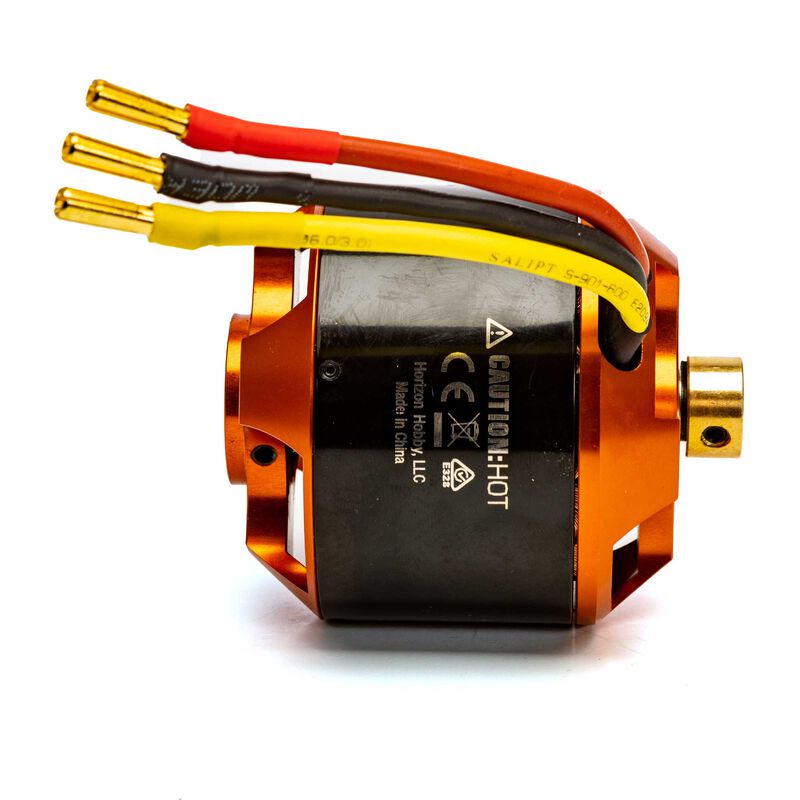

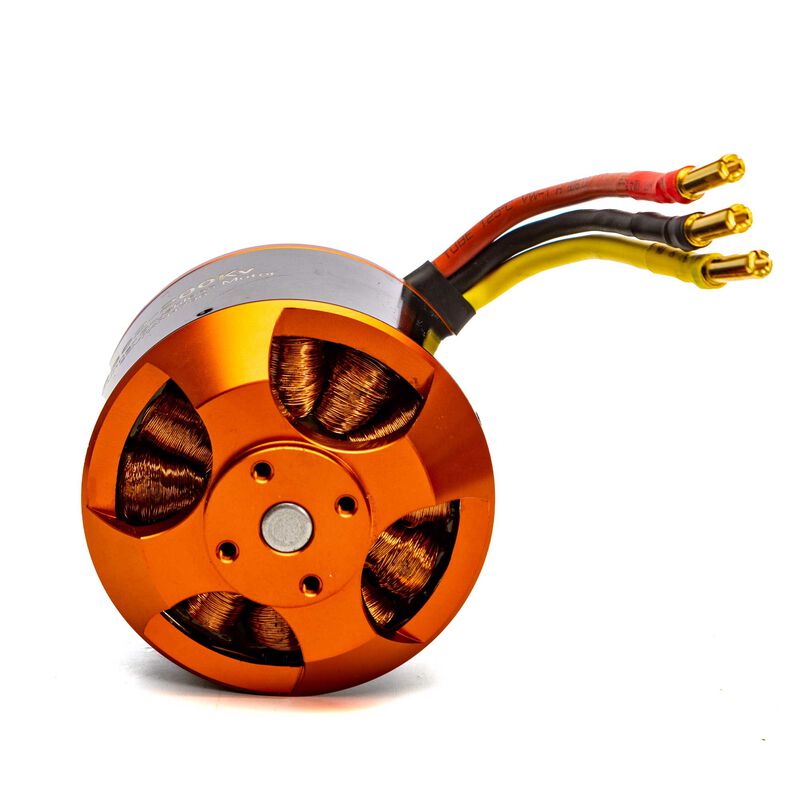

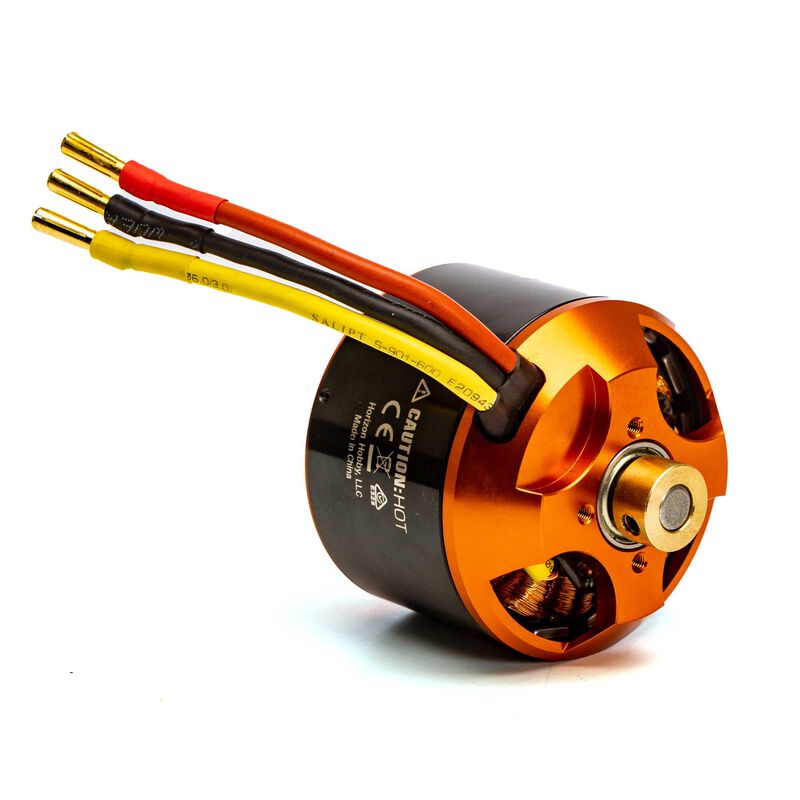

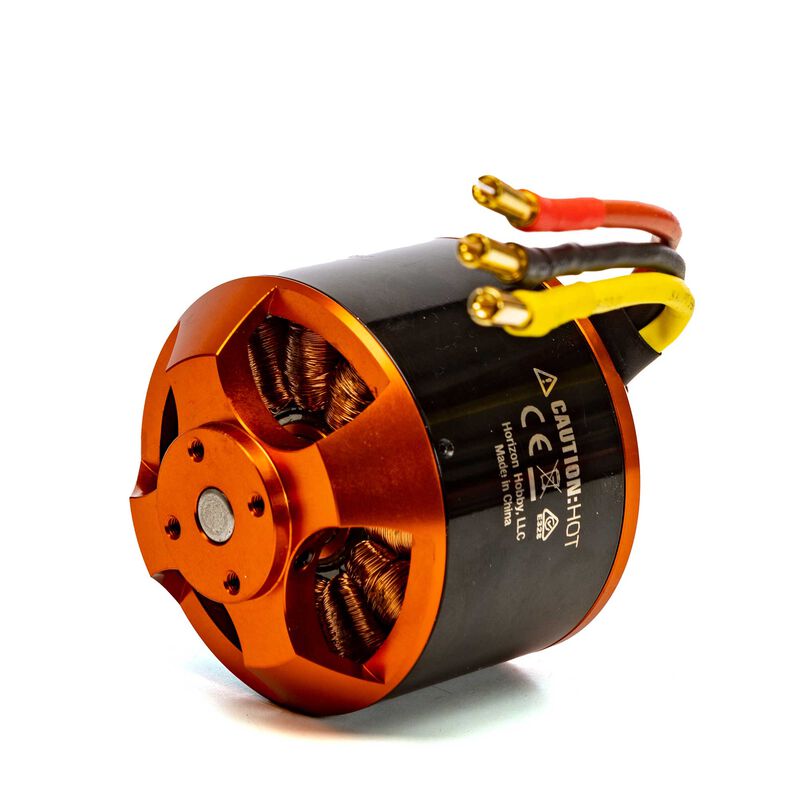

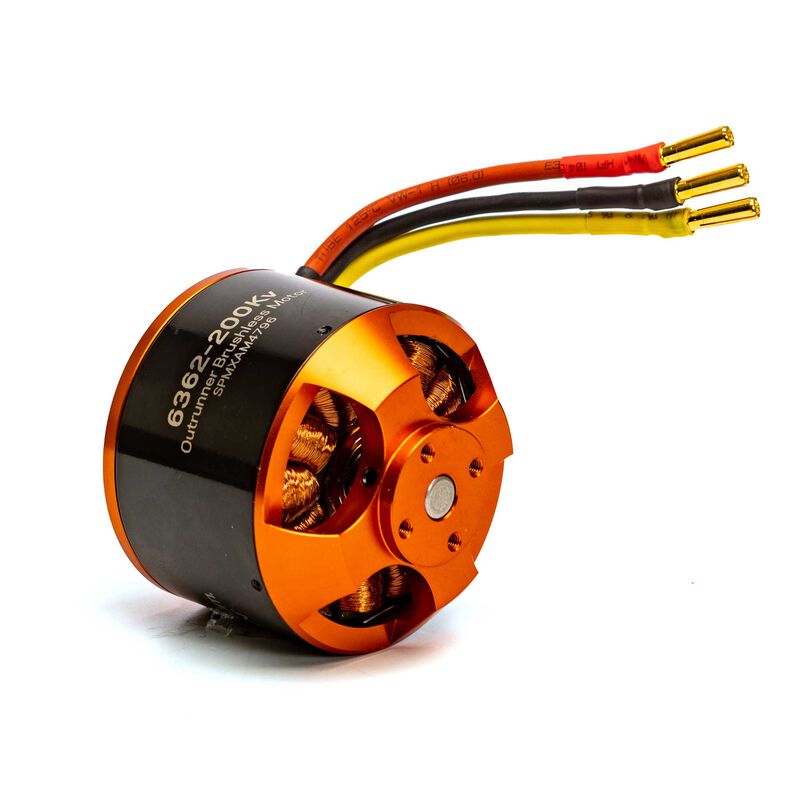

Spektrum SPMXAM4796 Avian 6362-200Kv Brushless Outrunner Motor

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

• Lightweight design
• Excellent power and efficiency on 12S power when matched with a 18x10 size propeller
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

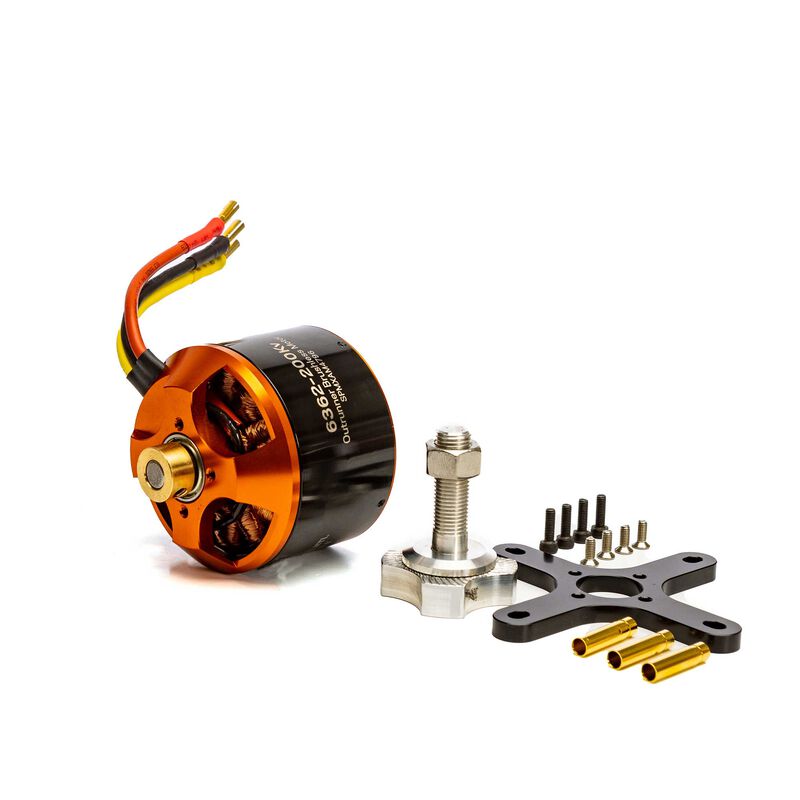

• Includes all required hardware: preinstalled gold-plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 120 amp HV ESC
• Perfect electric conversion upgrade for 30cc size gas combustion power systems running 12S LiPo power

Important Specs

• Recommended Voltage Range – 33.3 - 44.4V / 9-12S LiPo
• Recommended Propeller Range – 16x8 to 19x10 Electric Propeller
• Recommended Model Flying weight – 3D 5445g (12 lbs) - Sport 9070g (20 lbs)
• Max Wattage – 1900w
• Max Current – Max Burst Amps (100A) Max Continuous Amps (60A)

• Input Voltage : 33.3 - 44.4V / 9-12S LiPo
• Recommended Speed Control : Avian 120 Amp Brushless Smart ESC
• RPM/Volt (Kv) : 200Kv
• Shaft Length : 1.41733" (36 mm)
• Shaft Diameter : 0.375" (10 mm)
• Outer Diameter : 2.5" (64 mm)
• Maximum Burst Current : 77A
• Maximum Continuous Current : 48A
• Motor Type : Brushless - Outrunner
• Speed Control : Sold Separately
• Motor Size : 6362-200Kv Brushless Outrunner
• Product Length : 2.4" (61 mm)
• Application : Airplane
• Number of Poles : 14
• Product Weight : 22.4 oz (635 g)
• Recommended Prop Range : 16x8 to 19x10 Electric Propeller
• Bearing : Yes
• Forward : Yes
• Connector Type : 4mm Bullet
