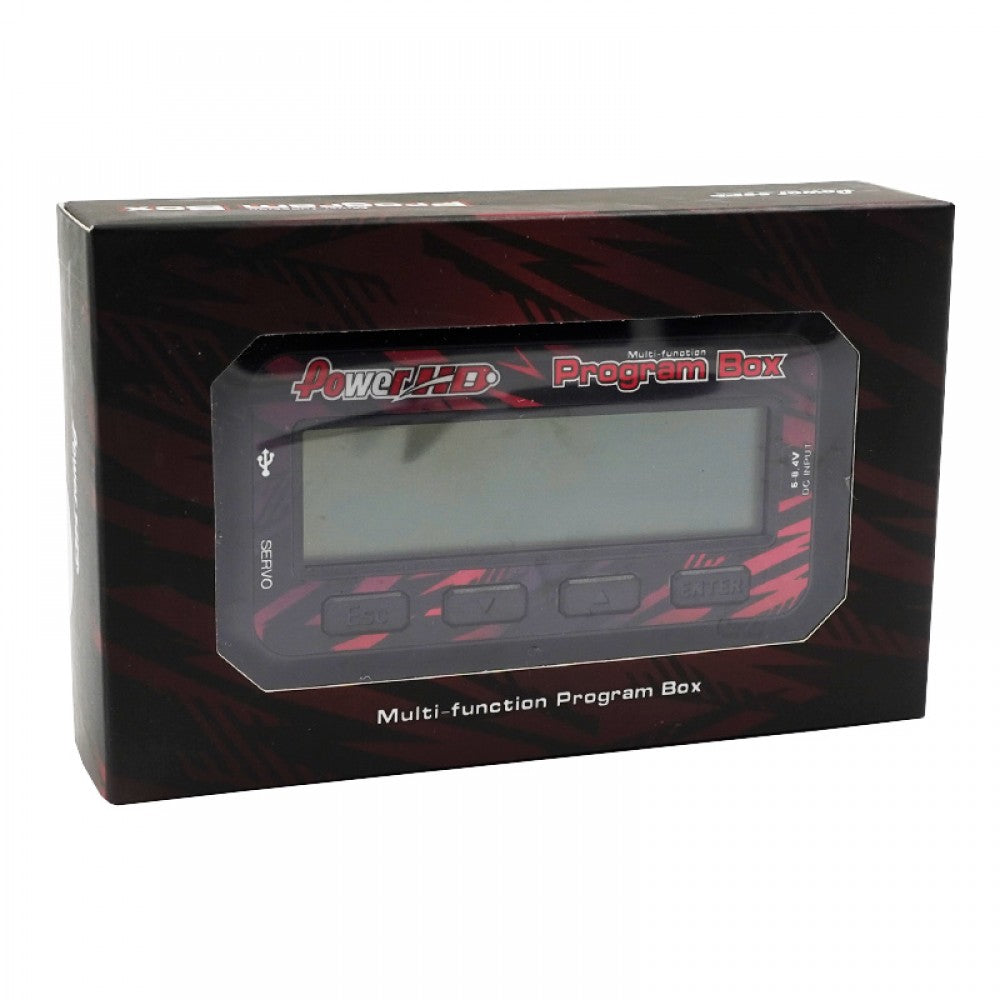

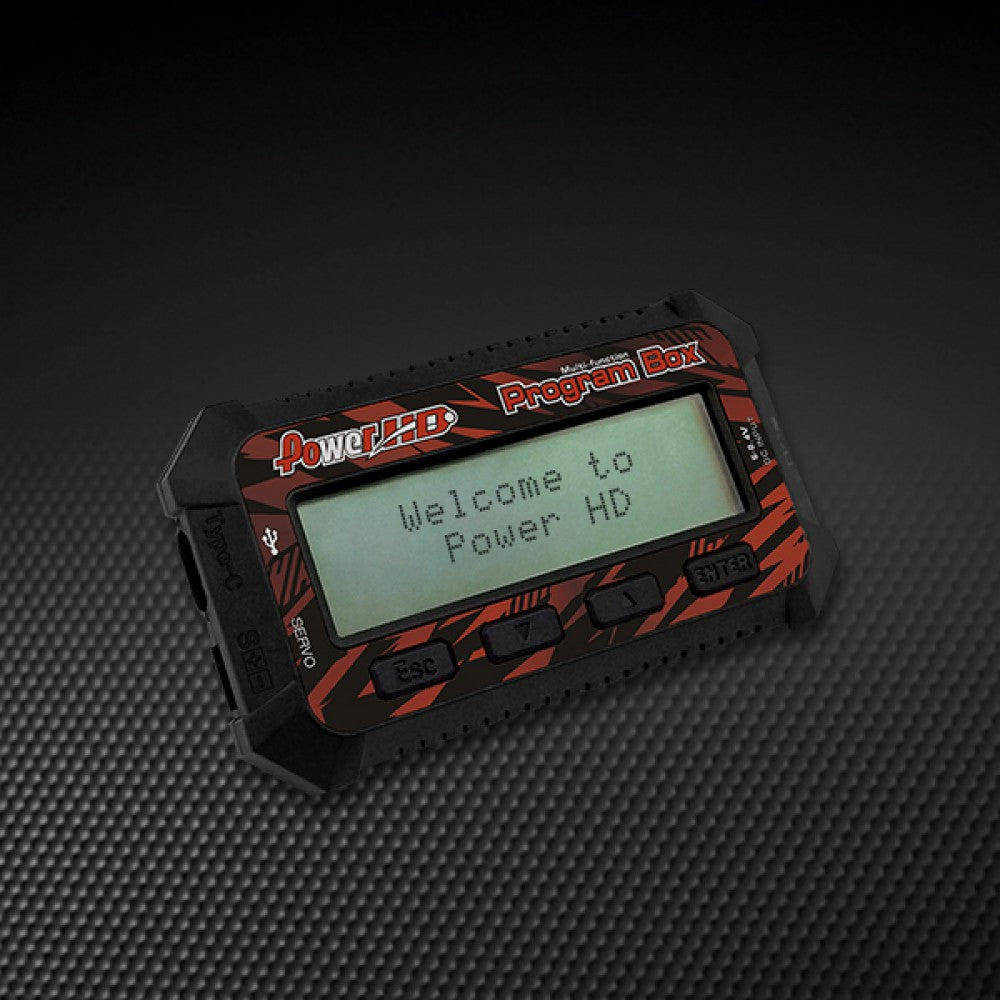

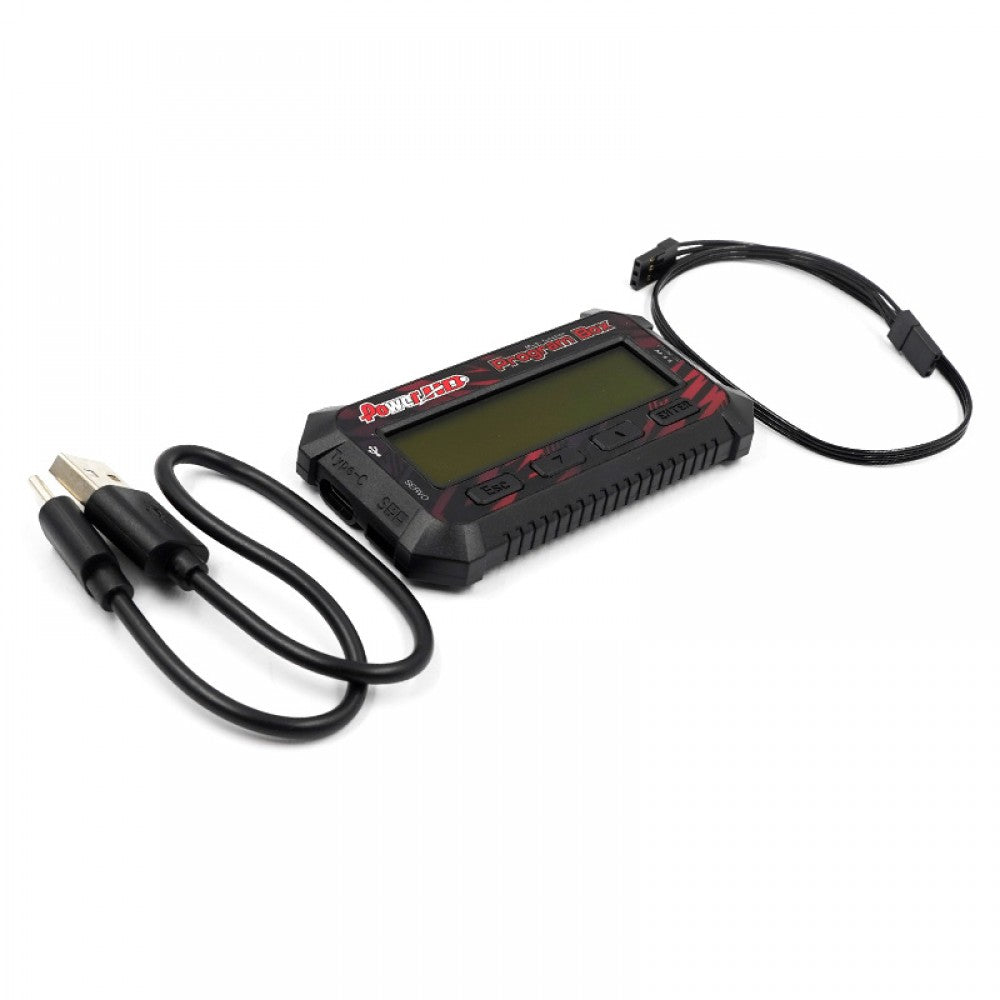

Power HD PG-CB63 PGB PGC Series Programming Box

Product Code: PHD-PG-CB63
Barcode: 6939670906036
$69.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This is Power HD Multi-Function Program Box.

Specification

  • For : Servo
  • Material: Plastic
  • Color: Black
  • Servo parameters setting
  • Computer connection setting
  • Servo testing
  • Program box PG-CB63 has built-in high-performance 32-bit micro processing, small size, easy operation.
  • To set servo parameter by connecting the program box, so that the servo could adapt to different track conditions
  • Program box could store 20 sets different servo parameters
  • Program box could adjust central poinit, to make sure the chassis'' left and right angle is more consistent
  • Servo Testing: servos'' board band and narrow band PWM testing function
  • Default: one-button restore to factory parameters function
  • Apply to a variety of Power HD servos with PGB, PGC tag, like : S15,S25,S35,S50,D12,D15;WH-20KG,WH-30KG,WH-40KG;A-40CHV,A-50CHV;

Specification

  • Operating Voltage: 5-8.4V DC
  • Idle Current: <20mA
  • Operating Temperature: 0-40°C
  • Storage Temperature: -10-60°C
  • Storage Humidity: 20-75%RH
  • Weight: 40g
  • Dimensions: 89.0×49.0×12.3mm
