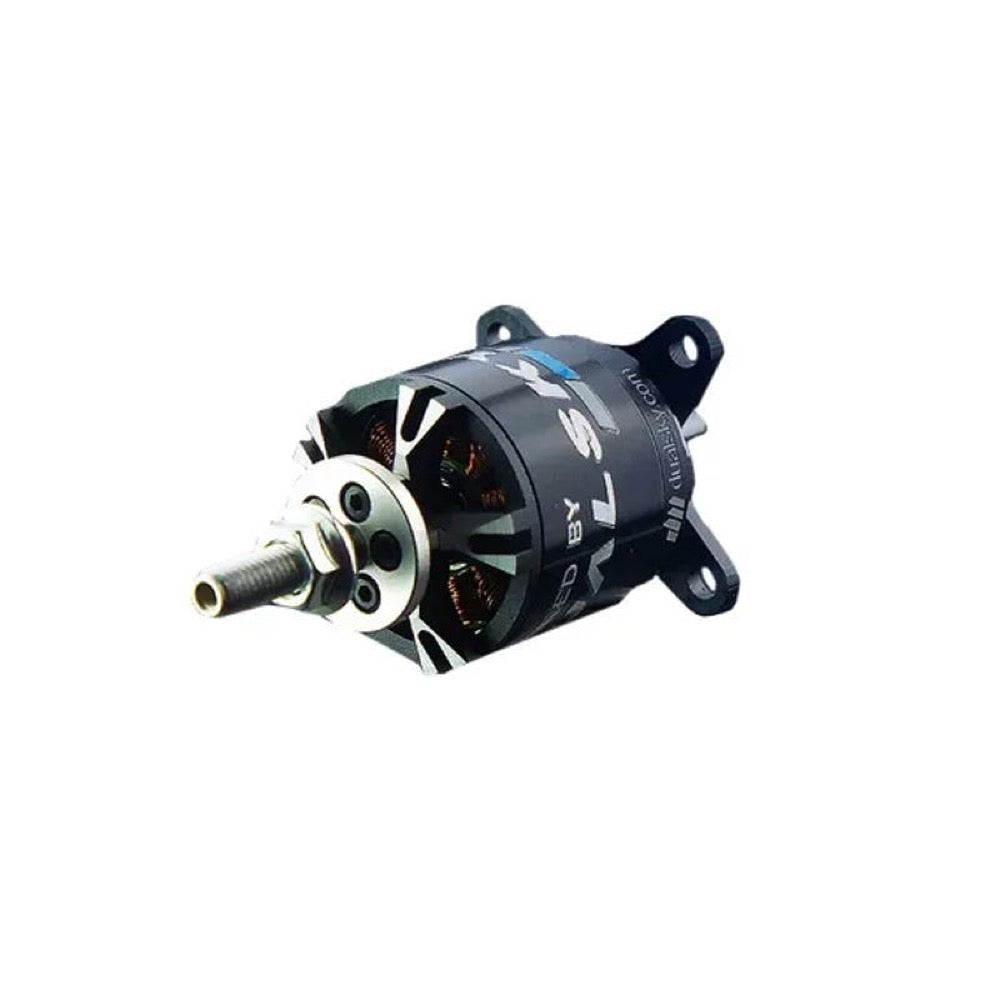

Dualsky DSXM51852 XM2834EA-13 1160kv Brushless Motor

Dualsky XM EA series brushless motors are lighter, more powerful and more efficient than most comparable products. Using high quality bearings and silicon steel offers really long life. These motors are good for hundreds of hours of operation

Features

• Higher grade curved magnets
• High efficiency, high-density Silicon steel
• Tighter tolerances allow a smaller air gap between the stator and the rotor
• Lightweight and very efficient
• M8 propellor mount
• Front & Rear mounting options included

Specification

• KV: 1160
• Weight (g): 77
• Dimensions (D x L)(mm): 28.8 x 34.4mm
• Diameter of shaft (mm): 3.175mm
• Dimensions of Stator (mm): 2316
• Spec of Mounting Holes (mm): 4-M3, 16/16
• Input Connectors: DB3
• Slots & Poles: 12N14P
• Io @ 10V (A): 1.2
• Ri (mOhm): 43
• No. of Cells (LiPo): 2S, 3S
• Efficiency Current [A]: 13
• Burst Current (15S) [A]: 26
• Peak Power (15S) [W]: 312
• Peak Torque (NM): 0.27
• Recommended ESC: XC3012BA
• Recommended Propeller: 2S: 12x7E, 3S: 10x5E, 11x6E
• Application: 15E, 480 Class
