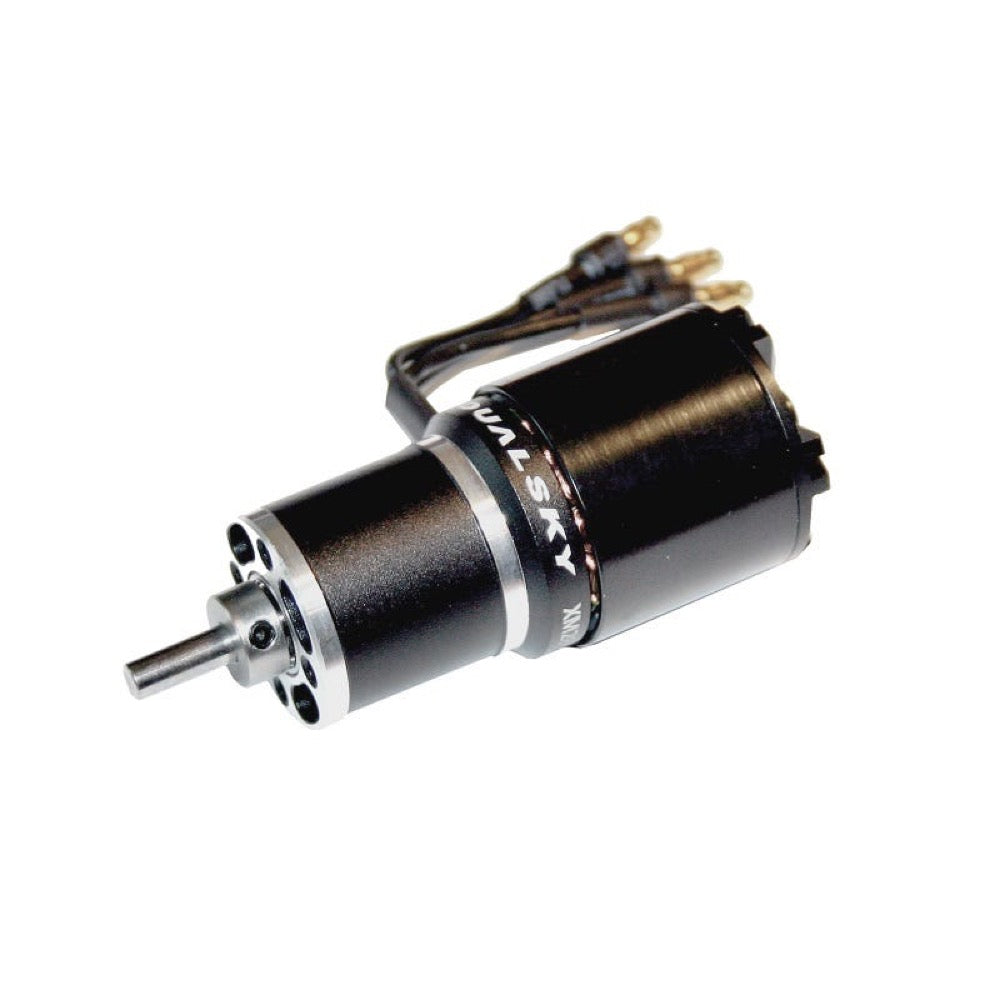

Dualsky DSXM51756 XM2838EG-14L Brushless Glider Motor

Dualsky XM2838EG-14L Brushless Motor suit EP Glider

Features

• Low RPM, high torque motor
• Designed for FAI F5J gliders

Specification

• KV: 860
• Weight: 98g
• Dimensions: 28.8 x 60.4mm
• Slots & Poles: 12N 14P
• Ri (mOhm): 63.0
• Io @ 10V (A): 1.0
• No. of Cells (LiPo): 3-4
• Max. Efficiency Current [A]: 11
• Max. Burst Current: 21
• Max. Power (15S): 336
• Max. Torque: 280
• Shaft Diameter: 4.0mm
• Mounting Holes Pitch: 16/19
• Input Connectors: GC3.5
• Propeller:

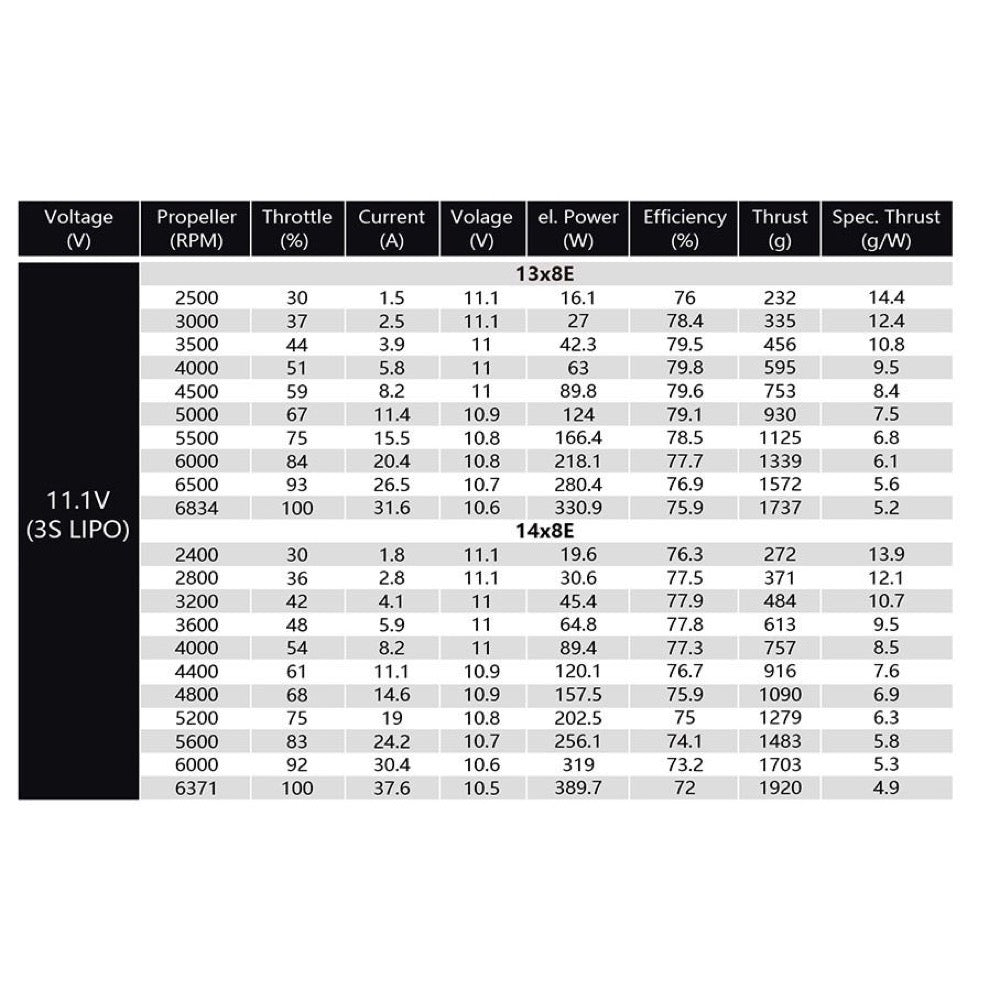

  • 3S: 13x8E, 14x8E

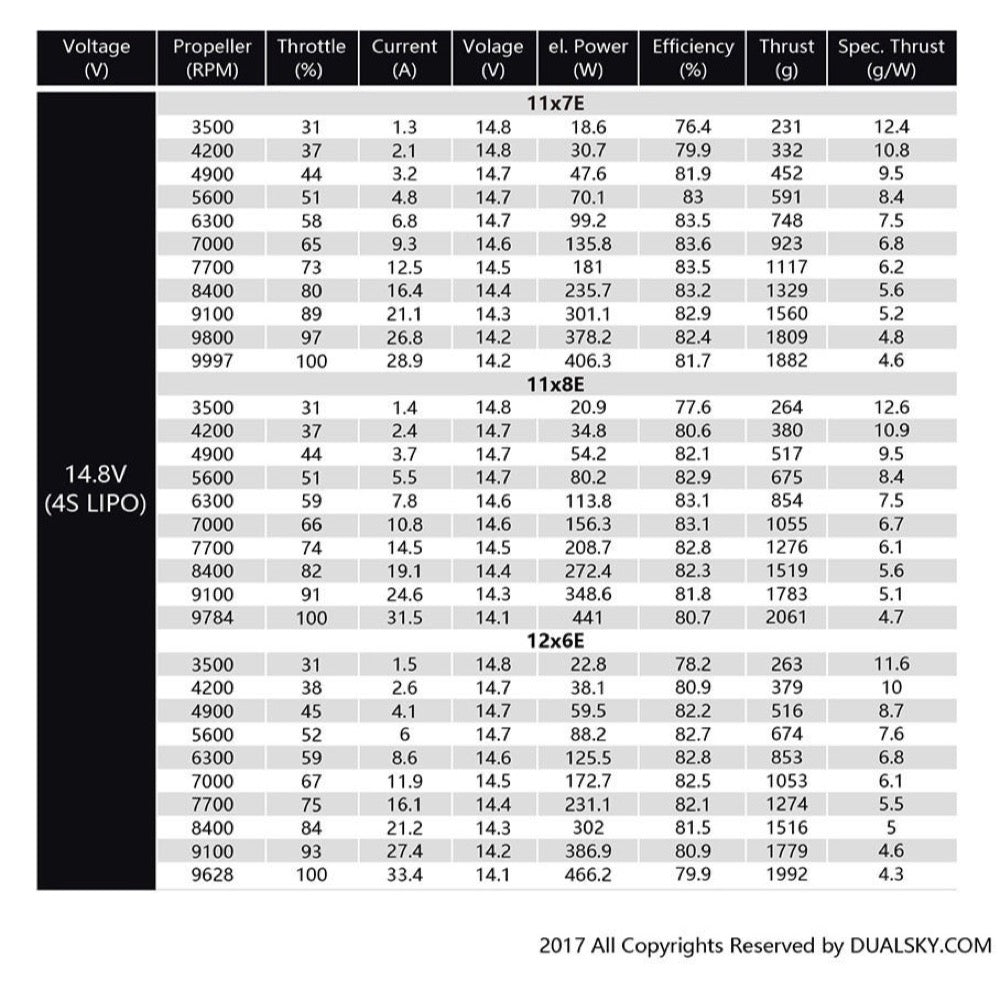

  • 4S: 11x7E, 11x8E, 12x6E
• Class: FAI S5J (1000g-1500g), wingpsan up to 3.5 meters
