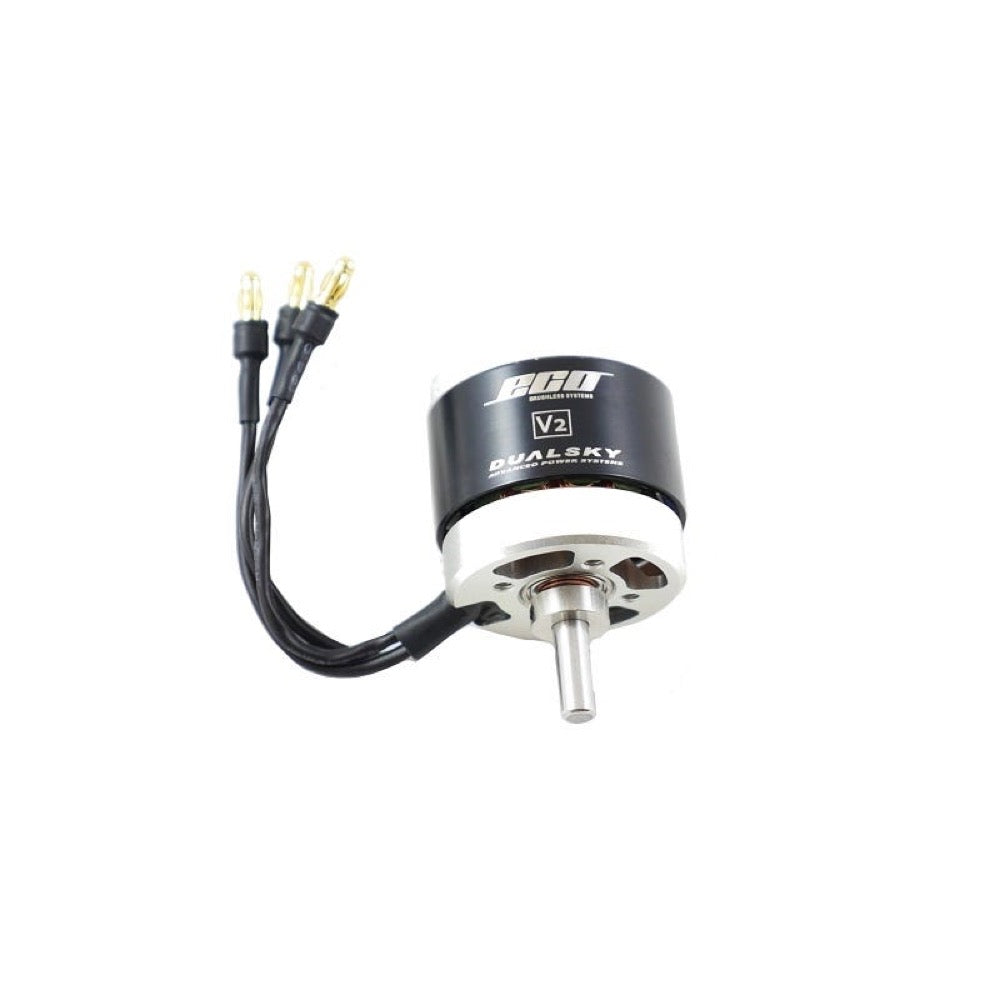

Dualsky DSXM51661 ECO 2814C 970kv Brushless Motor

The 2814C ECO motor from Dualsky has 940Kv of power. This motor comes with propeller and motor mounts, in addition to gold plugs and screws.

Specification

• KV: 970
• Turns: 7.5
• Weight: 105
• Dimensions: 35.2x34.2
• Slots & Poles: 12N14P
• Ri (mOhm): 48.6
• Io @ 10V (A): 1
• No. of cells (LiPo): 3..4
• Max Efficiency Current (A): 20
• Max. Burst Current (15S)[A]: 33
• Max. Power(15S)[W]: 400
• Max. Torque [N*M]: 0.39
• Shaft diameter (mm): 5
• Mountingholes pitch: 19/19
• Input Connectors: GC3.5
• Recommended ESC: XC-45-LITE or XC4018BA
• Propeller: 3S: 11x7E, 12x6E, 4S: 9x6E, 8x4E
• Class: .10-.15 Class
