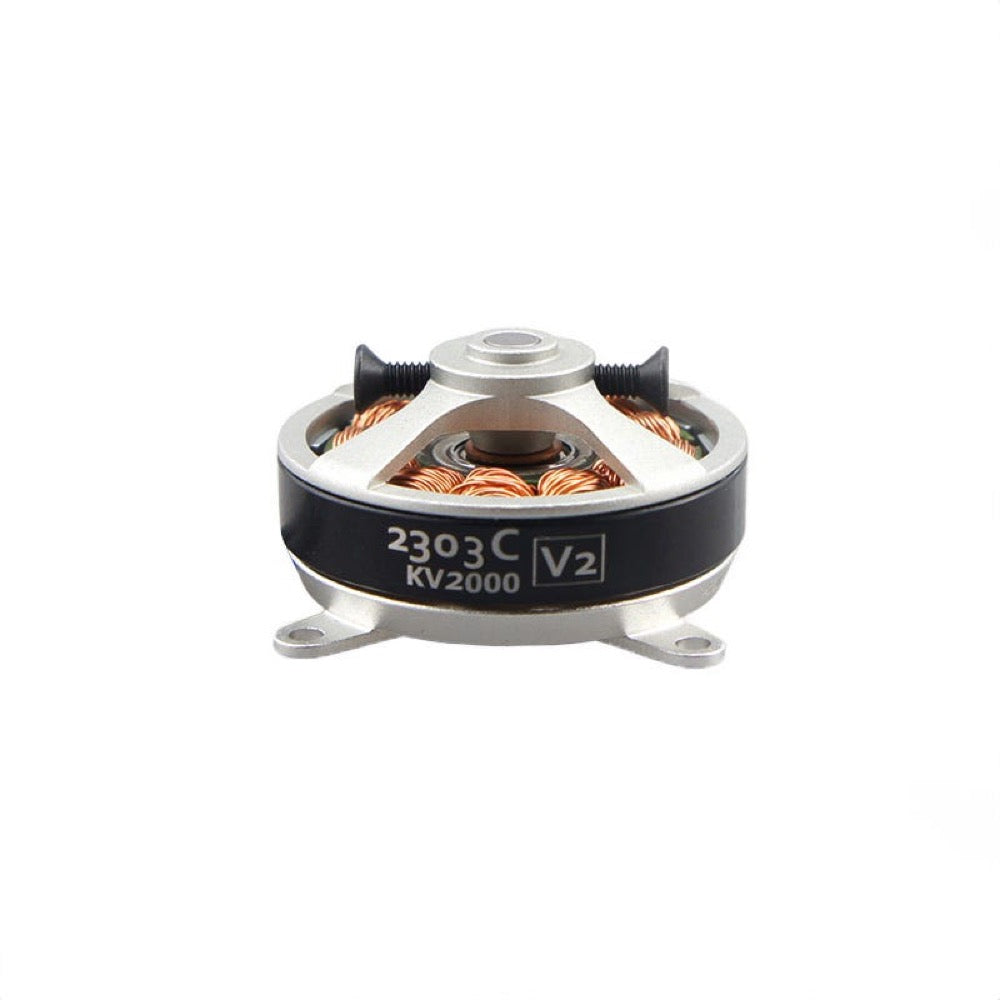

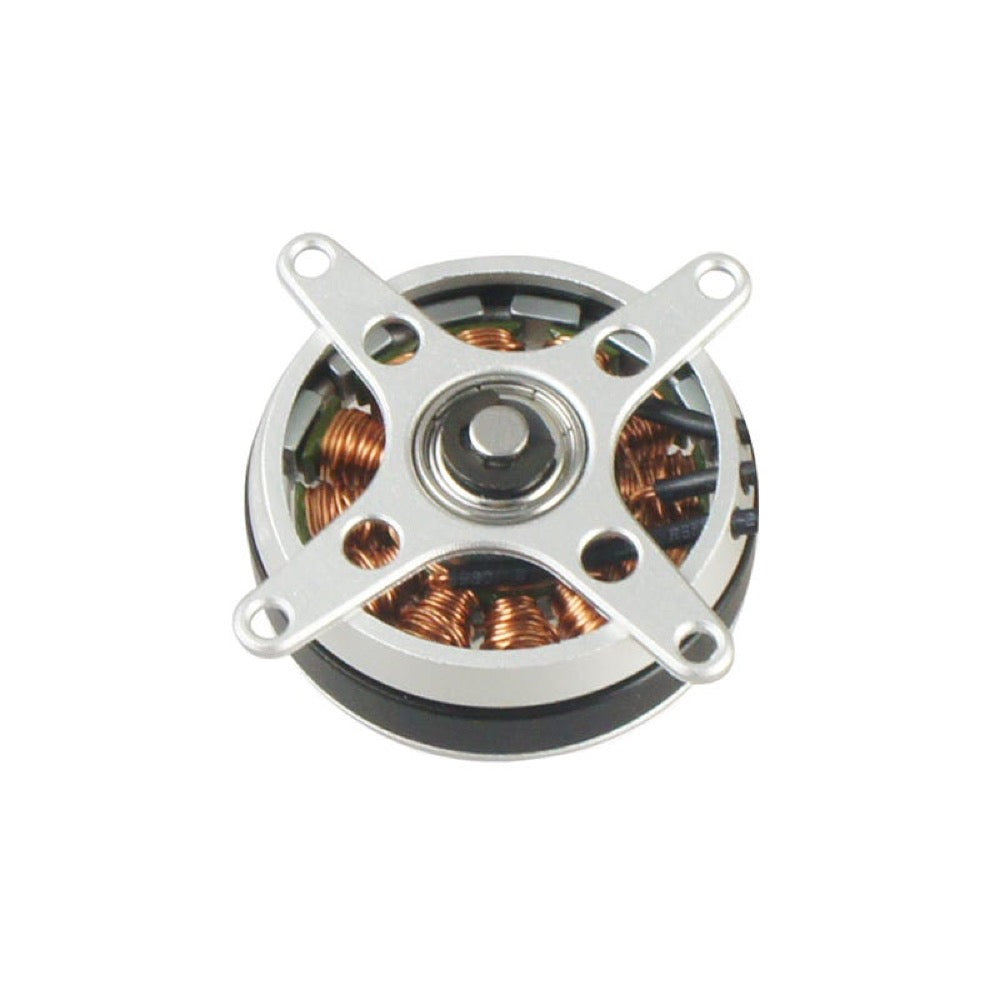

Dualsky DSXM51635 ECO 2303C 2000kv Brushless Motor

The Dualsky ECO 2 Series motors have made great improvements in many aspects. It brought a new electromagnetic design, more competitive performance and efficiency, long-time endurance and waterproof.

Features

• High temperature resistant
• Impact resistance increased by about 10g
• NMB ball bearings are durable and low noise
• Motor working life significantly increased by 50% compared to V1
• Up to 500V insulation level
• Rust-proof main shaft

Specification

• KV: 2000
• Turns: 23
• Weight: 19 g
• Dimensions (D x L): 28.5 x 15.7 mm
• Slots & Poles: 12N14P
• Ri (mOhm): 170.2
• Io @ 10V: 0.4 A
• No of Cells (LiPo): 2 - 3
• Max. Efficiency Current: 7 A
• Max. Burst Current (15S): 11.5 A
• Max. Power (15S): 92 W
• Max. Torque [N*M]: 0.066
• Shaft Diameter: 3.175 mm
• Mounting Holes Pitch: 32
• Input Connectors: GC2.0
• Recommended ESC: XC-12-LITE or XC1010BA
• Propeller: 2S: 7x4E, PT8x3i 3S: 5x3E
• Class: 100-150g airplanes e.g. F3P or indoor freestyle
