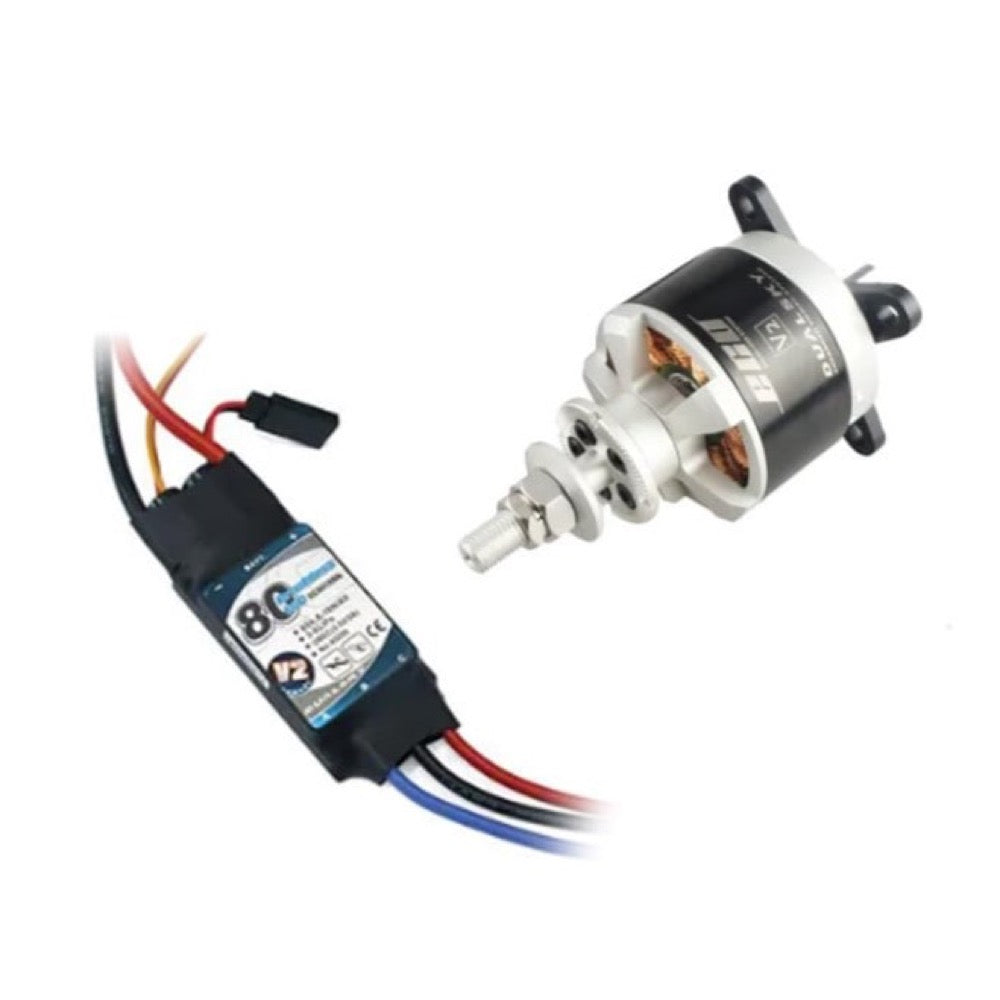

Dualsky 70E Tuning Combo with ECO 4120C V2 500kv Motor and 80A ESC

Product Code: DSTC.6A.70E
$257.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This is new ECO V2.

Features

  • Classic Dualsky five-spokes back cover with simple lines. The nuances are quite different.
  • Traditional Dualsky color matching (silver-black-sliver), anodized and matte finishing
  • Multi-surface rotating laser marking, Logos, model and traceable serial number
  • Motor structure strength increased by 25%
  • Optimized stress distribution and strength increased but it did not increase the weight.
  • High strength and high toughness main shaft (HRC48)
  • The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
  • High temperature resistant, high toughness epoxy glue
  • Due to the above optimizations. The impact resistance increased about 10G, and the survival ability is greatly improved.
  • High precision double sides dynamic balancing
  • Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
  • Optimized heat dissipation ways
  • Motor working life significantly increased by 50% (same load and working environment)
  • Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
  • Up to 500V insulation level. The stator is coated with insulated-coating and completely insulated after winding.

Motor

  • KV: 500
  • Turns: 8
  • Weight: 280g
  • Size (D x L): 49.5 x 45.2
  • Slots & Poles: 12N14P
  • Ri (mOhm): 25
  • Io @ 10V (A): 1.1
  • No. of Cells (LiPo): 5S, 6S
  • Max. Efficiency Current (15S) [A]: 36
  • Max. Burst Current (15S) [A]:
  • 60Max. Power (15S) [W]: 1440
  • Max. Torque: 1.38
  • Shaft Diameter: 6
  • Mounting Holes Pitch: 30/30
  • Input Connectors: GC4.0
  • Recommended ESC: XC-65-LITE or XC6018BA
  • Propeller: 5S: 16x8E, 15x8E or 6S: 14x7E, 15x8E
  • Class: .46-.55 2-stroke

ESC

  • Dimensions (L x W x D): 75 x 30 x 14 mm
  • Weight: 71 g
  • Number of Cells: NiXX 6-18, 7.2-21.6V
  • LiPo 2-6, 7.4-22.2V: Resistance (Ri) mOhm: 0.0016
  • Max Cont. Current: 80 A
  • Max Cont. Output: 1680 W
  • Max. Burst Current: 100 A
  • Max Burst Output: 2040 W
  • BEC / Dissipative Power: 5.5V/3A (Switching)
  • Programmable: Throttle + ProgCARD + USB LINK
  • Input Wires: 150 mm 12AWG, DC3
  • Output Wires: 90 mm, 14AWG, DB4
  • Signal Wire: 300 mm JR
  • Applications: .70 Class Aerobatic
