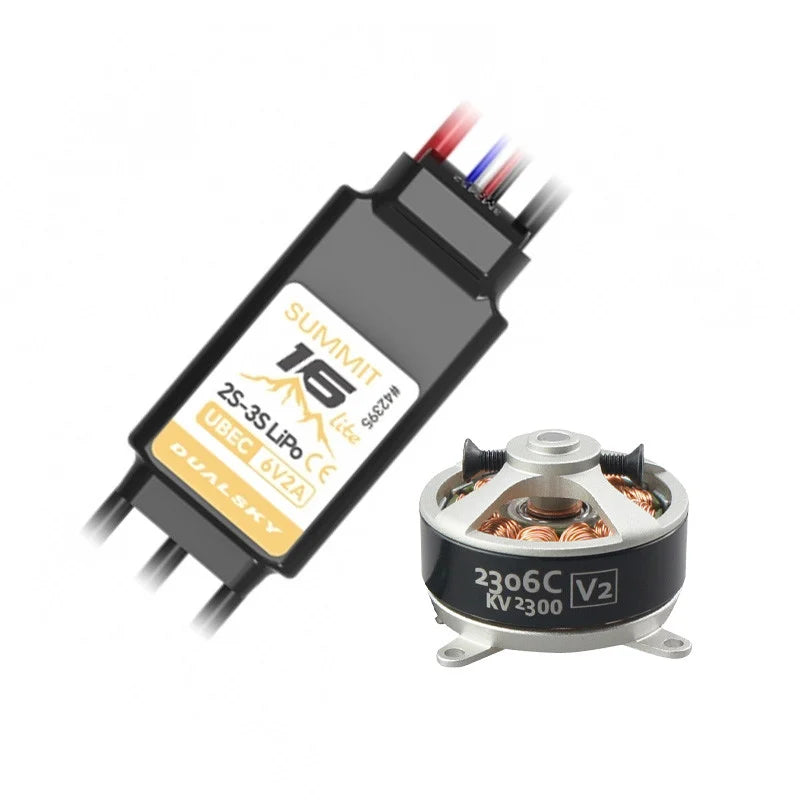

Dualsky 200H Tuning Combo with 2306C V2 2300kv Motor and Summit Lite 16A ESC

Product Code: DSB59304
$59.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 200H Tuning Combo with 2306C V2 2300kv Motor and Summit Lite 16A ESC is compatible with 2S-3S LiPo batteries and is designed for 200-300g aiplanes (e.g. Popular EPP profile planes).

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

  • Kv: 2300
  • Turns: 9.5
  • Weight: 30 g
  • Dimensions: 28.8 x 20.9 mm
  • Slots & Poles: 12N14P
  • Ri (mOhm): 61.2
  • Io @ 10V: 1.1 A
  • No. of Cells: 2 - 3
  • Max. Efficiency Current: 13.5 A
  • Max. Burst Current (15S): 22.5 A
  • Max. Power: 180 W
  • Max. Torque: 0.112
  • Shaft Diameter: 3.175 mm
  • Mounting Holes: 32
  • Input Connectors: GC2.0
  • Recommended ESC: XC-22-LITE or XC1812BA
  • Propeller: 2S: 8x4E, PT10x30i, 3S: 5.1x4.5E, 6x3E
  • Class: 200-300g aiplanes e.g. Popular EPP profile planes

ESC Specs

  • Dimensions (LxWxH): 32 x 15 x 5.5mm (w/o wire)
  • Weight (w/ wire): 10.2g
  • Number of Cells: 2S-3S LiPo, 7.4V-11.1V
  • Continuous Current: 16A
  • Burst Current: 30A
  • Resistance (Ri) (mOhm): ~4.8 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 2A const./4A peaks
    Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default = Maximum (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 20AWG, 100mm w/ JST
  • Wires to Motor: 20AWG, 50mm w/ DB2F
  • Signal Wires: JR, 150mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
