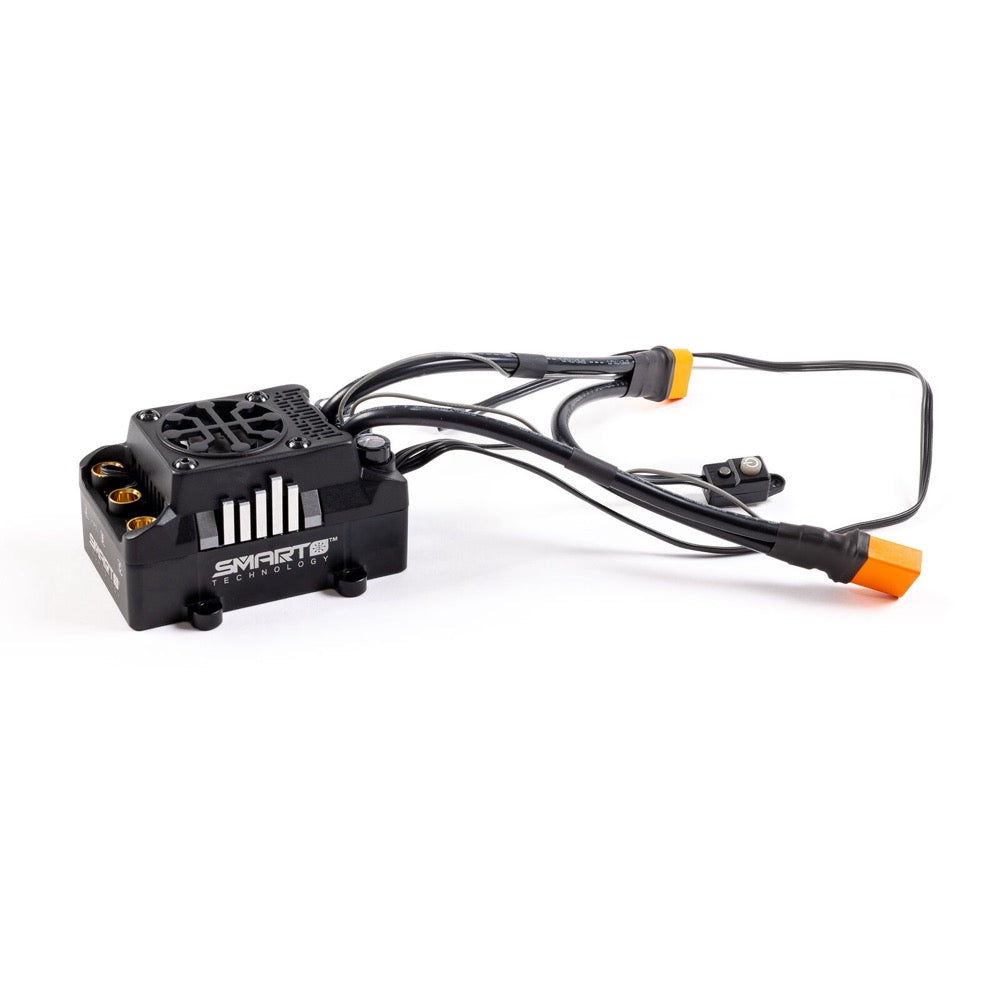

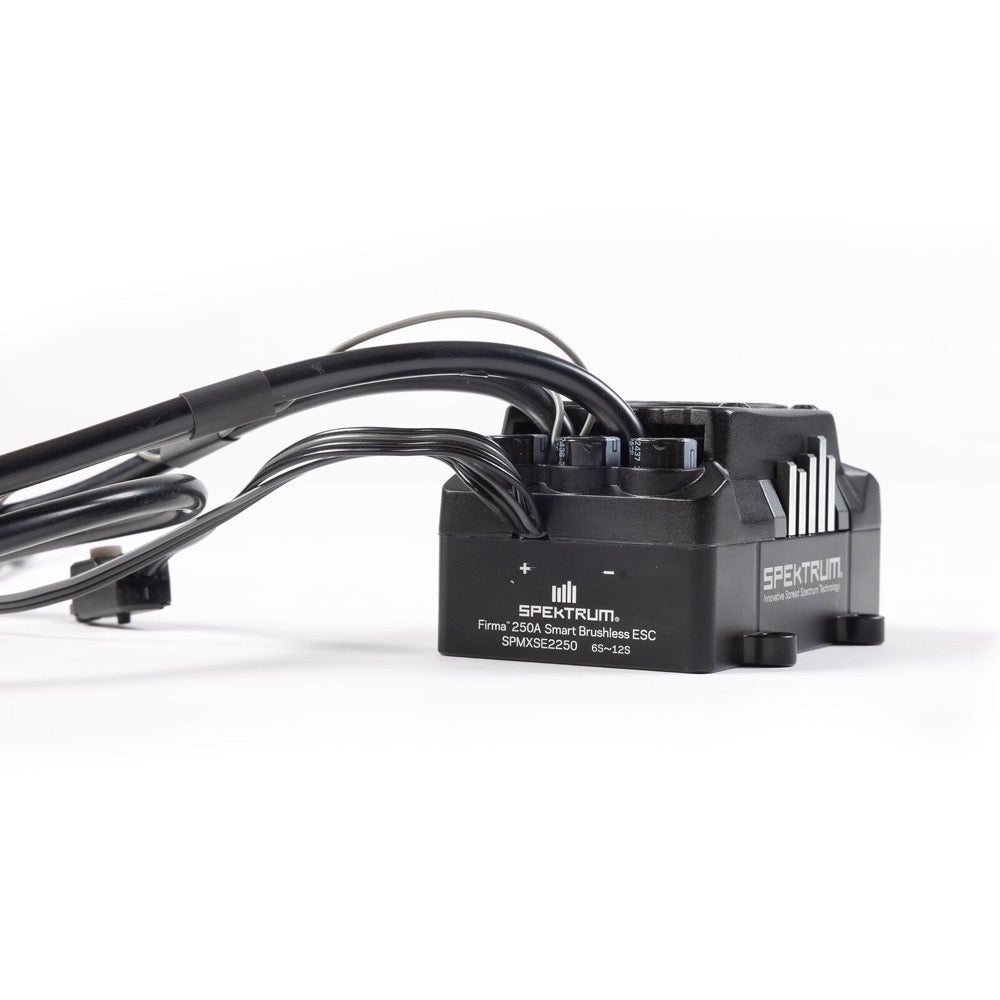

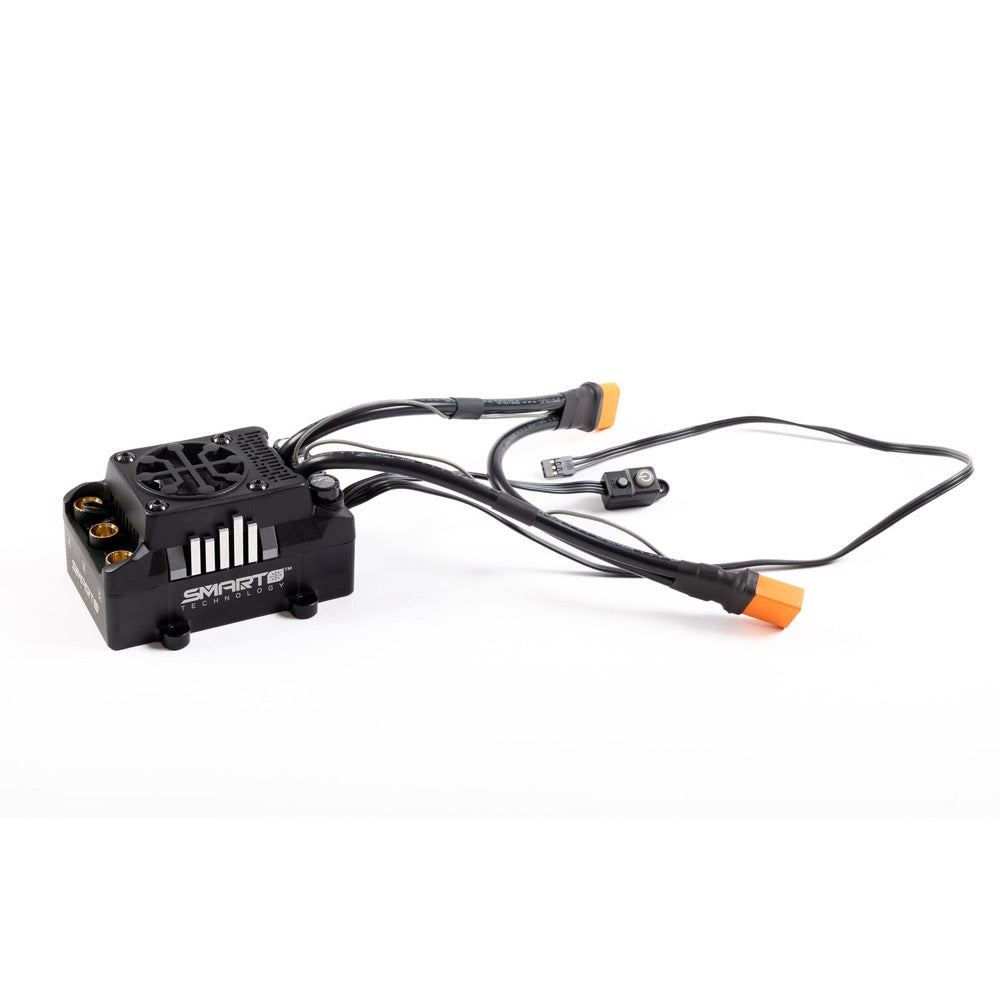

Spektrum Firma 250A 6S-12S Brushless Smart ESC with Dual IC5 Connectors 5IVE-TE 3.0

Product Code: SPMXSE2250
$499.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

The feature-packed Firma™ Smart Sensorless ESCs are the first of their kind, delivering power and intelligence all in one — no additional modules or links are required. This 250A Brushless Smart ESC gives your 1/5 Scale vehicle the ultimate drive while feeding real-time telemetry straight to your Spektrum radio.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof*

Multiple options for easy programming:

  • Button programming
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application

Multi-point protection:

  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
  • Developed and designed by Spektrum™ engineers in partnership with the
    industry's leading ESC manufacturer
  • Designed specifically for 1/5 scale surface vehicles running on 6S - 12S LiPo Power
  • High current adjustable BEC (6.0V/7.4V/8.4V Adjustable @ 8A)
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • Limited 1-year warranty

* See manual for details

Contents

  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum Smart Sticker Sheet
  • (1) Product Manual

Requires

  • (1) Spektrum Transmitter
  • (1) Spektrum Surface Receiver
  • (1-2) Spektrum Smart LiPo Batteries

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.


  • Amperage : 200A +
  • Application : 1/5 vehicles
  • BEC : Yes
  • BEC Continuous Current : 250A
  • BEC Maximum Burst Current : 1600A
  • Connector Type : IC5
  • Cooling Method : Fan
  • LiPo Compatibility : 6S, 8S, 12S
  • Low-Voltage Cutoff Programmable : Yes
  • Motor Type : Brushless
  • Output : 6.0V/7.4V/8.4V Adjustable @ 8A
  • Output Connector : IC5
  • Overload Protection : Yes
  • Programmable : Yes
  • Water-Resistant : Yes
