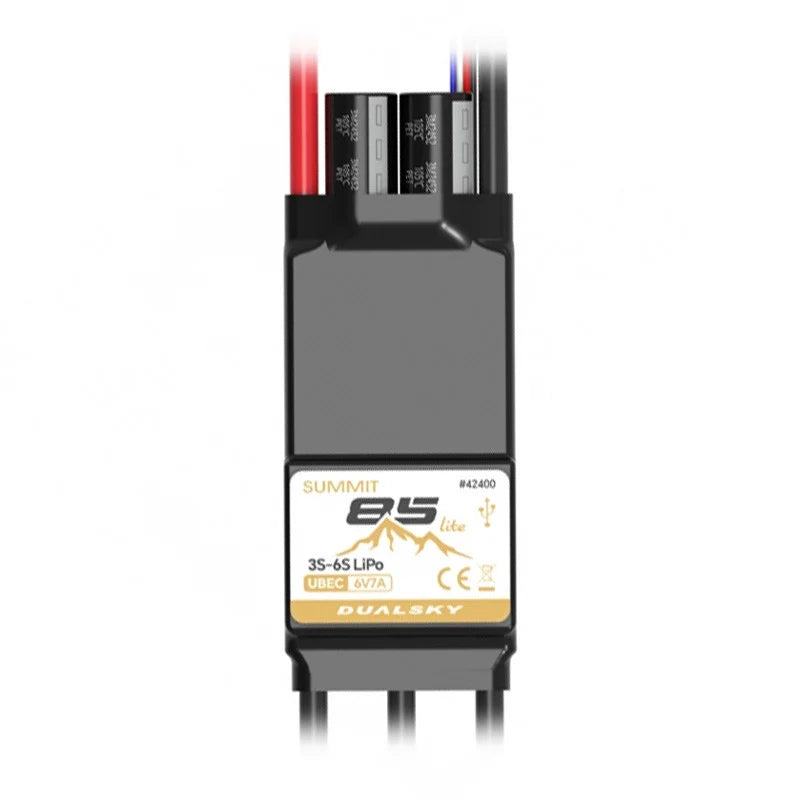

Dualsky Summit Lite 85A 3S-6S ESC

Product Code: DSB42400
$78.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky Summit 85A Lite 3S-6S ESC is designed for models requiring a high-current ESC output, such as 3D aircraft or EDF jets with landing gear and/ or lighting systems. Each ESC in this series is programmable with the Dualsky USB Link Multi Purpose (DSB22382, sold separately).

Features

  • A new generation of cost-effective 32-bit ARM electric drive systems
  • Drive frequency up to 48MHZ
  • Maximum speed up to 510k eRPM
  • Multilayer low internal resistance PCB motherboard an excellent heat dissipation substrate
  • Implemented multiple protection: throttle, voltage, current, temperature, and low RPM
  • Provides sufficient power supply to 3D aircraft, EDF jets, landing gear, and lighting systems
  • Integrated high-current UBEC
  • Excellent peak performance
  • Effectively avoids Sync-Loss conditions
  • Supports Dualsky GA series 28-pole motors
  • Supports SINE wave mode, with efficiency up to 5%
  • Supports regenerative braking
  • Selectable rotation direction
  • Supports bidirectional operation mode
  • In addition to PWM throttle signal, it also supports Multishot, Oneshot, Dshot and Proshot protocols with Dualsky TELElink (not included)
  • 100% load test passed, in line with ISO9001:2015 quality system
  • Programmable with Dualsky USB Link MP and PC programming software
  • Dimensions (LxWxH): 84 x 36 x 9.5mm (w/o wire)
  • Weight (w/ wire): 84g
  • Number of Cells: 3S-6S LiPo, 11.1V-22.2V
  • Continuous Current: 85A
  • Burst Current: 110A
  • Resistance (Ri) (mOhm): ~2.4 milliohm
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 7A const./10A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=18°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 50% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default =125ms (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 12AWG, 200mm
  • Wires to Motor: 12AWG, 100mm w/ DB4F
  • Signal Wires: JR, 350mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
