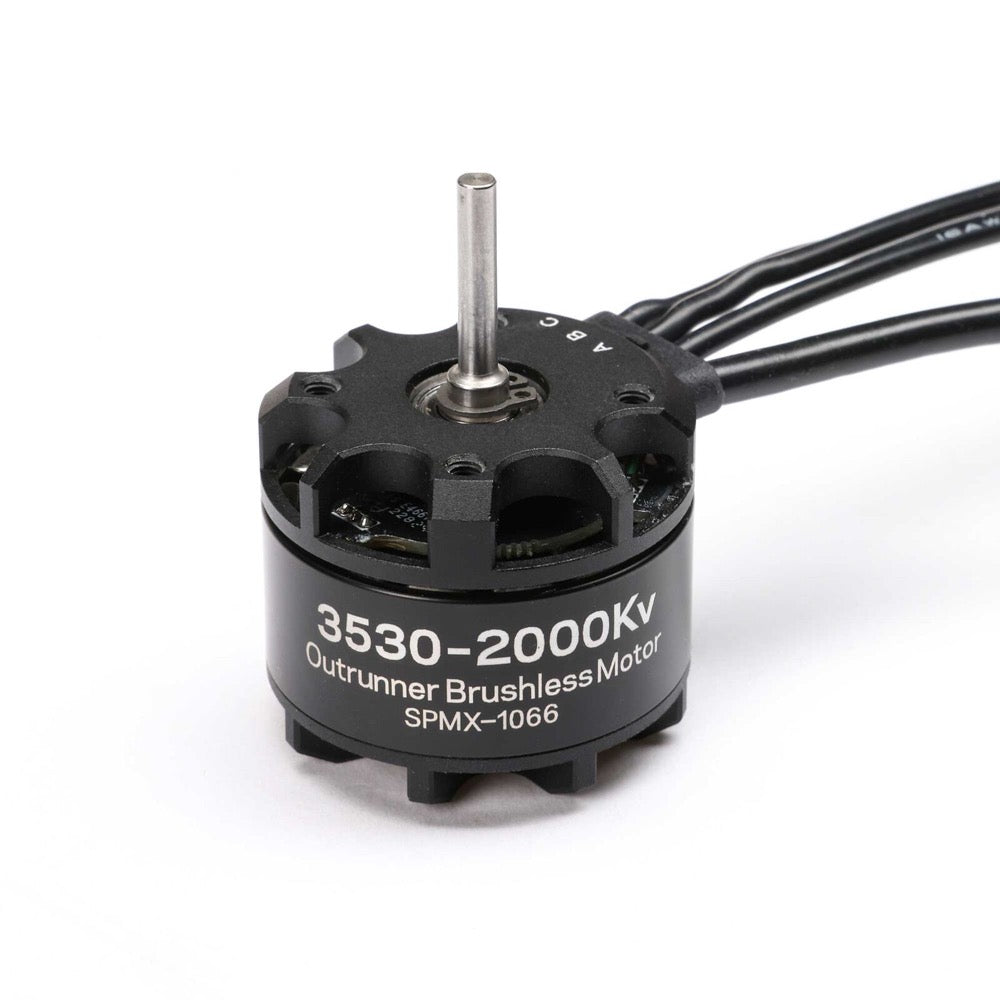

Spektrum Firma 3530 2000KV 14 Pole Sensored Outrunner Motor, 3.175mm Shaft

Sensored outrunner motor developed for 1/10th scale crawlers and scalers. Pairs perfectly with the SPMXSE2060S ESC.

The Spektrum® Firma™ 3630 2000Kv Brushless Outrunner Motor is a great choice for Scaler and Crawler models running on 2-3S LiPo power. This motor features a 14-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and a high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.

Features

• 2-3S LiPo Power Compatible
• 14-pole Outrunner
• 3.175mm Output Shaft
• Pre-installed 3.5mm Gold-Plated Bullet Connectors
• (1) Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

• Connector Type : 3.5mm Bullet
• Connector Wire Length : 8.07" (205 mm)
• LiPo Compatibility : 2S, 3S
• Manufacturer # : SPMXSM8000
• Motor Type : Brushless
• Number of Poles : 14
• Outer Diameter : 1.37" (35 mm)
• Product Length : 1.18" (30 mm)
• Product Weight : 95g
• RPM/Volt (Kv) : 2000Kv
• Shaft Diameter : 0.12" (3 mm)
• Shaft Length : 0.72" (18 mm)
• Voltage : 7.4v - 11.1v

Download Product Manual
